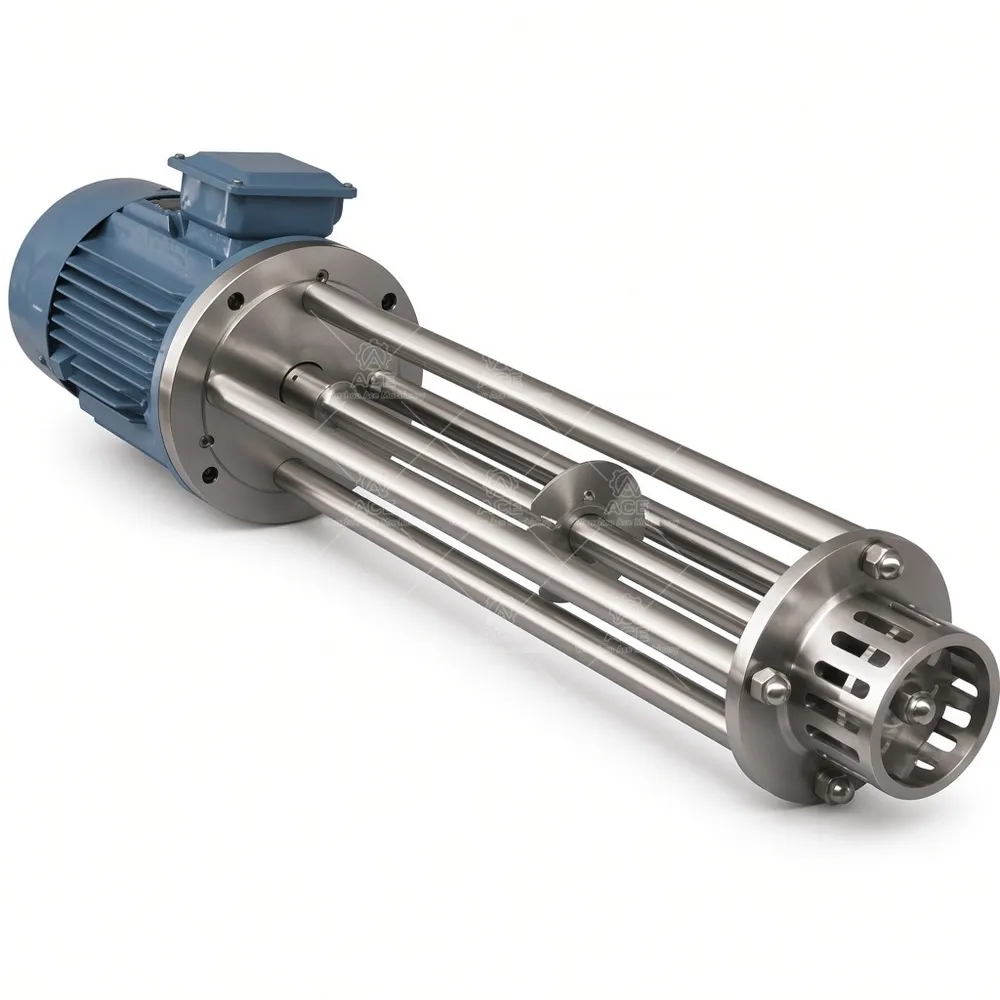

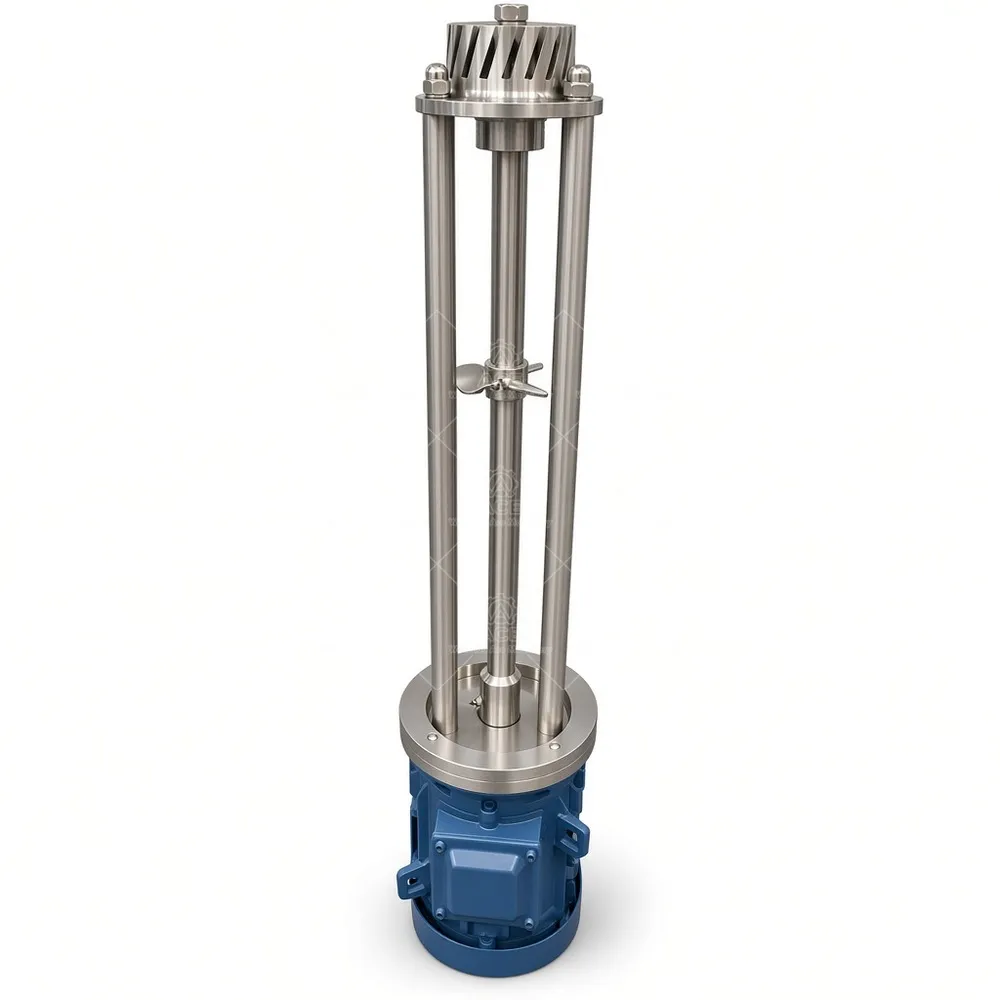

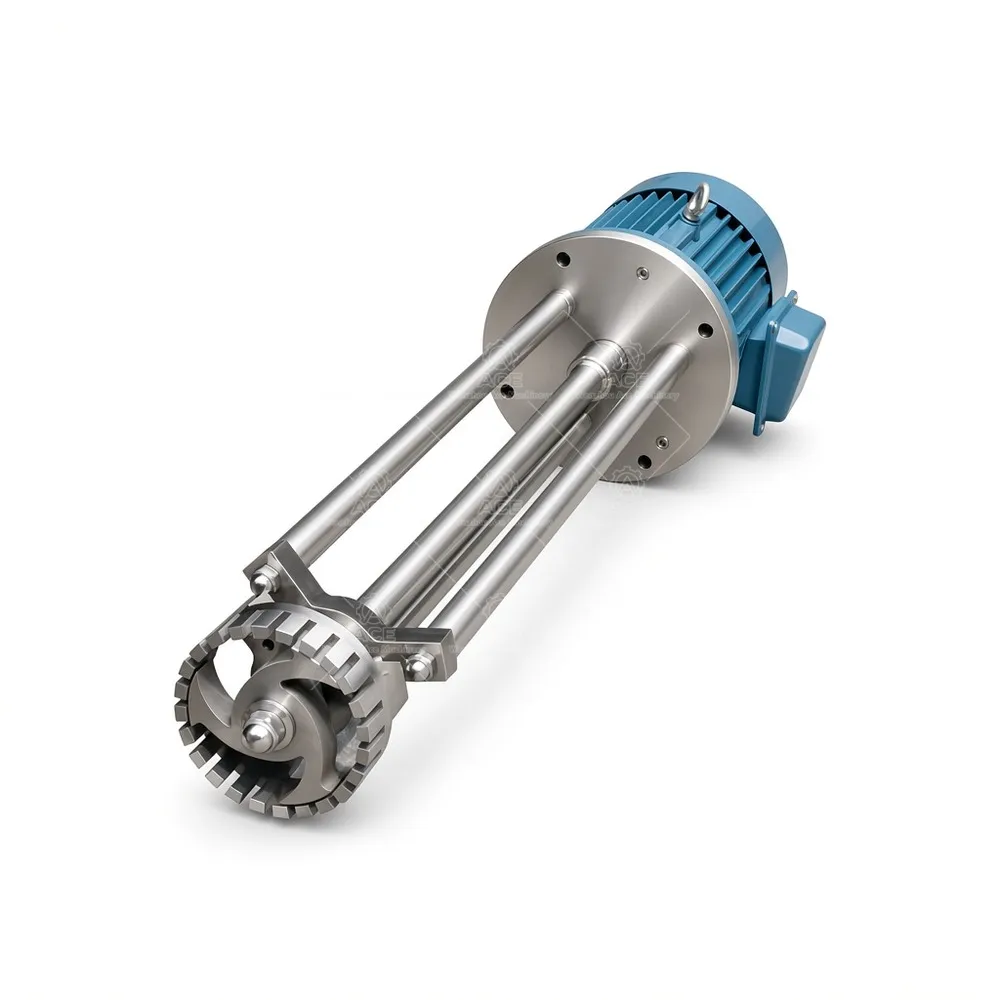

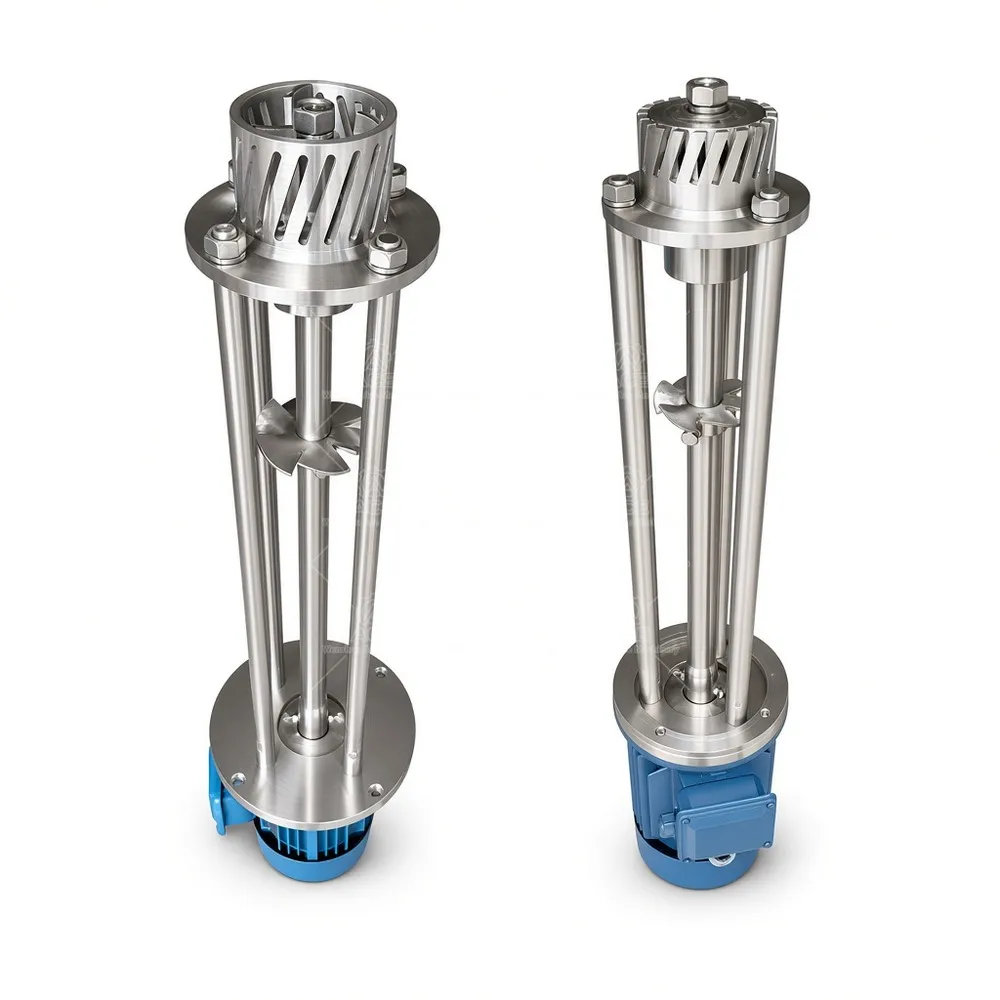

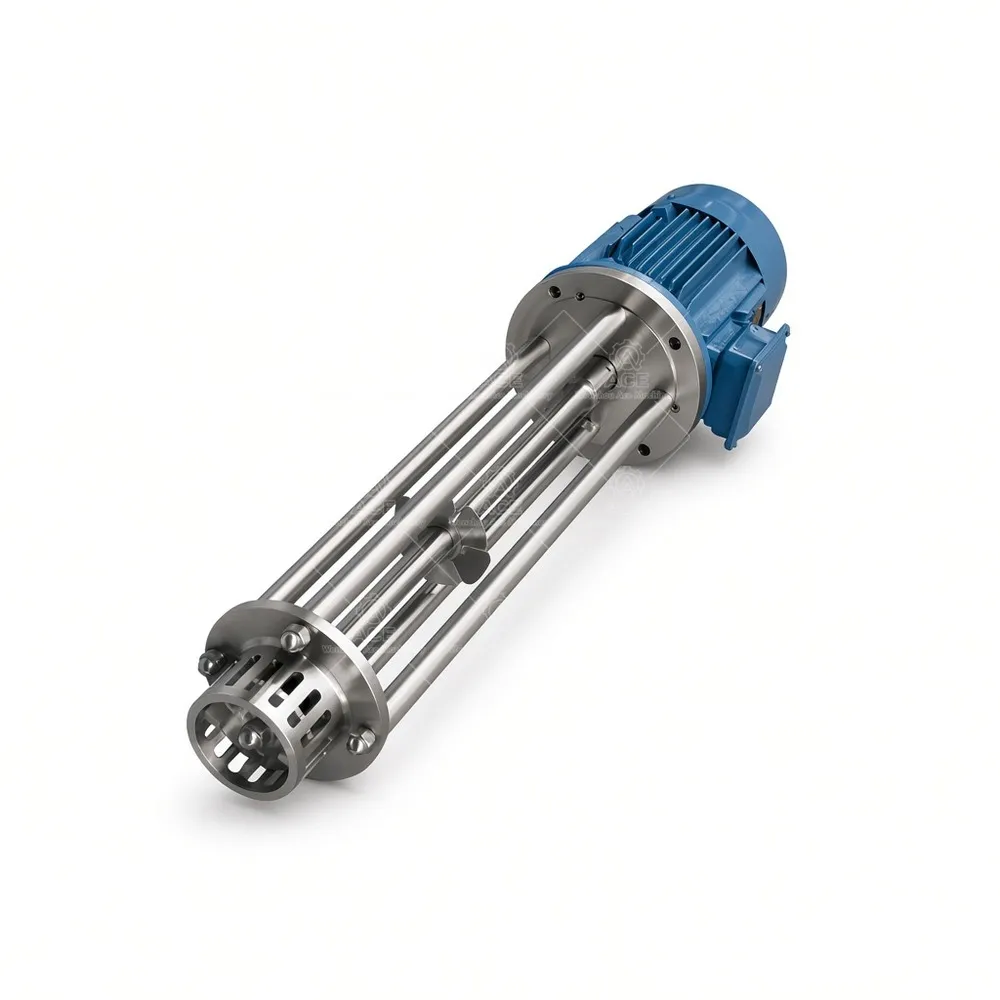

High Shear Emulsifier Mixer Homogenizer for Cream, Shampoo, Mayonnaise
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,128.01 through $1,211.60
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
A batch mixer sized to the product, not to a catalog page
Formulators usually arrive here after a specific failure. Xanthan gum that gels on contact and leaves fish eyes in the tank. A shampoo base that looks fine in a beaker and goes dull at 500 liters. Mayonnaise that holds for an hour and separates overnight. Each of these points back to shear intensity, head geometry, and how the powder enters the liquid — which is why we configure this batch high shear mixer around your process instead of shipping one fixed build.
Configuration range
- Speed control: optional VFD, adjustable from 0 to 3000 rpm depending on the motor and drive package selected
- Motor power: 1.5 kW to 55 kW, matched to batch viscosity and volume
- Electrical supply: 220V to 480V; voltage, frequency, and phase confirmed against your site before build
- Mixing functions: high shear, dispersion, emulsification, and powder wet-in
- Wetted parts: 304 or 316L stainless steel, with contact materials specified per product chemistry
- Mounting: fixed tank mount or mobile frame with casters for multi-tank rooms
Agitator head design, shaft length, and control level remain open until we see your formulation. A 316L stator with a fine slot pattern behaves very differently from an open dispersing head on the same motor.
Where this unit fits
Food plants run it on sauces, dressings, and gum hydration. Cosmetics and personal care use it for creams, lotions, and shampoo bases. Pharmaceutical and healthcare producers apply it to topical formulations, gels, and suspensions. Chemical processors use it for binder and additive dispersion, and coatings manufacturers for pigment wet-out. The same caveat applies across all of them: head selection, contact material, and running parameters follow from viscosity, solids loading, and the tolerance your product allows.
Common questions
How do I pick between batch and inline? If your product cycles through a holding tank and each batch is a discrete recipe, batch shearing is usually simpler to validate and clean. Continuous throughput favors inline.
Do I need a VFD? It helps when a single unit covers several products at different viscosities. For one fixed recipe at steady volume, a fixed-speed drive is often enough.
Mobile or fixed? Mobile frames suit plants running several tanks per shift. Fixed mounts suit dedicated vessels with a single product family.
Can I add powder under shear? Yes, with the right head and a controlled feed rate. Adding too fast defeats the purpose of the head.
Get a configuration, not a quote sheet
Send us batch volume and vessel dimensions, viscosity range and solids content, target rpm, motor power you expect, head preference, and your local voltage, frequency, and phase. Ace Mixer builds to that information, and we will tell you if a different configuration serves you better.
A configurable batch high shear mixer for emulsifying, dispersing, and powder wet-in. Motor power from 1.5 kW to 55 kW, optional VFD up to 3000 rpm, 304 or 316L wetted parts, and fixed or mobile mounting. Built by Ace Mixer for cosmetic, food, pharmaceutical, and chemical batches, with head and drive selection matched to your viscosity and vessel.
Single-stage in-line mixer
Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
