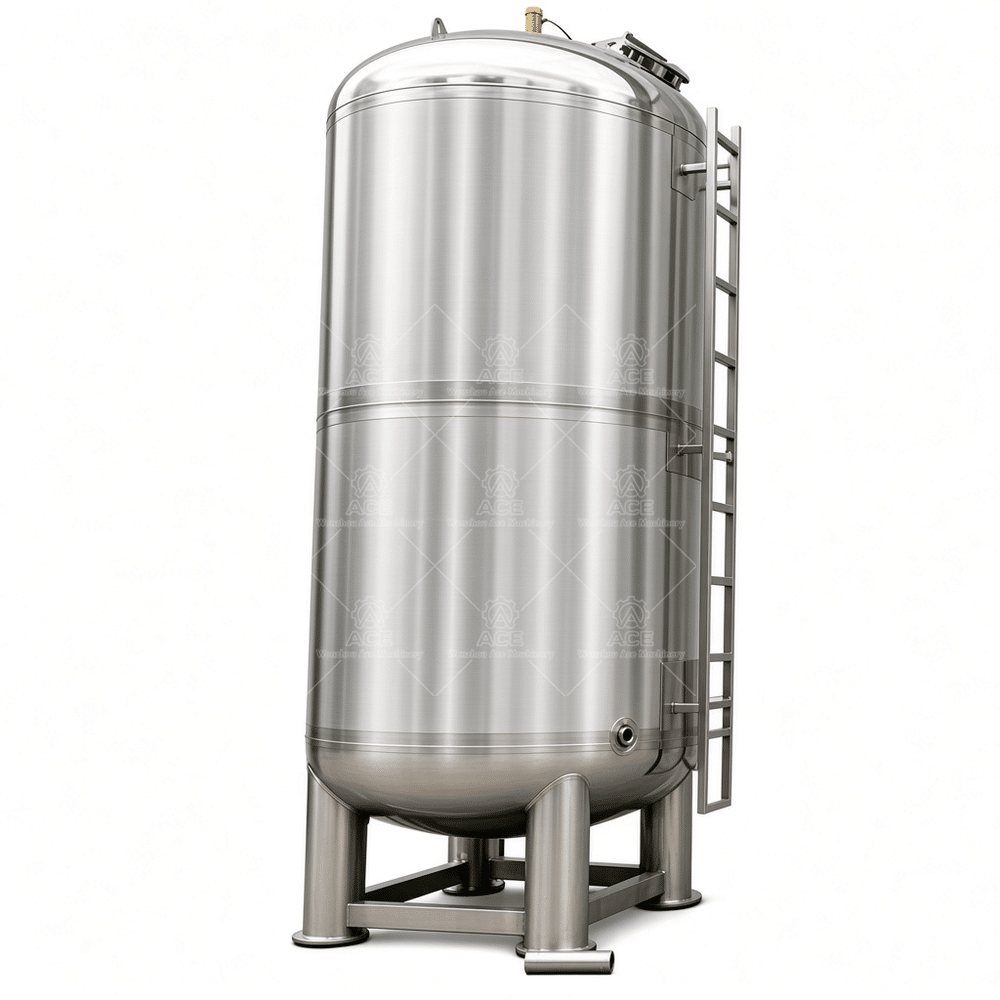

Heavy-Duty Stainless Steel Liquid Storage Tank for Water, Chemical, Glue & Oil
Heavy-duty stainless steel liquid storage tank for water, chemicals, glue, and oil. Available in 304 or 316L, atmospheric design, custom capacity up to 50,000 L. Ideal for industrial plants requiring clean, durable storage.
- Tank Capacity: [50L–100,000L or specify actual capacity]
- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,687.59 through $3,267.84
Guaranteed Safe Checkout
We build stainless steel storage tanks for liquids that need to stay clean, stable, and safe over long periods. This is a welded, atmospheric-pressure vessel designed for water, chemical solutions, glue, and oil—not a one-size-fits-all tank, but a robust workhorse for industrial plants that value predictable performance.
The shell is made from 304 or 316L stainless steel, depending on what you store. For corrosive chemicals or frequent caustic washdowns, we recommend 316L. For water, non-chlorinated chemicals, and most oils, 304 is sufficient and more economical. We do not guess on material selection—send us your liquid\’s pH, temperature, and any chloride content, and we\’ll specify the right grade.
All welds are full penetration, ground smooth, and passivated. Interior surfaces are available in 2B, BA, or mirror polish, with a roughness of 0.4–0.8 µm for sanitary applications. If you need a sloped bottom for complete drainage, we fabricate a cone or dish bottom with a low-point outlet. Manways, vent caps, level sensors, and CIP spray balls are added based on your process layout.
We do not offer vacuum or pressure-rated versions of this tank unless you specifically request them—those require different wall thicknesses, head shapes, and stamped certifications. This tank is built for atmospheric service only. If you need pressure or vacuum, tell us the rating, and we\’ll design accordingly.
Typical uses include raw water storage, chemical dosing tanks, adhesive holding vessels, and lube oil reserve tanks. We have delivered similar units to food processing lines, textile dye houses, and small chemical plants. The tank is heavy-duty, with reinforced legs and lifting lugs, rated for outdoor installation.
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity | 500–50,000 L (custom) |
| Material | SUS304 / SUS316L |
| Design Pressure | Atmospheric |
| Surface Finish | 2B / BA / Mirror (0.4–0.8 µm) |
| Bottom | Flat, dished, or cone |
| Options | Manway, CIP spray, level gauge, heating jacket |
FAQ
Q: How do I choose between 304 and 316L?
If your liquid contains chlorides, acids, or you wash with hot caustic, use 316L. For neutral pH and low chloride, 304 is fine.
Q: Can this tank handle mixing?
Yes, we can add a top-mounted agitator flange and baffles. Specify the required RPM and impeller type.
Q: What about insulation and heating?
We can add a cladding jacket with electric or steam heating. Provide your target temperature and heating medium.
Q: Do you provide installation drawings?
Yes, we send dimensional drawings and foundation details before production.
To get a correct quote, tell us: the liquid to be stored, working capacity, material grade, operating temperature, tank dimensions or space limits, and any special requirements like agitation or insulation. Send those details to our engineers, and we\’ll respond with a recommended configuration and pricing.
