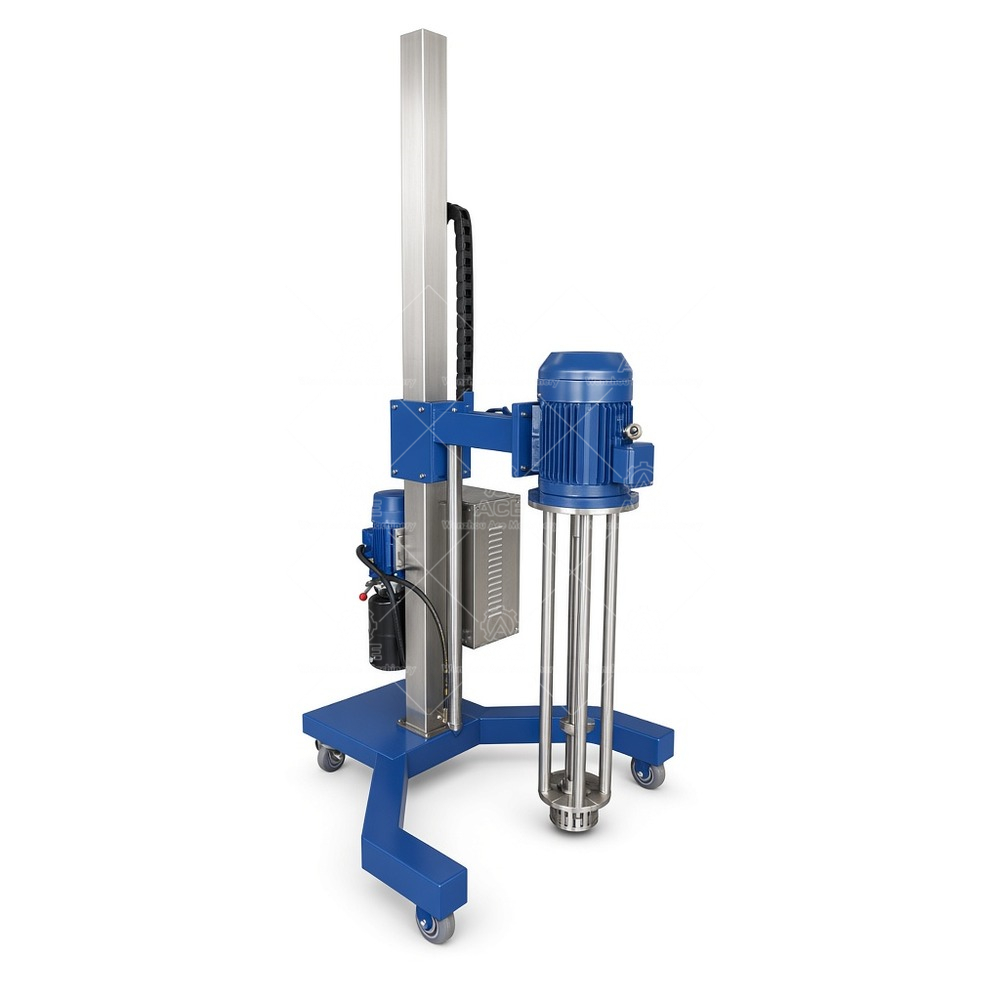

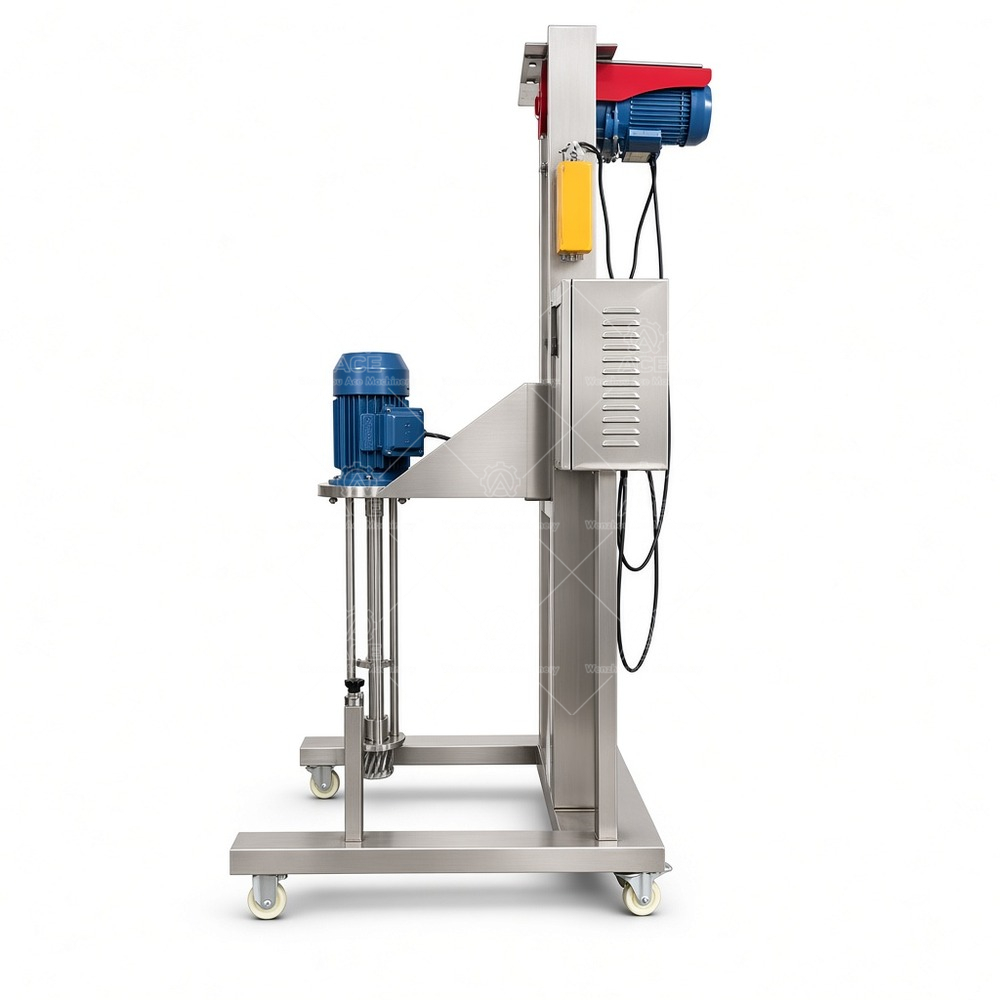

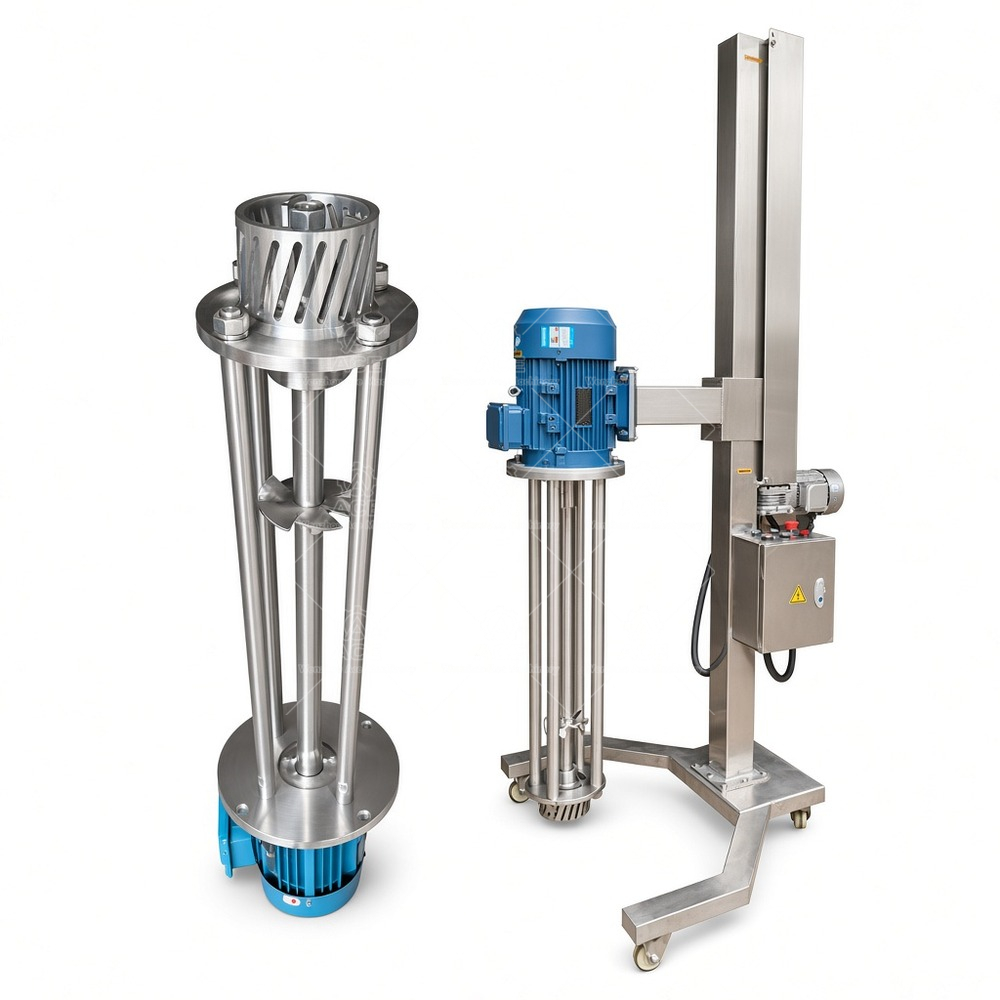

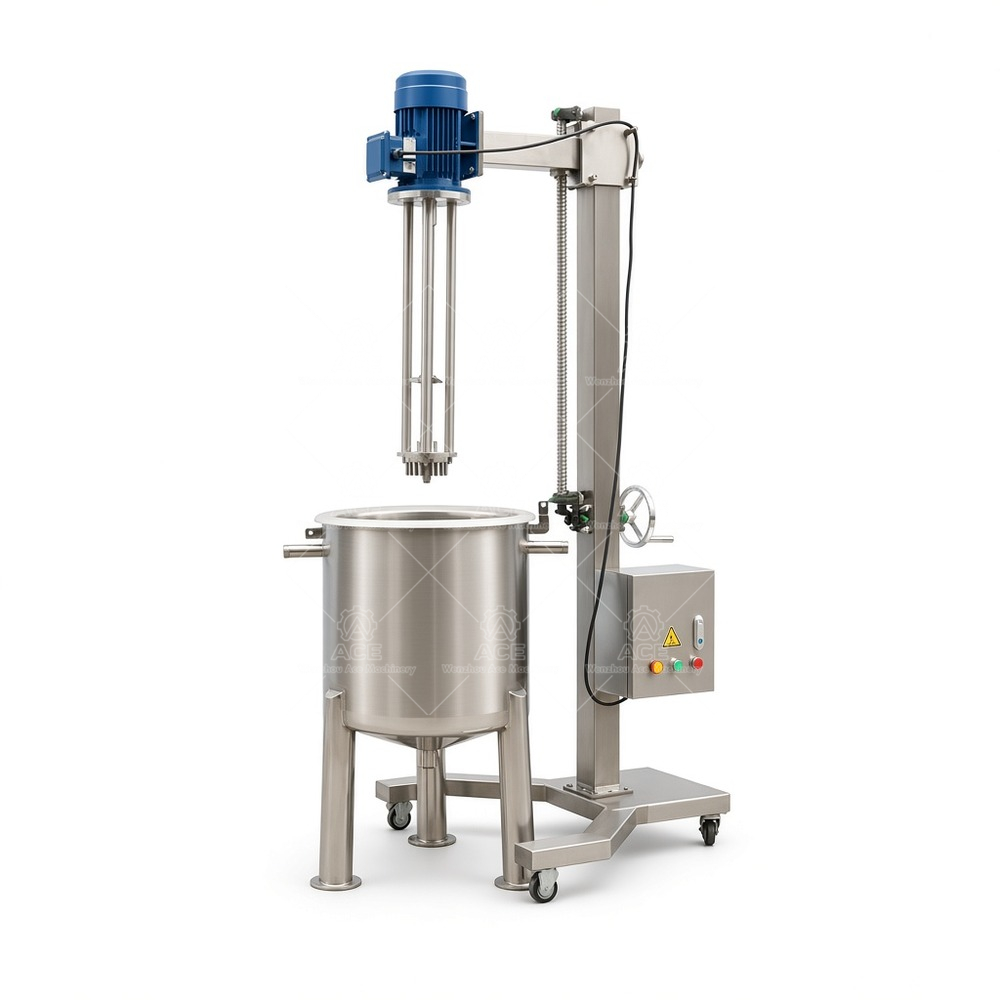

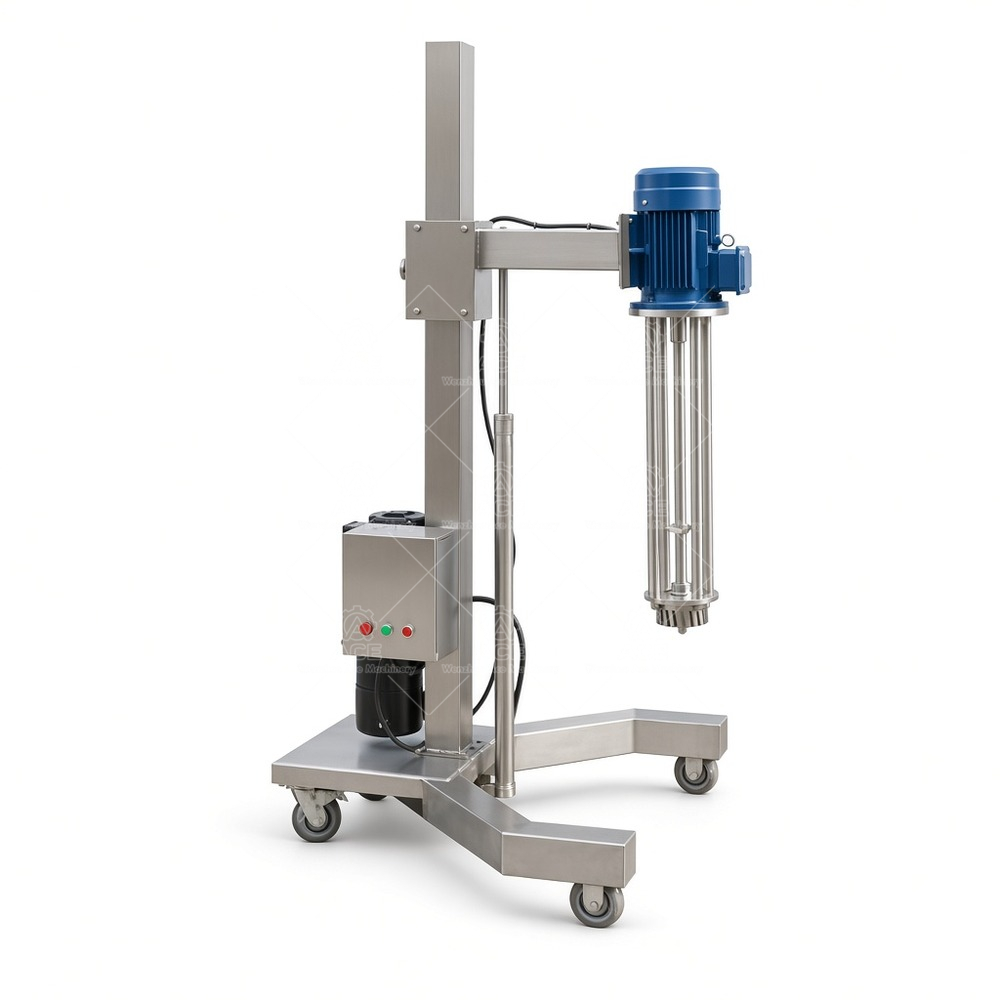

Electric Lift High Shear Homogenizer Mixer for Cream, Shampoo, Shower Gel
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,435.21 through $3,733.55
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Batch High Shear Mixing for Creams, Shampoos, and Shower Gels
This electric lift, mobile high shear mixer is designed for plants that need one unit across several batch vessels or processing positions. Rollers allow movement between kettles where the layout permits; for dedicated tanks, we configure a fixed installation. A high-speed rotor/stator head provides shear for emulsifying, dispersing, and powder wet-out in liquid systems.
We size the motor from 1.5 kW to 11 kW around viscosity, batch size, and head selection. A VFD makes it a variable speed high shear mixer, with 0 to 3000 rpm available depending on the chosen motor and configuration. Voltage is confirmed for your site: 220V to 480V, including frequency, phase, and electricals. For product changeovers, wetted stainless steel parts on this stainless steel high shear mixer are specified around your cleaning and compatibility requirements.
What to Confirm Before Selection
- Batch volume plus container or tank dimensions
- Viscosity, solids content, and powder addition method
- Required shear intensity and speed range
- Motor power, voltage, frequency, and phase
- Rotor/stator head design and wetted materials
- Mobile or fixed installation and cleanability needs
When sizing a batch high shear mixer, these details matter more than a single horsepower figure. Mobile high shear mixers suit multi-product areas but need clear floor space. Fixed units can be better for repeat batches in one vessel. As an industrial high shear homogenizer manufacturer, Ace Mixer builds high shear mixing equipment around the process, not a catalog default.
Applications
Typical uses include cosmetic and personal care creams, shampoo and shower gel; food and beverage dispersions; pharmaceutical and healthcare preparations; chemical processing; compatible paints, coatings, and industrial formulations; and powder dispersion or liquid-liquid emulsification. Head, material, and operating parameters depend on viscosity, ingredients, and process requirements.
FAQ
Can it serve multiple tanks? Yes, where space, power, and safe handling allow; otherwise choose a fixed setup.
Is speed adjustable? A VFD-equipped high shear mixer is available; confirm the range with motor and head selection.
What is needed for a quote? Batch size, material characteristics, target rpm, required motor power, and local electrical specifications.
Share your batch size, vessel details, viscosity, powder or liquid additions, and electrical supply with Ace Mixer. We will confirm the suitable high shear mixer for powder dispersion, emulsification, or both, and quote the right configuration.
Electric lift mobile high shear homogenizer mixer for creams, shampoos, shower gels, and compatible industrial batches. Configure motor power from 1.5-11 kW, VFD speed control up to 3000 rpm, and 220-480V electrics. Ace Mixer specifies rotor/stator heads, wetted stainless steel parts, and mobile or fixed setup around your batch size, viscosity, and process requirements.
