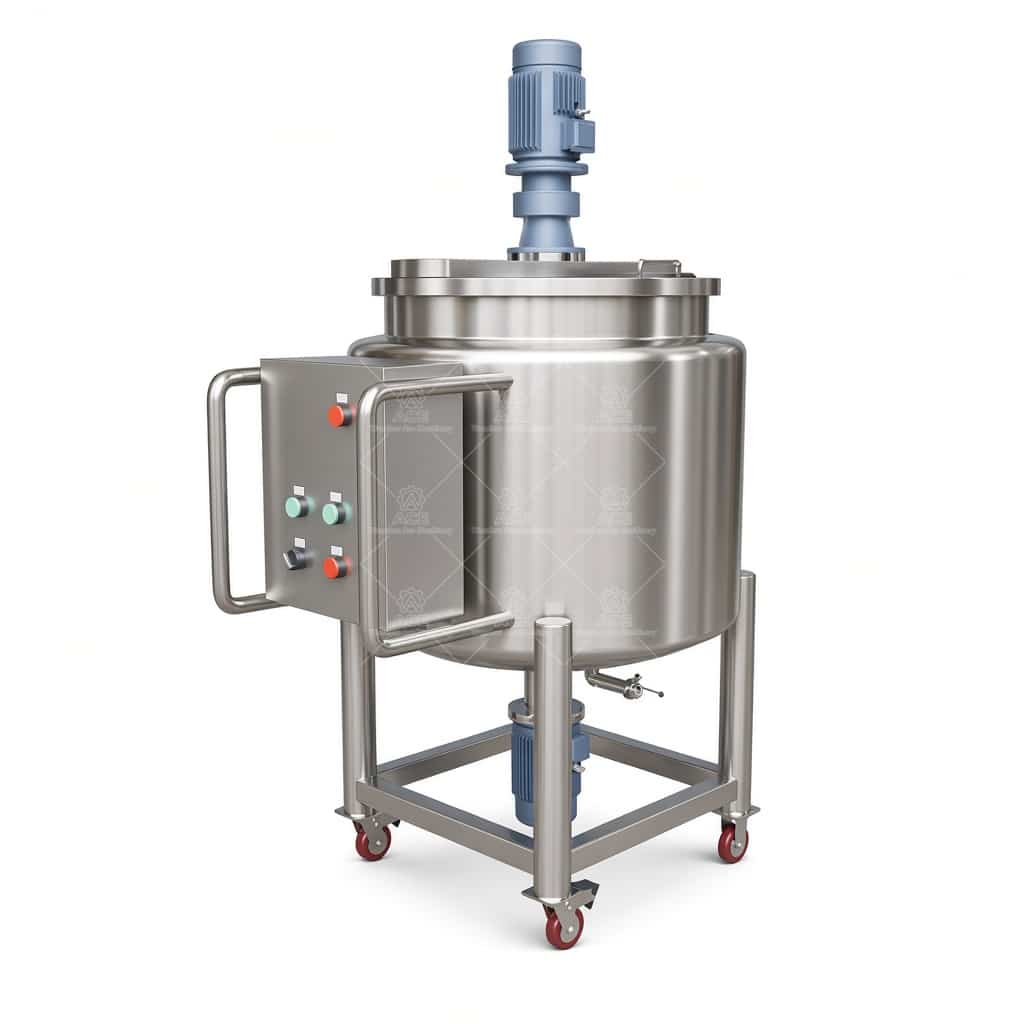

Electric-Heated Titanium Jacketed Reactor for Crystallization and Emulsifying

A configurable electric jacketed reactor for chemical crystallization and cosmetic emulsification. Vessel materials, heating controls, seals, surface finish, and agitator type are selected around product chemistry, batch conditions, and cleaning requirements. Share your volume, viscosity, temperature profile, and process details to develop a suitable equipment specification.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $2,197.52 through $2,515.72

Ask For A Quotation

Guaranteed Safe Checkout

Designed around the process

This jacketed stirred reactor can be configured for chemical crystallization or cosmetic emulsification when the batch needs controlled heating and mixing in one vessel. The right layout depends on product viscosity, solids content, temperature profile, batch volume, and cleaning method. Crystallization may call for steady heat transfer and gentle suspension; an emulsion may require a separate high-shear head alongside a slower anchor or turbine agitator.

We select wetted materials from the actual product chemistry. Titanium may suit corrosive formulations, but its grade and compatibility must be checked against acids, chlorides, cleaning agents, and process temperature. Stainless steel, such as 304 or 316L, may be appropriate for other product-contact surfaces or non-wetted structure. The final material schedule should identify every wetted component, including the shaft, impeller, probes, and drain valve.

Construction and controls

The heating jacket can be engineered for electric heating, with the heat-transfer arrangement and control strategy defined during design. Product temperature response depends on batch size, viscosity, jacket area, insulation, and heat loss. A sensor in the vessel measures product temperature; a jacket sensor alone may not represent the batch accurately. Control-panel requirements, over-temperature protection, and electrical supply should be confirmed against the installation site.

Weld procedures, internal finish, and surface roughness are specified to suit corrosion resistance, cleanability, and product requirements. Vessel geometry and polishing access matter: a difficult-to-reach weld or stagnant area can complicate cleaning and batch changeover. Seal selection depends on operating temperature, pressure, shaft speed, and chemical exposure.

Drive sizing follows the hardest operating condition, not just water-like mixing. We assess viscosity, impeller diameter, speed range, torque, and whether variable-speed control is needed. Anchor, pitched-blade, turbine, or high-shear heads serve different duties; adding a high-shear unit does not replace bulk circulation.

Configuration data

Item	Project basis
Working volume	Set by batch size and operating fill range
Wetted materials	Titanium grade and/or stainless grade confirmed by chemistry
Heating	Electric jacket; duty and controls engineered to process
Agitation	Impeller, drive, speed, and torque sized to product
Finish and seal	Specified by hygiene, cleaning, and service conditions

Common questions

Can one vessel handle crystallization and emulsification? It may, if both duties, cleaning needs, and agitator arrangements are defined before fabrication. What should accompany a quote request? Send batch volume, ingredient chemistry, viscosity range, solids loading, temperature schedule, pressure or vacuum needs, cleaning method, site power, and required materials. These details let our engineers recommend a practical configuration rather than guess at a standard build.
