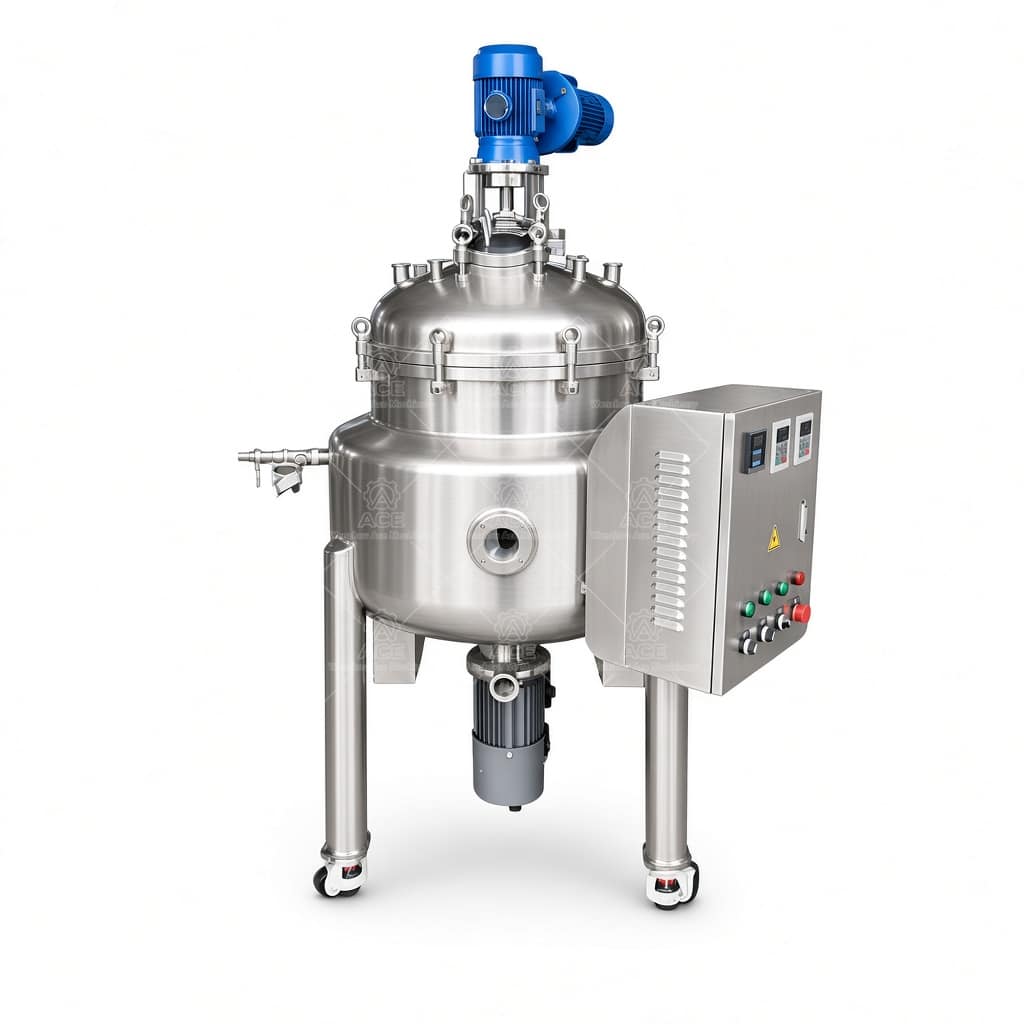

Custom Mixing Tank for Tomato Sauce, Sugar Syrup, and Beverage Processing - Image 1

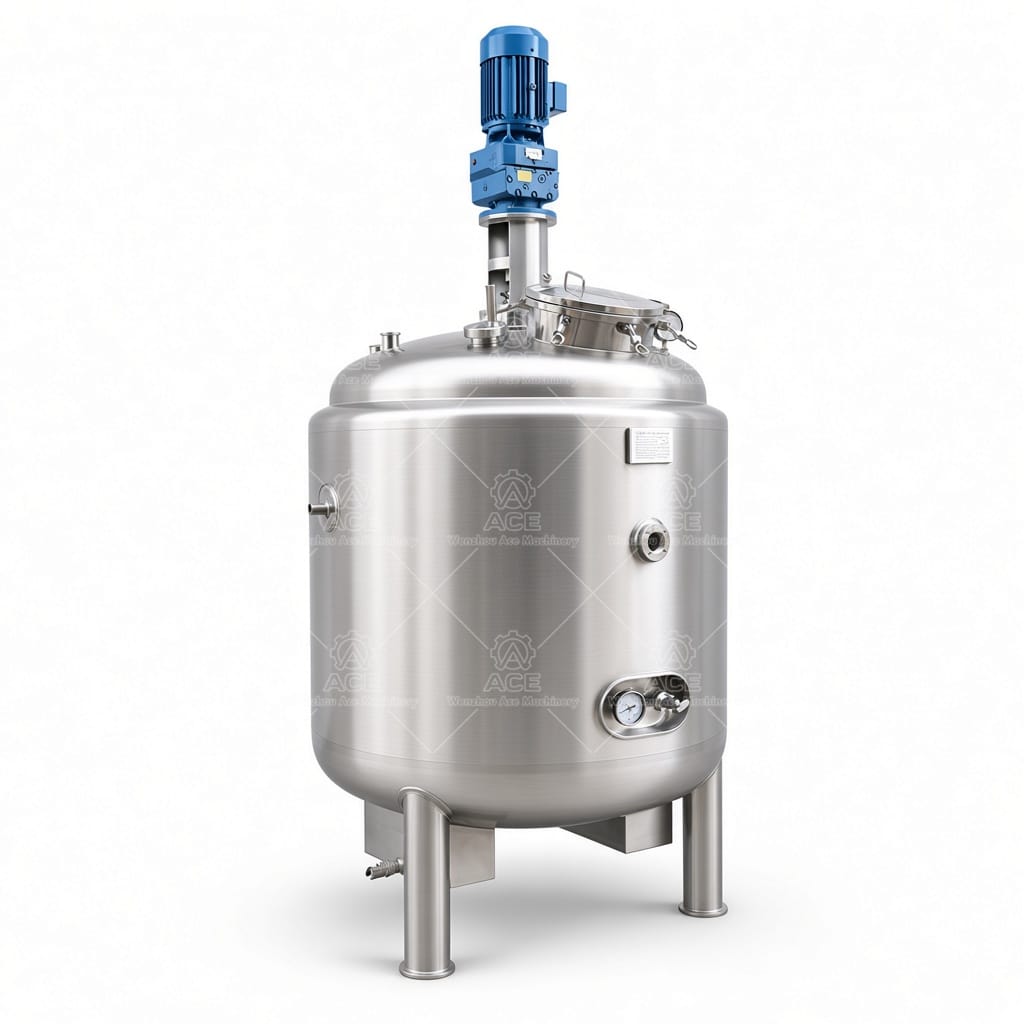

Custom Mixing Tank for Tomato Sauce, Sugar Syrup, and Beverage Processing - Image 2

Click to enlarge

Custom Mixing Tank for Tomato Sauce, Sugar Syrup, and Beverage Processing

Configured for tomato sauce, sugar syrup, and beverage preparation, this mixing tank is designed around batch volume, product viscosity, heating requirements, and cleaning procedures. Agitator type, motor and gearbox sizing, stainless steel grade, surface finish, seals, and discharge details are selected to suit the recipe and operating conditions. Share process details to define a practical configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $2,884.87 through $3,220.09

Ask For A Quotation

Guaranteed Safe Checkout

Mixing Tank for Food and Beverage Preparation

Tomato sauce, sugar syrup, and beverage bases place different demands on a preparation tank. Tomato products may be thick or contain particles, while syrup needs reliable dissolution and beverages can require controlled blending without excessive air entrainment. We configure each tank around the recipe, batch size, viscosity, heating or cooling needs, and cleaning method rather than assuming one agitator will suit every process.

Construction and Process Design

Product-contact surfaces are commonly specified in 304 or 316L stainless steel. The appropriate grade depends on ingredients, salt or acid exposure, cleaning chemicals, and sanitation requirements. We discuss weld finish, internal polishing, drainability, and fitting placement during design; smooth, accessible product-contact areas help reduce residue and simplify cleaning. Seal materials and shaft arrangements are selected for the product temperature, ingredients, and operating cycle.

Agitator selection depends on how the batch moves, not just the motor rating. A propeller or other high-flow impeller may suit lower-viscosity beverage blends. Thick tomato sauce or concentrated syrup may call for a slower, higher-torque arrangement and a different blade geometry. Motor and gearbox sizing must account for viscosity changes during heating, batch depth, and startup conditions. Scrapers can be considered where product tends to cling to a heated wall.

Heating may use a jacket or another configured heat-transfer arrangement. The heat source, required ramp time, temperature range, and product sensitivity determine the design. Temperature sensors and control hardware are specified to match the process; they should not be selected from a generic temperature assumption.

Configuration Details

Parameter	Design basis
Working capacity	Batch size, headspace, and vessel geometry
Product-contact material	Ingredient compatibility and cleaning regime
Agitator and drive	Viscosity, solids, mixing time, and torque
Heating and controls	Heat source, temperature profile, and control needs
Discharge and cleaning	Product recovery, drainage, and sanitation method

Applications and FAQs

Typical applications include sauce premixing, syrup dissolution, beverage concentrates, and food-ingredient preparation. Is one tank suitable for all products? Sometimes, but viscosity, allergen changeovers, and cleaning validation may favor dedicated equipment. Can we confirm a configuration from capacity alone? No; recipe behavior and process conditions also matter.

For a useful quotation, send the batch volume, ingredient list, estimated viscosity or solids content, target temperatures, mixing time, cleaning procedure, available utilities, and required discharge arrangement. These details let our engineering team recommend a practical vessel and drive configuration.
