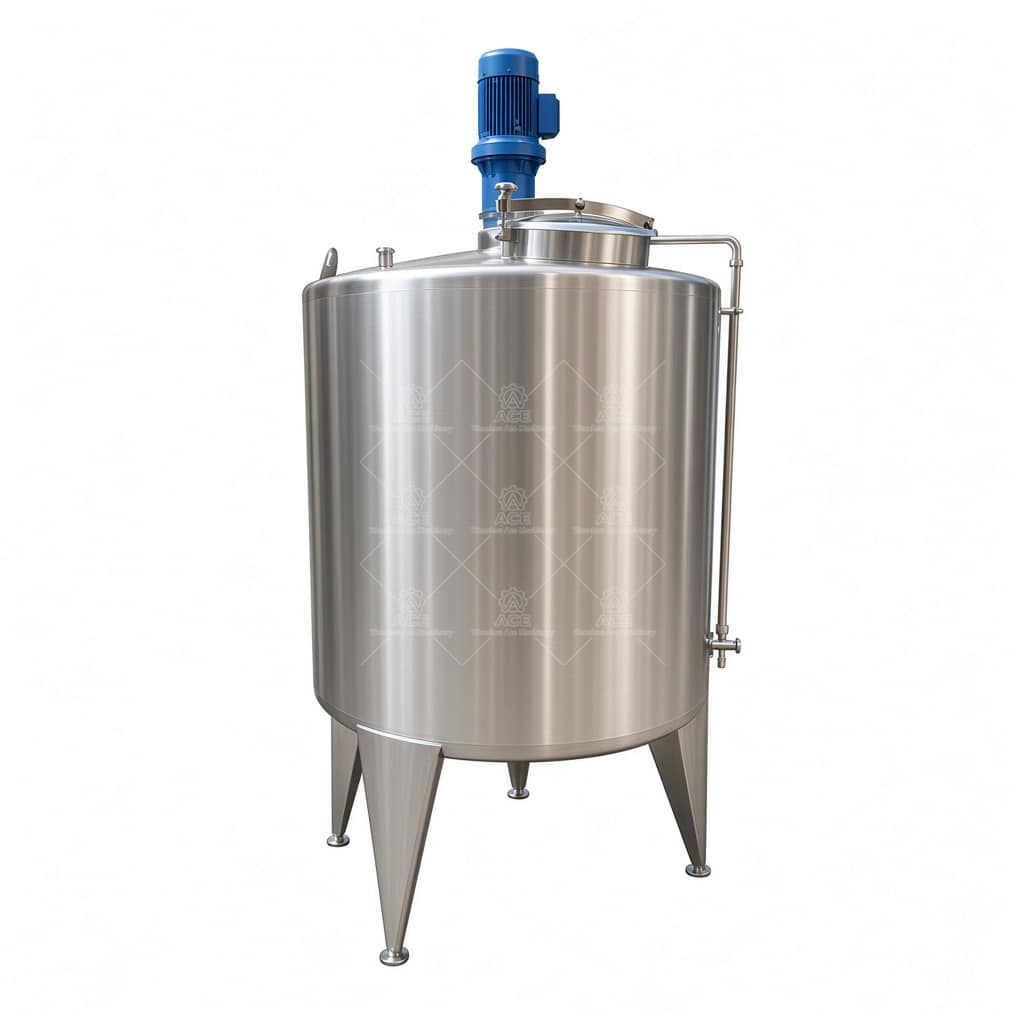

Custom Industrial Storage Tanks for Grease, Oil, Propylene & Solar Water
Custom storage tanks are engineered around the distinct demands of grease, industrial oil, propylene, and solar-heated water. Material selection, pressure rating, heating, insulation, and surface finish depend on the product and operating conditions. Share your capacity, temperature, pressure, applicable standards, site constraints, and process requirements so our engineering team can develop a suitable tank configuration.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: 304 or 316L
- Voltage: 110V to 600V
- Heating method: Electric or steam heating
- Layer:single/double jacket/three jacket
- Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
- Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Our equipment supports customisation, global delivery, and a 1-year warranty.
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,650.28 through $3,032.72
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Storage tanks configured for the process
Grease, industrial oil, propylene, and solar-heated water require different tank designs. We engineer each vessel around its service conditions rather than treating these duties as interchangeable. Propylene storage typically requires a pressure-rated vessel designed to applicable codes and jurisdictional requirements. Grease, oil, and hot-water tanks may use atmospheric or low-pressure designs, depending on the process. Confirming the stored product and operating conditions early prevents a costly mismatch in vessel construction.
Materials and fabrication
Stainless steel grades are selected based on product compatibility, cleaning chemicals, temperature, and corrosion exposure. Carbon steel may be appropriate for some oil services when the product and site conditions allow it. We establish the material, thickness, corrosion allowance, and design basis from the specified service—not from a generic tank size. Weld procedures and inspection requirements follow the vessel design. Product-contact surfaces can be specified with a suitable finish; sanitary polishing is relevant when the process requires cleanability, but is not automatically needed for fuel or utility storage.
Seal and gasket materials must suit the stored fluid, temperature, and cleaning regime. For grease, heating coils or a jacket may help maintain pumpable viscosity; the required heat-transfer area depends on the grease, ambient conditions, and target temperature. Solar hot-water tanks can be configured for a heat exchanger, insulation, and temperature instrumentation. Control limits and sensor locations should reflect the actual loop and risk of overheating.
Configuration and specifications
| Design item | Basis for selection |
|---|---|
| Capacity and dimensions | Working volume, usable headspace, site limits, and delivery access |
| Pressure and temperature | Normal and upset conditions, product data, and applicable codes |
| Material and finish | Compatibility, corrosion exposure, cleaning, and inspection needs |
| Heating and insulation | Required heat-up or holding duty and energy source |
| Agitation and drive | Required only when blending or suspension is part of the process; selected by viscosity and duty |
Typical applications include grease conditioning before filling, bulk lubricant storage, solar thermal water buffering, and code-compliant propylene storage. Agitators, where needed, are sized with the gearbox and impeller for the fluid and operating conditions; adding one without a process need raises cost and maintenance.
Purchasing questions
Can one tank serve all four products? Not by default. Pressure rating, materials, heating, and safety provisions differ, especially for propylene.
What should a quotation request include? Provide product composition, capacity, operating and design pressure and temperature, heating duty, installation environment, required standards, connections, and cleaning method. Include site dimensions and delivery constraints. These details let our engineers recommend a configuration that fits the process and applicable requirements.
