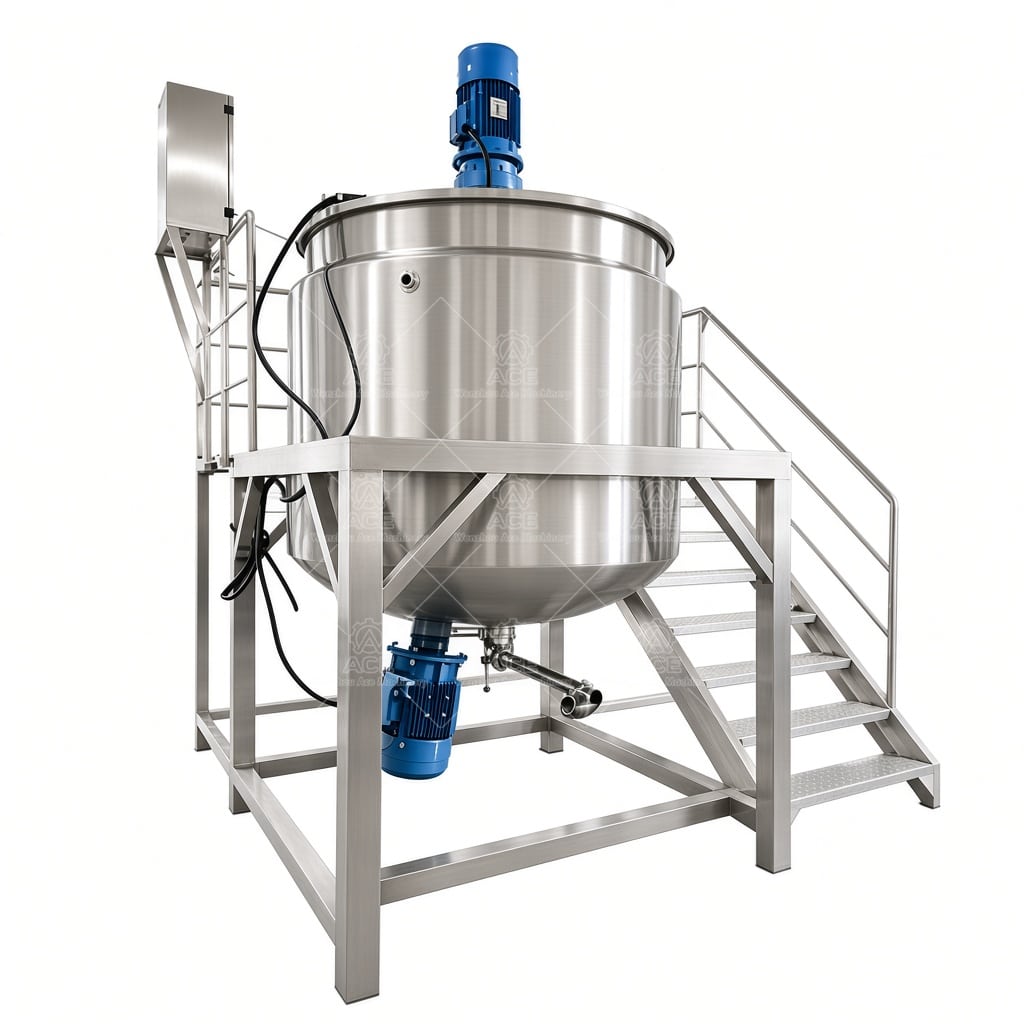

Automatic High-Shear Vacuum Homogenizer Mixer for Liquid Blending - Image 1

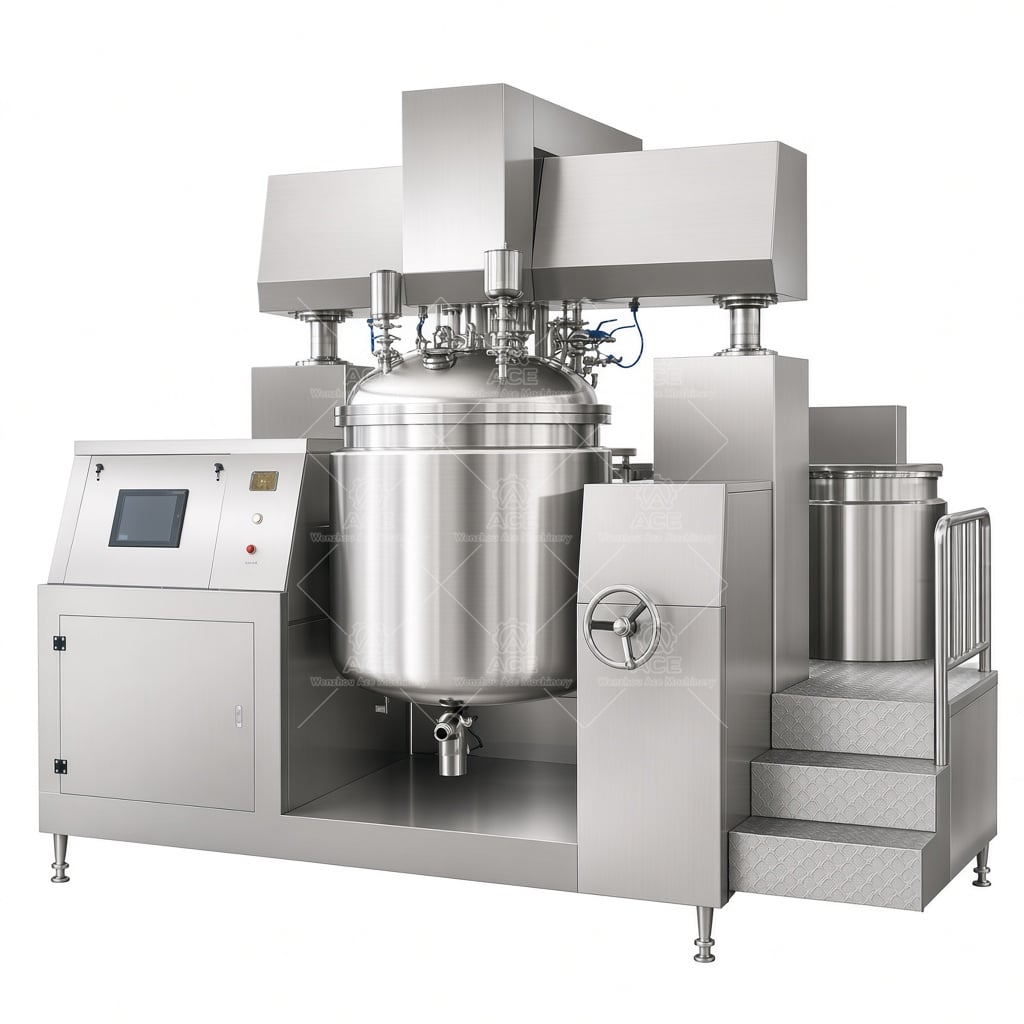

Automatic High-Shear Vacuum Homogenizer Mixer for Liquid Blending - Image 2

Click to enlarge

Automatic High-Shear Vacuum Homogenizer Mixer for Liquid Blending

An automatic single-tank high-shear mixer combines agitation and homogenizing for liquid blending, dispersion, and vacuum processing where the formulation requires it. Tank materials, agitator style, drive sizing, seals, heating, and controls are selected around batch volume, product viscosity, cleaning conditions, and process targets. Share these details with your equipment supplier to develop a suitable configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,449.97 through $3,978.51

Ask For A Quotation

Guaranteed Safe Checkout

High-shear mixing for controlled liquid processing

This single-tank mixer combines an agitator with a high-shear homogenizing system for liquid blending and dispersion. It may suit processes where powders need to be wetted, ingredients must be distributed evenly, or a batch needs vacuum processing to limit trapped air. The required mixing arrangement depends on the product: a low-viscosity liquid and a shear-sensitive cream place very different demands on the impeller, motor, and batch cycle.

We configure the vessel and drive around the process rather than assume one agitator fits every formulation. Anchor, paddle, or other agitator designs can be considered based on viscosity and wall-sweeping needs; the high-shear head is selected for the required dispersion and circulation. Motor and gearbox sizing depend on batch volume, viscosity, temperature, and operating speed. Vacuum capability, seals, and the motor-pump arrangement must also be confirmed against the intended duty and cleaning method.

Construction and process options

Product-contact parts are commonly specified in 304 or 316L stainless steel. The appropriate grade depends on ingredients, cleaning chemicals, chloride exposure, and applicable plant standards. Welds, internal corners, and product-contact finishes should be defined on the drawings; hygienic service may require smooth, cleanable transitions and documented surface-finish requirements. Seal selection depends on temperature, vacuum level, product compatibility, and cleaning conditions.

Heating can be configured through a jacket or another suitable system when the process requires it. Temperature range, heating or cooling duty, heat-transfer medium, and control response should be established from the batch recipe. A jacket alone does not determine heating performance: product viscosity, fill level, and heat-transfer area matter.

Configuration data to confirm

Item	Engineering basis
Working and total volume	Batch size, headspace, and vacuum operation
Agitator and homogenizer	Viscosity, shear sensitivity, solids, and target dispersion
Drive system	Load, speed range, duty cycle, and electrical supply
Materials and finish	Product chemistry, cleaning regime, and hygiene requirements
Heating, cooling, and controls	Recipe temperatures, utilities, and automation sequence

Applications and questions

Typical process discussions include cosmetic emulsions, personal-care liquids, food sauces, beverage concentrates, and chemical dispersions. Each application needs a review of ingredients, batch sequence, and cleaning requirements before equipment details are fixed.

Can one mixer handle every viscosity? No. Viscosity and batch conditions affect torque, circulation, and motor sizing.

Is vacuum required? It is useful when entrained air affects appearance, filling, or product quality, but the process and seal arrangement must support it.

What should accompany an RFQ? Provide batch volume, ingredient properties, target temperature, process steps, cleaning method, utilities, and any plant or compliance standards. Those details let our engineers recommend a practical tank, drive, seal, and mixing configuration.
