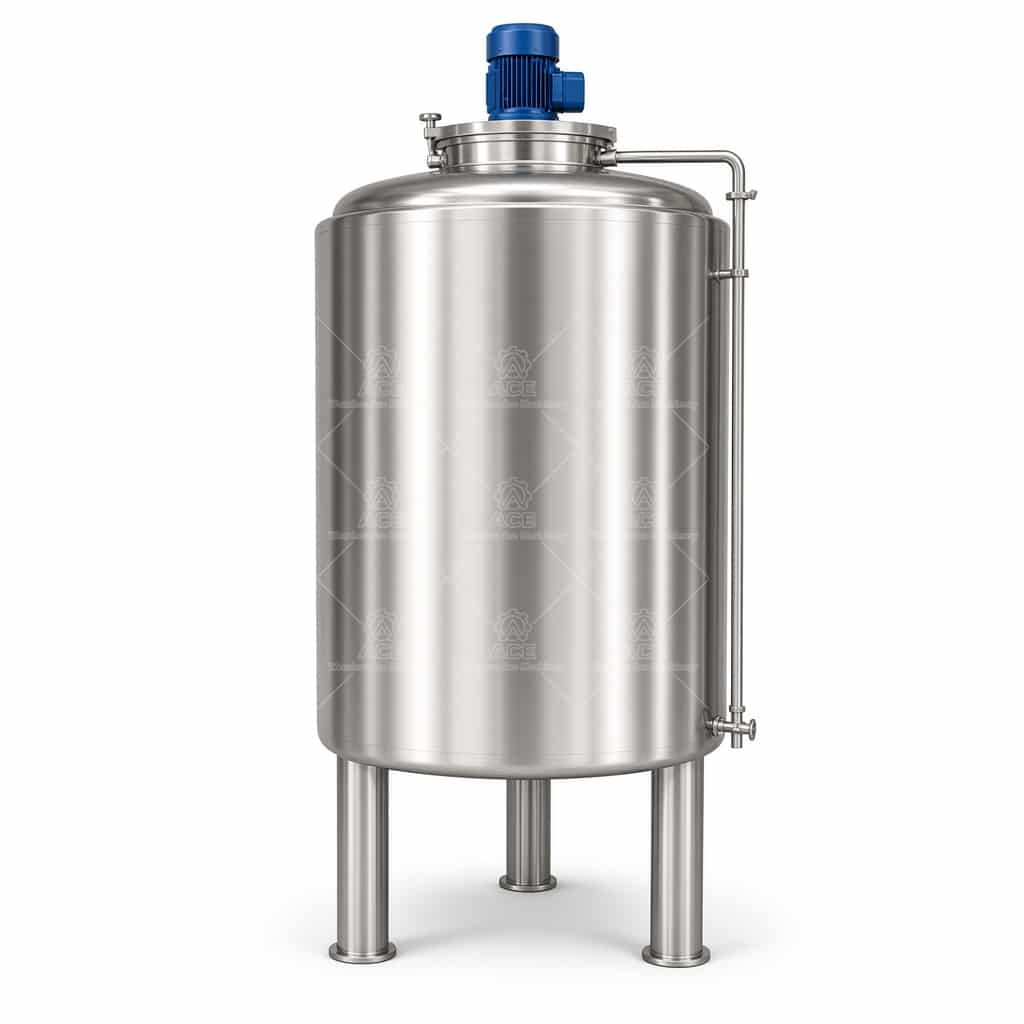

500L Stainless Steel Mixing Tank with Agitator & Heating | Square Frame Reactor - Image 1

500L Stainless Steel Mixing Tank with Agitator & Heating | Square Frame Reactor - Image 2

500L Stainless Steel Mixing Tank with Agitator & Heating | Square Frame Reactor

500L Stainless Steel Mixing Tank with Agitator & Heating | Square Frame Reactor - Image 3

500L Stainless Steel Mixing Tank with Agitator & Heating | Square Frame Reactor - Image 4

500L Stainless Steel Mixing Tank with Agitator & Heating | Square Frame Reactor

500L stainless steel mixing tank with agitator, heating jacket, and square steel frame. Built for batch processing in food, chemical, and pharmaceutical applications. Customizable agitation and temperature control.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,401.15 through $4,268.78

Ask For A Quotation

Guaranteed Safe Checkout

We build this 500L mixing tank for processors who need a reliable vessel for heating, blending, and holding liquid products. It is not a multi-purpose machine that tries to do everything. It is a straightforward reactor designed for batch operations where temperature control and uniform mixing matter.

The tank is constructed from stainless steel with a square steel frame that keeps the vessel stable during agitation. The frame is a practical choice for facilities where floor space is tight and round supports are less convenient. The built-in heating capability allows the tank to function as a reactor for processes that require elevated temperatures, such as syrup preparation, emulsion blending, or chemical reactions that need consistent heat input.

We use stainless steel that suits the chemical environment of your process. For most food, pharmaceutical, and cosmetic applications, 304 grade works well. For more corrosive chemicals or chloride-containing products, we recommend 316L. The interior surface is polished to reduce product buildup and make cleaning easier. Welds are ground smooth where they contact the product, which is important for both hygiene and batch consistency.

The agitator is sized to match the 500L working volume. We do not guess at impeller design. The mixing effect you get depends on the viscosity of your product, the presence of solids, and whether you need gentle blending or high-shear dispersion. We can adjust the agitator type, speed range, and baffle configuration based on your process data. A simple paddle is fine for low-viscosity mixing. A turbine or anchor agitator becomes necessary for thicker products.

Heating is delivered through the jacket. The heating medium can be steam, hot water, or thermal oil, depending on the temperature range you need. The tank is designed for a specific working pressure and temperature, and we need these details from you before finalizing the design. If your process requires cooling, we can add cooling coils or connect the jacket to a chilled water loop.

The sealing system is selected based on whether the process is open to atmosphere, under pressure, or run under vacuum. A simple stuffing box is adequate for low-pressure applications. A mechanical seal is required when you need a tighter seal, higher speeds, or operation under vacuum.

When you are ready to request a quote, prepare your process details: the material you are processing, its chemical composition and concentration, batch size, operating and design temperatures, pressure conditions, viscosity, and solids content. Also note any cleaning requirements and regulatory standards you need to meet. With this information, we can recommend the right tank configuration, agitator type, and heating system for your production line.
