500L Stainless Steel 304 Chemical Batching Tank Mobile Vacuum Jacketed Reactor
500L SS304 batching tank with vacuum jacket, movable frame, and anchor mixer. Built for small-batch chemical, pharmaceutical, and food processing with customizable heating and cooling options.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $3,396.20 through $4,414.72
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
500L Stainless Steel 304 Chemical Batching Tank with Vacuum Jacket
This 500L batching tank is built for production floors where mobility and flexibility matter. We designed it around the realities of batch processing—where you need to move the vessel between stations, pull vacuum during mixing, and control temperature without tying up permanent piping.

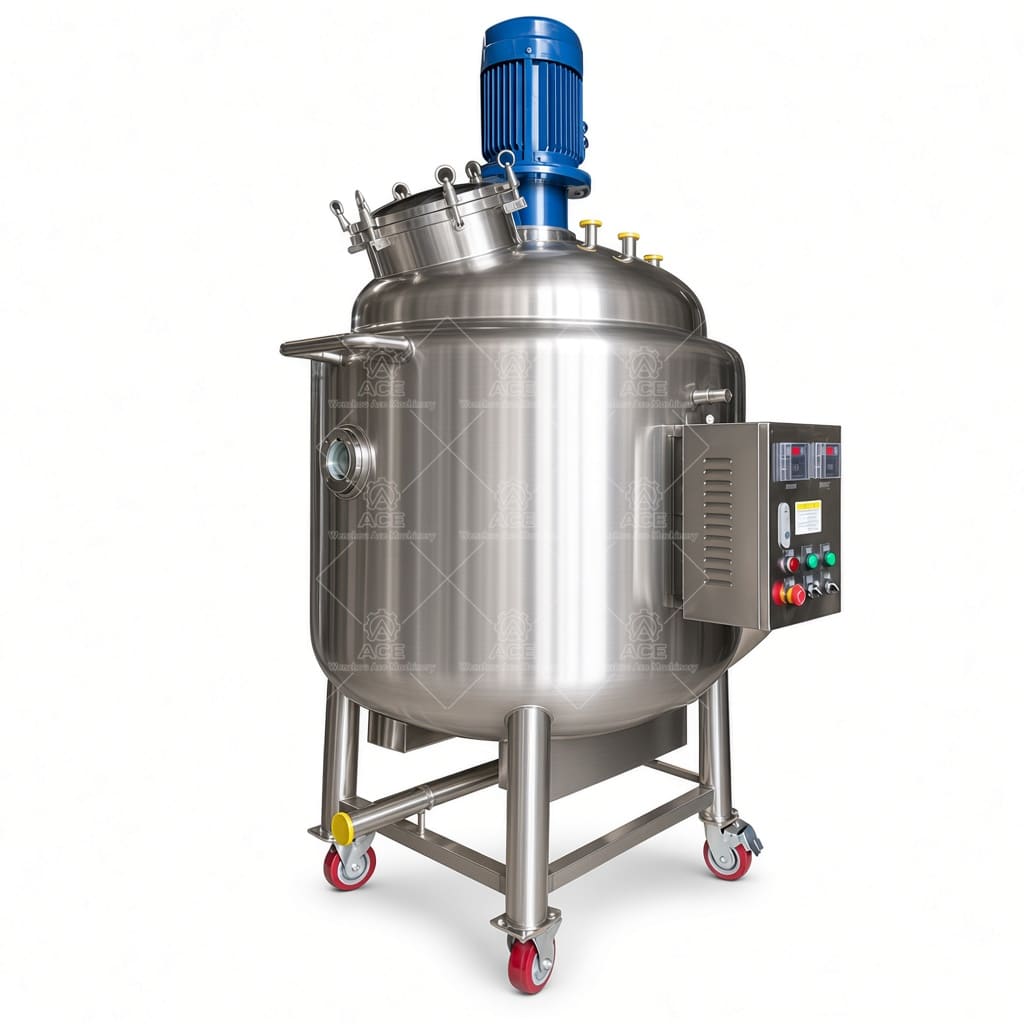

The shell is 304 stainless steel, with the inner tank and wetted parts finished to a smooth, cleanable standard. The jacket is welded externally and rated for both heating and cooling media. You can run hot water, thermal oil, or chilled fluid through it depending on your process. A movable frame with casters lets you reposition the unit as your line changes.
Vacuum decompression is handled through the top port, which also serves as the charging opening. The agitator is a standard anchor-type impeller, suited for moderate-viscosity liquids, suspensions, and dissolving operations. If your process needs a different mixing profile—emulsification, high shear, or gentle turnover—we can swap the impeller and drive configuration at the factory.
This tank is a practical choice for small-batch chemical blending, liquid pharmaceutical preparations, cosmetic lotions, and food-grade syrups or sauces. It is not designed for high-pressure reactions or aggressive chloride environments; for those, you would need 316L or a lined vessel. Be clear about your media before ordering.
Technical Specifications
| Capacity | 500L (working volume approx. 400L) |
|---|---|
| Material | SS304, inner shell and jacket |
| Heating/Cooling | Jacketed, external circulation |
| Mixing | Anchor impeller, variable speed optional |
| Sealing | Mechanical seal or packing seal (optional) |
| Mobility | Heavy-duty casters with brakes |
| Surface Finish | Inner mirror polish, outer matte or brushed |
| Options | Manhole, spray ball, sight glass, PTFE lining, frequency inverter |
FAQ
Can this tank handle full vacuum? The vessel is designed for low vacuum operation, typically down to -0.09 MPa. For deep vacuum, we need to reinforce the shell and change the head geometry—tell us your requirement.
What is the maximum jacket temperature? With thermal oil, you can go up to about 180°C continuously. With steam, the limiting factor is the jacket pressure rating; confirm your steam pressure so we can size the jacket accordingly.
Is the 304 grade suitable for food contact? Yes, for most non-acidic food products. For acidic or high-chloride food products, we recommend 316L or a food-grade lining.
Can I add a CIP spray ball? Yes, we can install a fixed or rotating spray ball at the top. This helps if you run multiple batches per day and need quick cleaning between runs.
Before you request a quote
Send us the following details: the product you will process, its chemical composition and concentration, batch volume, operating and design temperature, pressure or vacuum level, viscosity, and the mixing effect you expect. Also mention whether you need heating, cooling, or both. With these, our engineers can confirm the right impeller type, seal material, surface finish, and jacket configuration. This avoids costly rework and ensures the tank matches your actual production conditions.
