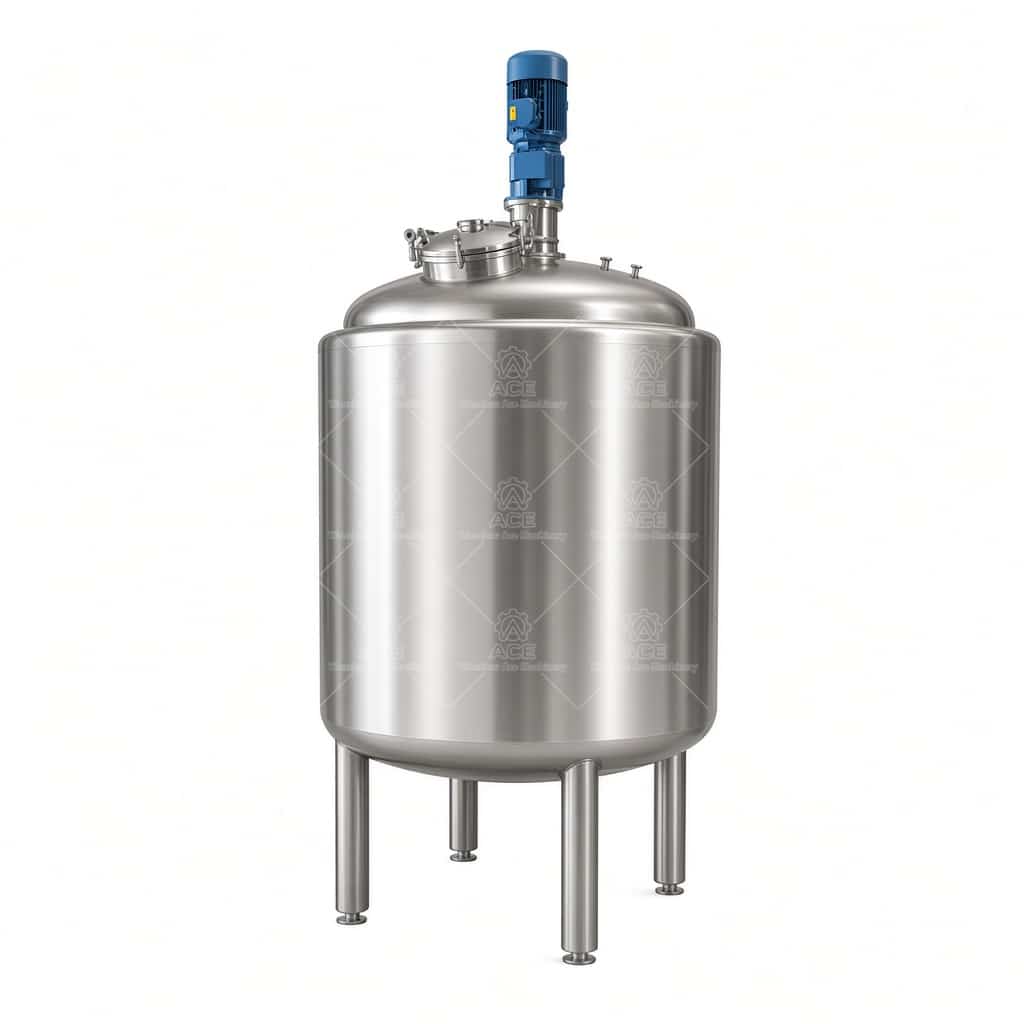

500L Dairy Beverage 304 Stainless Steel Vacuum Homogenizing Emulsifying Reactor - Image 1

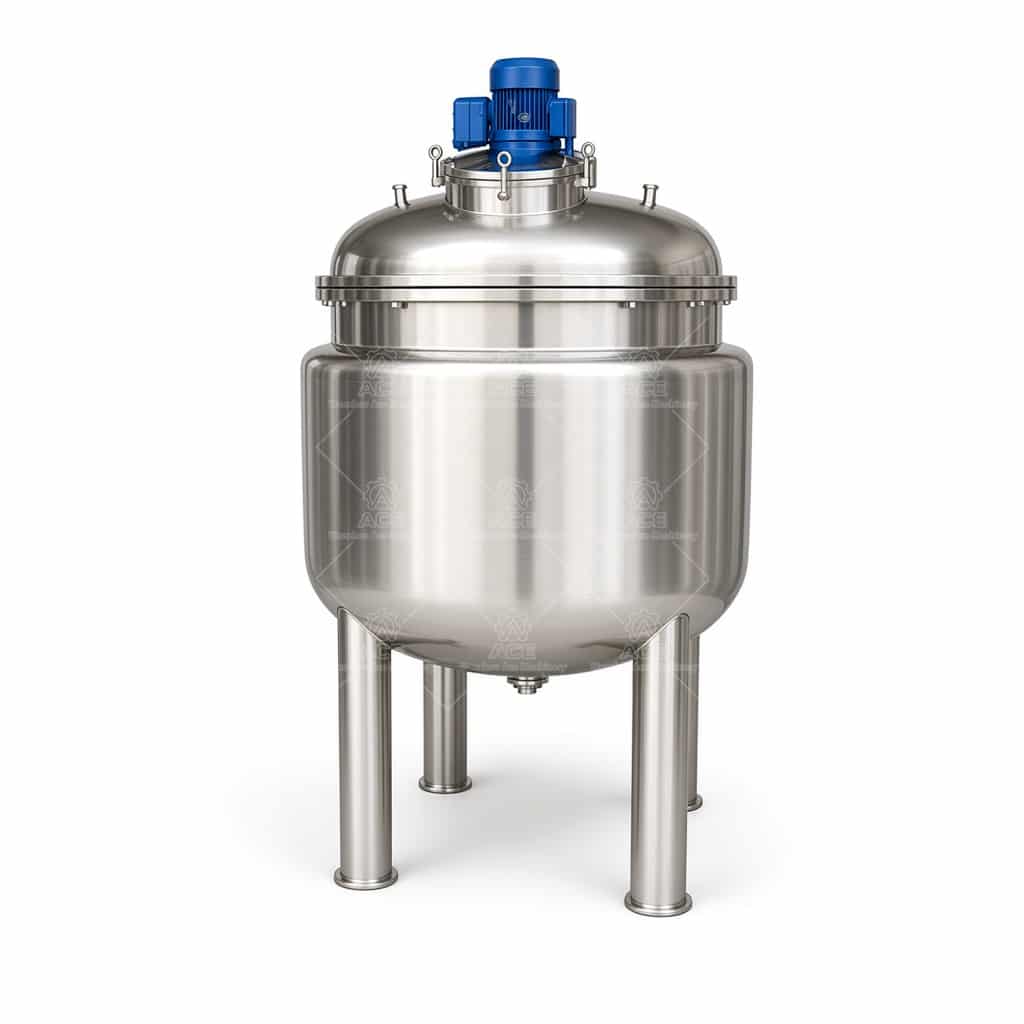

500L Dairy Beverage 304 Stainless Steel Vacuum Homogenizing Emulsifying Reactor - Image 2

500L Dairy Beverage 304 Stainless Steel Vacuum Homogenizing Emulsifying Reactor

A 500 L food-grade 304 stainless steel reactor for dairy and beverage processing, combining high-shear homogenization and emulsification with vacuum operation in one vessel. Built with polished wetted surfaces and a mechanical seal, it handles batch dispersion, deaeration, and CIP duty. Share your material, volume, and process conditions for a configured quotation.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,279.66 through $4,141.55

Ask For A Quotation

Guaranteed Safe Checkout

A 500 L vacuum reactor with a high-shear head is not a tank with a larger motor bolted on. Dairy and beverage emulsions, dressings, and concentrated drink bases are shear-sensitive: too much tip speed damages protein structure, too little leaves a wide droplet distribution. Agitator geometry, baffling, and the vacuum port have to be settled before the shell is rolled.

What this unit is configured for

We build the vessel for batch homogenization and emulsification under vacuum, which strips entrained air and controls foaming during dispersion. It suits plants running repeated batches with CIP between products. The 304 stainless steel wetted surface handles neutral and mildly acidic dairy and beverage formulations well; high-chloride or strongly acidic recipes usually point to 316L instead.

Fabrication and finish

Wetted surfaces are polished, with weld seams ground flush where product contact matters. The high-shear shaft is balanced and checked for runout, since vibration shows up quickly at dispersion speeds. Sealing is a mechanical seal, optionally sanitary. Jacket design, insulation, and nozzle layout are set per order, so a drawing review before production avoids most field modifications later.

Where it fits

Dairy, plant-based beverages, sauces, cosmetics, and pharmaceutical liquids where particle size reduction and vacuum deaeration happen in one step.

Specifications

Total volume	500 L (working volume per process)
Wetted material	304 stainless steel
Inner wall thickness	Confirmed at order
Heating / cooling	Jacket or electric, specified per process
Working pressure	Atmospheric, pressurized, or vacuum per requirement
Design temperature	Per process requirement
Agitation	High-shear homogenizing / emulsifying head
Seal	Mechanical, sanitary option available
Surface finish	Polished, Ra agreed at order

Before you request a quote

Material to be processed, its chemistry and concentration
Batch and working volume
Operating and design temperature
Atmospheric, pressure, or vacuum operation
Viscosity and solids content
Required heating, cooling, or temperature control
Target mixing or droplet-size result
Cleaning, sealing, and compliance requirements

Common questions

Can one vessel handle both high-shear and gentle mixing? Yes, with a variable-frequency drive and the right impeller combination. Confirm the lowest and highest speed your recipe needs.

Is vacuum necessary? Only if your product holds air or foams during dispersion. For dense, air-free formulations a standard atmospheric vessel is cheaper to build and run.

304 or 316L? Send the formulation pH and chloride level. That single detail usually decides it.

Share your material, batch capacity, operating temperature, pressure or vacuum condition, and mixing requirement, and we will return a configuration drawing and quotation for the right build.
