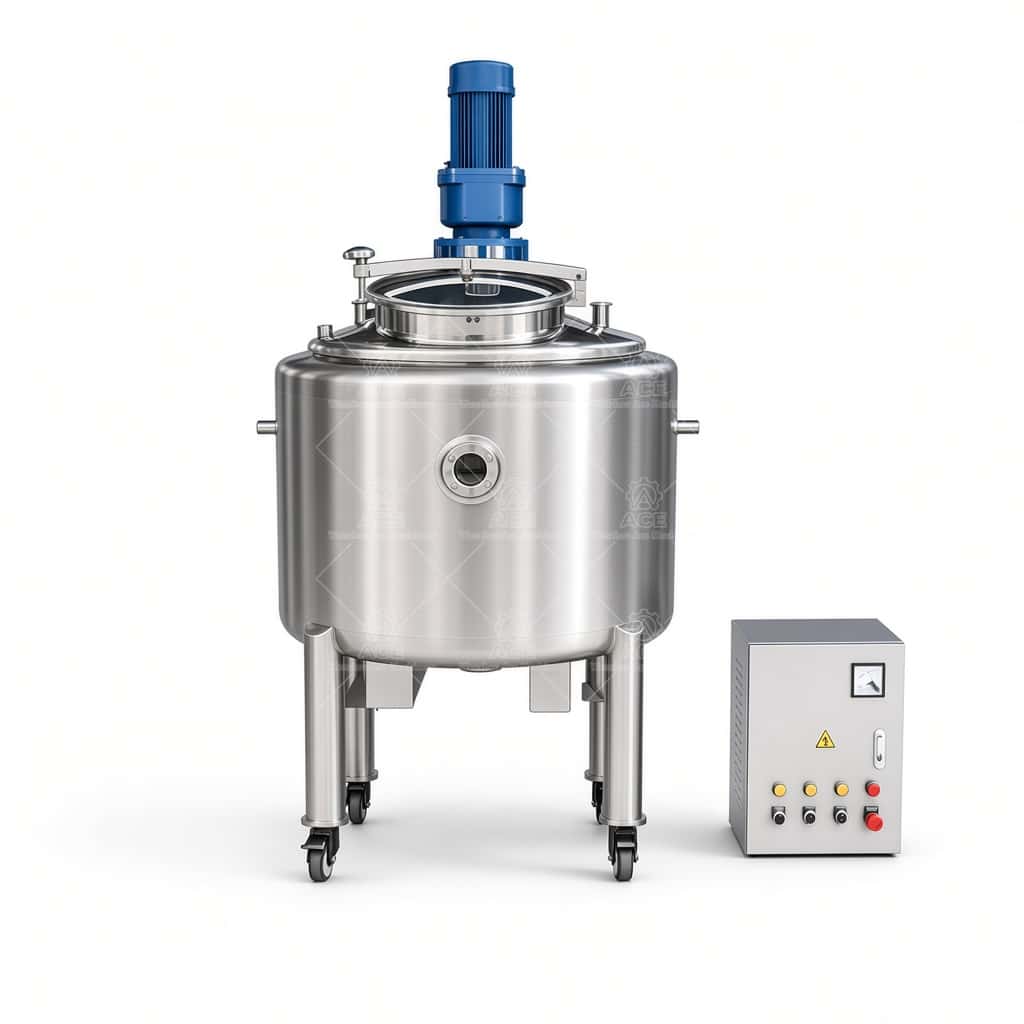

500L-10000L Stainless Steel Stirred Reactor with Dissolving Sugar Mixing Tank - Image 1

500L-10000L Stainless Steel Stirred Reactor with Dissolving Sugar Mixing Tank - Image 2

500L-10000L Stainless Steel Stirred Reactor with Dissolving Sugar Mixing Tank

Stainless steel stirred reactor from 500L to 10,000L for sugar dissolving, syrup mixing, and liquid blending. Available with heating, cooling, and custom agitators.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,859.32 through $4,832.25

Ask For A Quotation

Guaranteed Safe Checkout

For sugar dissolving, syrup blending, or general liquid mixing, a reactor needs to handle more than just rotation. It must manage heat transfer, viscosity changes, and cleaning cycles without compromising batch consistency. Our 500L to 10,000L stirred reactor is built for those conditions.

We fabricate the vessel from 304 or 316L stainless steel, depending on your product\’s acidity or chloride content. The inner tank wall is polished to a 0.4–0.8 μm Ra finish, which makes residue release easier and reduces the risk of bacterial buildup. For sugar dissolving, a 316L grade is often the safer pick because sugar syrups can be slightly acidic and, over time, pitting can occur on lower grades.

The heating and cooling jacket is designed around your process. For dissolving sugar, you typically need quick heating to 80–95°C and then controlled cooling to prevent crystallization. We offer electric heating, steam heating, or thermal oil circulation. Each has its own trade-offs: electric is simpler for smaller batches, while steam or oil suits larger volumes where even temperature distribution matters more.

Mixing is where a lot of projects go wrong. A standard anchor agitator works for most sugar syrups, but if your batch has high solids or you need faster dissolution, we can fit a paddle, turbine, or even a high-shear emulsifier. The shaft is sealed with either a mechanical seal or a magnetic seal, depending on whether you need to avoid leakage or operate under pressure or vacuum. For food-grade sugar mixing, a double mechanical seal is common to keep the product clean and prevent any lubricant from entering the batch.

We also pay attention to the small details that affect daily operation. The manhole is sized for easy cleaning and inspection. The bottom outlet is flush to avoid dead zones where sugar can cake. The legs are adjustable, and the whole unit can be supplied with a CIP spray ball if you need automated cleaning.

This reactor is used in food processing plants for caramel and syrup production, in beverage factories for sugar dissolving, and in chemical plants where solid-liquid mixing is part of the reaction. The vessel can be configured for atmospheric, pressurized, or vacuum operation, and the design temperature can be set from -20°C to 150°C as standard.

When you\’re ready to spec a unit, start with these details: the exact material you\’ll process, its viscosity and solids content, the batch size you need, and the temperature and pressure ranges. Also think about how you\’ll clean the tank and whether you need any special certifications like FDA or CE. Send us those parameters, and we\’ll recommend the right vessel configuration and give you a clear quotation.
