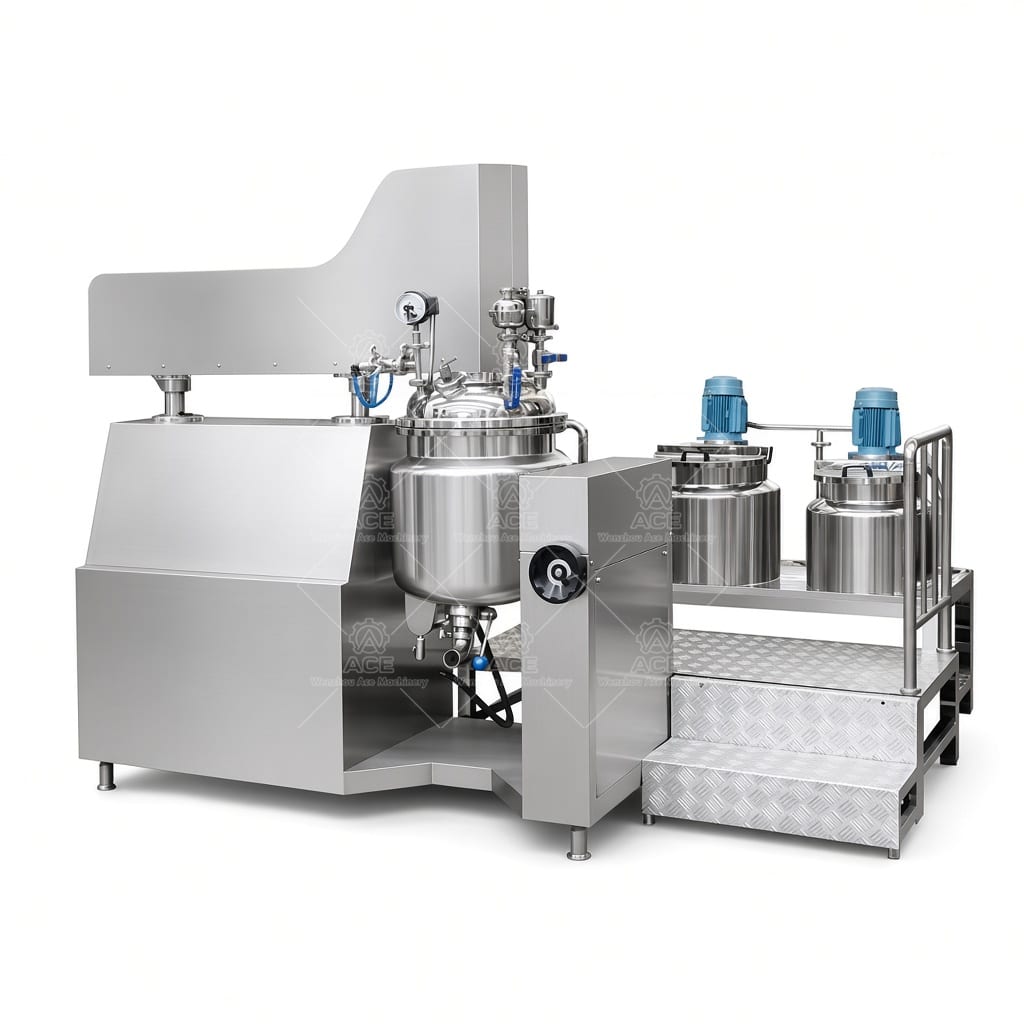

1000L Vacuum Emulsifying Mixer with Hydraulic Lift for Cosmetics - Image 1

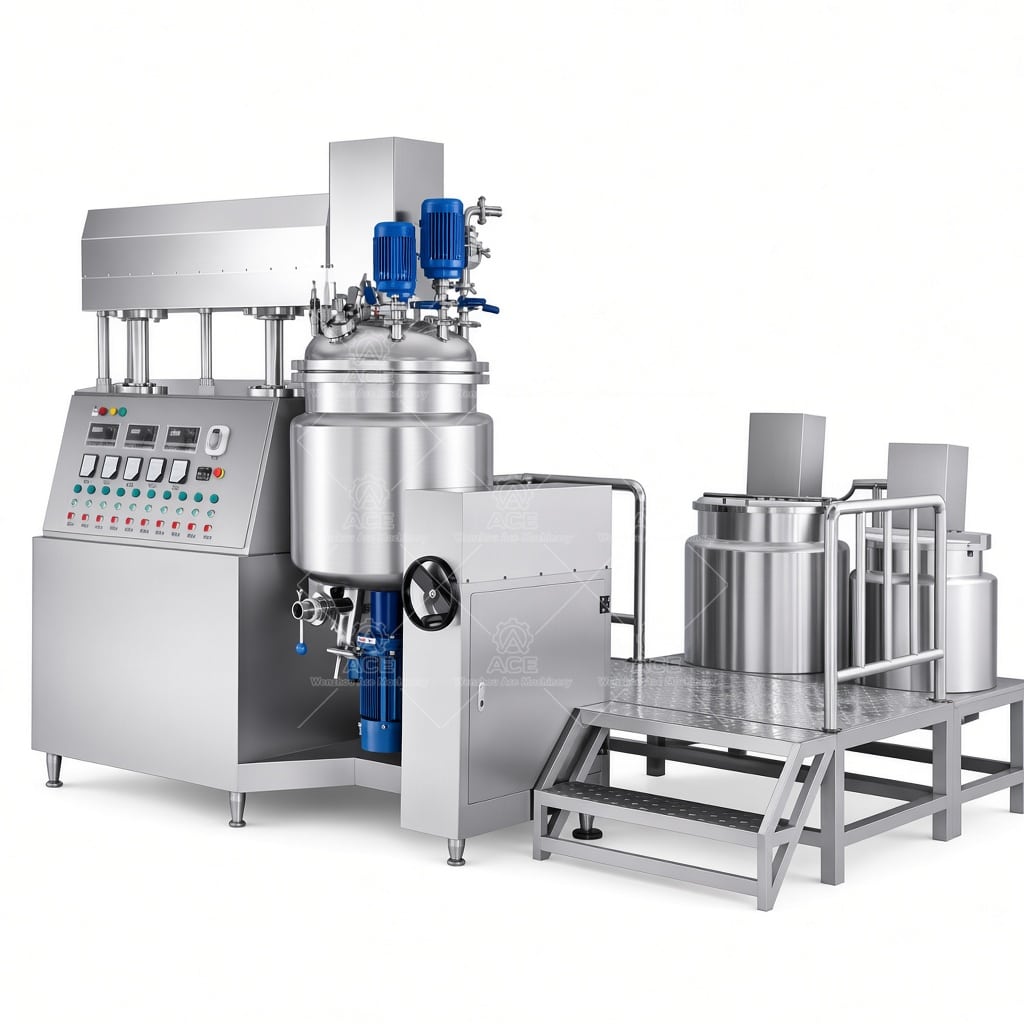

1000L Vacuum Emulsifying Mixer with Hydraulic Lift for Cosmetics - Image 2

Click to enlarge

1000L Vacuum Emulsifying Mixer with Hydraulic Lift for Cosmetics

A 1000L cosmetic vacuum emulsifying mixer with hydraulic lift, homogenization, and a transfer pump. SUS316L and SUS304 material options support different formulation and cleaning requirements. Final selection of the agitator, drives, pump, surface finish, seals, and any heating system should be based on batch viscosity, process conditions, cleaning procedures, and plant layout.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $8,942.18 through $10,694.85

Ask For A Quotation

Guaranteed Safe Checkout

Process overview

This 1000L vacuum emulsifying mixer is configured for cosmetic batches that need mixing, homogenization, and vacuum processing in one vessel. Vacuum can help limit entrained air during production, while the homogenizer supports dispersion of oil and water phases. A transfer pump is included in the product description; its type and performance should be matched to the product’s viscosity, temperature, and transfer route.

Materials and fabrication

The listed wetted material options are SUS316L and SUS304. SUS316L is often specified where formulation chemistry or cleaning agents raise corrosion concerns; SUS304 may suit less aggressive products. Confirm the required grade for each product-contact part, including the vessel, agitator, homogenizer head, and pump. Weld finish, internal polish, surface roughness, and seal materials should be agreed against the cleaning method and hygiene requirements. These details matter in practice: a suitable alloy does not compensate for crevices, poor weld finishing, or incompatible elastomers.

Configuration details

The hydraulic lift provides access to the vessel or mixing assembly, subject to the final mechanical design and plant layout. Agitator style, motor and gearbox sizing, homogenizer power, and pump selection depend on batch viscosity, powder addition, target particle size, and required cycle time. Heating and temperature control are not specified in the supplied title; if required, define the heating method, temperature range, control accuracy, and cooling needs before quotation. Vessel jacket design and control strategy affect both heat-up time and product temperature uniformity.

Technical specifications

Item	Available information
Nominal capacity	1000 L
Process features	Vacuum, emulsifying homogenization, pump
Lift	Hydraulic
Material options	SUS316L / SUS304
Drive, heating, finish	Confirm to process requirements

Typical applications and questions

Potential uses include creams, lotions, gels, and other cosmetic emulsions. Is 1000 L the working batch or vessel capacity? Confirm this with the manufacturer, along with usable fill range and foam allowance. Can the pump handle the finished product? Provide viscosity at transfer temperature and line length, elevation, and fittings. These details prevent a pump selected for a low-viscosity sample from becoming a production bottleneck.

Before requesting a quote

Send the batch size, formulation phases, viscosity range, powder-addition method, vacuum requirement, temperature profile, cleaning procedure, and available utilities. Include room height and access dimensions for installation and maintenance. With these inputs, our engineers can recommend a practical mixer, drive, pump, material, and control configuration rather than relying on the nominal vessel volume alone.
