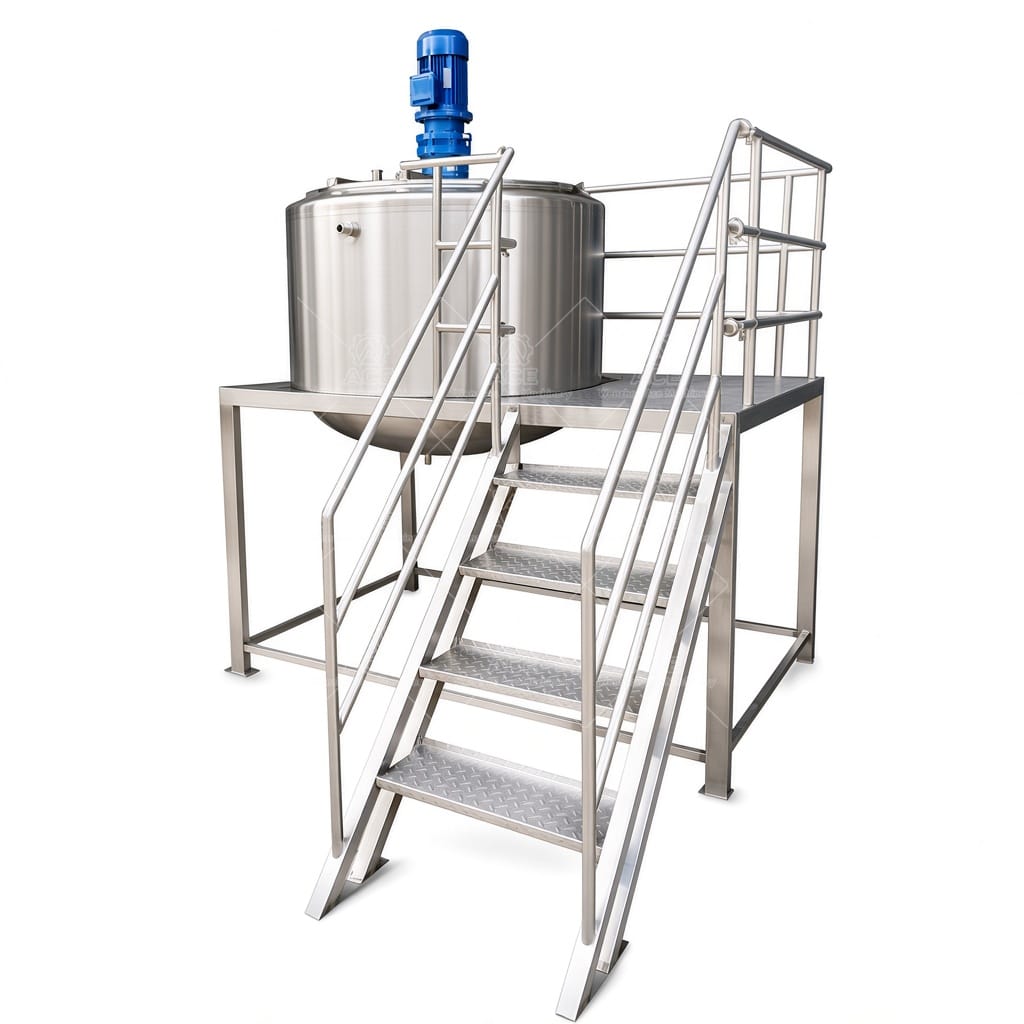

Vacuum Emulsifying Mixer for Cosmetics, Shampoo & Liquid Detergent
This vacuum emulsifying mixer is configurable for cosmetic creams, lotions, shampoo, and liquid detergents. SUS304 or SUS316 product-contact construction, agitation, homogenizing, vacuum processing, and heating options can be matched to the formulation and batch process. Capacity, drive sizing, surface finish, seals, and temperature controls should be specified from production requirements rather than assumed.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $9,441.86 through $11,073.41
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Vacuum emulsifying mixer for viscous personal care products
We configure this mixer for batches that need controlled blending, emulsification, and reduced air entrainment. Typical products include cosmetic creams, lotions, shampoo, and liquid detergent. Vacuum processing can help limit foam and trapped air, but the required vacuum level and cycle depend on the formulation, batch size, and process sequence. A homogenizer is useful for reducing dispersed droplets or particles; it does not replace formulation development or guarantee a particular texture.
Construction and process choices
Product-contact parts can be specified in SUS304 or SUS316 stainless steel. SUS304 suits many general-purpose formulations. SUS316 is often selected when ingredients, cleaning chemicals, or corrosion testing indicate a need for greater resistance. The correct grade depends on the actual chemical and cleaning conditions. Weld finishing, internal polishing, drainability, and gasket compatibility should be agreed in the equipment specification. We also confirm whether product-contact surfaces require a defined finish or documentation before fabrication.
Agitator style, scraper arrangement, homogenizer location, and drive sizing are selected around viscosity, batch geometry, solids, and the desired shear level. A wall scraper can help move viscous material toward the heated or cooled vessel surface, while excessive shear may be unnecessary for some detergent processes. Heating may use a vessel jacket or another agreed system; temperature range, heat-transfer medium, control accuracy, and cooling duty must be established from the recipe and production cycle. Motor and gearbox selection likewise depends on load, speed range, and operating conditions.
Configuration information
| Item | Specification basis |
|---|---|
| Applications | Cosmetic creams, shampoo, lotions, and liquid detergents |
| Contact material | SUS304 or SUS316, subject to product compatibility |
| Working capacity | Configured to batch volume and usable fill range |
| Mixing and homogenizing | Agitator, homogenizer, and drive selected for the process |
| Vacuum and temperature | Set from formulation and operating requirements |
Frequently asked questions
Can one machine handle cream and detergent? Often, but viscosity, cleaning changeover, seals, and required shear must be checked for both products.
What should we provide for a quotation? Send batch size, product viscosity or sample, ingredients and cleaning agents, target temperatures, cycle time, utilities, and required automation or documentation.
To identify a suitable model, share the complete process sequence and the smallest and largest planned batches. This lets our engineers assess vessel capacity, mixing loads, heating or cooling needs, and material compatibility before recommending a configuration.
