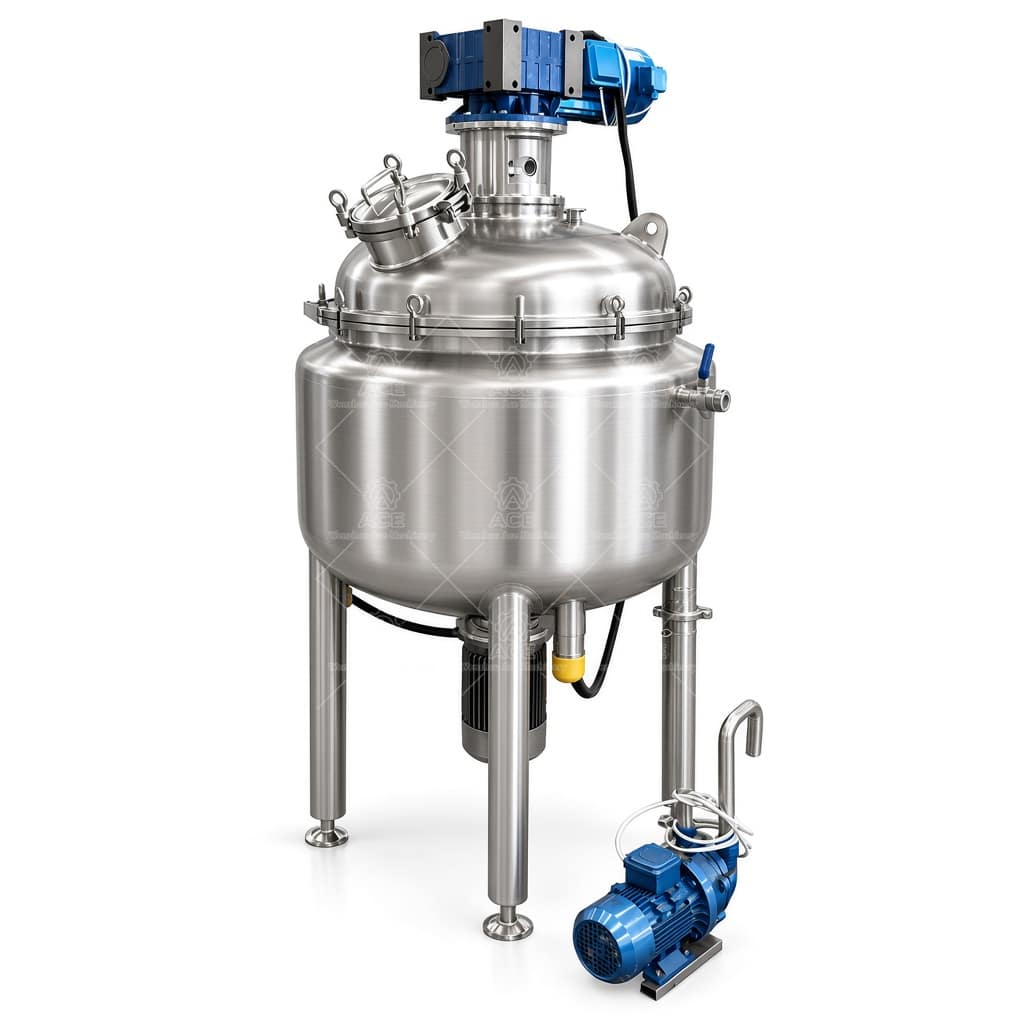

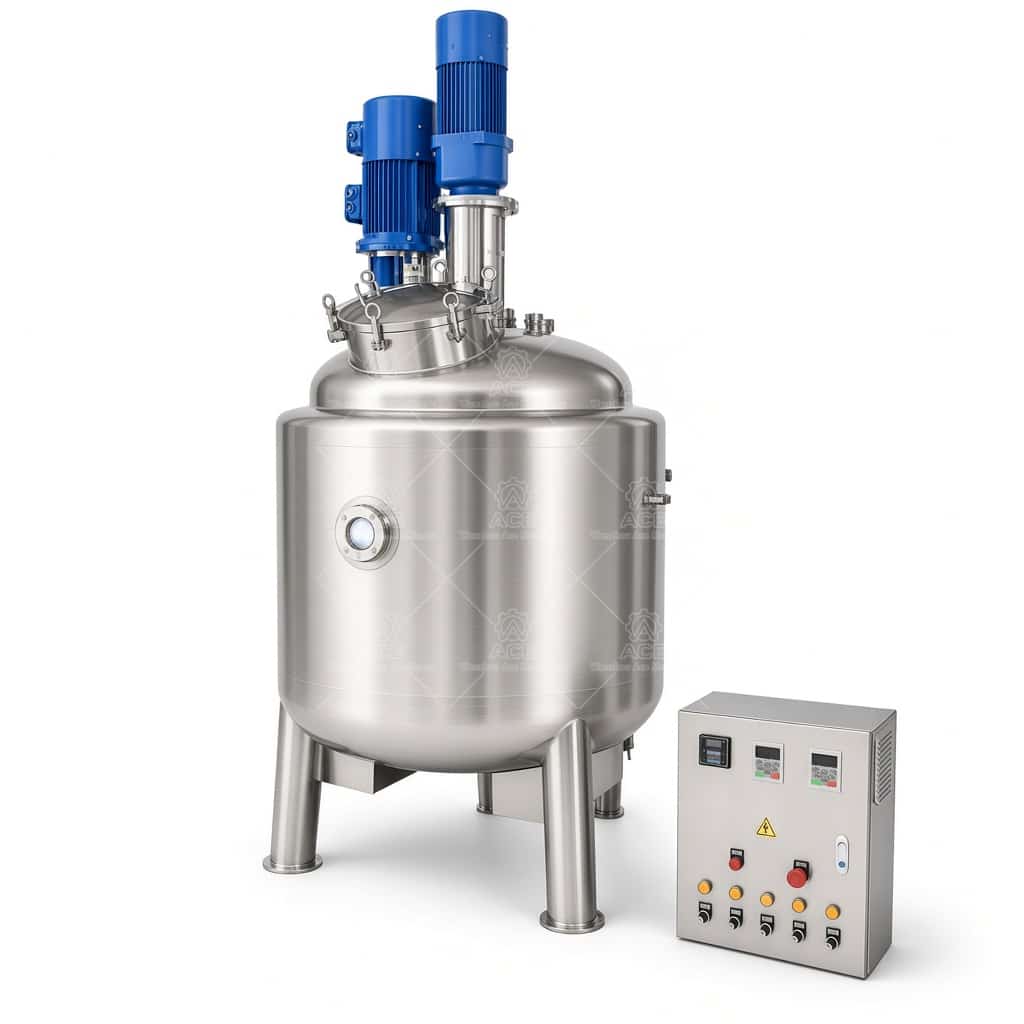

Stainless Steel Jacketed Crystallization Reactor with Agitator for Chemical & Food Processing
Industrial stainless steel jacketed crystallization reactor with agitator for chemical and food processing. Features polished contact surfaces, welded jacket, customizable agitation, and mechanical sealing for batch temperature control.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
$3,999.29 – $4,873.53Price range: $3,999.29 through $4,873.53
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
We build jacketed crystallization reactors for plants that need precise temperature control and consistent mixing. This vessel is designed around the realities of batch processing: maintaining uniform slurry temperature, handling aggressive chemical environments, and surviving years of thermal cycling and cleaning-in-place procedures.
The reactor body is constructed from 316L stainless steel as standard, with 304 available for less corrosive applications. Internal surfaces are mechanically polished to a 0.4–0.6 μm Ra finish, which reduces product adhesion and makes CIP verification straightforward. Welds are fully penetrated and autogenous where possible, then ground flush to eliminate crevices that could harbor residue.
Temperature control comes from a welded external jacket. This is not a bolt-on coil arrangement. The jacket is dimpled or half-pipe welded to the vessel shell, giving you higher heat transfer coefficients and faster response times when your process swings between heating and cooling cycles. The agitator is a variable-speed unit with a pitched-blade or anchor impeller, depending on your product\’s viscosity and crystal suspension requirements. We match the impeller to the application rather than offering a one-size-fits-all configuration.
Sealing is handled by a mechanical seal rated for your operating pressure and solvent exposure. For vacuum or pressure operation, we can add a double mechanical seal with a barrier fluid system. The top head includes a manway for inspection, multiple nozzle ports for sensors and feed lines, and a vent connection sized for your process.
This equipment sees regular use in fine chemical synthesis, pharmaceutical intermediate crystallization, edible oil processing, and polymer solution cooling. In each case, the common thread is the need for repeatable temperature profiles and uniform agitation without dead zones.
Typical Specifications
| Capacity | 50L – 10,000L (custom sizes available) |
| Material | 316L / 304 stainless steel, contact parts |
| Jacket | Dimpled or half-pipe, welded to shell |
| Agitator | Anchor, pitched-blade, or combination |
| Seal | Single or double mechanical seal |
| Surface finish | 0.4–0.6 μm Ra internal polish |
| Options | Vacuum/pressure design, CIP spray balls, PTFE lining |
Practical Considerations When Specifying
To get the right vessel, we need more than a volume. Tell us what you\’re processing: chemical composition, concentration, solids content, and viscosity. Specify your operating temperature range and whether you need pressure or vacuum capability. Describe the mixing outcome you expect—suspension, dissolution, or crystal size control. Also mention your cleaning method and any regulatory standards you must meet.
We build these reactors to order, so customization is part of the process rather than an exception. Whether you need a different polish level, a special nozzle layout, or a specific impeller geometry, we can accommodate it. Send us your process details and batch size, and we\’ll provide a configuration recommendation with a quotation.
