Stainless Steel Chemical Reactor with Magnetic Stirrer | Agitated Mixing Tank
Stainless steel chemical reactor with magnetic stirrer for leak-free agitated mixing. Available in 304/316L, from 50L to 5000L, with custom heating, cooling, and pressure options for chemical, pharmaceutical, and food processing. Request a quote with your process specs.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $3,460.09 through $4,229.96
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

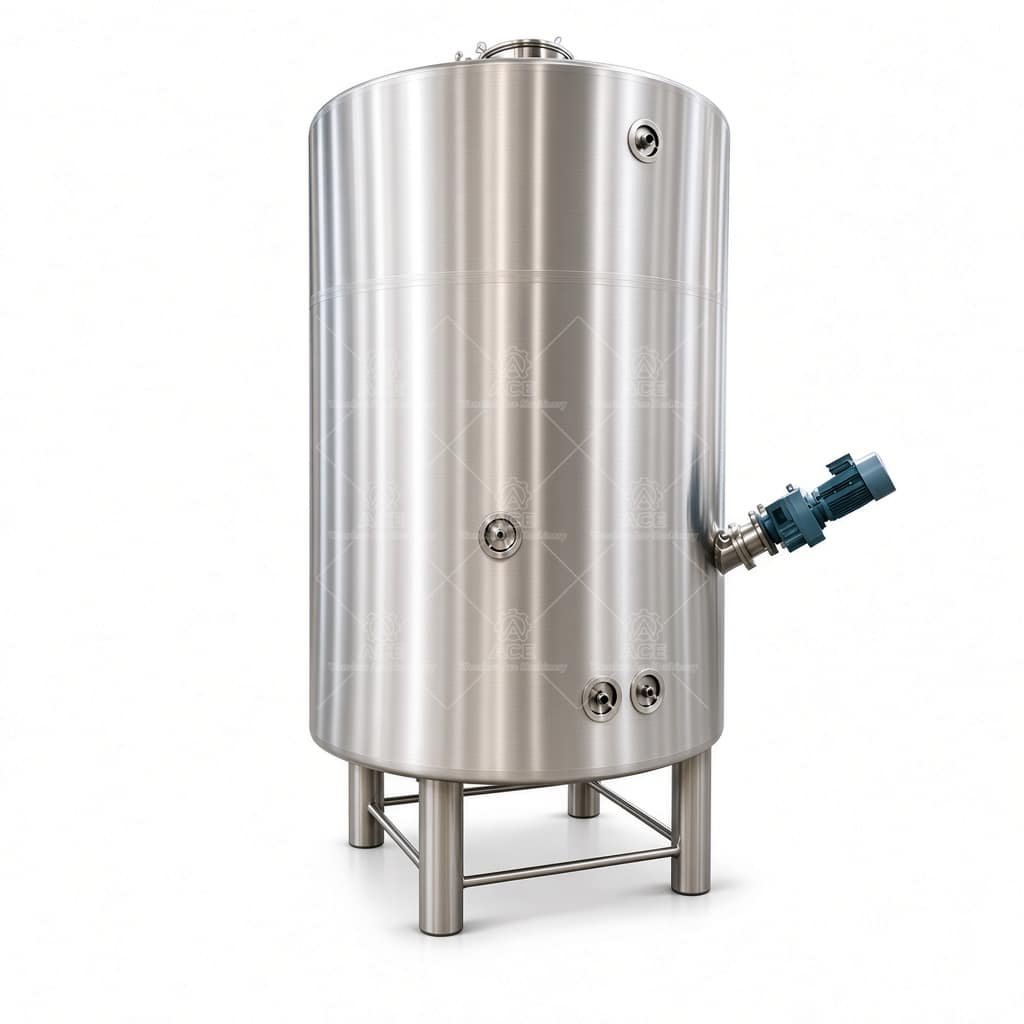

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
We build stainless steel reaction vessels for processes where clean mixing, reliable heating, and repeatable results matter. This reactor series combines a magnetic stirrer drive with an agitated tank design, which is a practical choice for labs, pilot plants, and small-batch production lines.
The vessel is constructed from 304 or 316L stainless steel, depending on the chemical environment you are working with. For acids, chlorides, or pharmaceutical applications, 316L is the safer call. We use full-penetration welds and finish internal surfaces to a Ra ≤ 0.4 µm polish, so cleaning between batches is straightforward and product buildup stays low.
The magnetic stirrer eliminates the need for a dynamic shaft seal on the bottom. That means no leaking around the agitator shaft, which is a common headache with traditional mechanical seals. The top-mounted motor drives an internal impeller through magnetic coupling, giving you a fully enclosed system. This works well for volatile solvents, air-sensitive reactions, or processes where contamination must be avoided.
Heating and cooling are handled through a jacket around the vessel body. You can specify a single jacket for steam or thermal oil, or a half-pipe coil for faster response. We also offer internal coils if your process demands more heat transfer area. Temperature control is managed through a separate control panel, and we can integrate with your existing PLC system if needed.
This reactor is used across chemical synthesis, polymer dispersion, resin production, and cosmetic emulsification. It handles working volumes from 50 liters up to 5000 liters, with pressure ratings from full vacuum to 1.0 MPa. If your reaction requires higher pressure or a different agitation pattern, tell us the details, and we will adjust the design accordingly.
Technical Specifications
| Capacity | 50 L – 5000 L (custom sizes available) |
| Material | SS304 / SS316L |
| Inner wall thickness | Per pressure and capacity requirements |
| Heating | Steam, thermal oil, electric (optional) |
| Cooling | Jacket / half-pipe coil / internal coil |
| Working pressure | Full vacuum – 1.0 MPa |
| Design temperature | -20°C to 200°C (higher on request) |
| Stirring | Magnetic drive, variable speed |
| Sealing | Magnetic coupling (no dynamic seal) |
| Surface finish | Ra ≤ 0.4 µm internal, brushed external |
| Options | Pressure gauge, rupture disc, sight glass, sampling valve, nitrogen inlet |
Choosing the Right Reactor
Before asking for a quote, walk through your process parameters. What is the chemical composition and concentration? What batch size and working volume do you need? What temperature and pressure will the vessel see? Is the process batch or continuous? What viscosity and solids content are involved? Do you need heating, cooling, or precise temperature ramping? What mixing intensity is required? Are there cleaning or certification requirements?
These details directly affect the vessel geometry, impeller type, jacket design, and instrumentation. For example, a high-viscosity resin needs a different impeller than a low-viscosity aqueous solution. A vacuum process demands a different flange rating than an atmospheric one.
Get a Practical Quote
Send us your material type, batch volume, operating temperature, pressure range, and stirring requirements. Include any special requests like explosion-proof motors, sanitary connections, or specific polish finishes. Our engineers will review your process and recommend a reactor configuration that fits the job, not just the price sheet.
