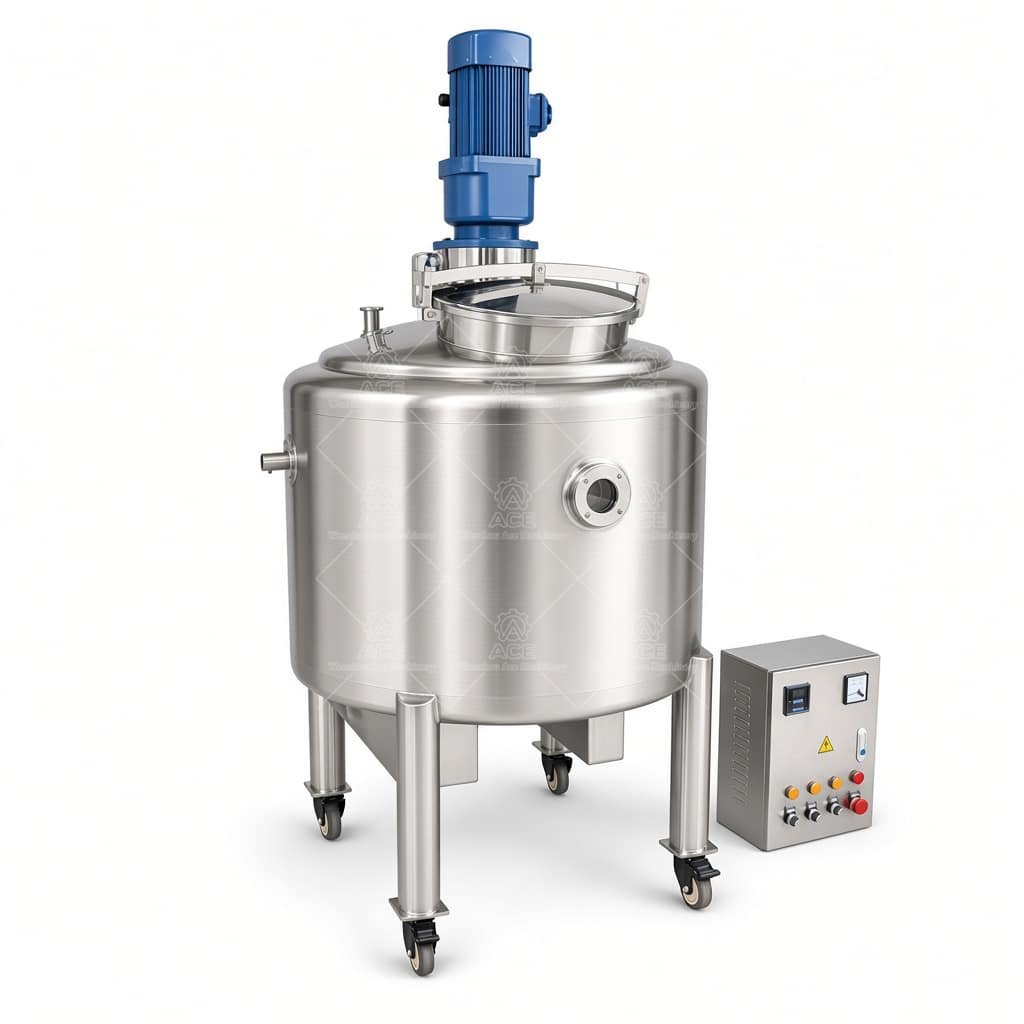

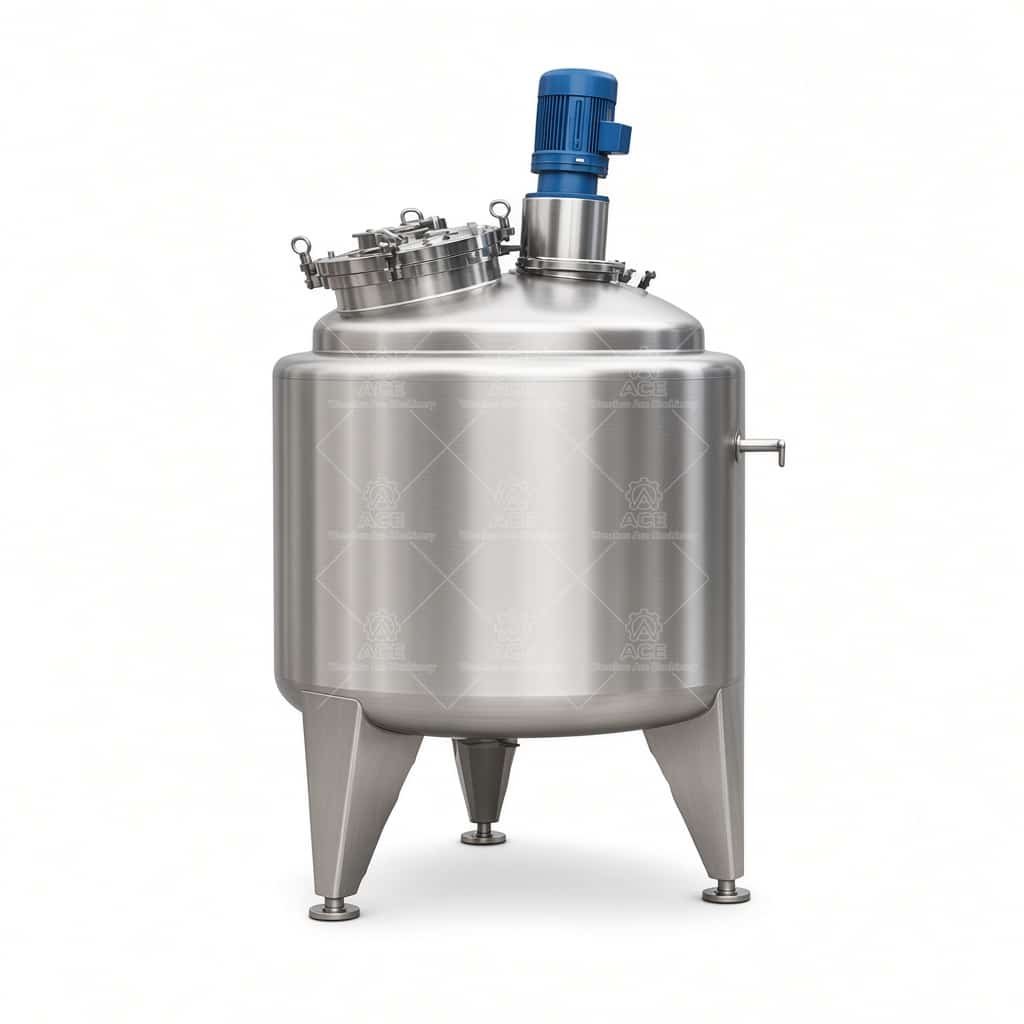

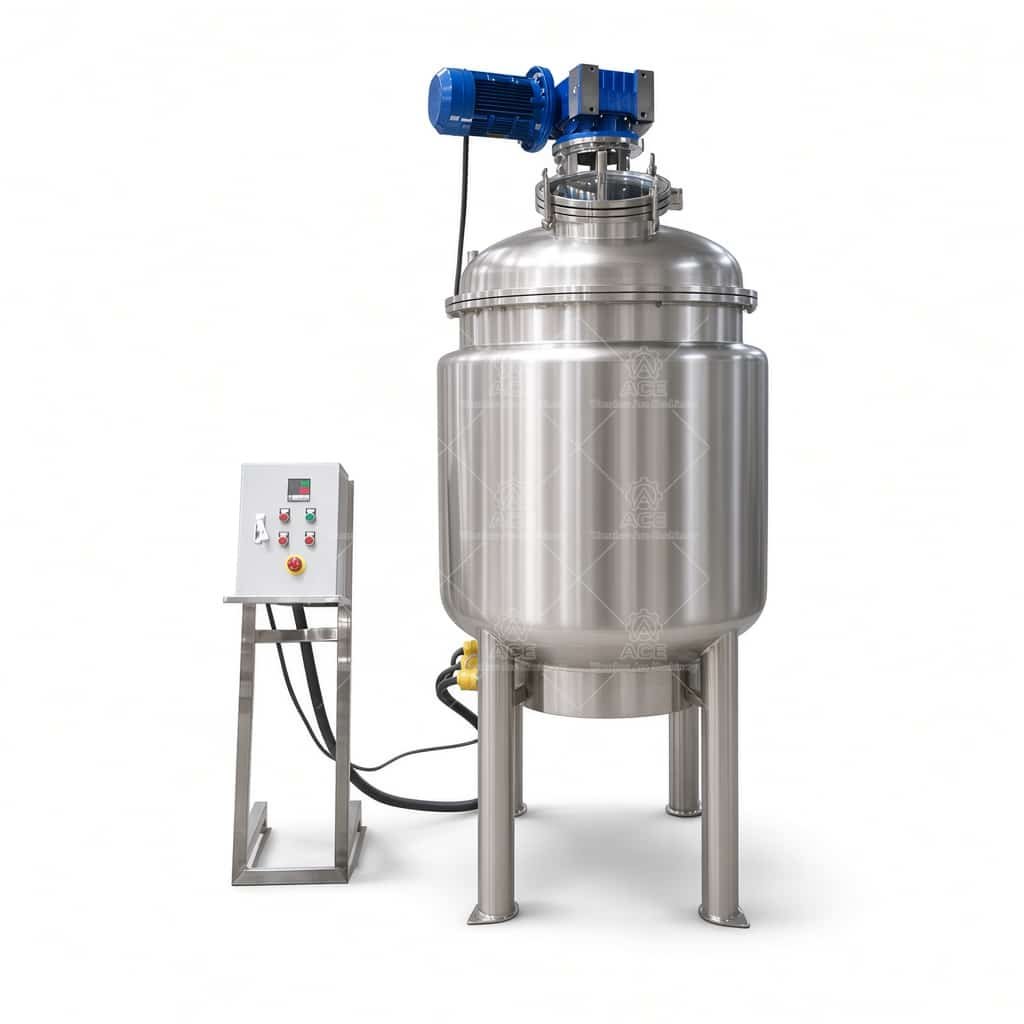

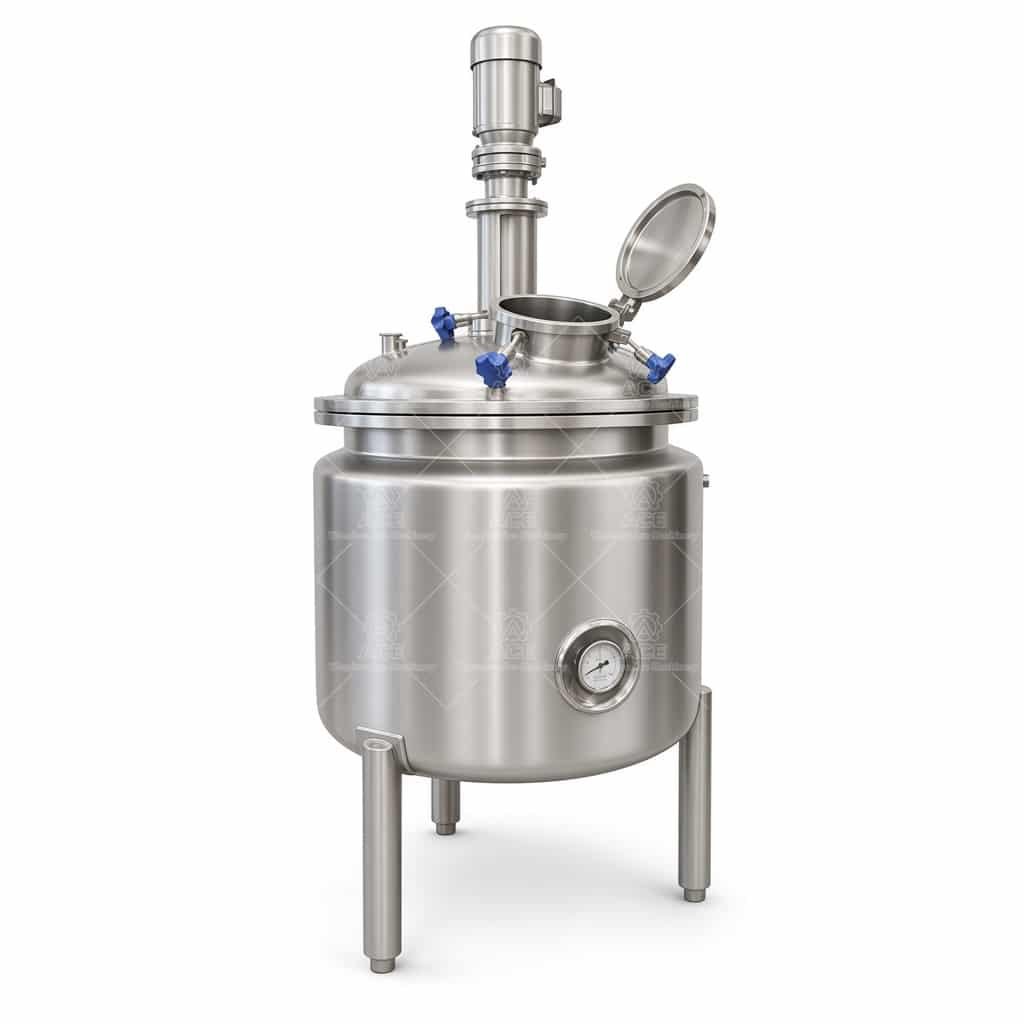

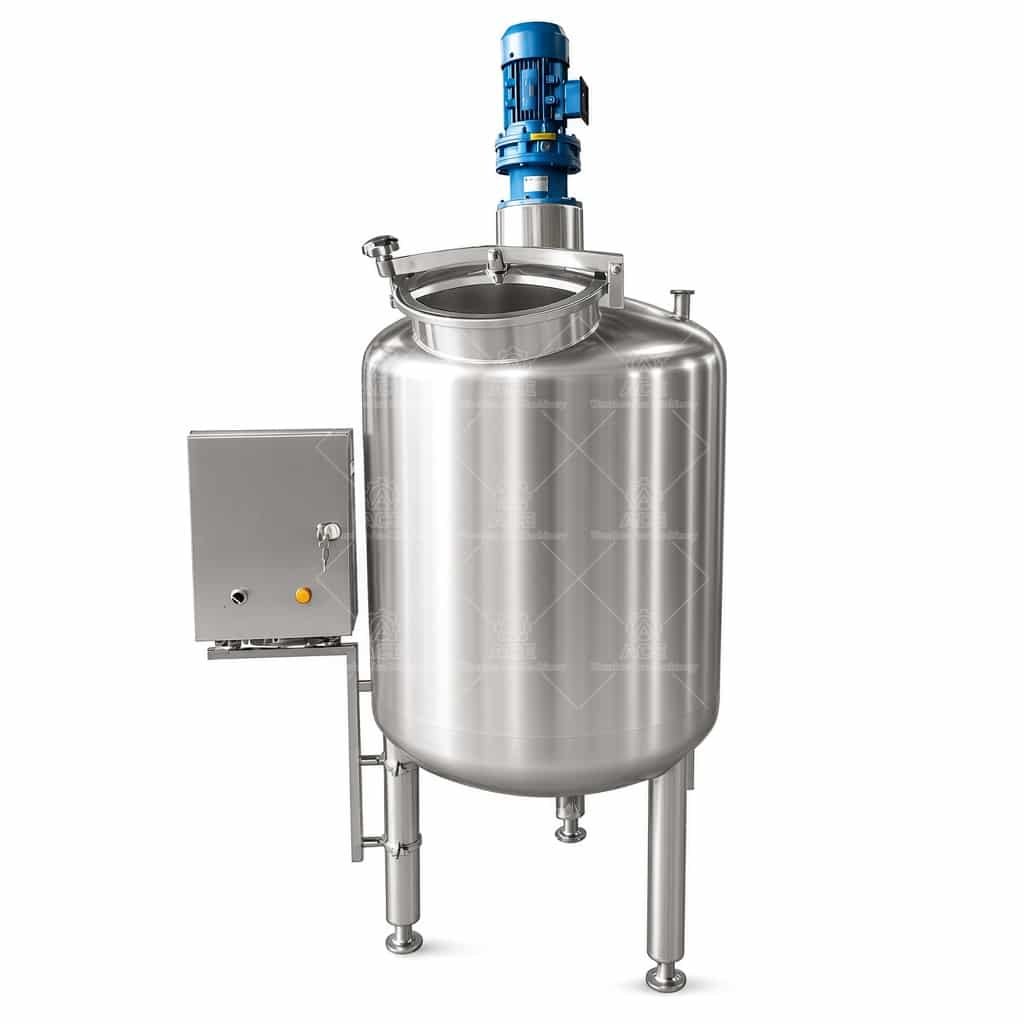

Stainless Steel Atmospheric Reactors with Efficient Mixing for Diverse Chemical Reactions
Industrial-grade stainless steel atmospheric reactors for chemical, pharmaceutical, and cosmetic batch processing. Available in 304 or 316L with custom agitators, jackets, and polishing options. Built for reliable mixing and easy cleaning.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
$3,397.17 – $4,355.51Price range: $3,397.17 through $4,355.51
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Stainless Steel Atmospheric Reactors for Process Flexibility
Atmospheric reactors handle a wide range of liquid-phase reactions where pressure control is not the primary concern. We build these vessels for processors who need reliable mixing, consistent heat transfer, and straightforward cleaning between batches. Whether you\’re running esterification, neutralization, polymerization, or simple blending, the vessel design directly affects your yield and cycle time.
The wetted parts are fabricated from 304 or 316L stainless steel, depending on your feed chemistry. 316L is the safer choice when chlorides or acidic media are present. We weld with full penetration and passivate the surfaces after fabrication. Interior welds are ground flush, and the product contact area can be polished to Ra 0.4 µm if your process demands it. For less critical applications, a 2B mill finish with a 150-grit polish is sufficient and more economical.
Mixing and Heat Transfer Considerations
Efficient mixing in an atmospheric reactor comes from matching the agitator to the fluid. We fit anchor, paddle, or turbine impellers based on viscosity and solids content. A PTFE or mechanical seal at the shaft entry prevents leakage and contamination. The jacket—either dimple or half-pipe coil—provides heating or cooling via steam, thermal oil, or chilled water. Baffles are installed when turbulent mixing is required.
Typical Applications
These reactors are common in specialty chemical plants, resin and adhesive production, and cosmetic batch manufacturing. They also appear in pharmaceutical intermediate synthesis where the process runs at ambient pressure. You can add a reflux condenser, addition funnel, or sampling port through the top nozzles. Clean-in-place spray balls are an option for faster turnaround.
| Specification | Detail |
|---|---|
| Capacity | 50 L – 30,000 L (custom sizes available) |
| Material | SS304 / SS316L |
| Design Pressure | Atmospheric (FV to +0.5 bar) |
| Design Temperature | 0°C – 200°C |
| Agitator | Anchor / Paddle / Turbine |
| Seal | PTFE / Mechanical |
| Finish | 2B / Ra 0.4 µm |
FAQ
Q: Can I run a vacuum process in an atmospheric reactor?
A: Not without modifications. Vacuum service requires a pressure vessel design and different seal selection. Tell us your actual operating pressure.
Q: What if my material is corrosive?
A: Send us the chemical composition and concentration. We\’ll advise on the right grade of stainless steel or a lining option.
Q: How do I choose the right agitator?
A: It depends on viscosity and whether you need shear. Anchors work for high-viscosity pastes; turbines are better for low-viscosity mixing and suspension.
Request a Quote
Before you ask for pricing, prepare these details: the material you process, its concentration and viscosity, the working volume per batch, operating temperature, and whether you need heating or cooling. Also specify any cleaning or seal requirements. Send these to our engineering team, and we\’ll recommend the right configuration and provide a firm quote.
