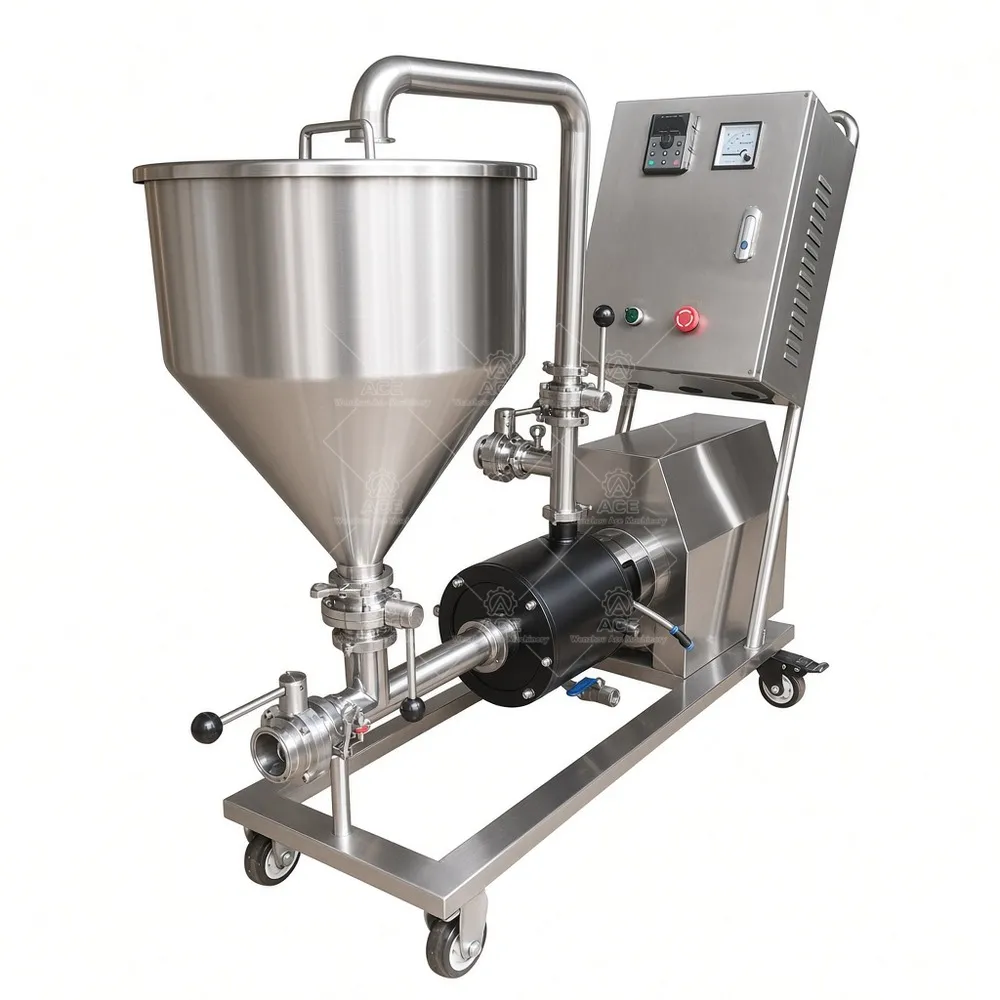

Sanitary Frame-Type High Shear Powder Induction Emulsifying Pump with Hopper
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,983.04 through $2,090.72
Guaranteed Safe Checkout

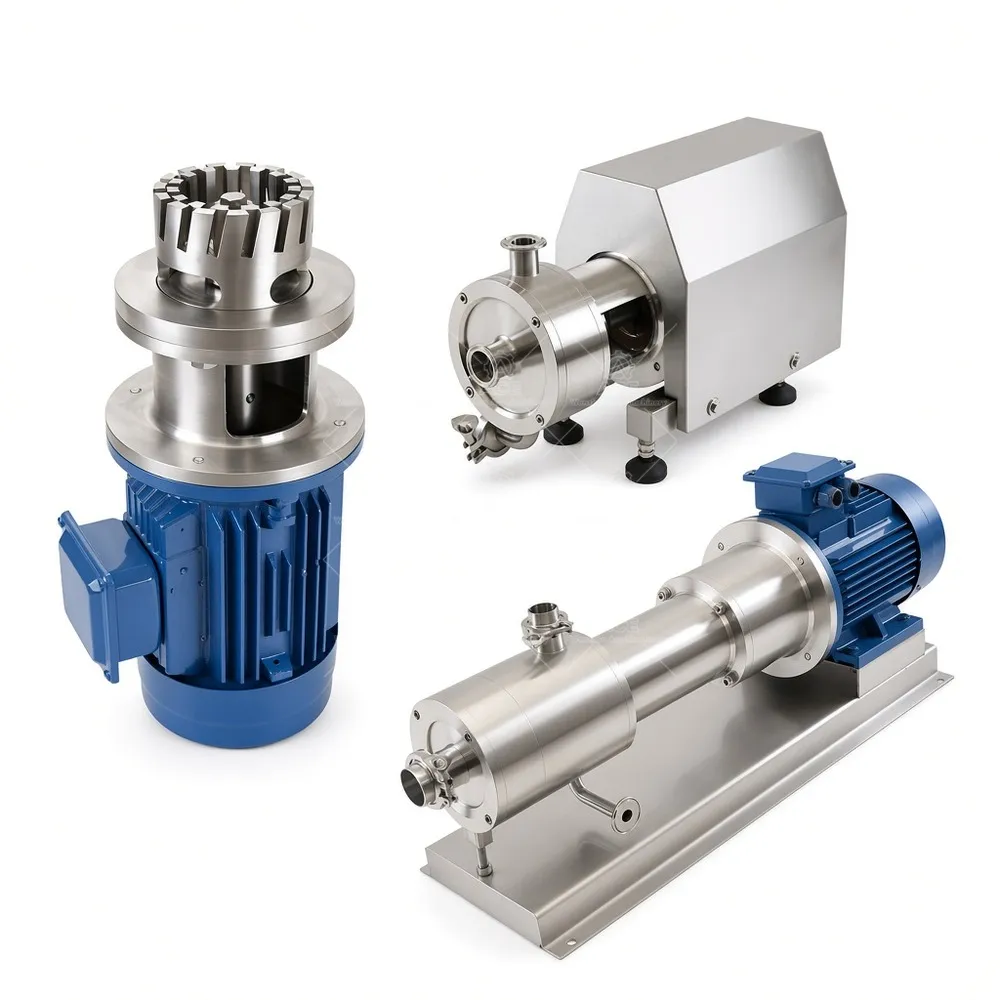

We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Ace Mixer builds this sanitary frame-type high shear powder induction emulsifying pump for processors who need to pull powders into liquids without hand dumping or long wet-out times. The unit combines a hopper, powder induction chamber, and high-speed rotor-stator head on a stainless steel frame. Wetted parts are stainless steel; seals, connections, motor enclosure, and contact materials can be specified for washdown, solvent, or hygienic service.
In operation, the pump recirculates or feeds liquid through the rotor-stator. The rotor creates shear and a local pressure drop that draws powder from the hopper into the liquid stream. Powder wets out in the high-shear zone; agglomerates break down as the mixture passes the stator slots. The pump can support emulsification, dispersion, and size reduction where the formulation allows. Results depend on viscosity, solids loading, particle size, and residence time. We size the head and motor around your duty, not a catalog claim.
Where inline shear helps
Plants often move to inline or recirculation mixing when batch tanks become the bottleneck. An inline high shear pump can be installed in a pipe run or loop, integrated with an existing tank, and run alongside filling or transfer. Compared with agitator-only batch mixing, it can shorten wet-out and hydration time, reduce manual additions, and improve batch consistency. It is not a universal replacement; high-solids pastes and very high-viscosity products usually need a different configuration.
- Food and beverage: sauces, dressings, mayonnaise, syrups, liquid seasonings, dairy blends, beverage ingredients, and starch, gum, or stabilizer dispersion.
- Cosmetics and personal care: creams, lotions, shampoos, conditioners, liquid detergents, oil-water emulsions, and ingredient dispersion.
- Pharmaceutical: liquid formulations and excipient dispersion where equipment and cleaning suit the process.
- Chemical: coatings, adhesives, aqueous formulations, emulsions, and dispersions compatible with selected wetted materials and seals.
FAQ
Can it run continuously? Yes, when configured for continuous or recirculation service. We confirm flow, suction head, powder feed rate, and discharge pressure first.
What affects price? Motor kW, VFD, seal type, hopper size, connection standard, contact material, and sanitary finish.
Will it eliminate all lumps? No. Performance depends on powder type, addition rate, liquid viscosity, and shear energy; difficult formulations may need a trial.
Send your batch size, material characteristics, target motor power, and local electrical specification. Ace Mixer will recommend the rotor-stator, hopper, seal, and connection configuration and provide a firm quotation.
The Ace Mixer sanitary frame-type high shear powder induction emulsifying pump combines a hopper, rotor-stator shear head, and inline powder-liquid mixing for sauces, emulsions, and chemical dispersions. It supports continuous or recirculation processing, reduces lump formation, and can be configured with VFD, seals, connections, and contact materials to match your process.
Single-stage in-line mixer
Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
