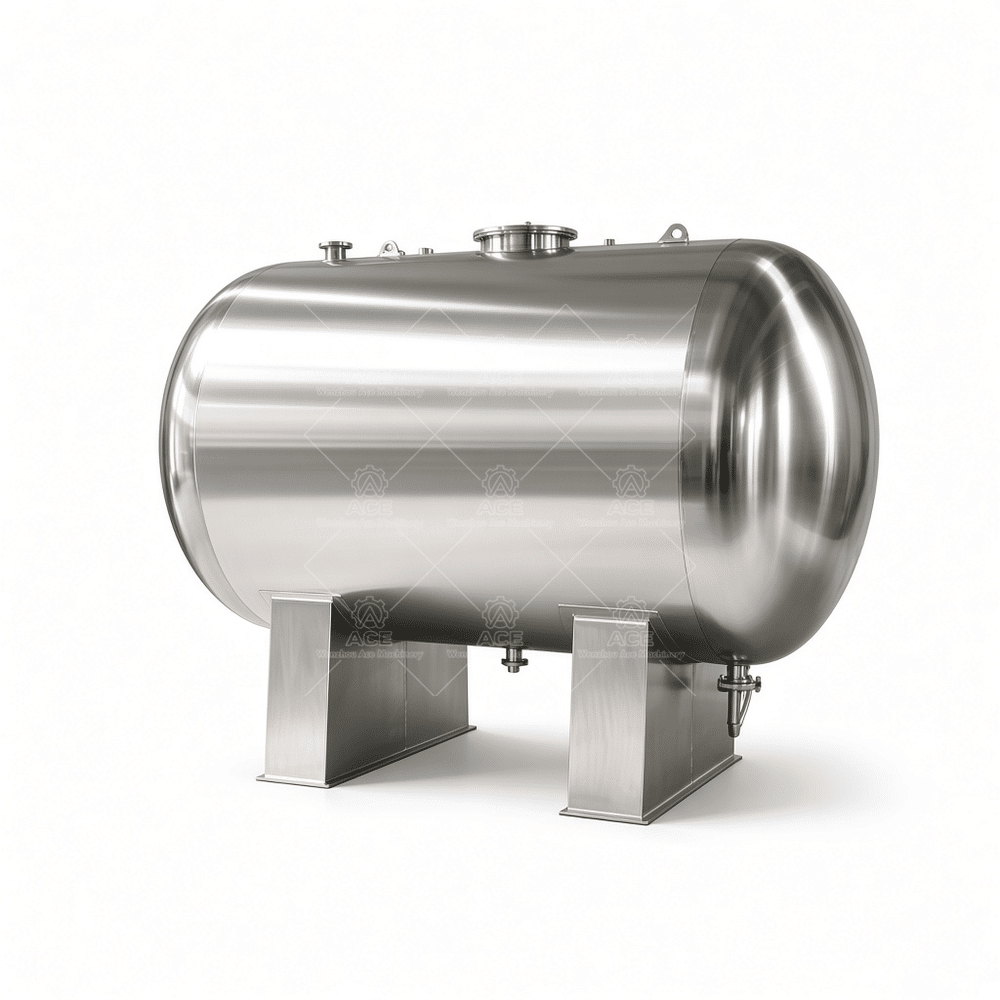

OEM Stainless Steel Sanitary Horizontal Movable Liquid Storage Tank
OEM stainless steel horizontal movable storage tank for food-grade liquids and water. Sanitary 304/316L construction, polished interior, caster or skid mounting. Custom capacities and options for heating, cooling, or agitation. Built by experienced fabricators for hygienic processing environments.
- Tank Capacity: [50L–100,000L or specify actual capacity]
- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,572.53 through $3,312.39
Guaranteed Safe Checkout
We build this horizontal storage tank for facilities that need a sanitary, movable vessel for food-grade liquids, potable water, or similar process fluids. The unit is fabricated from 304 or 316L stainless steel depending on your product chemistry and cleaning routine. We use TIG welding with full penetration on all wetted seams, then passivate and mechanically polish the interior to a 0.4–0.8 μm Ra finish. That keeps the surface smooth enough to drain completely and resist bacterial buildup.
The tank sits on heavy-duty skids or caster wheels, so you can reposition it between production lines or cleaning stations without a forklift. The horizontal orientation lowers the center of gravity, which makes it stable during transport and safe in tight spaces. Standard configurations include a sloped bottom for complete evacuation, a manway for internal access, and multiple tri-clamp connections for inlet, outlet, vent, and level instrumentation.
Material selection matters. For acidic products or chloride-containing washdowns, we recommend 316L. For neutral liquids like water or mild beverages, 304 is often sufficient. We do not guess—send us your fluid composition, operating temperature, and cleaning chemicals, and we\’ll confirm the right grade. The tank can be built with an insulated jacket, heating coil, or cooling panel if your process needs temperature control. Agitation options include side-entry mixers or top-mounted agitators, but only if you specify the required mixing intensity.
This is not a pressure vessel. If you need to operate under vacuum or positive pressure, we\’ll design a separate container with proper head thickness and rated flanges. For atmospheric storage, the tank handles up to 60°C continuous service as standard, but higher temperature ratings are available on request.
Technical Specifications
| Capacity | 500–30,000 liters (custom) |
| Material | SUS304 / SUS316L (2B or BA finish) |
| Surface | Internal mirror polish ≤0.6 μm Ra, external satin or brushed |
| Mounting | Skid base or caster wheels, fixed or swivel |
| Connections | Tri-clamp, flange, or threaded per request |
| Options | Insulation, heating/cooling jacket, level sensor, spray ball |
FAQ
Q: How do I choose between 304 and 316L?
If your product contains chlorides, acids, or you use aggressive CIP chemicals, go with 316L. For plain water or low-corrosion liquids, 304 is more economical.
Q: Can I move this tank while it\’s full?
No. The caster wheels are designed for positioning an empty or partially filled tank. Moving a full tank creates dangerous inertia and stresses the frame.
Q: What\’s the lead time?
Standard units ship in 3–4 weeks. Custom sizes or special surface finishes may take 6–8 weeks.
Before requesting a quote, prepare these details: the exact liquid to be stored, required working volume, available floor space, operating temperature, and whether you need heating, cooling, mixing, or specific cleaning validation. Share those with our engineers and we\’ll send a dimensional drawing and a firm price. We do not upsell features you don\’t need—we build only what your process actually requires.
