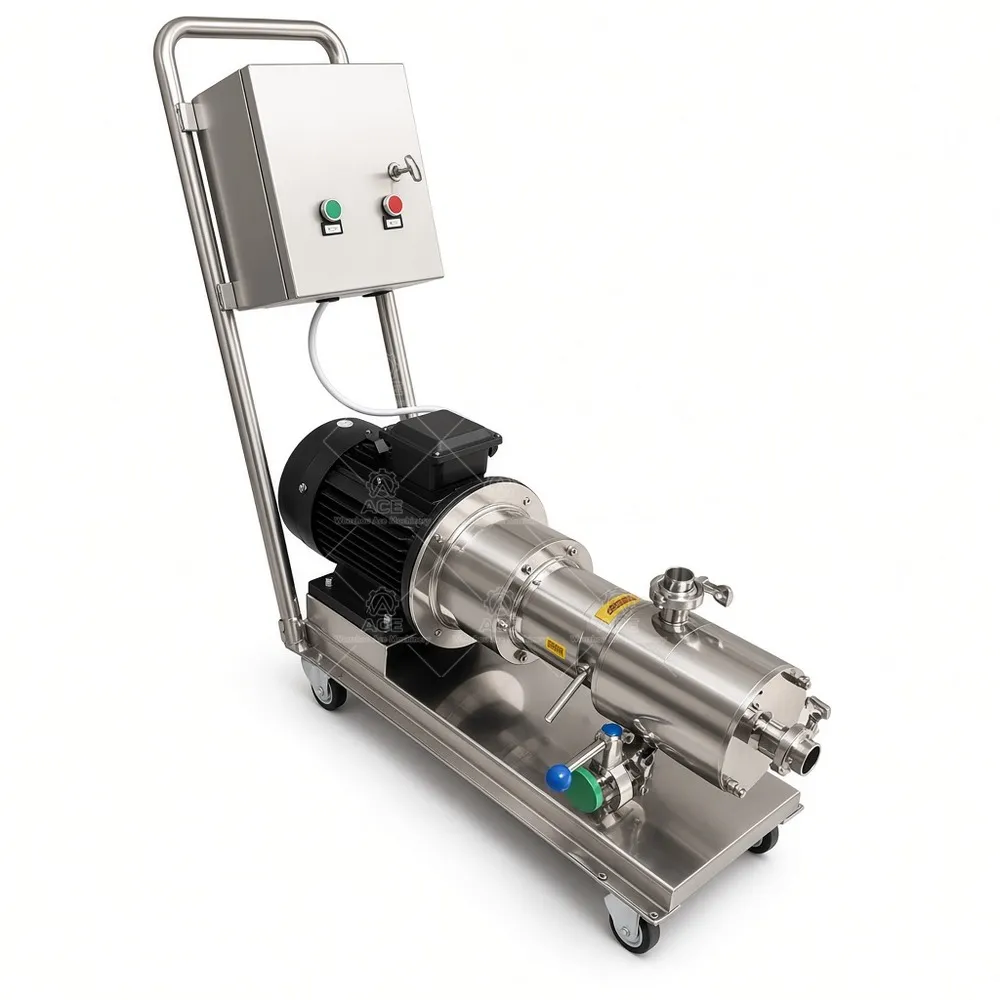

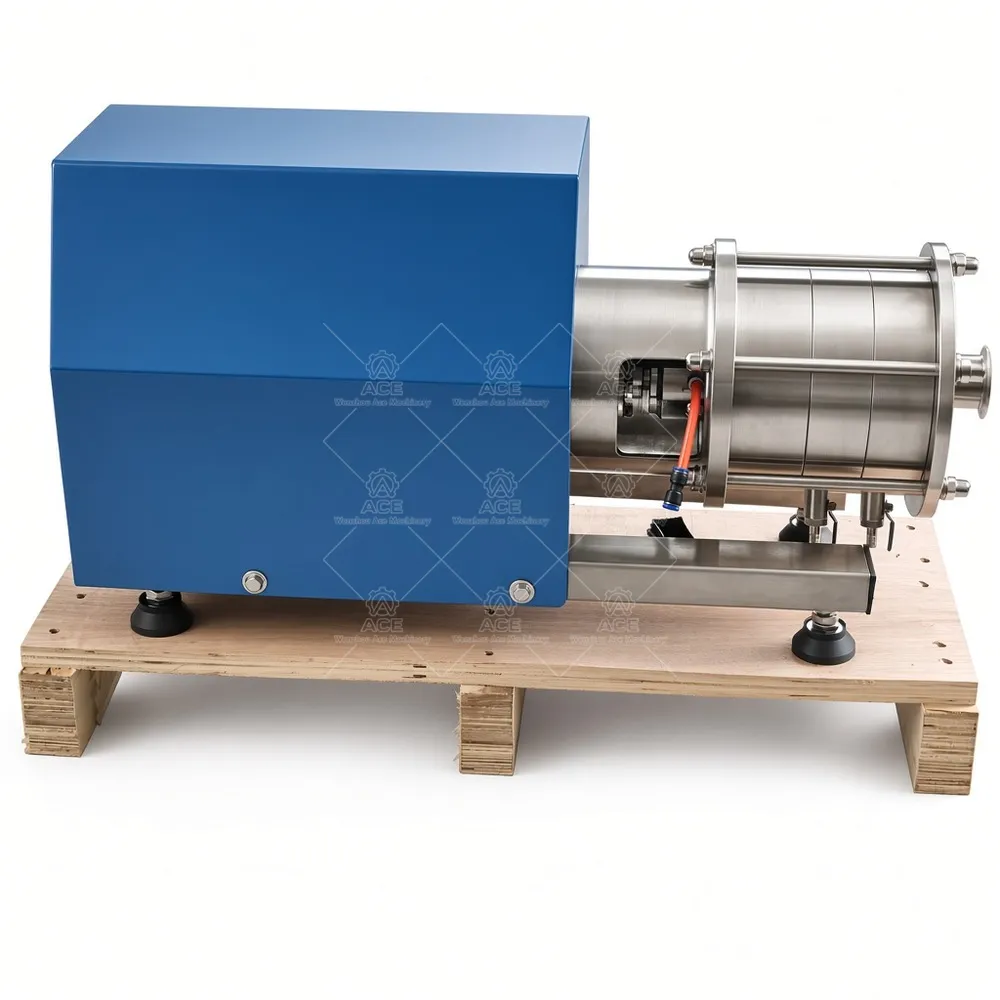

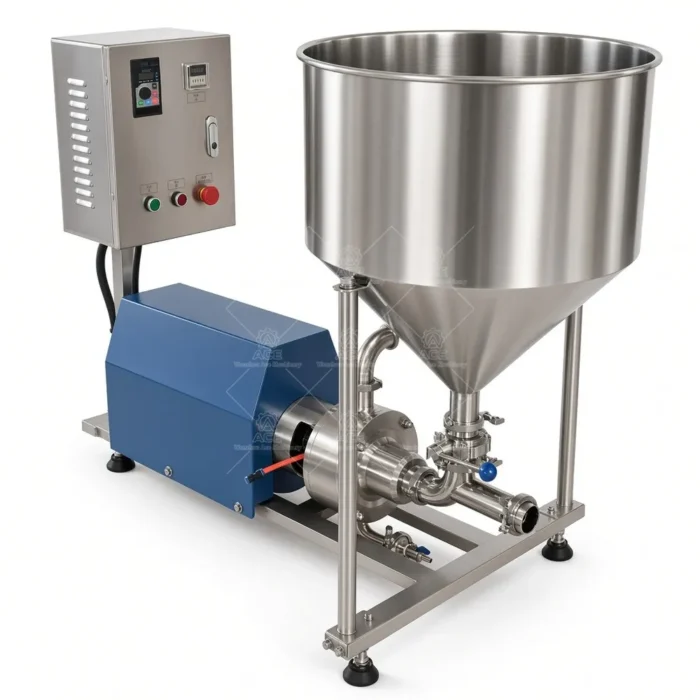

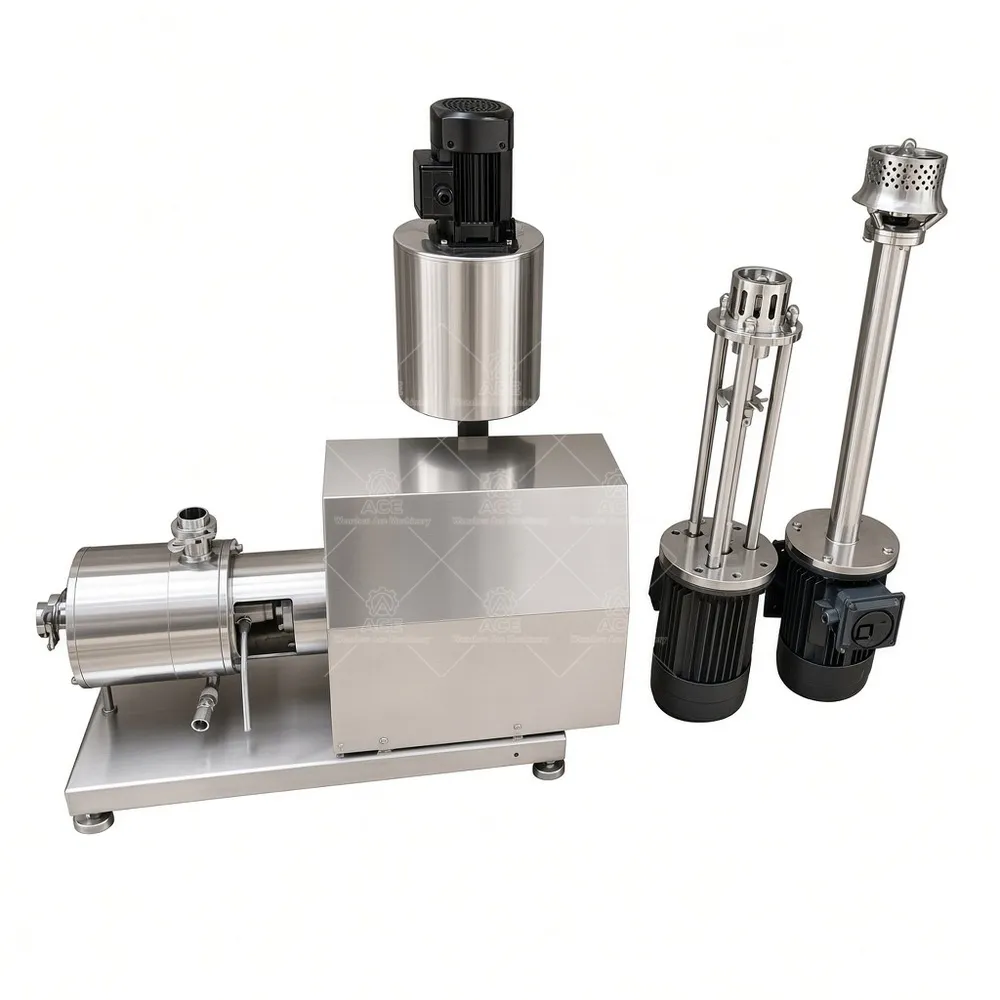

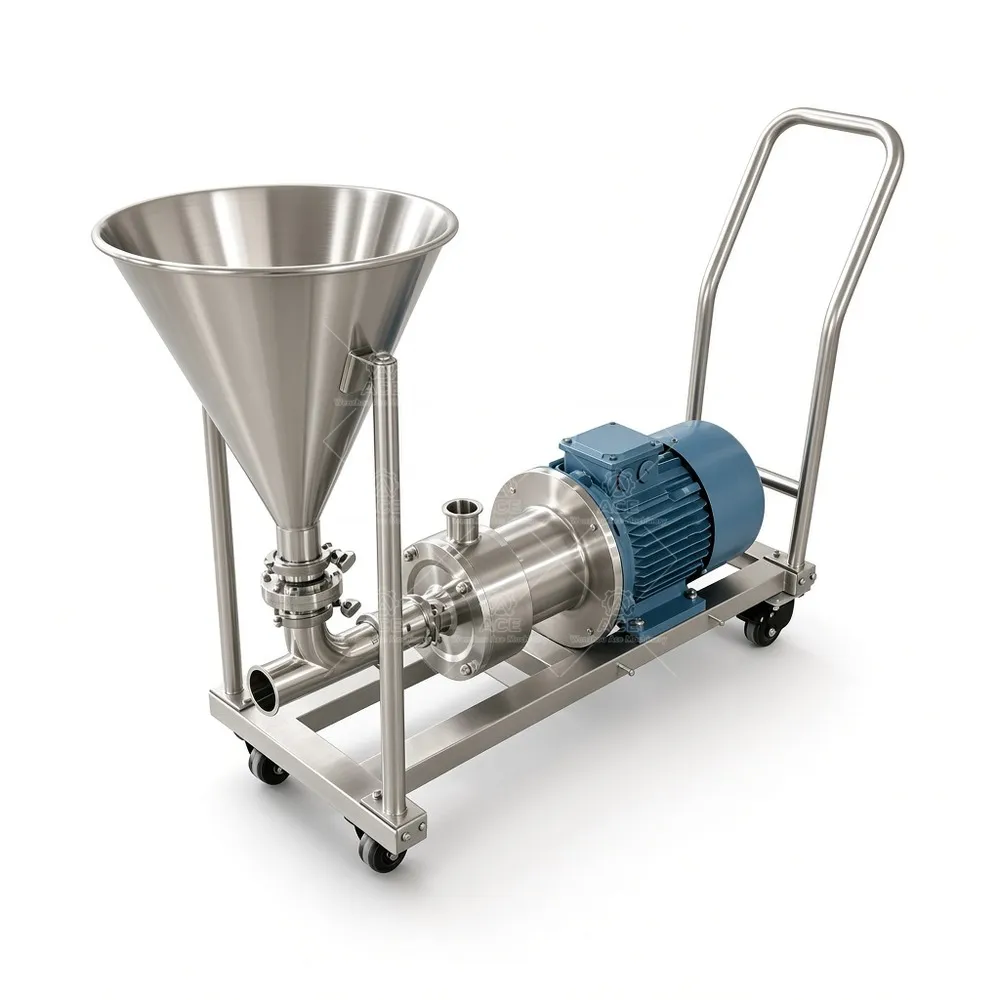

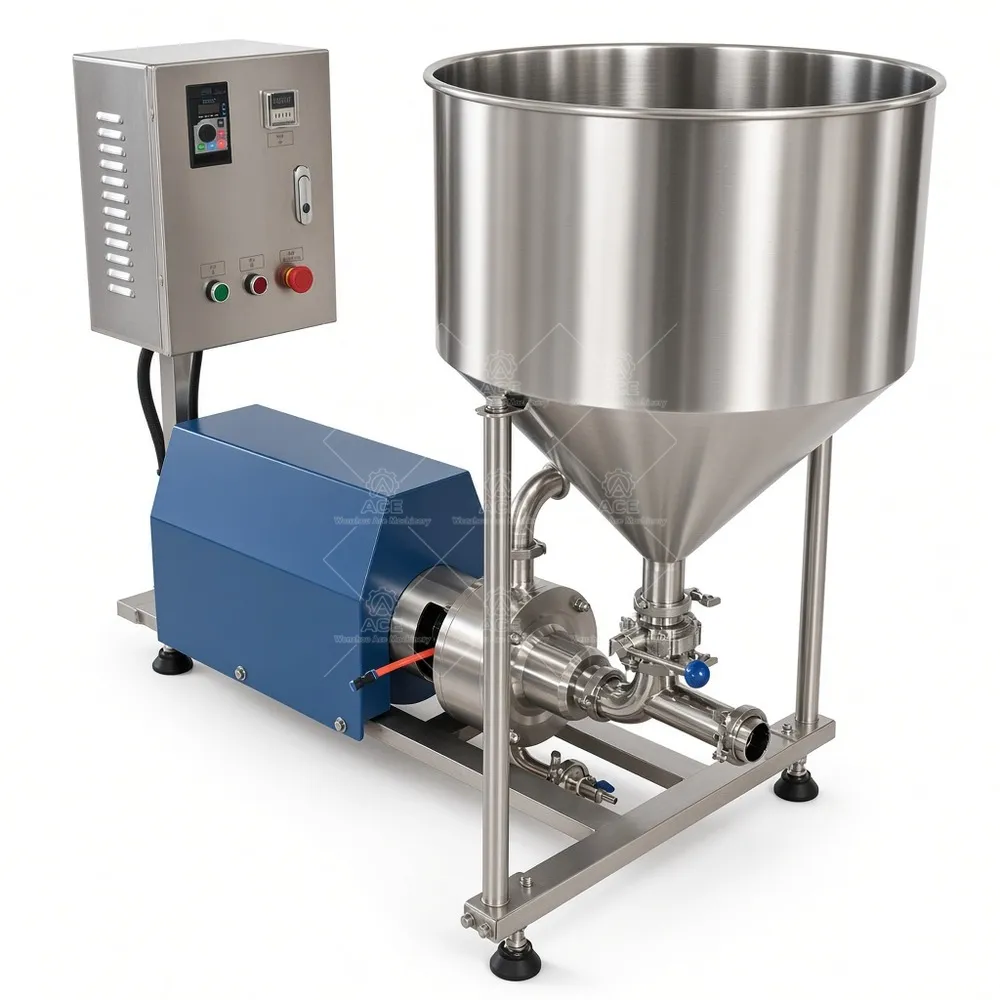

Inline High Shear Grinding Pump for Creams Lotions Ointments and Food Liquids
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,986.62 through $2,178.53
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for inline grinding, dispersing, and emulsifying
Ace Mixer inline high-shear pumps put the rotor-stator workhead directly in your pipe or recirculation loop. Product enters the mixing chamber, gets pulled through the rotor-stator, and exits with tighter dispersion and fewer lumps. Since the pump can be tied into an existing tank, you often skip a separate batch mixer and extra transfer step. That helps when floor space is tight or when a formulation needs shear close to the point of fill.
Rotor tip speed, workhead style, motor power, and seal arrangement decide how the unit behaves on your material. We match those details to viscosity, solids loading, temperature, and cleaning method. Stainless-steel construction covers typical food, cosmetic, and chemical service. Depending on the model, we can supply VFD control, different motor enclosures, sanitary or industrial connections, and alternate elastomers for the product-contact area.
Where it fits in production
For liquid-liquid mixing and emulsification, the shear zone can shorten process time compared with low-speed agitation alone. For powders, inline addition helps wet out gums, stabilizers, and thickeners before they form hard agglomerates. Grinding action can reduce particle size in some slurries, though results depend on the formulation and number of passes. It is not a universal mill; we review the target particle size and solids before recommending a workhead.
Typical applications
- Food and beverage: sauces, dressings, mayonnaise, syrups, liquid flavorings, dairy mixes, and starch or gum dispersion.
- Cosmetics and personal care: creams, lotions, shampoos, conditioners, liquid detergents, and oil-water emulsions.
- Pharmaceutical: liquid formulations and excipient dispersion where the equipment and materials are suitable.
- Chemical: coatings, adhesives, water-based products, emulsions, and compatible dispersions.
One pump configuration will not suit every formula. High-viscosity ointments, abrasive pastes, and heat-sensitive products need different seals, clearances, and motor sizing.
FAQ
Can I install it in an existing line? Yes, if pipe size, flow rate, pressure drop, and available space are checked first.
Do I need a VFD? Not always. A VFD helps when you want to tune shear or handle changing product viscosity.
What affects price? Motor power, contact materials, seal type, connections, controls, and documentation requirements.
Send your batch size, material characteristics, target flow rate, required motor power, and local electrical specification. We will recommend a suitable Ace Mixer configuration and quote accordingly.
Ace Mixer inline high-shear grinding and emulsifying pump handles creams, lotions, ointments, pastes, and food liquids in continuous or loop systems. The rotor-stator head disperses powders, breaks down agglomerates, and supports emulsion formation. Stainless-steel construction, optional VFD, and customizable seals and connections help match the unit to your formula, utilities, and cleaning routine.
