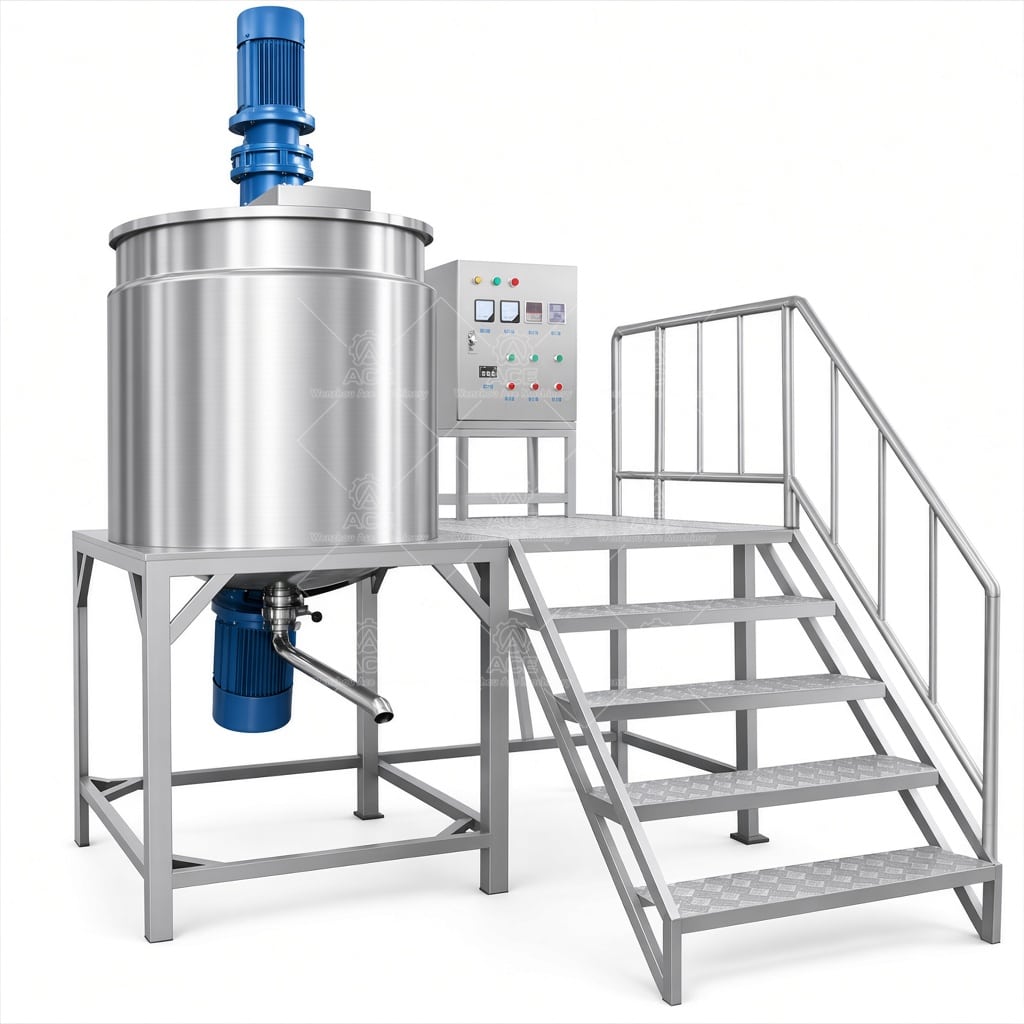

Homogenizing Mixer for Hand Wash, Shampoo and Liquid Detergent
A configurable mixing system for hand wash, shampoo, dishwashing liquid, and other detergent products. Vessel materials, surface finish, agitator type, drive, heating, and discharge are selected around the formula, batch size, viscosity, and cleaning method. Share process conditions and utility requirements to determine whether standard agitation, high-shear homogenization, or a combined arrangement is appropriate.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: 304 or 316L
- Voltage: 110V to 600V
- Heating method: Electric or steam heating
- Layer:single/double jacket/three jacket
- Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
- Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Our equipment supports customisation, global delivery, and a 1-year warranty.
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,834.60 through $7,837.92
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Mixing system for personal-care and cleaning liquids
Hand wash, shampoo, dishwashing liquid, and similar products can differ substantially in viscosity, foam tendency, and sensitivity to shear. We configure the vessel and mixing system around the actual formula and batch size. A homogenizer can help disperse selected ingredients or reduce visible agglomerates, but it is not required for every detergent process. For surfactant-rich formulas, excessive high-speed mixing may create foam and extend deaeration time. We review the addition sequence and target product condition before recommending an impeller arrangement.
Construction and process choices
Product-contact parts are commonly specified in stainless steel such as 304 or 316L, subject to ingredient compatibility, cleaning chemicals, and sanitation requirements. Weld finish, internal polishing, drainability, and surface roughness should be agreed in the purchase specification; a grade designation alone does not define cleanability. Seals are selected for the formula, operating temperature, and cleaning method. We also confirm whether the vessel needs a jacket, insulation, a dished bottom, or a particular discharge arrangement.
Heating may be unnecessary for a cold-mix process. Where warming is needed to aid dissolution or manage viscosity, the heating method and temperature-control range depend on batch size, heat-sensitive ingredients, and available utilities. Motor and gearbox sizing follows the working volume, viscosity profile, mixing time, and required circulation. A wall scraper may help with viscous batches or jacketed vessels; an in-line or bottom homogenizer may suit other dispersion duties. These choices involve tradeoffs in shear, foam formation, cleaning access, and maintenance.
Configuration details
| Specification | Selection basis |
|---|---|
| Working capacity | Batch size, headspace, and usable fill range |
| Contact materials and finish | Formula, cleaning regime, and finish requirement |
| Agitator and drive | Viscosity, shear needs, and mixing time |
| Heating and controls | Process temperature and plant utilities |
| Discharge and cleaning | Product recovery and washdown procedure |
Applications and purchasing questions
Typical applications include hand soap, shampoo, liquid detergent, and dishwashing products. A cosmetics plant may prioritize gentle blending and batch repeatability, while a detergent producer may focus on powder wetting and efficient transfer. In either case, provide the formula’s viscosity range, ingredients or SDS, batch size, target mixing time, temperature, cleaning method, and site power supply before requesting a quotation.
FAQ
Can one mixer handle several formulas? Often, but viscosity range, cross-contamination controls, and cleaning access must be checked.
Do I need a homogenizer? Share the dispersion requirement and sample behavior; high shear can be counterproductive in foaming products.
How do we size the unit? Our engineers use usable batch volume and process conditions, not nominal vessel capacity alone. Confirm these details before comparing equipment proposals.
