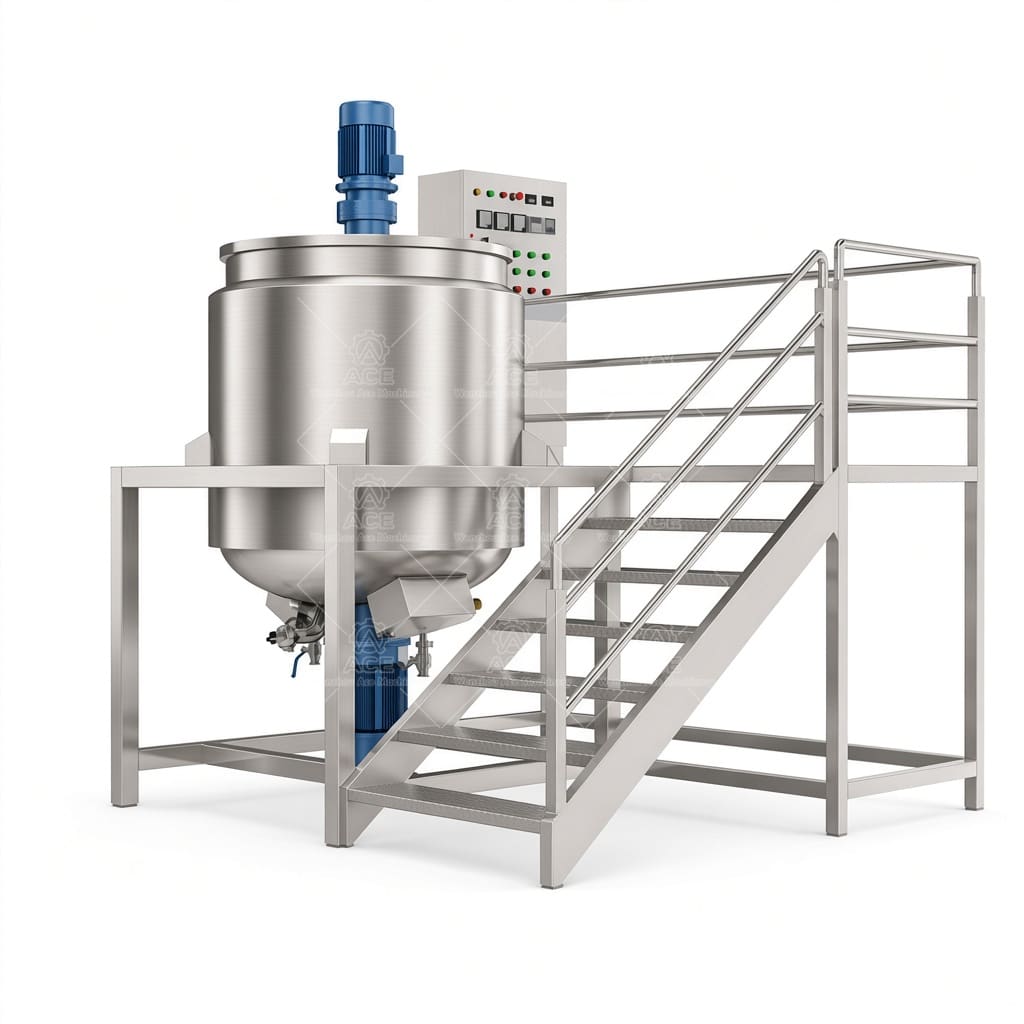

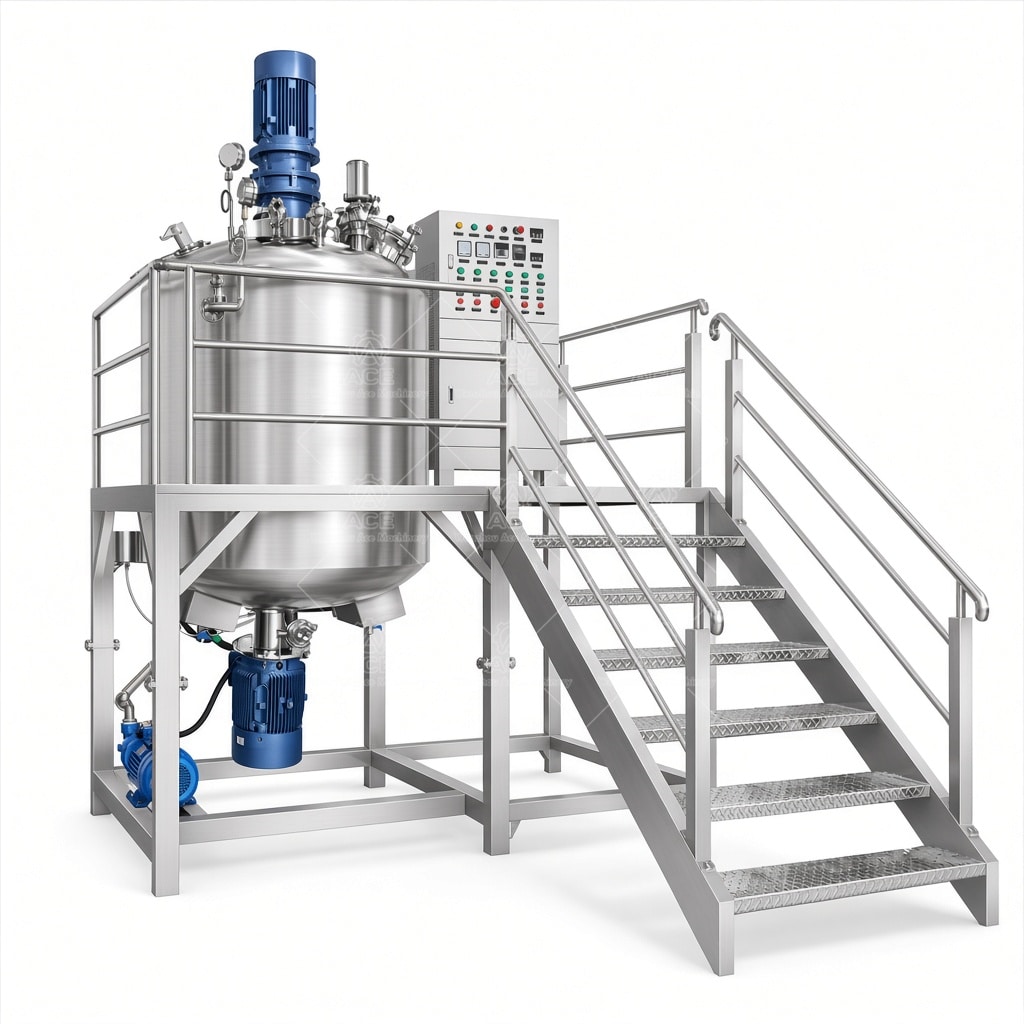

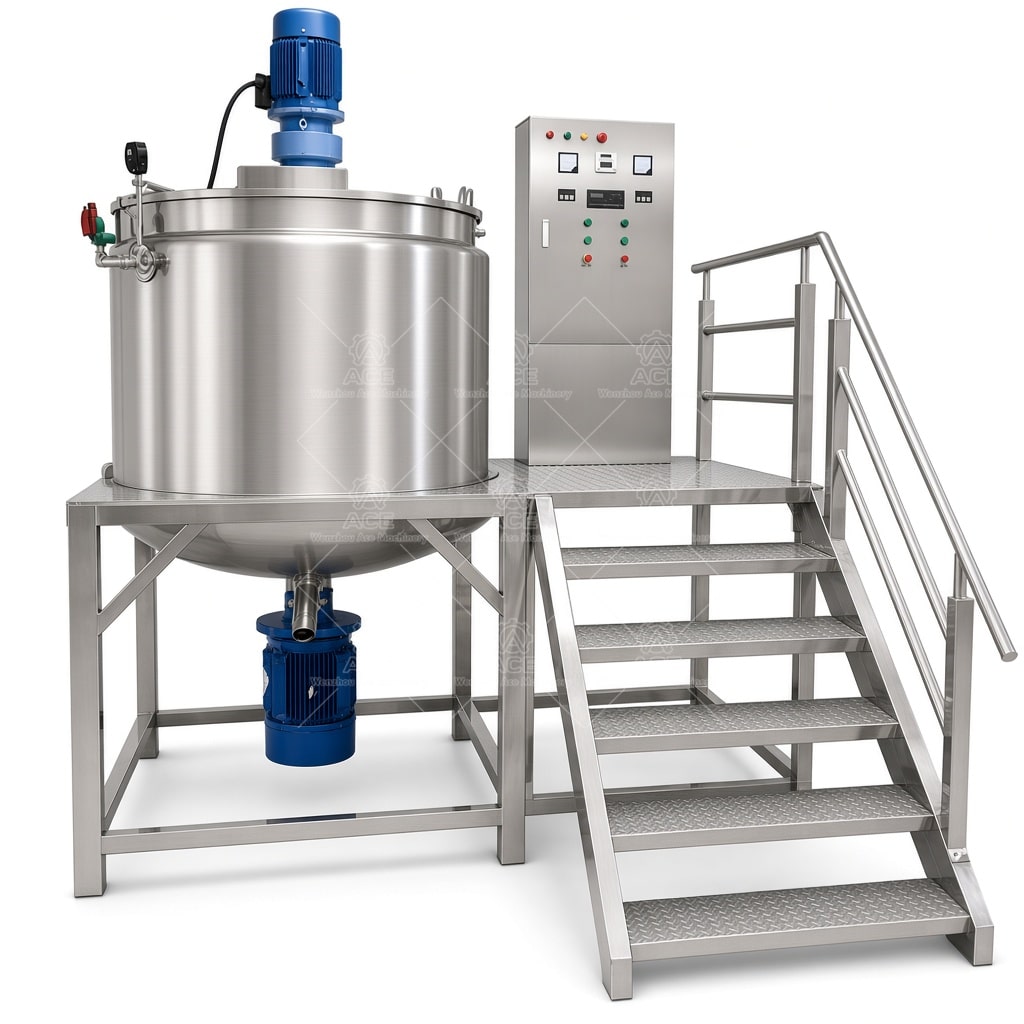

Cosmetic Gel and Body Cream Manufacturing Machine
This cosmetic production machine can be configured for body creams, lotions, gels, and other viscous personal-care products. Vessel capacity, stainless steel grade, agitation, high-shear mixing, heating, cooling, seals, and surface finish depend on the formula and cleaning requirements. Share batch size, viscosity range, process temperatures, and site utilities to help determine a suitable configuration.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
$7,968.61 – $9,070.67Price range: $7,968.61 through $9,070.67
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Gel and Body Cream Production Equipment
Cosmetic gels and body creams place different demands on a batch vessel. A gel may need controlled powder wetting and hydration to prevent lumps, while a cream typically requires emulsification, heat transfer, and cooling without pulling excess air into the batch. We configure the machine around the formula, batch size, and cleaning process rather than assuming one agitator or vessel design will suit every product.
Vessel, mixing, and temperature design
Product-contact parts are commonly specified in 304 stainless steel; 316 stainless steel may be appropriate when the formula contains corrosive salts, acids, or other ingredients that warrant added chemical resistance. Final selection should follow a review of the complete formulation and cleaning chemicals. Welds in product-contact areas should be continuous, ground smooth, and finished to the agreed hygienic standard, with no crevices that can retain cream or gel. Seal materials also need compatibility checks against oils, fragrances, solvents, and wash temperatures.
Anchor or scraper agitation can keep viscous material moving along the vessel wall. A separate high-shear head may be specified when the process needs finer dispersion or emulsification. Motor and gearbox sizing depend on viscosity across the full batch cycle, working volume, and required mixing speed. Heating may use a jacket with a suitable thermal medium; the choice among hot water, steam, or electric heating depends on available utilities, heat-up time, and temperature sensitivity. Cooling and temperature control should be sized around the actual batch and process sequence.
Configuration details
| Item | Engineering basis |
|---|---|
| Capacity | Set from batch size, vessel working volume, and headspace needs |
| Product-contact material | 304 or 316 stainless steel, selected for formula compatibility |
| Agitation | Anchor, scraper, high-shear, or combined arrangement as required |
| Heating and cooling | Jacket and controls configured to process and site utilities |
| Finish and seals | Defined by cleaning method, hygiene needs, and ingredient compatibility |
Applications and purchasing questions
Typical uses include skin-care creams, lotions, cleansing gels, hair gels, and other personal-care emulsions or viscous products. A frequent specification error is sizing the drive from water-like viscosity rather than the thickest stage of the batch. Another is selecting a high-shear mixer without confirming whether it can be cleaned and accessed safely.
FAQ
Can one machine make both gel and cream? Often, but the agitator arrangement and cleaning requirements must suit both formulas.
What should we send for a quotation? Provide batch and working volumes, ingredient or viscosity range, process temperatures, mixing sequence, cleaning method, available utilities, and installation constraints. These details let our engineers recommend a practical vessel, drive, and heating configuration.
