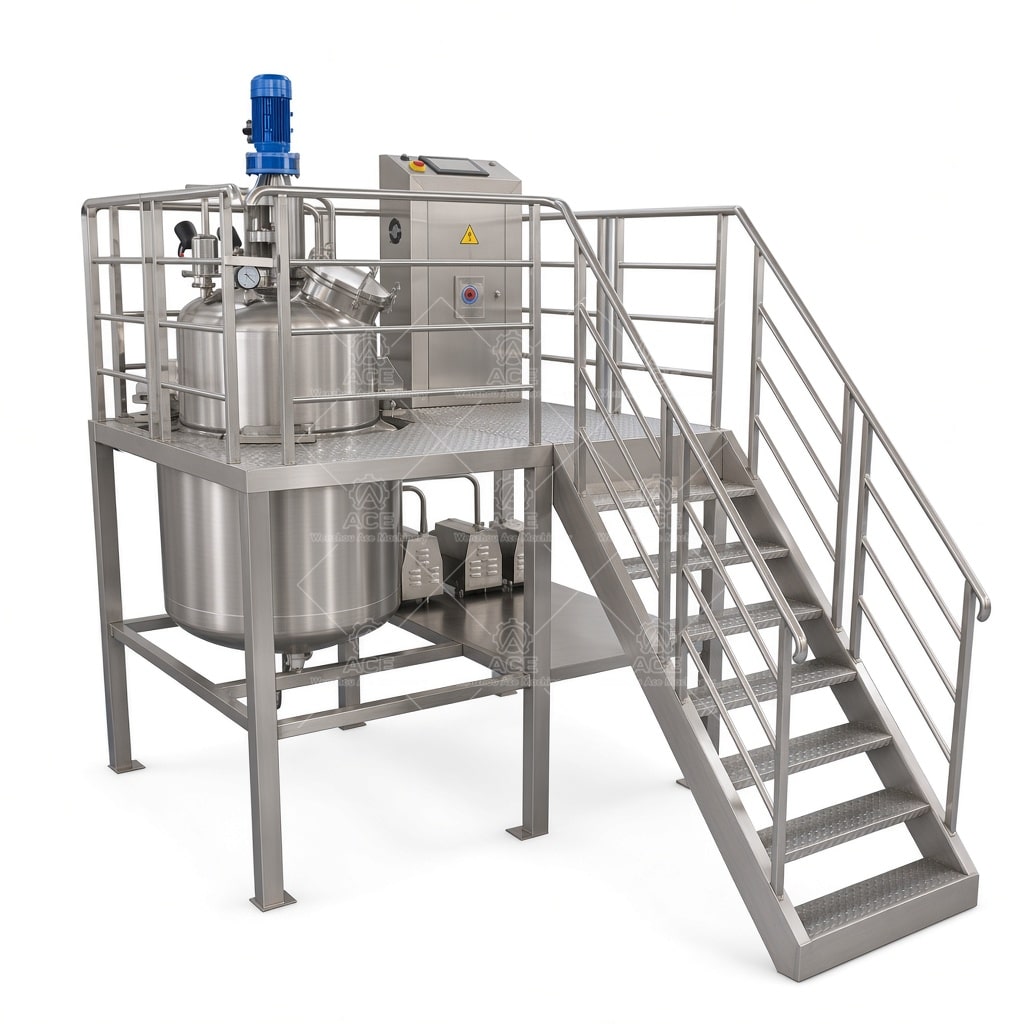

Industrial Mixing Disperser Homogenizer and Emulsifier Machine - Image 1

Industrial Mixing Disperser Homogenizer and Emulsifier Machine - Image 2

Click to enlarge

Industrial Mixing Disperser Homogenizer and Emulsifier Machine

A configurable mixing, dispersing, and homogenizing system for liquid processes that require powder incorporation, agglomerate reduction, or emulsion formation. Drive, impeller, rotor-stator head, wetted materials, seals, and optional thermal controls are selected around batch volume, viscosity, formulation, cleaning method, and production conditions. Share your process details to establish a practical equipment configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $7,130.50 through $8,084.56

Ask For A Quotation

Guaranteed Safe Checkout

Mixing and dispersion for demanding batches

This machine combines liquid agitation with high-shear dispersion or homogenization in a configurable process system. It is used when a batch needs more than simple circulation—for example, incorporating powders into a liquid, breaking down agglomerates, or producing an emulsion with a consistent texture. The suitable rotor-stator head, impeller arrangement, and drive depend on the formulation and the required batch size.

We size the system around viscosity, solids loading, batch geometry, and the process result. A high-shear head can shorten dispersion time, but it does not replace an anchor or other bulk-flow agitator in a large, viscous vessel. In many formulations, the two devices serve different purposes: one circulates the batch while the other applies localized shear.

Construction and configuration

Product-contact construction can be specified in 304 or 316 stainless steel after reviewing ingredients, cleaning chemicals, and corrosion exposure. Welds and internal transitions should suit the required cleanability; sanitary applications may call for smooth, polished contact surfaces, while non-sanitary service can use a finish matched to the process. Seal selection depends on temperature, pressure, shaft speed, and product compatibility. These details should be settled before fabrication.

Motor and reducer sizing follow the viscosity profile, operating speed, and load during startup—not just the liquid’s behavior after it is fully mixed. Impeller type and clearance also affect circulation, foaming, heat generation, and powder drawdown. Jacketed heating or cooling and temperature controls can be considered when the recipe requires thermal management; the heating method and control range must be defined for the actual vessel and process.

Configuration details

Item	Selection basis
Batch capacity	Working volume and vessel dimensions
Wetted materials	Product chemistry and cleaning regime
Drive and speed	Viscosity, shear requirement, and duty cycle
Heating or cooling	Recipe temperature needs; optional configuration
Seal and finish	Operating conditions and cleaning requirements

Applications and purchasing questions

Typical uses include pigment and coating dispersion, cosmetic creams, food sauces, beverage concentrates, and pharmaceutical liquids. A recurring sizing mistake is to specify only tank volume. A small trial batch with high powder loading may need a different head and power arrangement than a larger, low-viscosity liquid batch.

What information should we receive for a quotation?

Send batch and working volumes, vessel dimensions, ingredient or viscosity details, solids content, target mixing result, operating temperature, cleaning method, and available power supply. Share any required material, surface-finish, or sanitary standards.

Can one unit handle both mixing and emulsifying?

Often, but the result depends on formulation and vessel setup. We review whether a single rotor-stator assembly is adequate or whether a separate bulk-flow agitator is needed.

To identify the right configuration, provide a representative recipe and describe the production cycle, including startup conditions and cleaning. Our engineers can then recommend the drive, mixing elements, materials, and optional thermal features against the real process duty.
