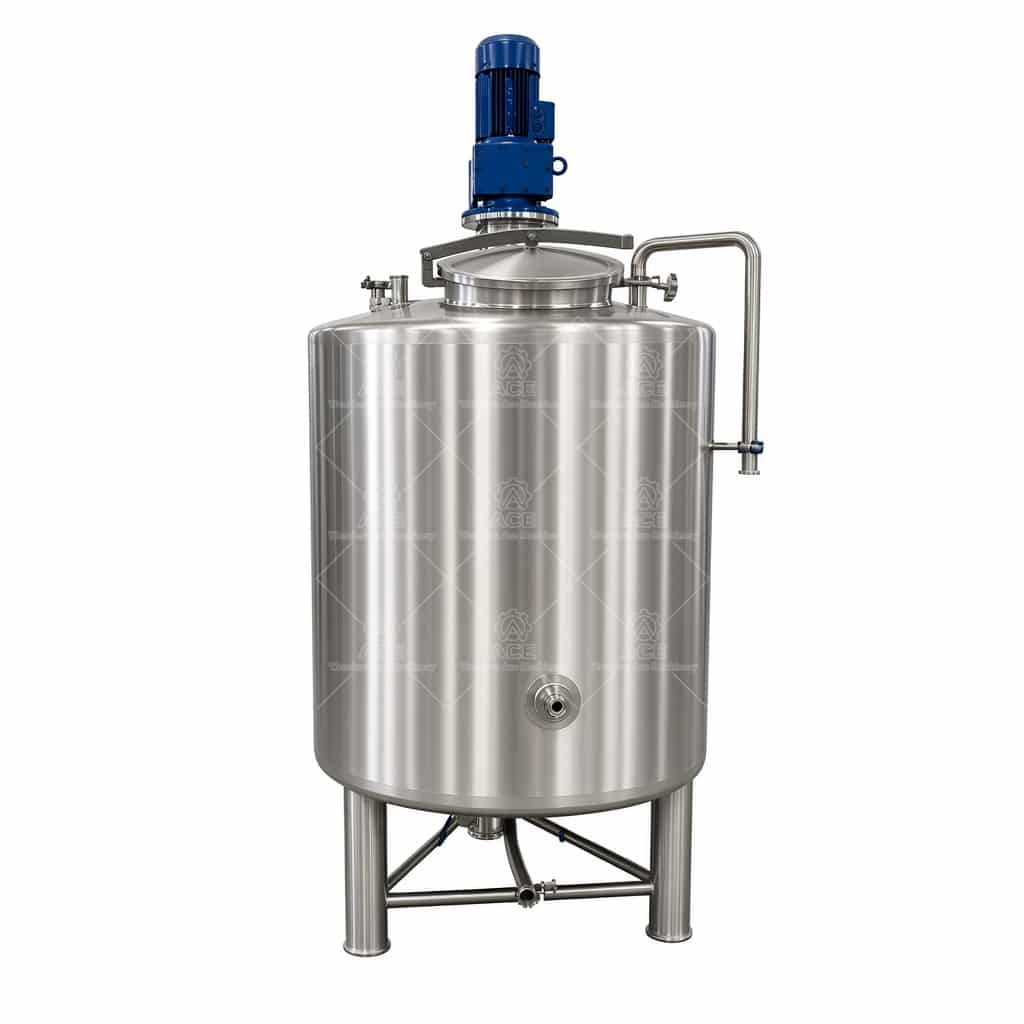

Chemical Reactor SUS304 Stirred Tank Reactor 5000L Mixing Tank Reactor - Image 1

Chemical Reactor SUS304 Stirred Tank Reactor 5000L Mixing Tank Reactor - Image 2

Chemical Reactor SUS304 Stirred Tank Reactor 5000L Mixing Tank Reactor

5000L SUS304 stirred tank reactor for chemical, pharmaceutical, and food batch processing. Features 8mm shell, anchor agitator, jacket heating/cooling, and mirror polish. Customizable for pressure, vacuum, and automation.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:[email protected]
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,962.92 through $4,834.76

Ask For A Quotation

Guaranteed Safe Checkout

For batch processing in chemical, pharmaceutical, and food industries, the 5000L stirred tank reactor is a workhorse. We build this unit with SUS304 stainless steel for the wetted parts, which handles a wide range of neutral and mildly corrosive media. The vessel is rated for atmospheric pressure, but we can adapt the design for vacuum or up to 0.6 MPa internal pressure if your process requires it.

The inner shell is rolled from 8mm thick plate, with a jacket for heating or cooling. We use a dimple jacket or half-pipe coil depending on your thermal fluid and required heat transfer coefficient. For electric heating, we add a thermal oil system. The agitator is a standard anchor type, with a variable frequency drive for speed control. If you need high shear or emulsification, we can switch to a turbine or axial-flow impeller.

Welding is done by certified welders, and all seams are ground smooth. The interior surface is mirror polished to Ra 0.4μm, which makes cleaning between batches straightforward. The shaft seal is a mechanical seal, suitable for most solvents and light slurries. For processes with strict containment, we offer a double mechanical seal with a flush plan.

This reactor is used in resin production, dye synthesis, and cosmetic lotion manufacturing. It handles viscosities up to 50,000 cP with the anchor agitator. The bottom discharge valve is a flush-type ball valve to avoid dead zones.

Before you request a quote, consider these points:

What is the exact chemical composition and concentration of your reactants?
What is your batch size and working volume (we recommend 80% of total capacity)?
What is the operating temperature and pressure range?
Do you need vacuum or inert gas blanketing?
What mixing intensity and impeller type suit your reaction kinetics?
Are there cleaning validation or material certification requirements?

We supply the reactor with a manual or pneumatic control system. For automated processes, we can integrate temperature, pressure, and pH sensors with a PLC. The unit ships with a test certificate and material traceability documents.

To get an accurate configuration, send us your process parameters: material properties, batch volume, temperature, pressure, and agitation requirements. Our engineers will recommend the right construction and options, and provide a detailed quotation.
