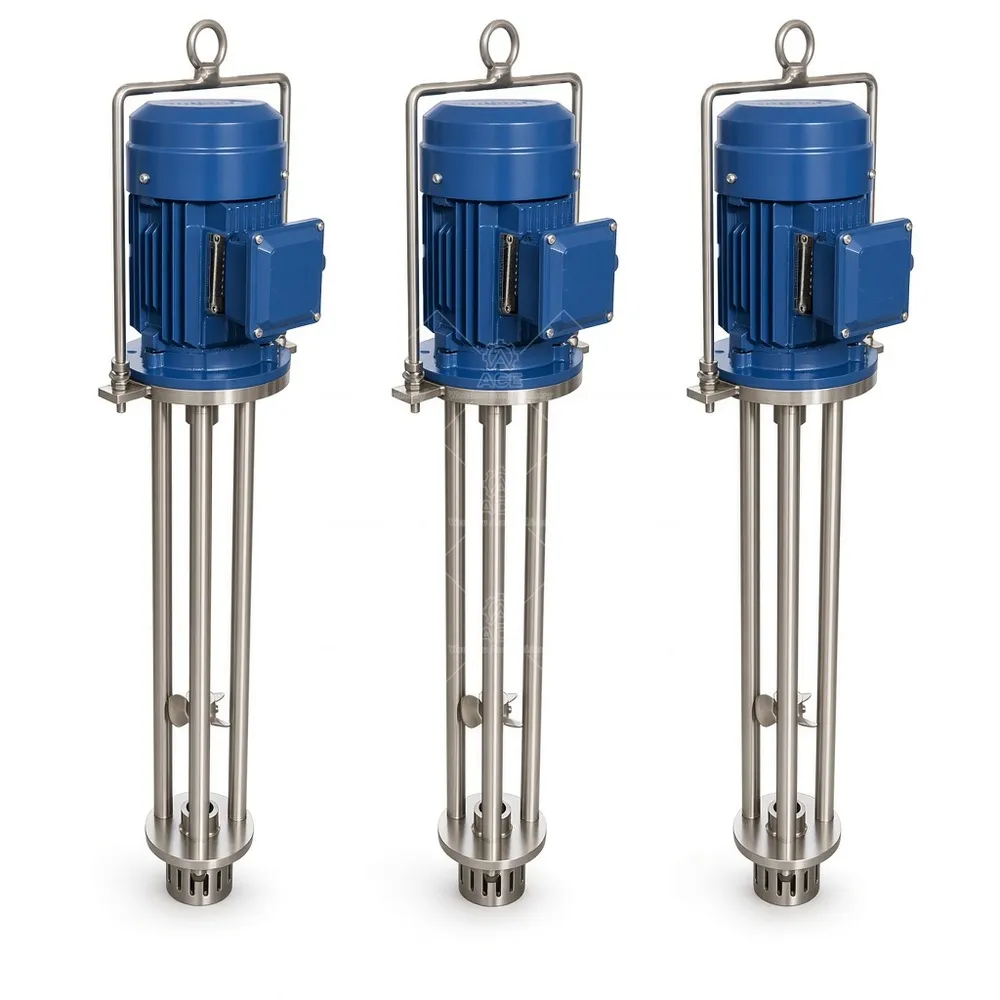

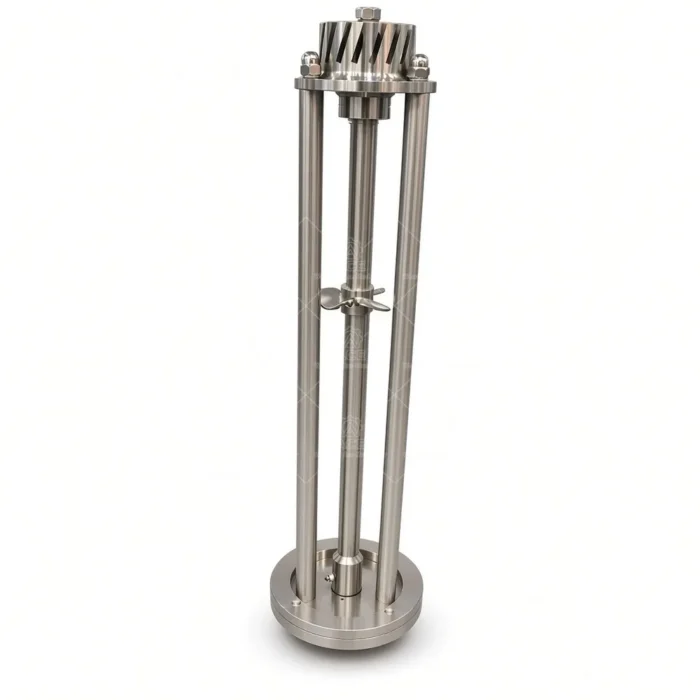

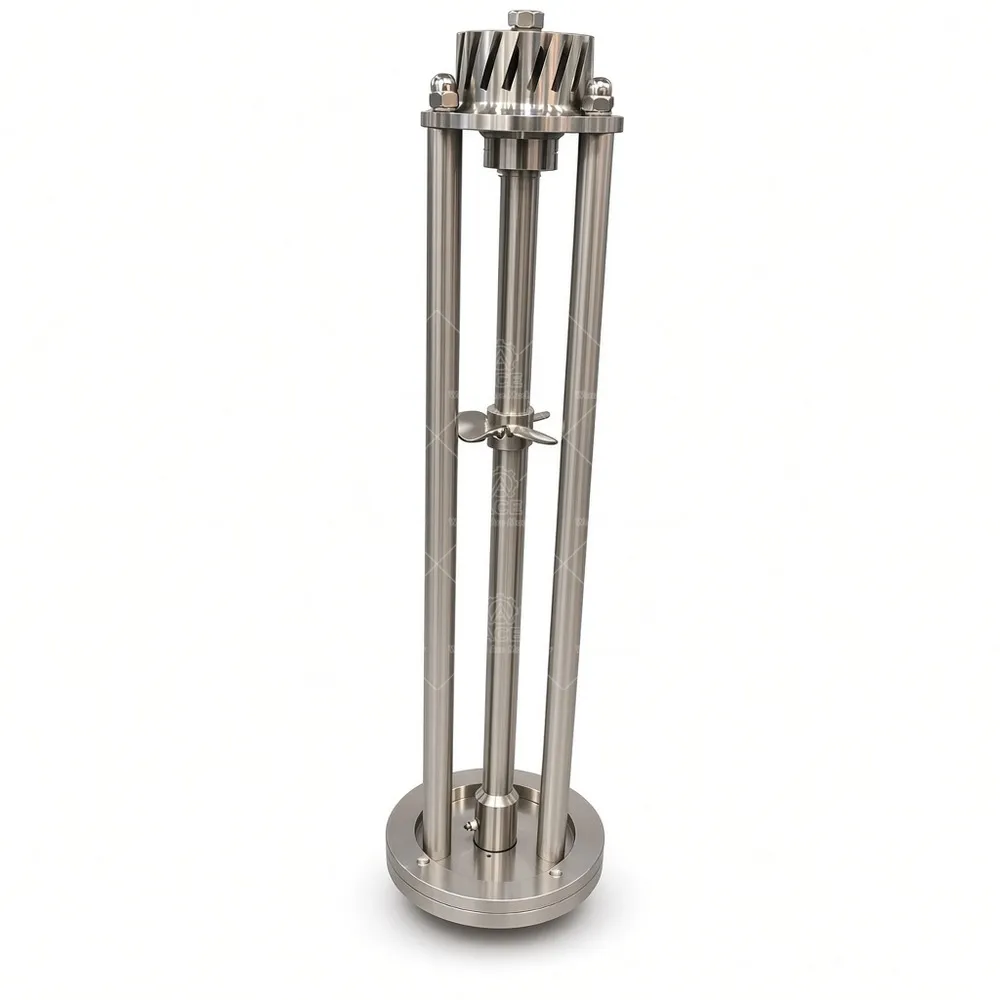

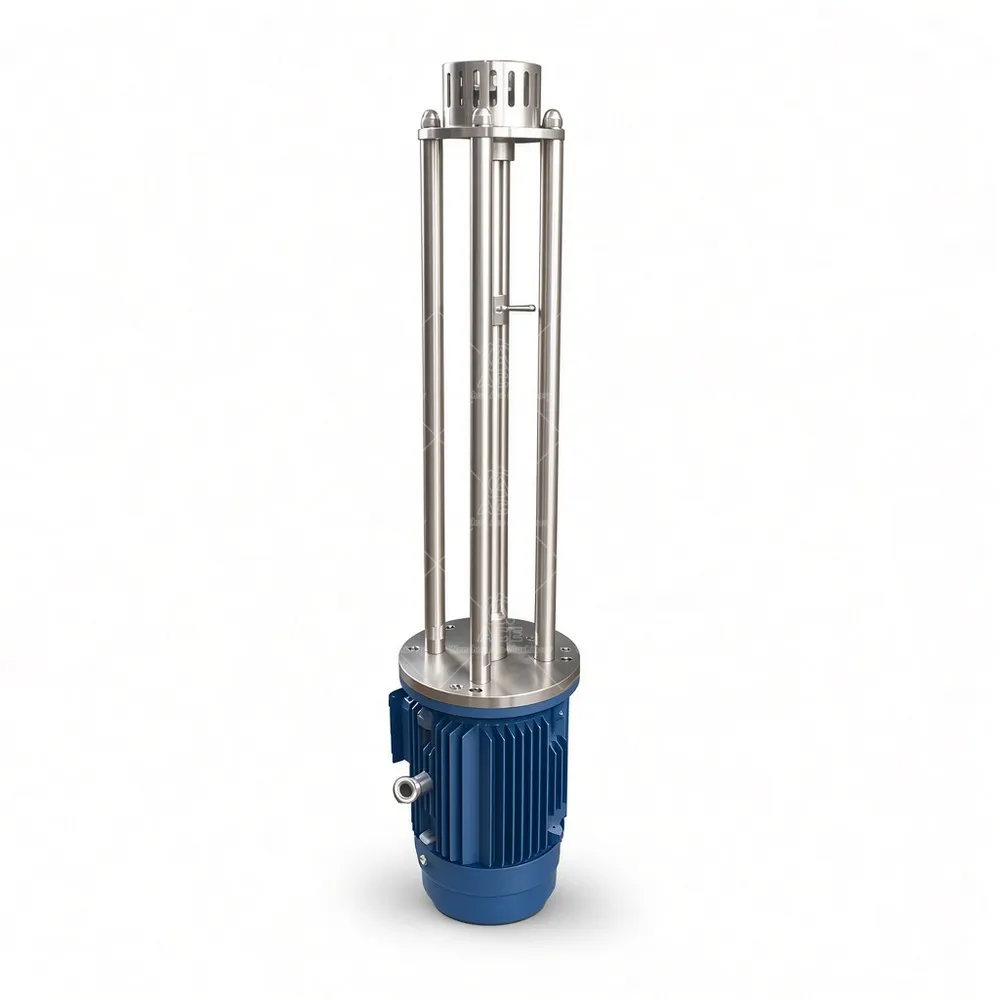

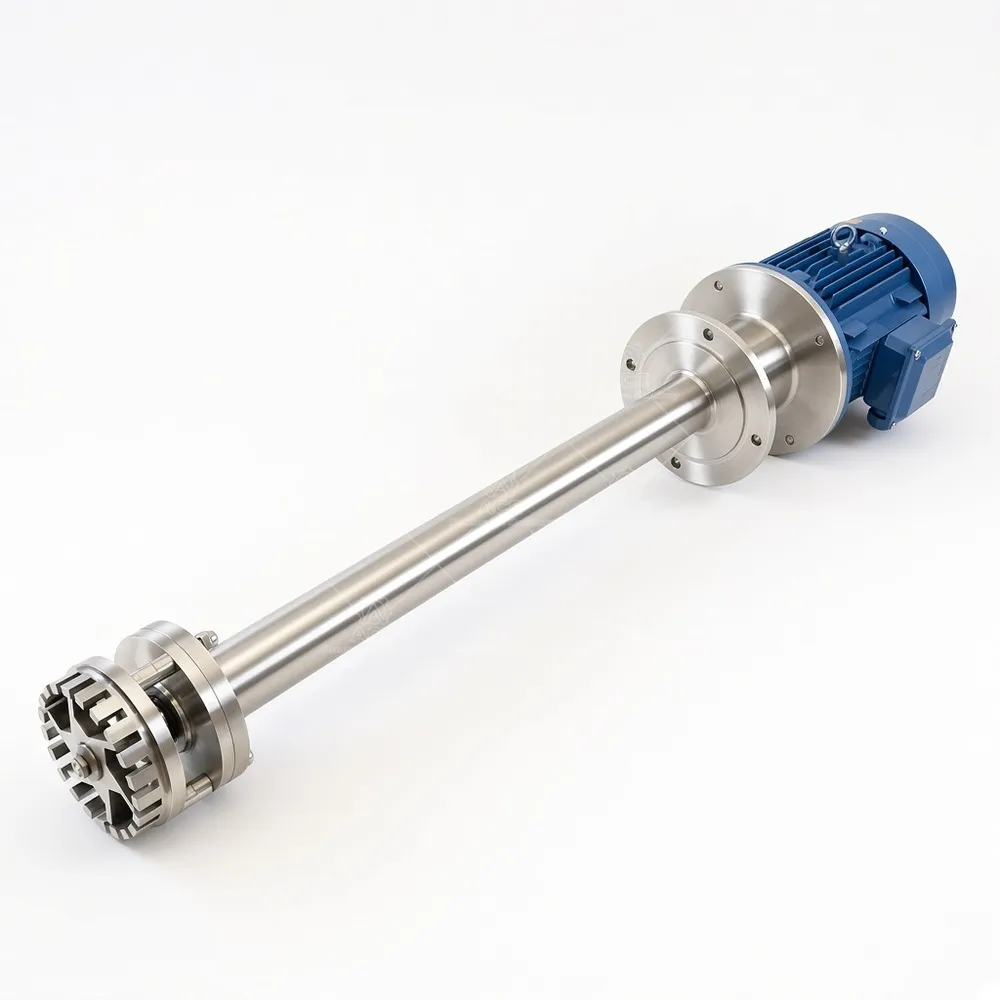

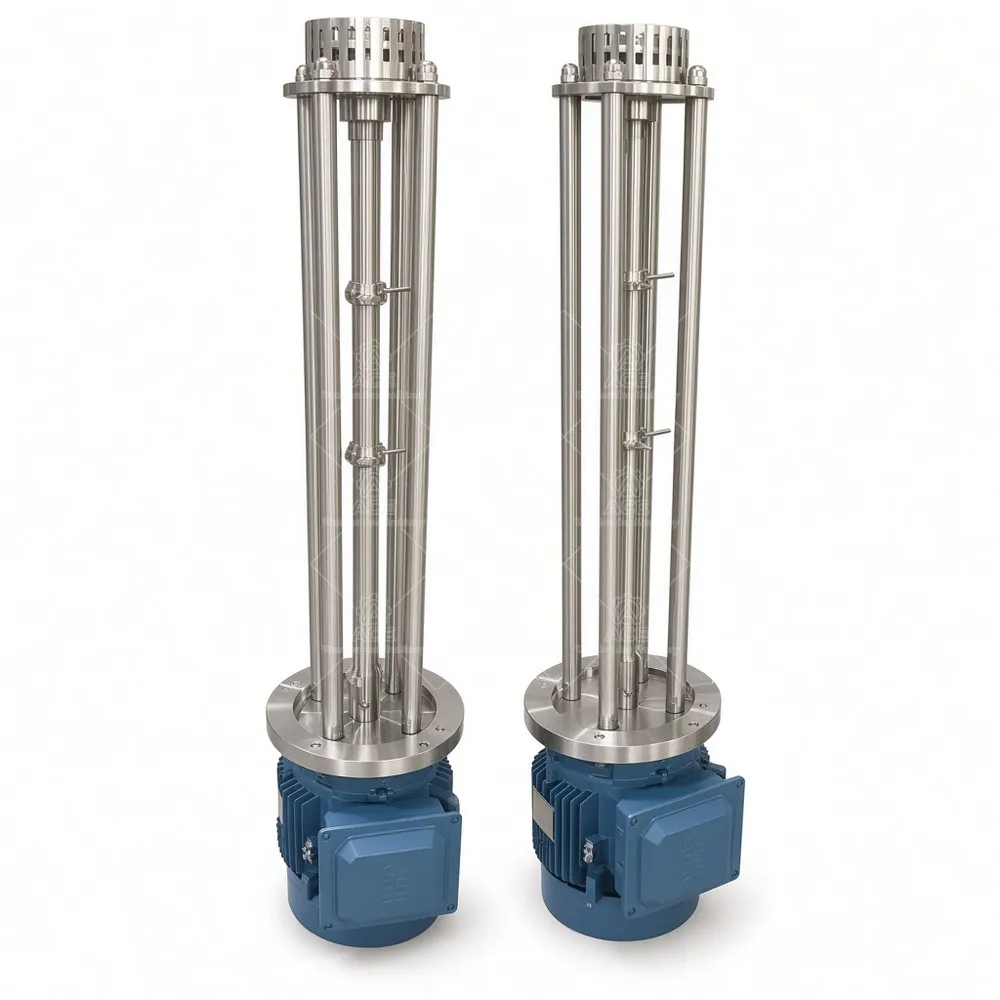

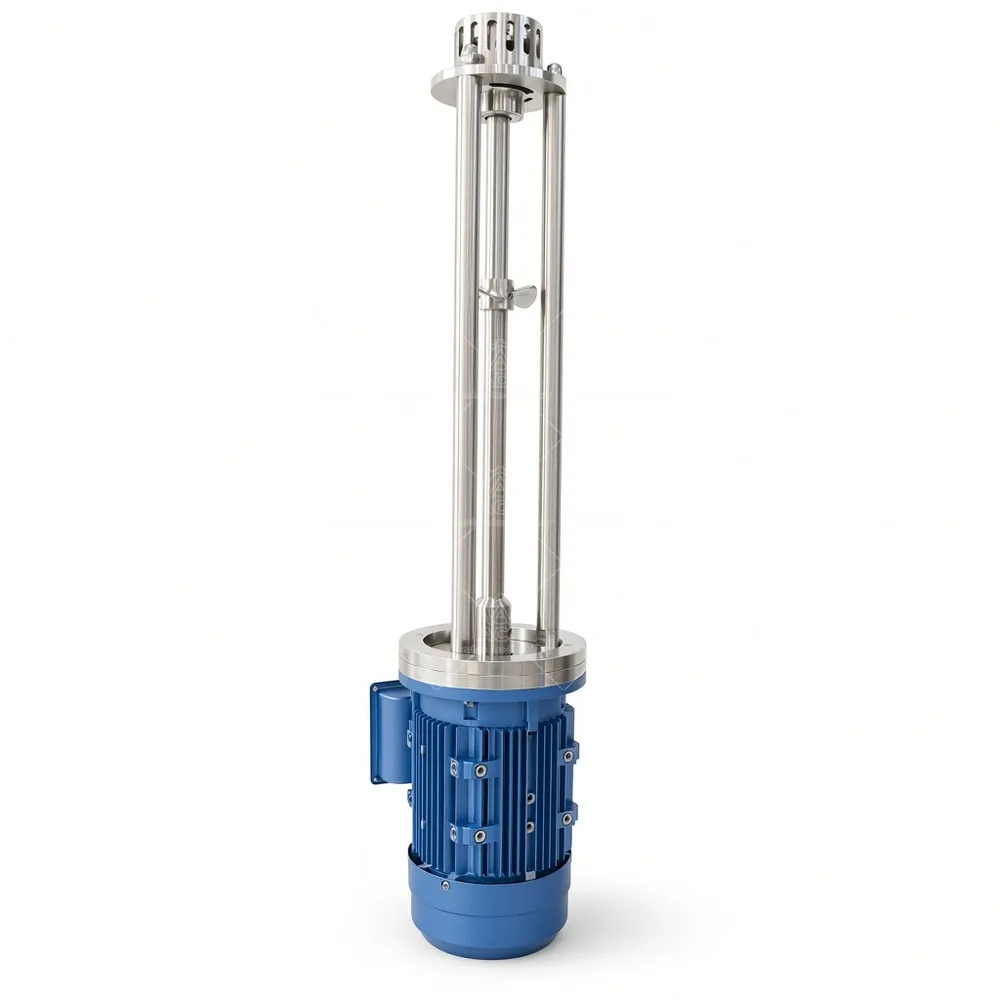

Batch High Shear Mixer Emulsifier Homogenizer for Cream, Food, Chemical, Paint
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,115.93 through $1,184.56
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
An industrial high shear mixer only earns its price when the head, shaft length, and motor curve fit the product you actually run. We build this emulsifier/homogenizer as a configurable platform: 1.5 kW to 55 kW, 220V to 480V, 304 or 316L wetted stainless steel, and VFD speed control from 0 to 3000 rpm depending on the motor selected. Very little on the spec sheet is fixed until your process is.
Sizing it before you order
- Batch volume and vessel geometry. Shaft length and head diameter follow the tank, not a catalog number.
- Viscosity and solids content. A thin emulsion and a 40,000 cP paste do not want the same rotor/stator.
- Tip speed and motor power. More rpm is not automatically better mixing.
- Electrical supply. Voltage, frequency, and phase need confirming for the destination market.
- Mounting. A mobile high shear mixer on a floor stand suits multi-tank plants; fixed top-entry or bottom-entry suits a dedicated line.
Where these units run
Food and beverage plants use them for sauces, dressings, and powder dispersion into liquids. Cosmetic and personal care production runs creams, lotions, and gels. Pharmaceutical and healthcare formulations usually need tighter material documentation, which is where 316L and defined contact materials matter. Chemical processing, paints, and coatings use the same platform for pigment wetting and liquid-liquid emulsification. The right head, material, and operating parameters still depend on viscosity, formulation, and process requirements. We won\’t pretend otherwise.
Questions we get
Can one unit handle both creams and paint? Sometimes. Changeover and cleaning usually decide it. Tell us both products and we\’ll say whether one head covers them.
Do I need the VFD? On a variable speed high shear mixer it pays for itself when you run several formulations at different shear levels.
How long is delivery? Configured builds vary. Electrical configuration and material grade are the usual variables.
Getting a useful quote
Send batch size, product viscosity and solids, target rpm, required motor power, and your local voltage/frequency/phase. With those five items we can recommend a high shear mixing equipment configuration instead of guessing. Ace Mixer builds to order, so tell us what the process has to do.
A configurable batch high shear mixer and homogenizer for creams, food products, chemicals, and paint. Motor power from 1.5 kW to 55 kW, 220V to 480V, 304 or 316L stainless steel, and optional VFD speed control to 3000 rpm. Built by Ace Mixer to match your batch size, viscosity, and local electrical supply.
Single-stage in-line mixer
Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
