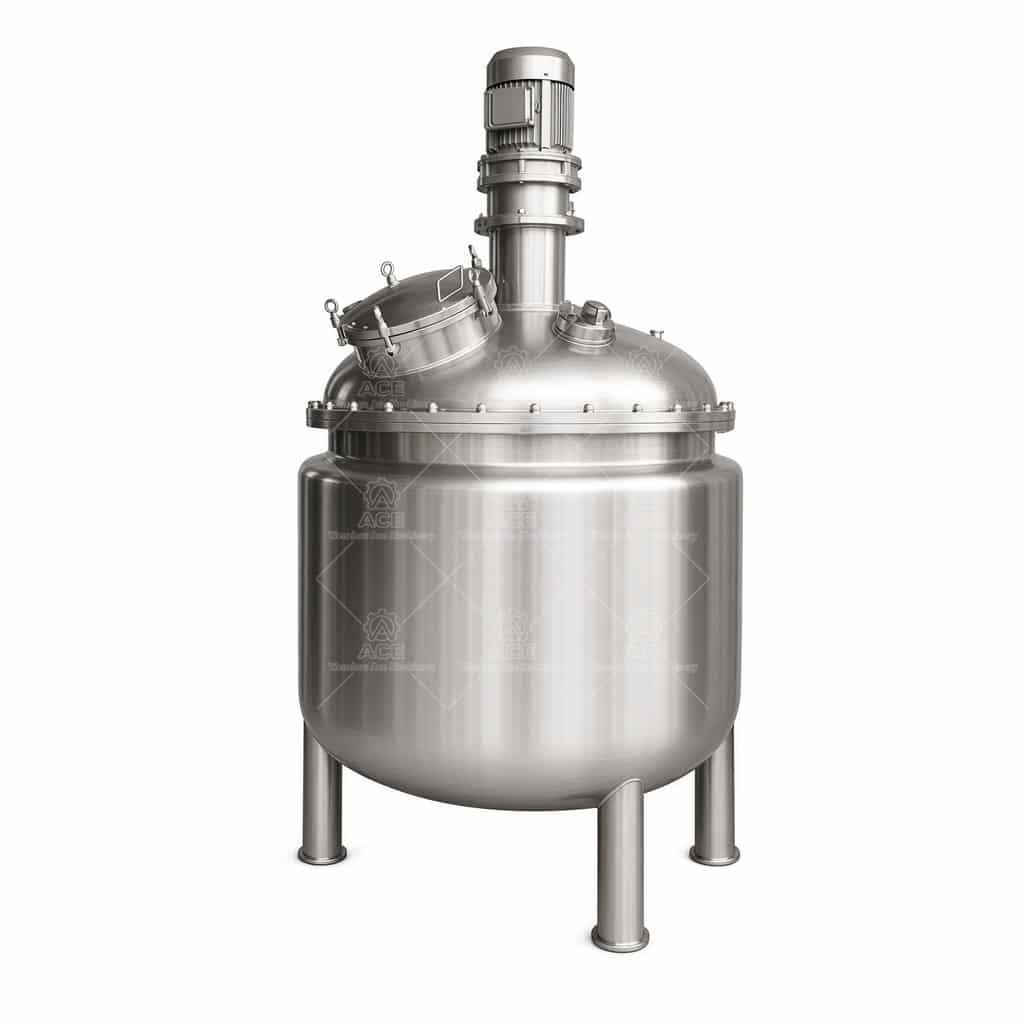

500L Stainless Steel Jacketed CSTR Reactor with Agitator Motor, GMP Certified
A 500L stainless steel jacketed CSTR with agitator motor, GMP certified for chemical and pharmaceutical processes. Built for consistent mixing, heating, and cooling with customizable seals and impellers.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $3,076.35 through $3,962.34
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
We build this 500L jacketed continuous stirred tank reactor for chemical processors who need consistent mixing and heat transfer in a compact footprint. The vessel is constructed from 316L stainless steel as standard, with 304L available for less corrosive streams. Internal welds are fully penetrated and ground smooth, then electropolished to a Ra ≤ 0.4 μm finish. That surface matters when you\’re cleaning between batches or running products that must meet GMP guidelines.
The jacket is designed for either steam heating or chilled water cooling, depending on your utility setup. We can also fit an electric heating mantle or a thermal oil circulation loop. The top-mounted agitator uses a variable-speed motor with a mechanical seal rated for pressures up to 0.6 MPa. If you\’re processing under vacuum, we\’ll upgrade to a double mechanical seal with a seal flush system. The standard impeller is a pitched-blade turbine, but we can switch to a hydrofoil or anchor type for high-viscosity materials.
This reactor is used in pharmaceutical intermediates, fine chemicals, food additives, and cosmetic emulsions. For example, a customer making polymer dispersions runs it at 85°C with a 2 m/s tip speed to keep solids suspended. Another one in a nutraceutical plant uses it for gentle blending of heat-sensitive extracts. The continuous stirred tank design works well for reactions that need uniform residence time, not just batch mixing.
| Parameter | Standard / Option |
|---|---|
| Nominal volume | 500 L (working volume ~400 L) |
| Material | 316L / 304L stainless steel |
| Jacket | Steam, chilled water, thermal oil, electric |
| Pressure | Atmospheric to 0.6 MPa (higher on request) |
| Agitator | Pitched blade, hydrofoil, anchor, etc. |
| Seal | Single or double mechanical seal |
| Surface finish | Ra ≤ 0.4 μm internal, optional mirror polish |
Frequently Asked Questions
Q: What if my process runs at high temperature?
Tell us your design temperature. We size the jacket and nozzle connections accordingly. For above 150°C, we recommend a thermal oil system and a graphite gasket.
Q: Can I clean this reactor with CIP?
Yes. The smooth welds and removable baffles allow spray balls to reach all wetted surfaces. We\’ll add a flush ring on the agitator if you need it.
Q: How do I choose the right agitator?
Send us the viscosity, solids percentage, and whether you need emulsification or just bulk mixing. We\’ll match the impeller type and speed to your process.
When you\’re ready to order, gather these details: the chemical composition of your materials, batch volume, operating and design temperatures, pressure or vacuum requirements, and the mixing intensity you expect. Also note any cleaning or compliance standards like GMP, FDA, or ATEX. With that, our engineers can propose the right shell thickness, seal type, and agitator configuration. Request a quote with those parameters and we\’ll get back to you within 48 hours.
