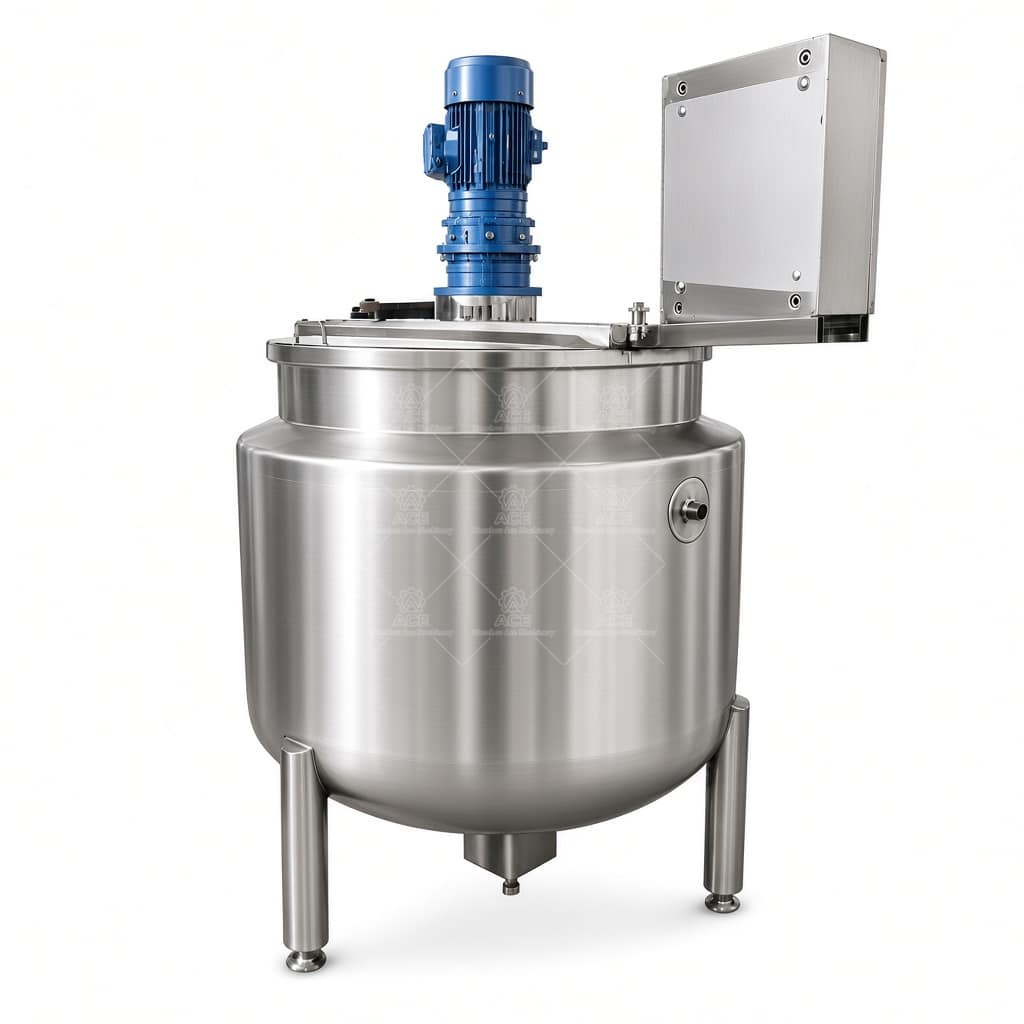

500L Liquid Soap and Dishwashing Liquid Mixing Machine
The 500L liquid soap and dishwashing liquid mixing machine is configured for consistent blending of surfactants, fragrances, colorants, and water based formulas. Agitator style, motor power, stainless steel grade, seals, heating, and controls are selected according to viscosity, foaming, temperature, and cleaning requirements.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: 304 or 316L
- Voltage: 110V to 600V
- Heating method: Electric or steam heating
- Layer:single/double jacket/three jacket
- Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
- Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Our equipment supports customisation, global delivery, and a 1-year warranty.
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
¥2,547.94 – ¥2,993.32Price range: ¥2,547.94 through ¥2,993.32
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
500L Liquid Soap and Dishwashing Liquid Mixing Machine
This 500L mixing system is intended for plants producing liquid hand soap, dishwashing detergent, surface cleaners, and related water based formulations. Production teams typically specify this equipment when powders, surfactants, fragrances, colorants, and water must be blended into a consistent batch without excessive aeration or undissolved material. The correct configuration depends on viscosity, foaming behavior, solids content, and required batch time.
Construction and Process Considerations
Product contact parts are commonly fabricated from stainless steel. Grade 304 is suitable for many general detergent formulas, while 316L may be appropriate when chloride exposure, aggressive ingredients, or more demanding sanitation requirements are present. We determine the material after reviewing the formulation and cleaning chemicals. Internal welds should be continuous, ground where required, and polished to a finish compatible with the cleaning method. Gasket material, shaft seals, and outlet design also require attention because fragrance oils, solvents, and alkaline ingredients can affect elastomer selection.
Agitator geometry is matched to the product rather than selected by tank size alone. A low-shear impeller can reduce foam in thin liquid products, while an anchor or combined agitator may be more suitable for higher-viscosity soap. Motor and gearbox sizing are based on viscosity, density, impeller diameter, fill level, and startup load. Variable-speed control is useful when one vessel handles several formulas with different mixing requirements.
Technical Specifications
| Item | Specification |
|---|---|
| Nominal capacity | 500 L |
| Primary use | Liquid soap and dishwashing liquid production |
| Contact material | Stainless steel grade selected for the formulation |
| Agitation system | Impeller and drive selected according to viscosity and foaming |
| Heating and controls | Optional; designed around process temperature and control accuracy |
Typical Applications
Common installations serve detergent filling lines, contract manufacturers, household chemical plants, and small to mid scale personal care operations. Heating may be added for warm water processing or difficult-to-dissolve ingredients, with temperature control specified according to the formula.
Before Requesting a Quote
Send the target batch size, working volume, formulation ingredients, viscosity range, density, mixing time, temperature, cleaning method, electrical standard, and required discharge arrangement. Also identify whether vacuum processing, load cells, transfer pumps, or automated dosing will be needed. These details allow our engineers to select the agitator, motor, seals, finish, and controls without relying on a generic tank configuration.
