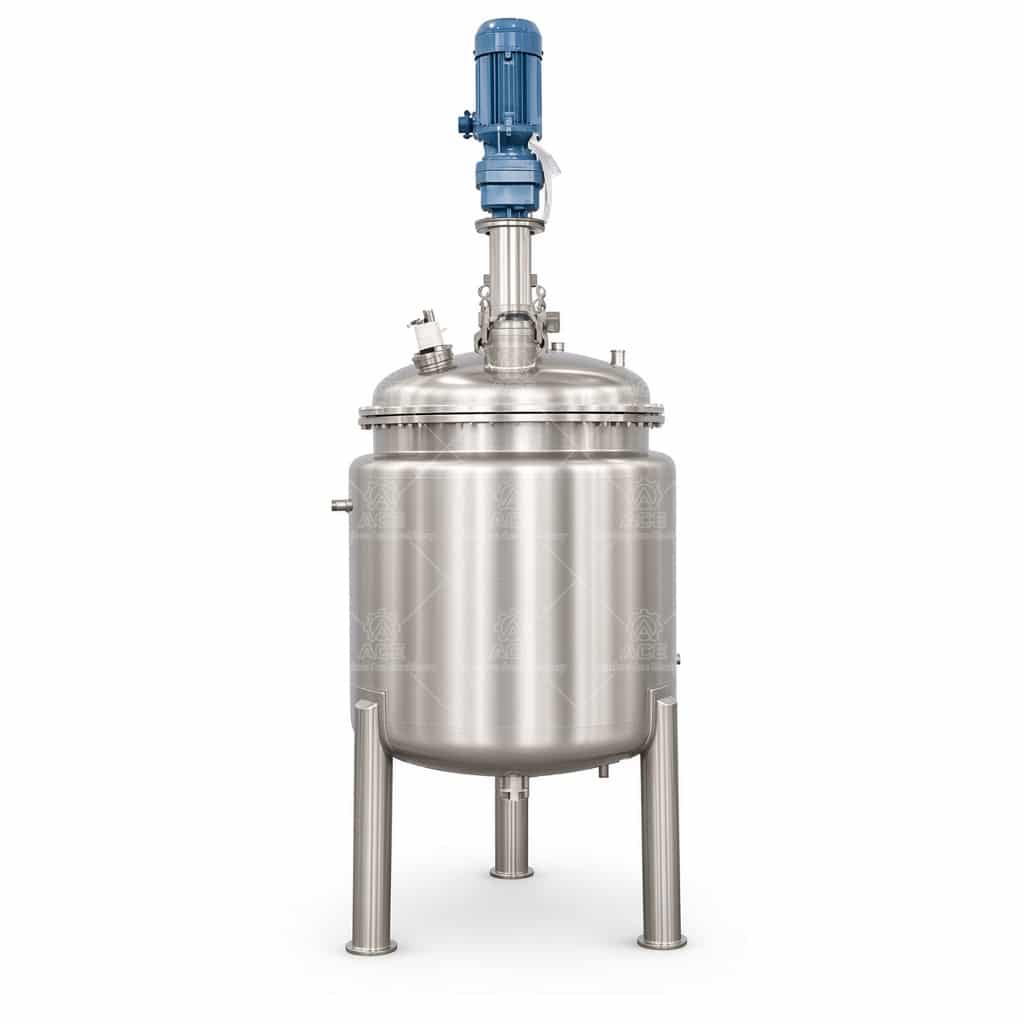

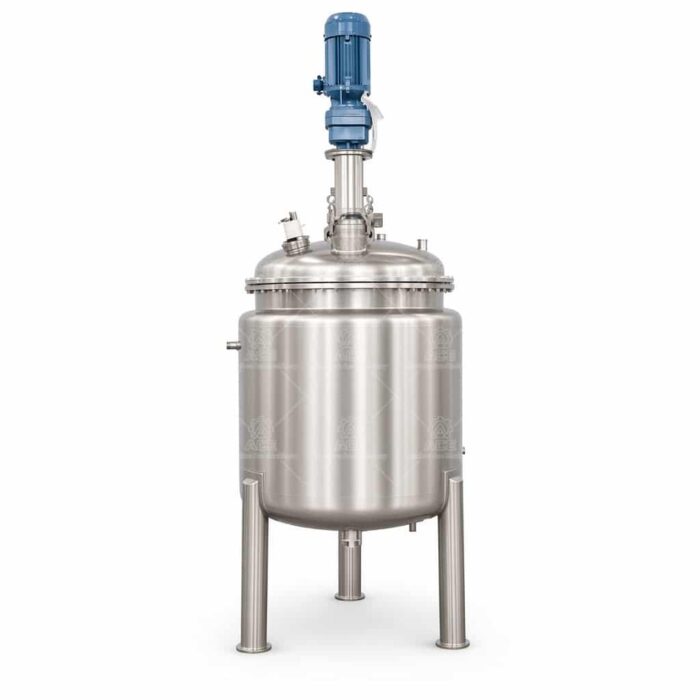

500L Jacketed Stainless Steel Reactor for Cosmetics & Chemical Processing

This 500L jacketed stainless steel reactor is built for cosmetics and chemical processing. It features a polished interior, welded jacket for precise temperature control, and customizable agitator and seal options. Suitable for batch reactions, mixing, and emulsification. Contact us with your process details for a tailored quote.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,729.19 through $4,834.89

Ask For A Quotation​

Guaranteed Safe Checkout

Optional agitator
Propeller mixer

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Paddle mixer

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Anchor Agitator

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Scraper agitator

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Dispersion mixer

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Homogenizer

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Magnetic mixer
Magnetic mixer

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Anchor & Homogenizer combine

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L

Product description

We build this 500L jacketed reactor for production lines where batch consistency and clean operation matter. The vessel is made entirely of stainless steel, with a welded jacket that circulates heating or cooling media to keep your process temperature under control. It suits cosmetics manufacturing, but it handles many liquid-phase reactions just as well.

Our shop welds the shell and jacket with full penetration, then grinds and polishes the interior to a smooth finish. You can specify Ra 0.4–0.8 μm for the product contact surface if your process demands low residue or frequent cleaning. The top head carries a manway, nozzle ports, and a mechanical seal for the agitator shaft. We use a standard anchor or paddle impeller for medium viscosity, and we can switch to a turbine or high-shear rotor if your recipe needs more mixing energy.

This reactor works under atmospheric or moderate pressure, depending on the flange rating and the seal type you choose. The jacket design follows ASME or PED guidelines when required, and we pressure-test every unit before shipping. For cosmetics, you often need precise temperature ramps—the jacket handles that with a simple PID loop connected to your existing thermal oil or steam supply. Cleaning is straightforward: the polished surface, tri-clamp connections, and the removable agitator make CIP/SIP integration practical.

Technical Specifications

Nominal Volume 500 L (working volume ~400–450 L)
Material Stainless steel 304 or 316L (product contact)
Jacket Welded half-pipe or full jacket, for steam or thermal oil
Agitator Anchor, paddle, or turbine; variable speed drive optional
Seal Mechanical seal or stuffing box
Design Pressure Atmospheric to 10 bar (customizable)
Surface Finish Internal mirror polish, external matte or brushed
Options Pressure gauge, temperature sensor, sampling valve, sight glass

FAQ

Q: What materials can this reactor handle?
A: The standard 304 stainless steel suits neutral or mildly acidic cosmetics. For chloride-containing formulas or harsher chemicals, choose 316L. Tell us your product chemistry and we\’ll recommend the right grade.

Q: Can I use it for vacuum operation?
A: Yes, if you specify a vacuum-rated head and a suitable mechanical seal. We\’ll design the flanges and gaskets accordingly.

Q: How do I choose the right agitator?
A: It depends on your viscosity and mixing targets. Anchor blades work well for creams and lotions. For emulsification, a high-shear mixer or a rotor-stator head is better. Send us your process details and we\’ll size it properly.

Q: What about cleaning and maintenance?
A: The interior is polished and free of crevices. Removable agitator and tri-clamp connections simplify cleaning. We also offer a spray ball for CIP if you need it.

Before You Request a Quote

To get the right configuration, prepare the following: the exact product name and composition, batch volume, operating temperature and pressure, viscosity, and whether you need heating, cooling, or both. Also note any special requirements like explosion-proof motors, ATEX compliance, or specific surface finish. Our engineers will use that information to propose a vessel that fits your process—not just a generic tank.

Send us your process parameters and we\’ll respond with a technical drawing, a quotation, and a delivery timeline. We build each reactor to order, so you only pay for what your production actually needs.
