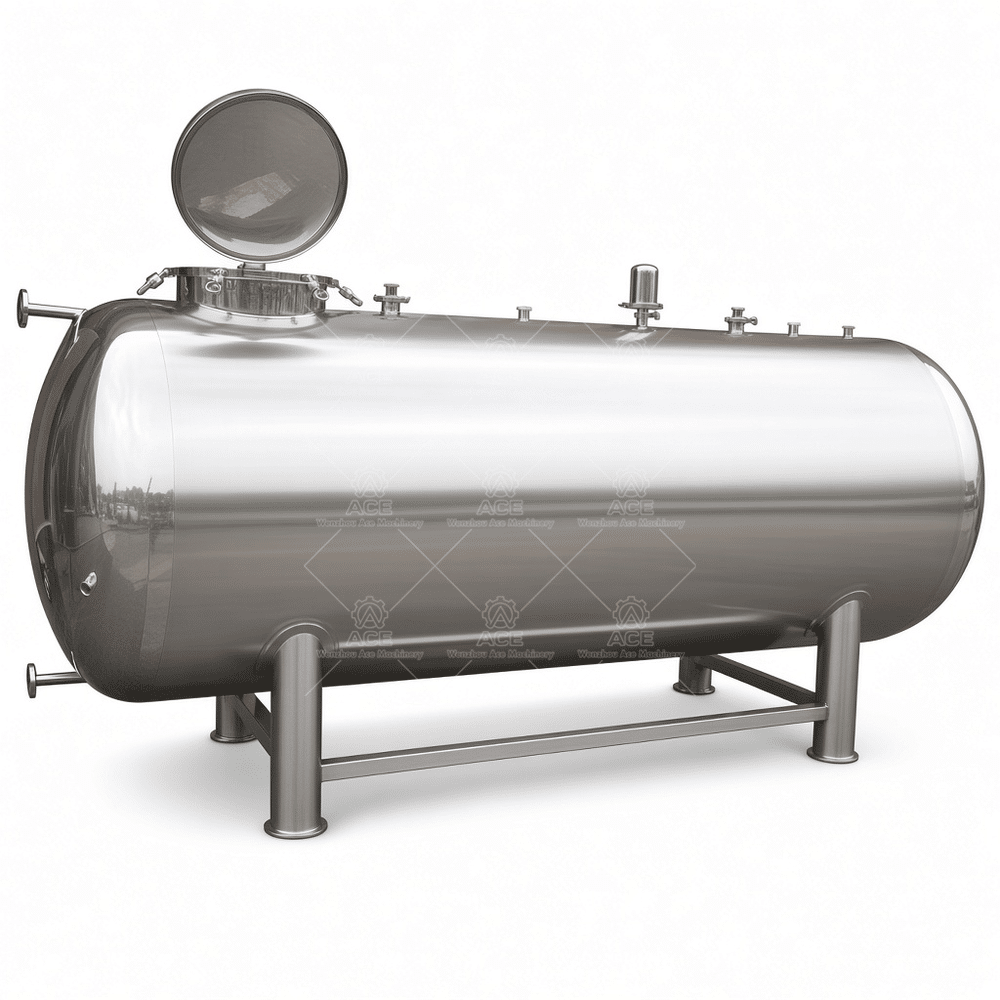

304/316L Stainless Steel Horizontal Water Tank 10000L Industrial Liquid Storage Vessel
This 10,000L horizontal stainless steel tank in 304 or 316L is built for industrial liquid storage. Customized with sanitary welds, various finishes, and optional jackets or mixers, it suits water treatment, food, and chemical applications. Contact us with your process details for a tailored quote.
- Tank Capacity: [50L–100,000L or specify actual capacity]

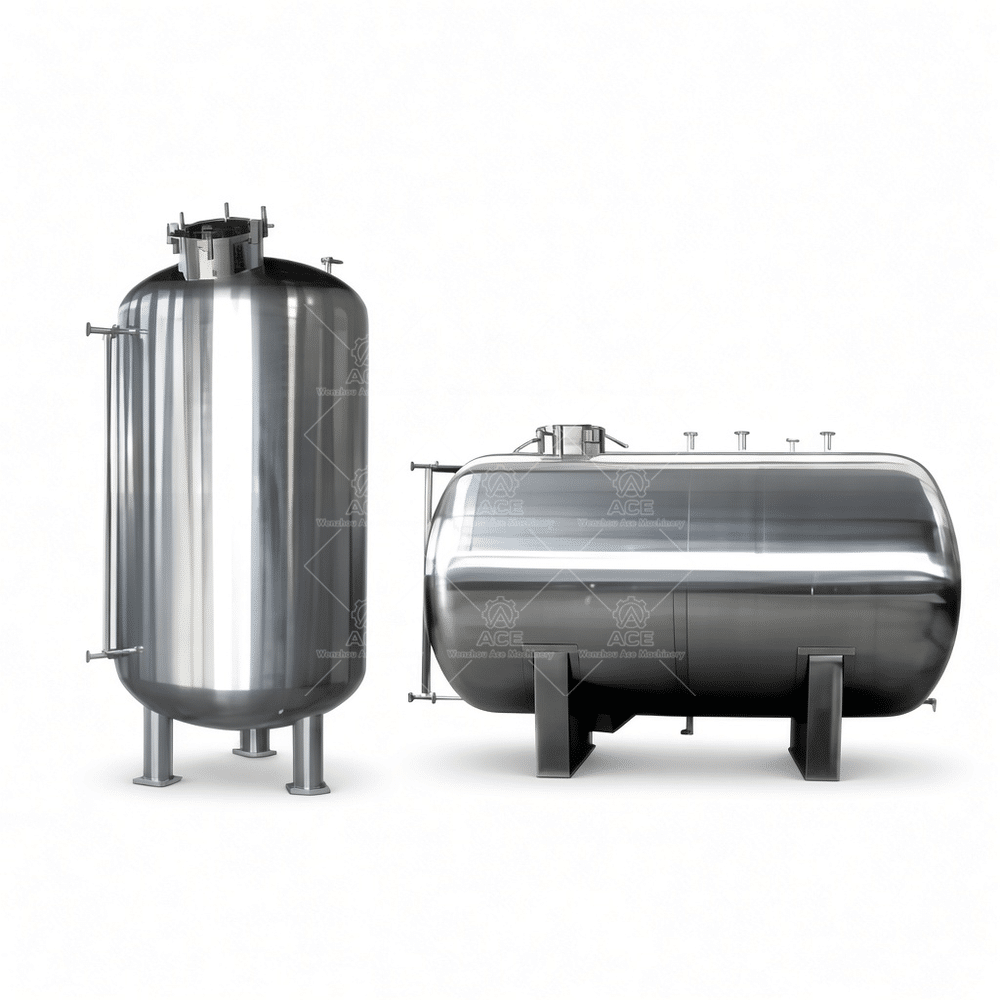

- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,695.17 through $3,259.00
Guaranteed Safe Checkout
Horizontal Storage Tanks Built for Real Working Conditions
We fabricate this 10,000-liter horizontal tank from either SUS304 or SUS316L, depending on what you plan to store. The horizontal configuration keeps the center of gravity low, which simplifies transport and installation in facilities with limited ceiling height. It\’s a practical choice for water treatment, chemical dosing, food ingredient storage, and many other process applications.
The shell is rolled from single sheets and welded with full-penetration TIG welds. We follow standard sanitary welding procedures, then grind and passivate the weld seams to restore corrosion resistance. Internal surfaces can be finished to 2B, 2B with pickling passivation, or mirror polish (Ra ≤ 0.8 µm) for hygienic requirements. We also offer dimple jackets, insulation with cladding, and multiple inlet/outlet configurations tailored to your pipe layout.
Material selection is straightforward: SUS304 suits neutral liquids like clean water and many food products. SUS316L adds molybdenum, which improves resistance to chlorides and mild acids, so it\’s the better call for brine, seawater, or cleaning with aggressive chemicals. If your process involves vacuum or pressure, we need to know upfront—we design and rate those vessels separately to avoid structural failure.
Technical Specifications
| Nominal Capacity | 10,000 L |
| Material | SUS304 / SUS316L |
| Orientation | Horizontal |
| Surface Finish | 2B / Pickled / Mirror Polished |
| Optional Equipment | Manway, level sensors, CIP spray balls, heating/cooling jackets, insulation |
| Design | Atmospheric; vacuum/pressure rated available on request |
Frequently Asked Questions
How do I choose between 304 and 316L?
Consider the chemical compatibility and cleaning agents. If you\’re storing chlorides or using strong caustic sanitizers, 316L is the safer investment.
Can you add a mixer or agitator?
Yes. We can reinforce the top or side for agitator mounting, but we need the mixer\’s weight and thrust data to size the support correctly.
What about transport and installation?
The tank is supplied with lifting lugs and can be mounted on legs or saddles. We can also provide a welded support frame for outdoor installation.
Before You Request a Quote
To recommend the right configuration, our engineers need a few details: the product you\’ll store, required working volume, material grade, operating temperature, tank dimensions or installation space, and any special requirements like pressure rating or cleanability standards. Send us those specifics, and we\’ll respond with a suitable configuration and a firm quotation.
