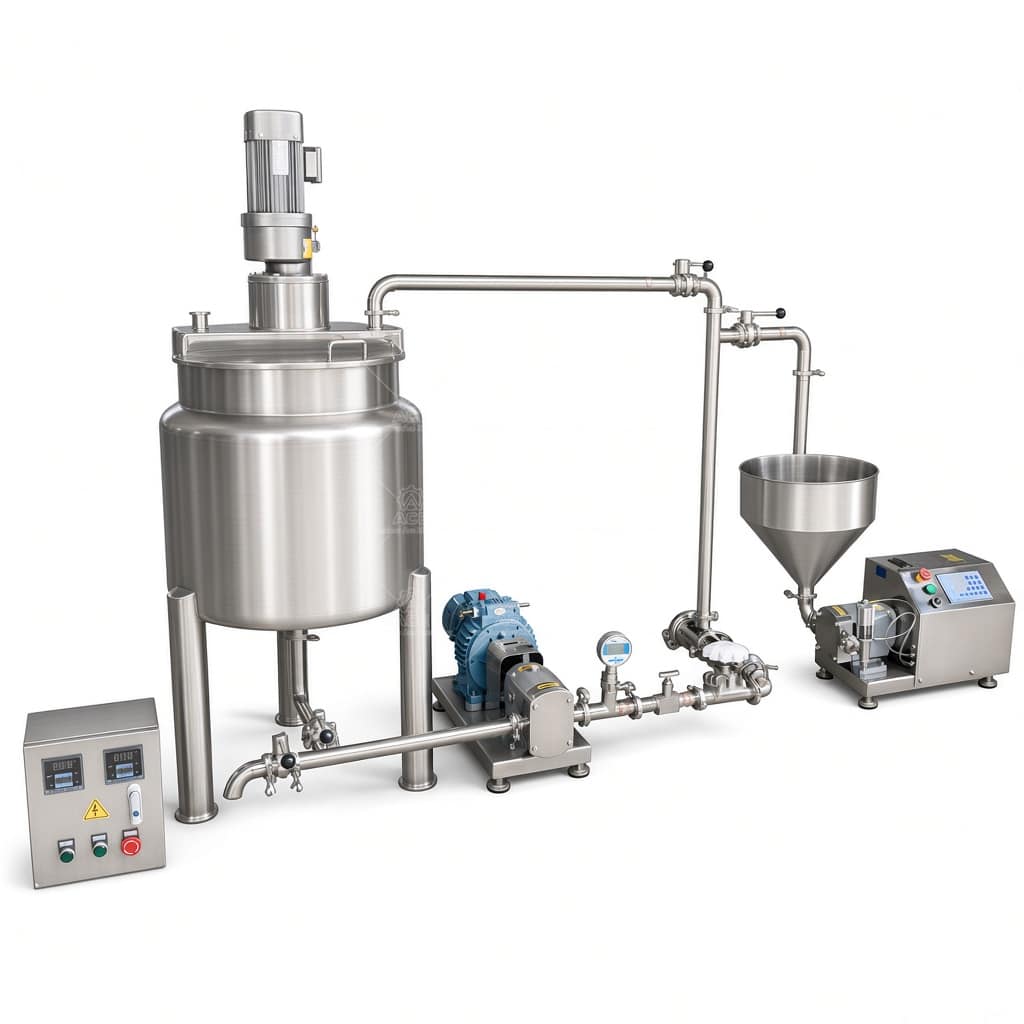

250 to 1000L Electric Heated Emulsifier Mixing Tank with Pump

A 250 to 1000 L electric heating emulsifier mixing tank with pump for cosmetic and chemical production. Vessel materials, surface finish, heating controls, agitator geometry, drive, and pump configuration can be matched to batch volume, viscosity, temperature, and cleaning requirements. Share your product and process details to define a suitable equipment specification.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $2,363.40 through $2,742.02

Ask For A Quotation

Guaranteed Safe Checkout

Electric Heating Emulsifier Mixing Tank, 250–1000 L

This tank is designed for cosmetic and chemical batches that need controlled heating, mixing, and emulsification in one vessel. It can support processes such as preparing creams, lotions, gels, and selected chemical emulsions. The correct working volume depends on batch size, foaming, expansion, and the operating space required for the agitator—not just the nominal tank capacity.

We configure the vessel around the product and cleaning method. Product-contact parts can be specified in stainless steel grades appropriate to the formulation and cleaning chemicals; 316L may be considered where chloride exposure or more demanding corrosion conditions are expected. Weld quality, drainability, and the required internal finish should be agreed before fabrication. Polishing requirements depend on product sensitivity and sanitation procedures. Seal materials also need to match operating temperature and chemical compatibility.

Heating and mixing configuration

Electric heating can be arranged to suit the required heat-up profile and plant utilities. Temperature control and heating-zone design are selected according to batch volume, viscosity, heat sensitivity, and process temperature. A pump can support product transfer or circulation, but its type and connection should be matched to viscosity, shear sensitivity, and the destination equipment.

Agitator geometry, motor, and gearbox are selected for the actual batch. A low-viscosity liquid and a thick cream place very different loads on the drive. Emulsification also requires a defined shear level, so we confirm whether the process needs a dedicated high-shear head, a separate anchor or sweep agitator, or a combined arrangement. Access for inspection, cleaning, and seal maintenance should be included in the layout review.

Typical specification basis

Item	Available information
Nominal capacity range	250 L to 1000 L
Heating method	Electric; configuration set by process requirements
Equipment type	Emulsifier mixing tank with pump
Applications	Cosmetic and chemical processing
Materials, finish, drive, controls	Specified to product and production conditions

Questions to settle before ordering

Can one configuration handle every formula? Not necessarily. Viscosity, solids, batch size, and shear needs can require different agitators or drives.
What should we provide for a quotation? Send batch volume, product examples, viscosity range, temperature profile, cleaning method, available electrical supply, and pump transfer details.
How is the capacity selected? Confirm usable working volume and headspace with our engineers, especially for foaming or high-viscosity batches.

For a useful recommendation, share the hardest product to mix, the required batch time, and any material or cleaning restrictions. Those details let us size the vessel and define heating, drive, pump, and surface requirements without assuming that a standard configuration will suit every formula.
