150L Stainless Steel Esterification Polycondensation Reactor | CE Turnkey Lab Autoclave

150L esterification and polycondensation reactor built for pilot-scale synthesis. 316L stainless steel, thermal oil heating, vacuum to 0.6 MPa, and customizable agitation. Factory-direct with CE certification.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,029.78 through $3,909.93

Ask For A Quotation​

Guaranteed Safe Checkout

Optional agitator
Propeller mixer

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Paddle mixer

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Frame Agitator

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Scraper agitator

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Dispersion mixer

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Homogenizer

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Magnetic mixer
Magnetic mixer

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Anchor & Homogenizer combine

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L

Product description

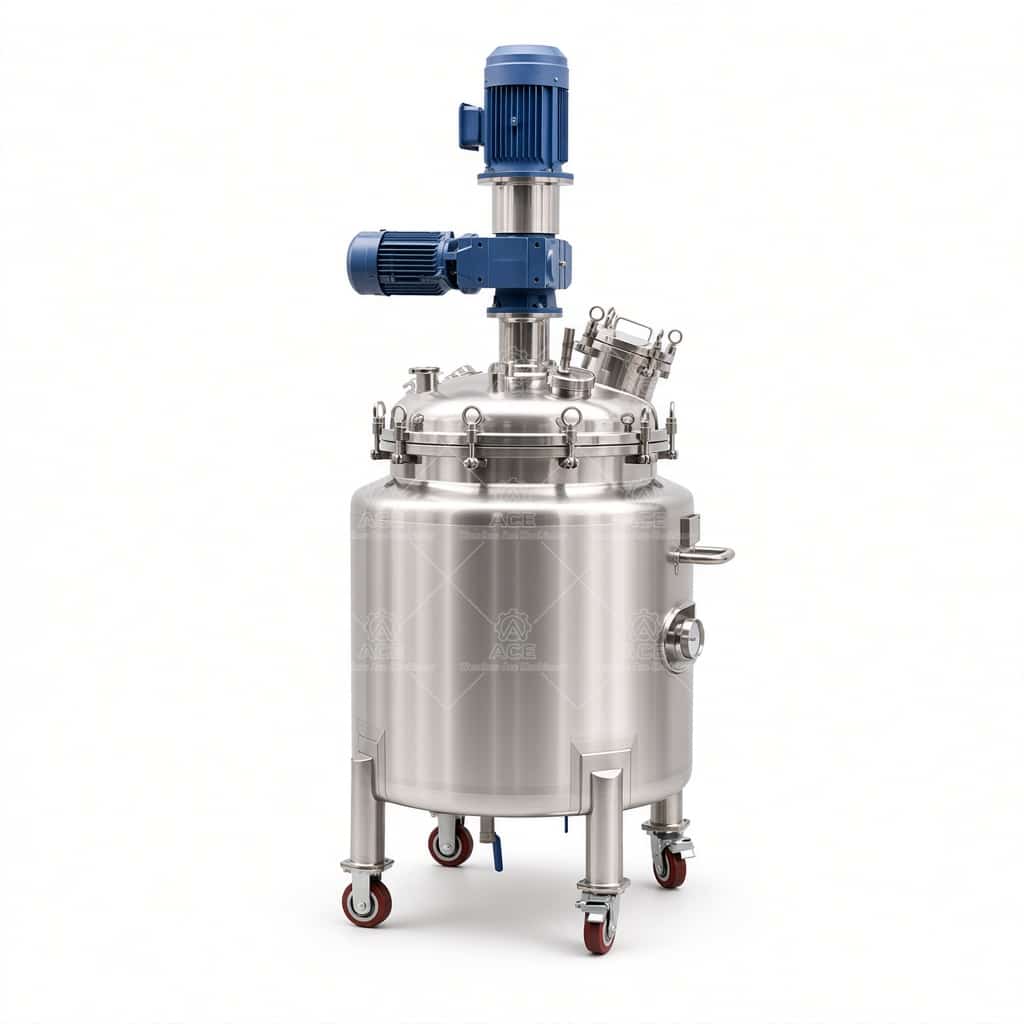

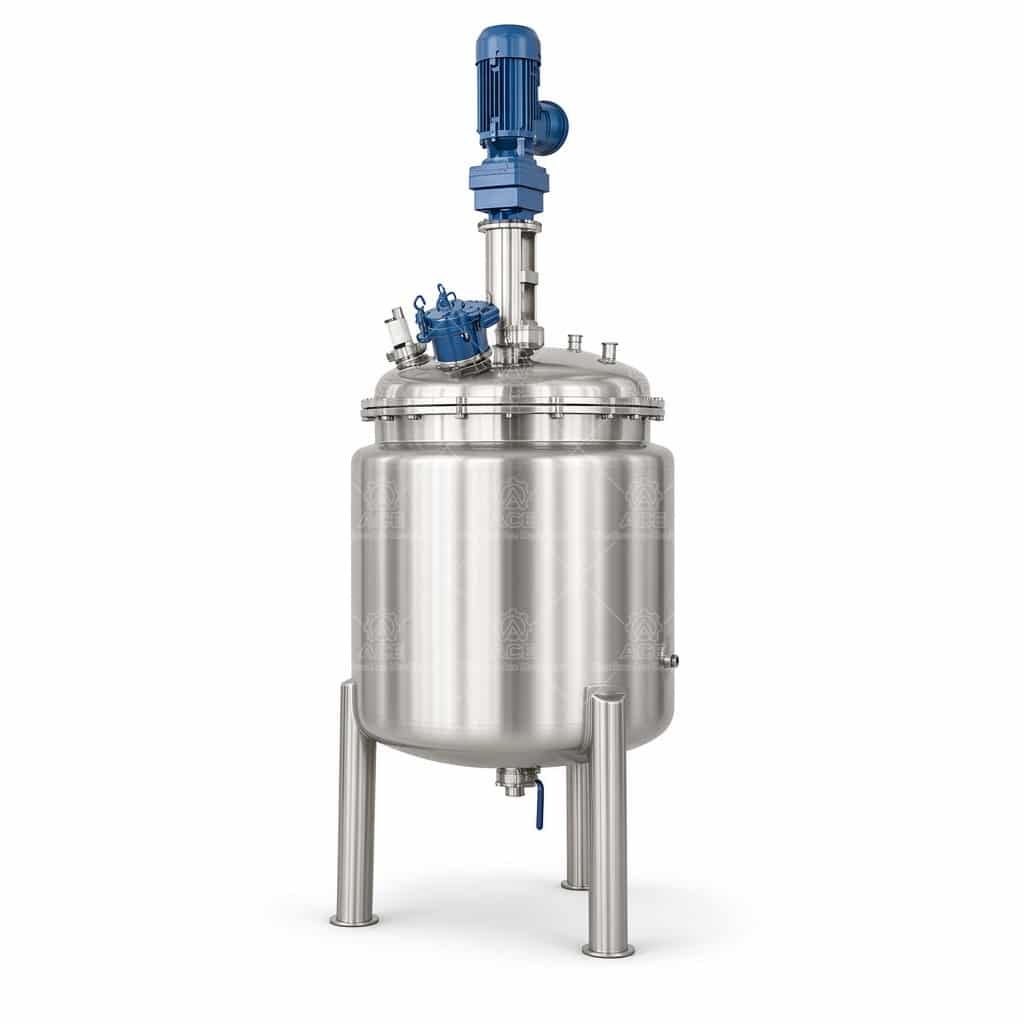

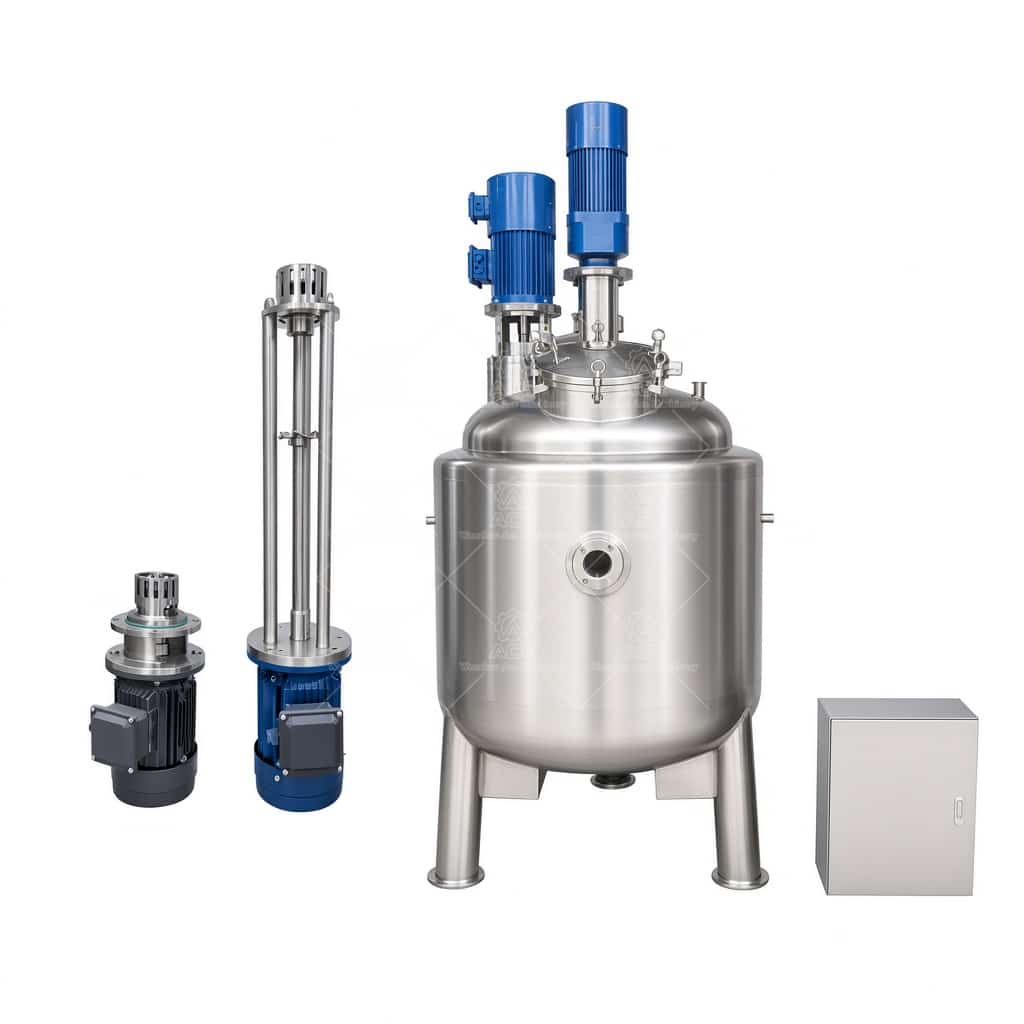

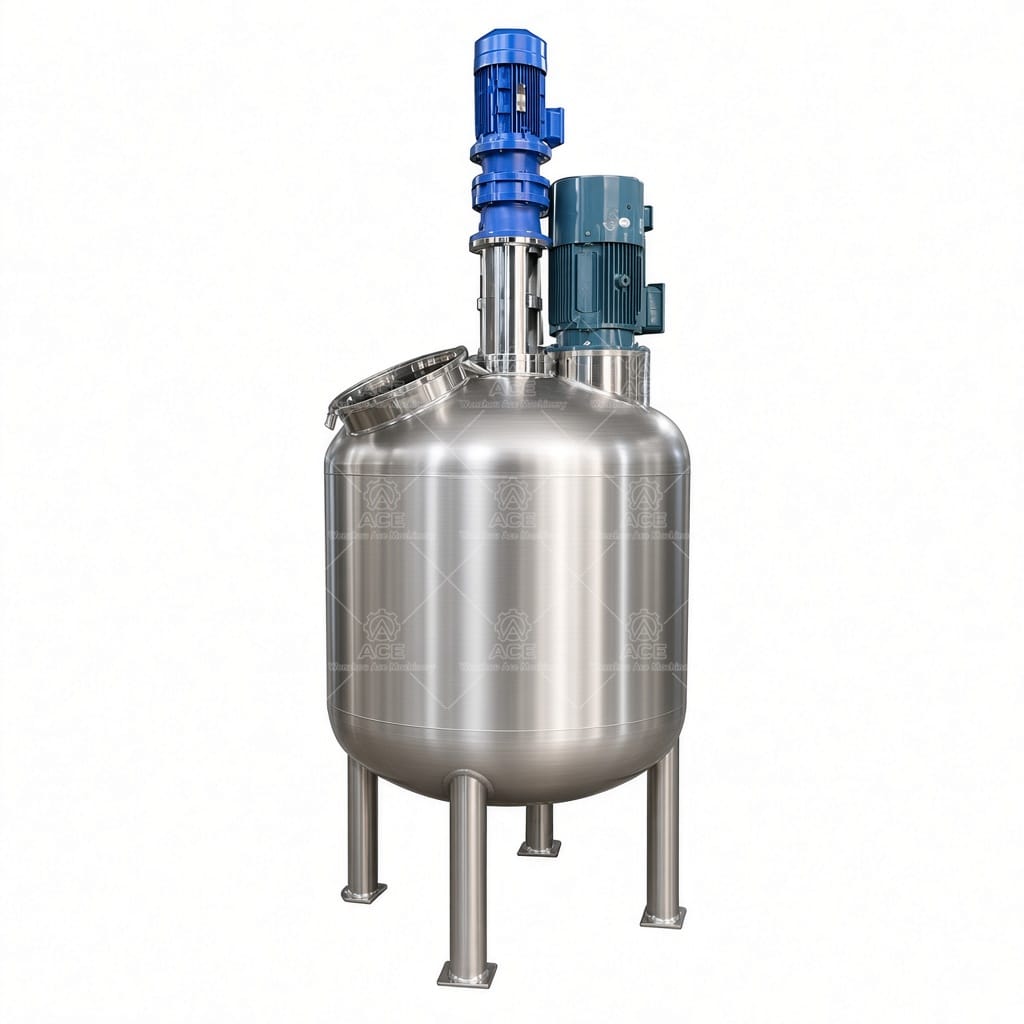

This 150L reactor is built for esterification and polycondensation processes where consistent heat transfer and reliable agitation are not optional. We fabricate it from 316L stainless steel as standard, with 304 available for less corrosive media. The vessel is fully welded by certified welders, and all wetted surfaces are electropolished to a Ra ≤ 0.4 µm finish to minimize product adhesion and simplify cleaning between batches.

The heating system uses thermal oil circulation through an external jacket, which gives you uniform wall temperatures without local hot spots that can degrade heat-sensitive polymers. For cooling, the same jacket can be switched to cooling oil or water. The unit is rated for full vacuum to 0.6 MPa internal pressure, with a design temperature range of -20°C to 250°C. If your process runs hotter or needs higher pressure, tell us before we quote—we can adjust the shell thickness and flange rating accordingly.

Agitation is handled by a variable-speed magnetic drive or mechanical seal system, depending on your solvent and viscosity requirements. For polycondensation, where viscosity climbs as the reaction proceeds, we recommend an anchor or helical ribbon impeller paired with a bottom outlet valve sized for high-viscosity discharge. The shaft and impeller are precision balanced, and the seal housing is water-cooled to extend seal life during long batch cycles.

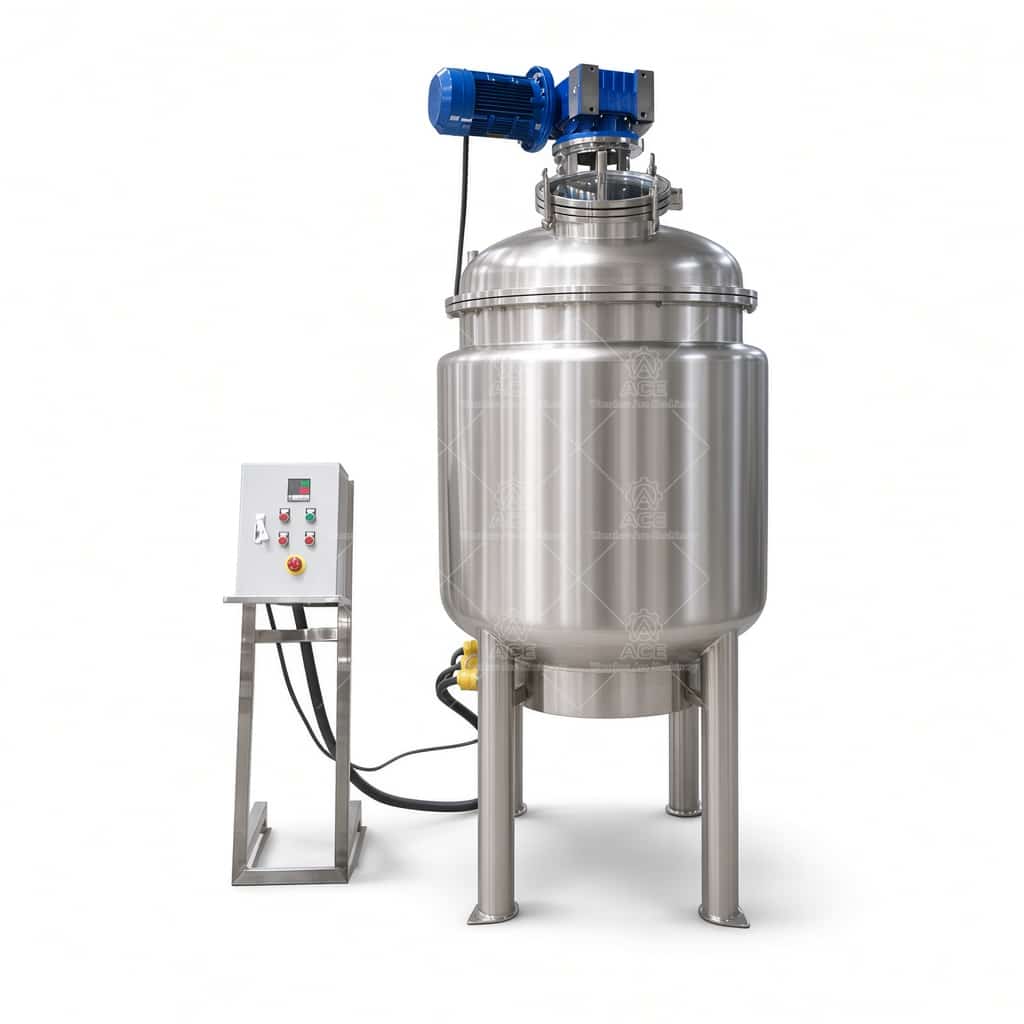

This is a turnkey lab-to-pilot scale unit. It ships with a control panel that includes PID temperature control, RPM display, and over-pressure protection. We can add a reflux condenser, sampling port, or nitrogen sparging line if your process requires them.

Technical Specifications

Nominal Volume 150L (working volume ~100–120L)
Material 316L / 304 SS, wetted parts electropolished
Jacket Half-pipe or full jacket for thermal oil
Pressure Range Full vacuum to 0.6 MPa (customizable)
Temperature -20°C to 250°C design range
Agitator Anchor / helical ribbon / turbine, VFD-driven
Seal Magnetic drive or mechanical seal

Buyer\’s Checklist

Before requesting a quote, have these details ready: the exact chemical composition and concentration of your reactants, batch size, operating and design temperature, pressure (including vacuum), viscosity range, and whether you need reflux, distillation, or inert gas blanketing. Also confirm your cleaning protocol—CIP spray balls can be fitted if you need them.

We are a factory-direct manufacturer. You are not buying from a trading company, which means you get a better price and direct access to our engineers during commissioning. Send us your process parameters—materials, batch volume, temperature, pressure, and agitation requirements—and we will respond with a configuration recommendation and a firm quotation.
