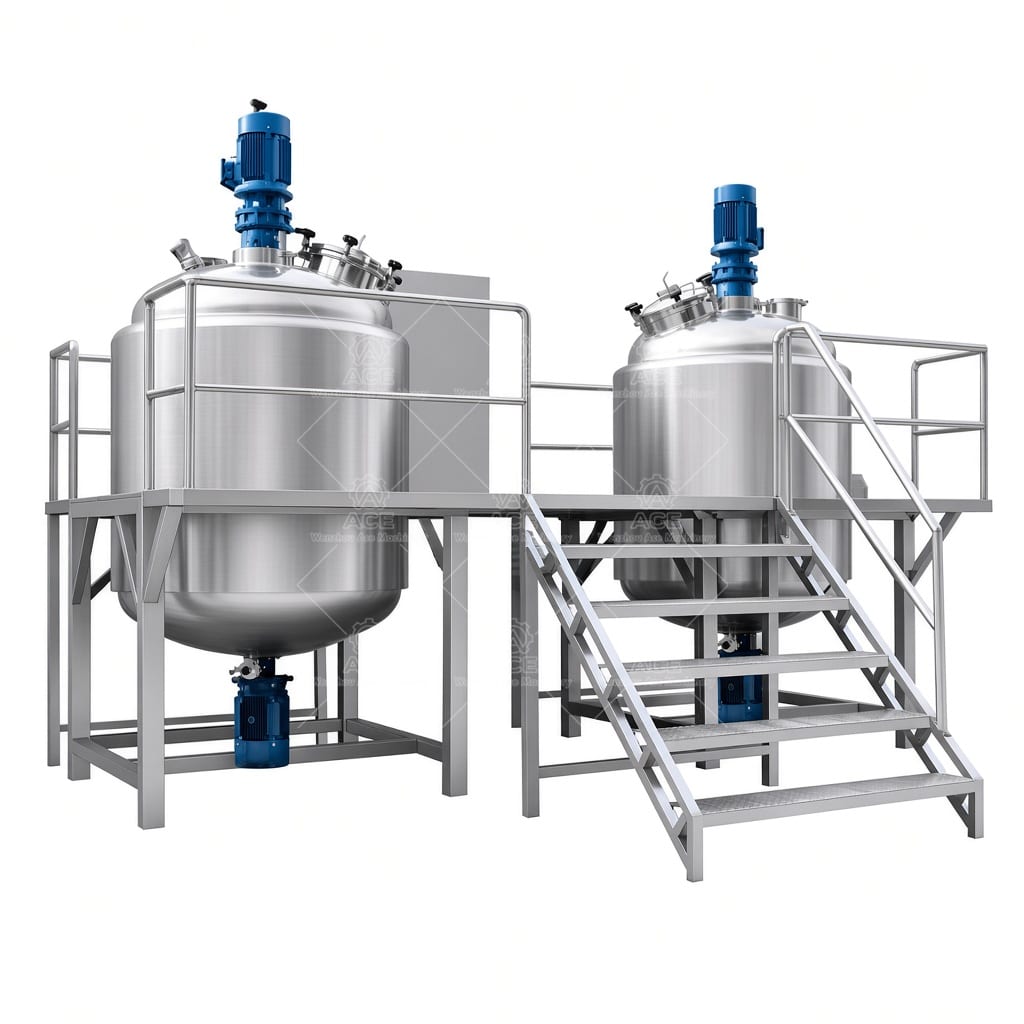

Vacuum Emulsifying Mixer for Shampoo, Soap, Wax and Cosmetic Cream
This vacuum emulsifying mixer can be configured for shampoo, liquid soap, hair removal wax, lotion, and cosmetic cream production. Vessel volume, agitator type, homogenizer, heating method, contact materials, and controls depend on the recipe and batch process. Share product viscosity, temperature range, batch size, cleaning requirements, and plant utilities to define a suitable configuration.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
$7,459.08 – $8,601.07Price range: $7,459.08 through $8,601.07
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Vacuum emulsifying mixer for viscous personal care products
We configure vacuum emulsifying systems around the product’s viscosity, batch size, and process sequence. A shampoo may need controlled blending and deaeration, while a cream or depilatory wax may require stronger shear, jacket heating, and slow wall-sweeping agitation. The vacuum stage helps remove entrained air and can improve batch appearance, but the required vacuum level and cycle time depend on the formulation and vessel design.
For creams and lotions, a high-shear homogenizer can reduce droplet size and help form a stable emulsion. An anchor or scraper agitator circulates material near the vessel wall, where viscous batches otherwise heat unevenly or leave residue. Shampoo and liquid soap may need gentler mixing to limit foam. We select motor and gearbox capacity, agitator geometry, and speed control from the product’s viscosity profile and operating temperature, rather than assuming one drive arrangement suits every recipe.
Construction and process options
Product-contact parts are commonly specified in 316L stainless steel where formula chemistry or cleaning requirements call for it; 304 stainless steel may be suitable for less demanding applications. Final selection depends on ingredients, cleaning agents, and plant standards. Welds, internal corners, and surface finish should be defined for cleanability and product flow. Mechanical seals and gasket materials must also match the product, temperature, and cleaning cycle.
Heating and cooling can be arranged through a vessel jacket, with the heat-transfer medium selected for the required temperature range and site utilities. Temperature sensors, controls, discharge design, and cleaning access are specified to suit the process. Wax production, for example, may need a different heat-up and discharge arrangement from a pourable lotion.
Configuration details
| Item | Configuration basis |
|---|---|
| Working volume | Batch size, headspace, and minimum operating level |
| Mixing system | Viscosity, shear sensitivity, and dispersion target |
| Heating/cooling | Recipe temperatures, cycle time, and available utilities |
| Contact materials | Formula compatibility and sanitation requirements |
| Controls and discharge | Operator workflow, filling method, and plant integration |
Common questions
Can one machine make shampoo and cream? Often, but mixing tools, speed range, cleaning procedure, and batch sequencing must be checked against both products.
What information is needed for a quotation? Send batch volume, ingredient list or material properties, viscosity and temperature range, process steps, cleaning method, and electrical and utility requirements. Include any required finish, documentation, or installation constraints. These details let our engineers recommend a practical vessel and drive configuration before pricing.
