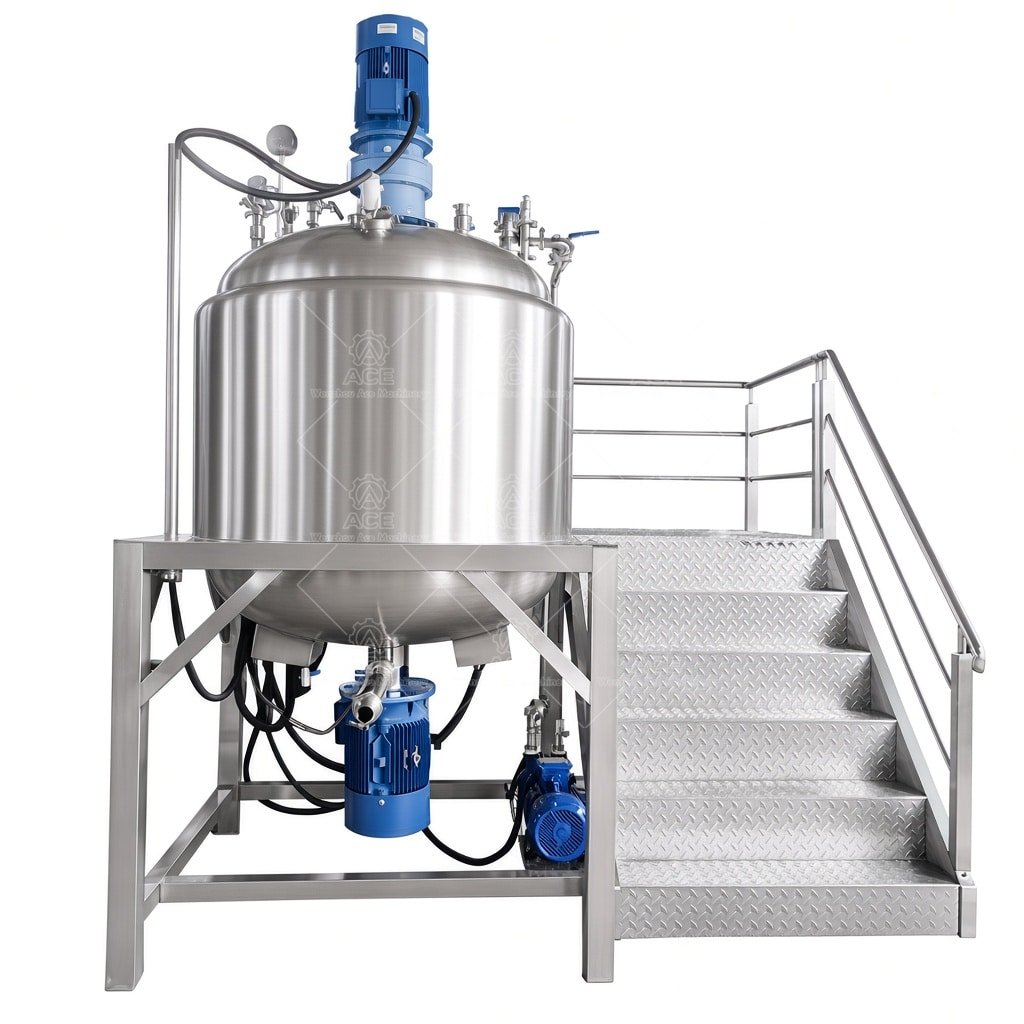

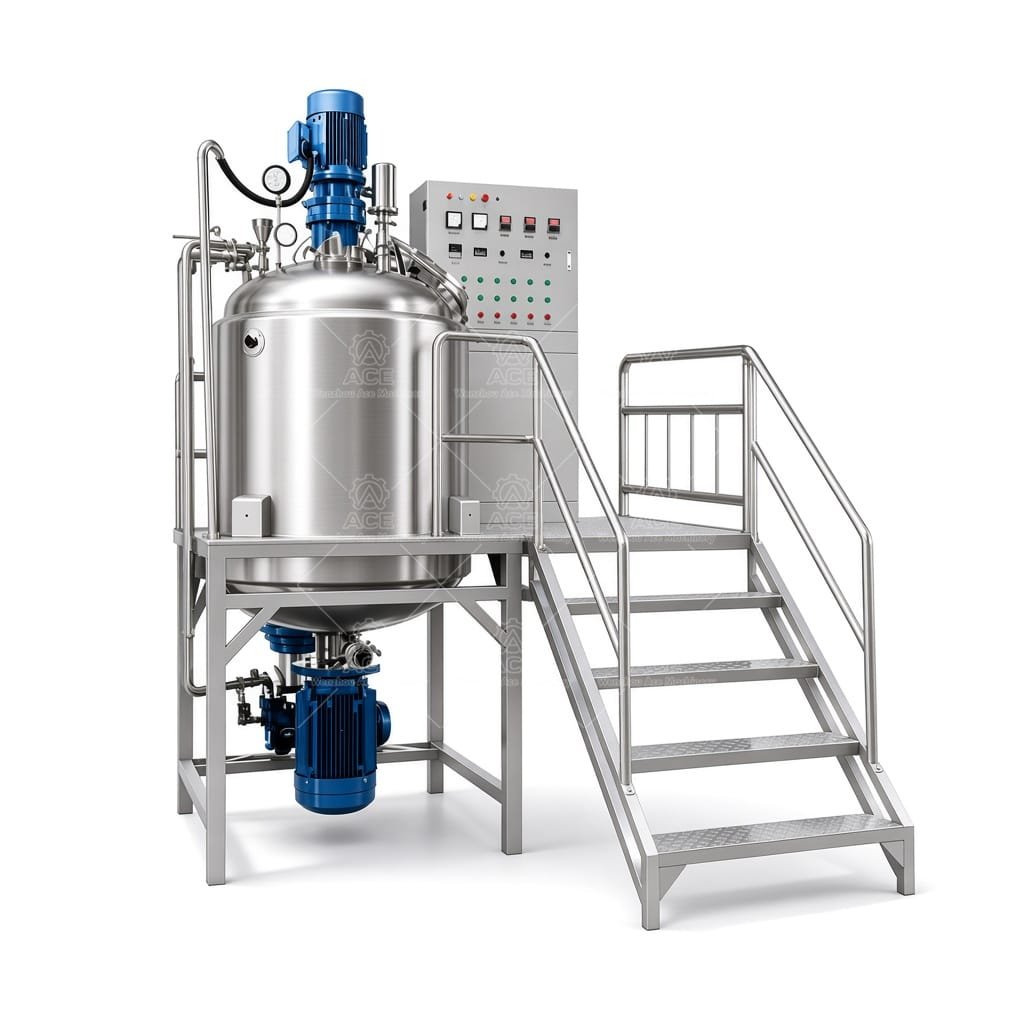

Vacuum Emulsifying Mixer for Lotion, Cream, and Hair Gel Production
This vacuum emulsifying mixer is configured for production of lotions, creams, hair gels, and other viscous personal care products. Vessel capacity, stainless steel grade, agitator type, high-shear system, heating or cooling, seals, and controls depend on the formula and manufacturing sequence. Share batch size, viscosity, temperature, cleaning, and utility requirements to help determine a suitable configuration.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
$9,979.14 – $11,672.60Price range: $9,979.14 through $11,672.60
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Vacuum Emulsifying Mixer for Viscous Personal Care Products
Lotions, creams, and hair gels can trap air during mixing, develop uneven texture, or take too long to disperse powders and thickeners. A vacuum emulsifying mixer combines vessel agitation with a high-shear emulsifying head to process these batches under reduced pressure. The correct configuration depends on the formula, batch size, viscosity changes during processing, and required cleaning method—not on the product name alone.
We configure the vessel and mixing system around the process sequence. A wall-scraping anchor may help move viscous material toward the mixing zone, while a high-shear rotor-stator supports droplet or particle-size reduction. These drives may run at different speeds; motor and gearbox sizing depends on working volume, product viscosity, and startup conditions. For a formula that thickens as it cools, torque demand near the end of the batch can matter more than the initial mixing load.
Construction and process options
Product-contact parts are commonly specified in 304 or 316L stainless steel, selected according to ingredient chemistry, cleaning agents, and hygiene requirements. Welds should be continuous and finished to suit the required cleanability. Contact-surface polishing, vessel geometry, and drainability should be confirmed against the buyer’s cleaning procedure. Seal design also depends on vacuum level, shaft arrangement, temperature, and product compatibility.
Heating or cooling can be designed through a jacket or another agreed thermal arrangement. The heat-transfer medium, temperature range, batch size, and desired ramp time guide the design; temperature control should reflect the formula’s sensitivity to heat. Vacuum connections and discharge arrangements need review too, especially for products that foam, string, or retain air.
Technical specification framework
| Item | Configuration basis |
|---|---|
| Working capacity | Set from batch size, headspace, and process behavior |
| Product-contact material | 304 or 316L stainless steel, subject to compatibility review |
| Mixing system | Anchor, scraper, high-shear head, or a combined arrangement |
| Heating and cooling | Optional; defined by temperature and cycle requirements |
| Controls and utilities | Specified to match the site and operating sequence |
Typical applications
Cosmetic and personal-care producers use this equipment for lotions, creams, gels, and similar emulsified or viscous products. A practical selection mistake is sizing only for nominal volume while overlooking viscosity, powder addition, transfer, and cleaning access.
FAQ
Can one mixer process both lotion and hair gel?
Possibly. Confirm the viscosity range, batch sequence, and changeover requirements before finalizing the agitator and drive.
What should we send for a quotation?
Provide batch size, formula or ingredient characteristics, viscosity range, operating temperatures, vacuum needs, cleaning method, available utilities, and required discharge arrangement. These details let our engineers recommend a buildable configuration rather than guess at a standard setup.
