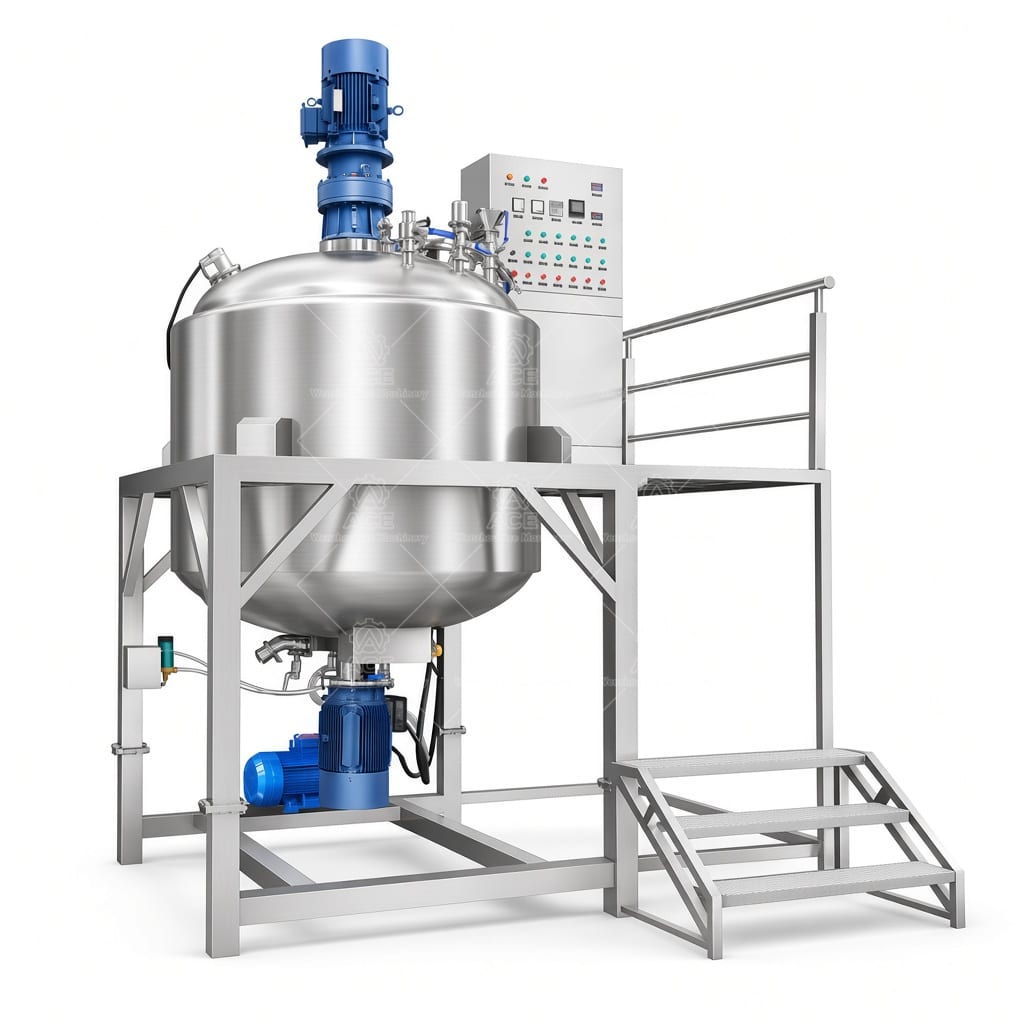

Vacuum Emulsifying Mixer for Lotion and Hand Wash Production - Image 1

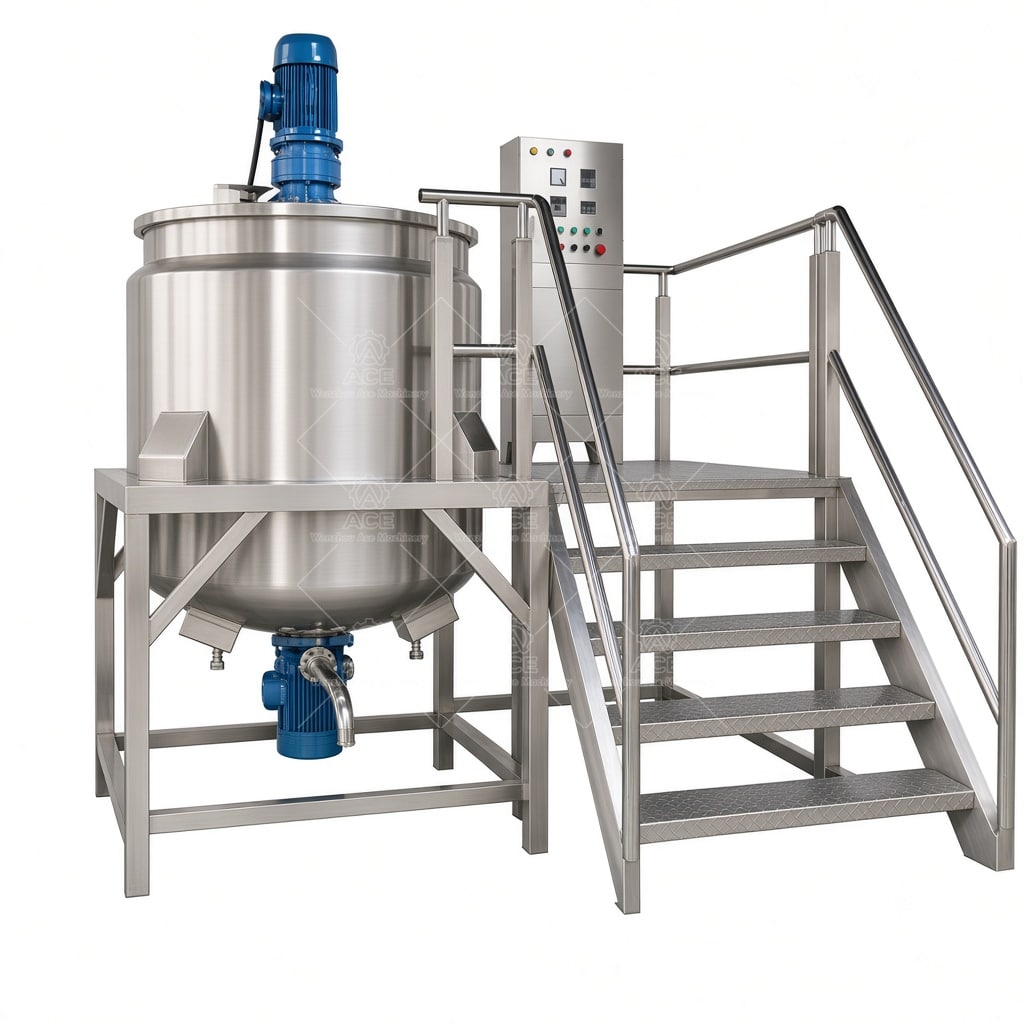

Vacuum Emulsifying Mixer for Lotion and Hand Wash Production - Image 2

Click to enlarge

Vacuum Emulsifying Mixer for Lotion and Hand Wash Production

This vacuum emulsifying mixer is configurable for body lotion, creams, and compatible hand-wash formulations. Vessel capacity, stainless steel grade, heating method, agitator, homogenizer, vacuum arrangement, and controls are selected around batch size, viscosity, cleaning requirements, and production utilities. Share your process details to establish a suitable configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $8,590.24 through $9,549.77

Ask For A Quotation

Guaranteed Safe Checkout

Vacuum emulsifying mixer for personal care production

This system is designed for manufacturers that need controlled mixing, emulsification, and deaeration when producing body lotion, creams, and selected hand-wash formulas. Vacuum processing can help reduce trapped air and improve batch appearance, but the required shear and vessel configuration depend on viscosity, ingredients, and the finished product specification. Thin hand wash may need a different mixing arrangement from a thick lotion; one configuration should not be assumed to suit both without trials.

Construction and process options

Product-contact parts can be specified in 304 or 316L stainless steel according to the formula, cleaning chemicals, and corrosion risk. We define weld quality, internal surface finish, and sanitary connections against the cleaning process and customer requirements. Seal materials must also be checked for compatibility with oils, surfactants, fragrances, and washdown agents. External surfaces and the support frame can use different finish requirements from wetted surfaces.

Where heating or cooling is required, the vessel may be configured with a jacket. Hot water, steam, or electric heating are possible approaches; selection depends on available utilities, batch size, target temperature, and heat-sensitive ingredients. Temperature sensing and control points are specified around the actual process rather than assumed from a standard recipe.

The drive package is selected around batch volume, viscosity, and mixing time. Anchor or sweep agitators can support bulk circulation in viscous products, while a high-shear homogenizer is used when the formulation needs finer dispersion or emulsification. Scrapers, homogenizer position, speed control, and vacuum arrangement are project options. A common sizing mistake is to select by vessel volume alone without providing the viscosity range and required batch cycle.

Preliminary specification schedule

Item	Engineering basis
Working capacity	Confirm batch size, minimum fill, and headspace
Wetted materials	304 or 316L, subject to product compatibility
Heating/cooling	Jacket and utility method selected to suit process
Agitation and homogenizing	Drive, impeller, and speed range sized to formula
Controls and vacuum	Define instrumentation and operating requirements

Applications and FAQs

Typical applications include body lotion, cream, cosmetic emulsions, and compatible hand-wash products. Can one machine make both lotion and hand wash? Often, but changeover, viscosity range, cleaning access, and shear requirements must be reviewed. Is vacuum always necessary? No; it is useful when deaeration or reduced air entrapment is important.

To request a practical configuration and quotation, provide batch size, formula or ingredient properties, viscosity range, target temperatures, cycle time, cleaning method, available utilities, and installation environment. These details let our engineers size the vessel and drives around production conditions rather than a nominal capacity alone.
