SUS316L Shampoo Production Line Cosmetic Lotion Cream Mixing Reactor Tank

Sanitary Mixing and Processing Vessel for Liquid Detergent and Cosmetic Batches

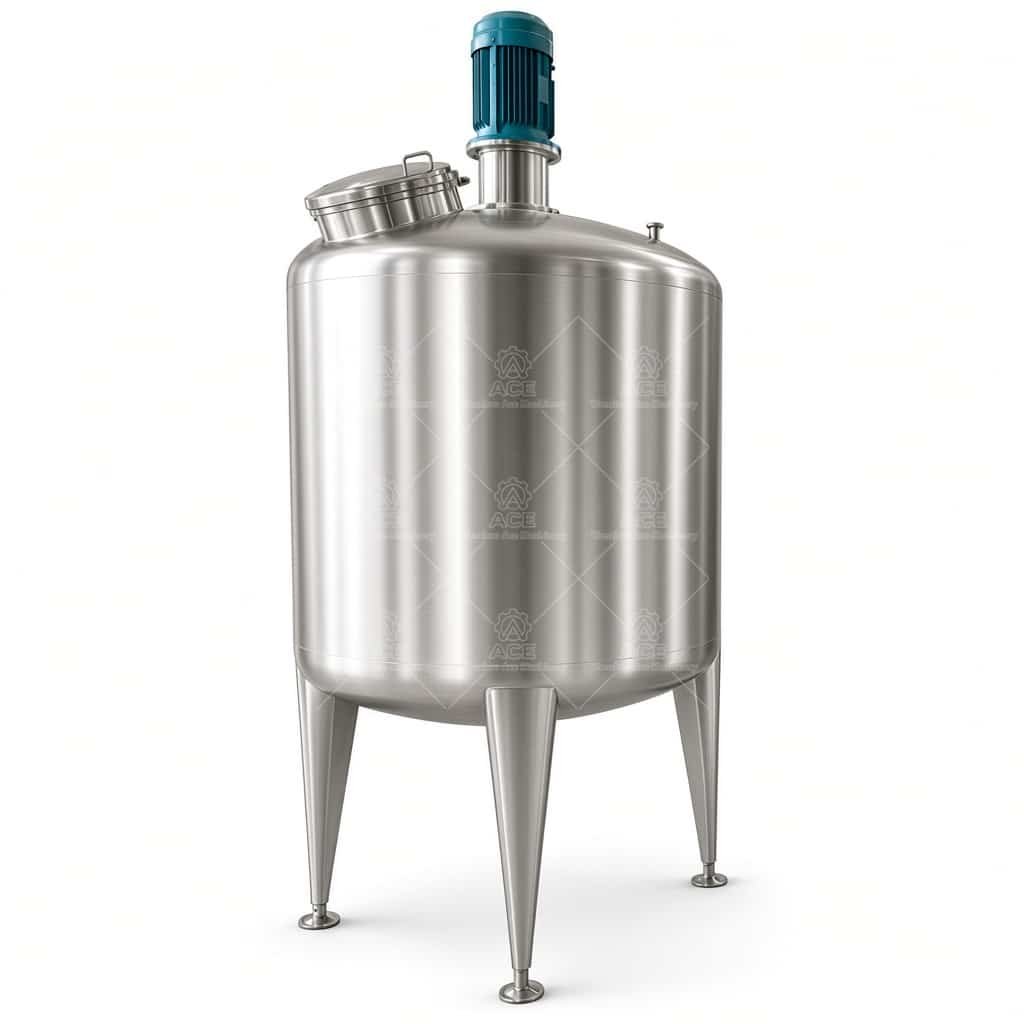

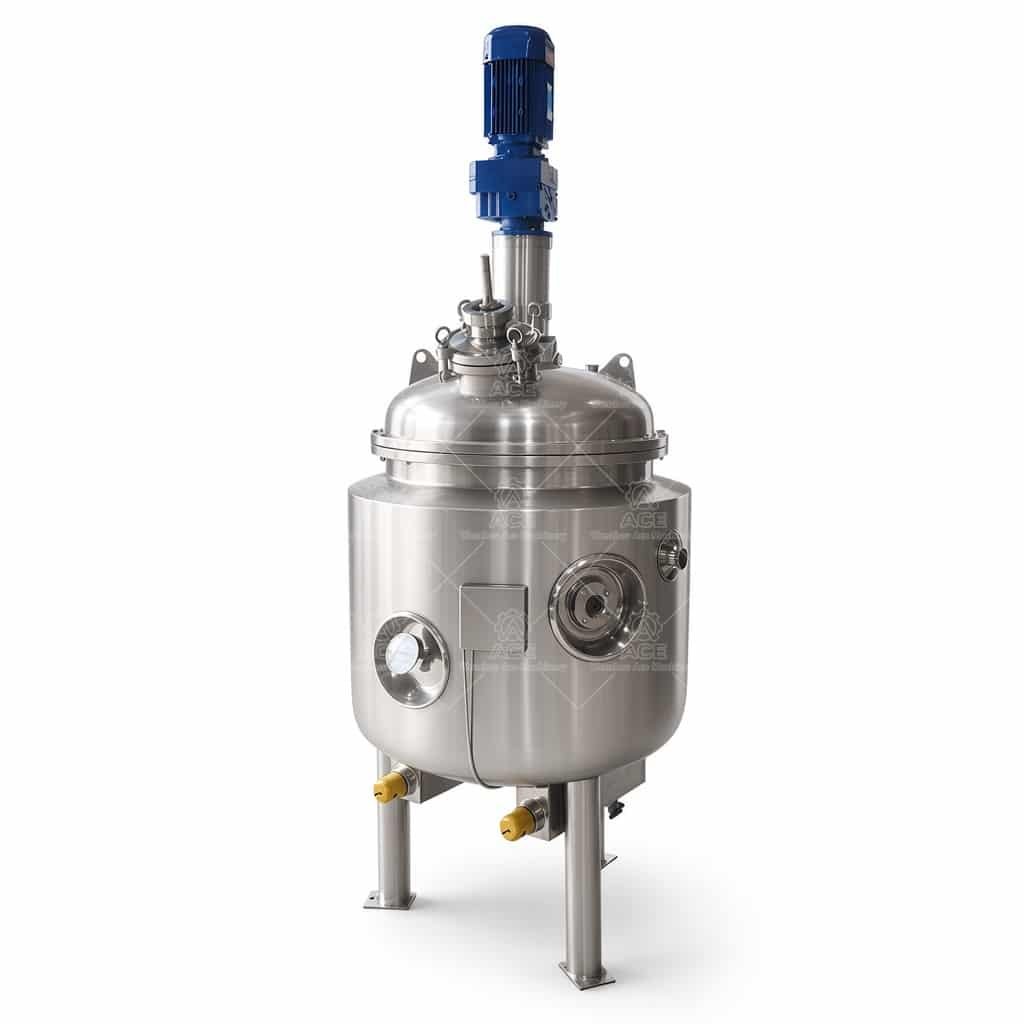

This SUS316L reactor tank is built for production lines that handle shampoos, liquid detergents, lotions, and creams. We manufacture it as a complete processing vessel, not just a holding tank. The unit supports heating, cooling, mixing, and homogenizing within a single closed system, which is what most liquid manufacturing facilities require.

The vessel body is made from SUS316L stainless steel. This grade holds up well against chloride-containing raw materials, which are common in surfactant-based products like shampoo and detergent. The inner surface is polished to a sanitary finish, so product residue does not cling to the walls between batches. That makes cleaning faster and reduces the risk of cross-contamination when you switch formulations.

We weld the tank using full penetration techniques and inspect the welds to ensure smooth, crevice-free joints. The design pressure and temperature ratings are matched to your specific process conditions. If your recipe requires vacuum degassing or pressure processing, we can configure the vessel accordingly. The mixing system can be tailored as well—anchor agitators for high-viscosity creams, counter-rotating paddles for lotions, or high-shear homogenizers for stable emulsions.

Heating and cooling jackets are available in different configurations depending on your utility setup. We can use electric heating, steam, or thermal oil circulation. Cooling can be handled through the same jacket or a separate coil, depending on your batch cooling time requirements.

This equipment is suited for cosmetic, personal care, and household chemical plants that produce liquid soap, body wash, conditioner, and similar products. It is not a one-size-fits-all machine. The right configuration depends on your batch size, viscosity, operating temperature, and discharge method.

Technical Specifications

Frequently Asked Questions

Q: What batch size can this reactor handle?
A: We build vessels from 50L to 10,000L. The working volume is typically 70-80% of the total capacity to allow room for mixing and expansion.

Q: Can I use this for acidic or alkaline formulas?
A: SUS316L is more resistant to chlorides and mild acids than SUS304. However, highly corrosive chemicals require a material review. Send us your formula\’s pH range and chemical composition.

Q: How do I clean the tank between batches?
A: With the optional CIP spray ball, you can run a cleaning cycle without opening the manhole. The sanitary polish also helps minimize residue buildup.

Q: What mixing speed is recommended for cream production?
A: Creams with higher viscosity need slower anchor agitation combined with a homogenizer for fine particle dispersion. We can adjust the motor power and impeller design based on your viscosity data.

How to Order the Right Configuration

Before you request a quote, prepare the following details: the material you are processing, its chemical composition and concentration, the batch volume you need, operating and design temperature, working pressure, viscosity, and whether you need heating or cooling. Also specify the mixing effect you expect—simple blending, emulsifying, or homogenizing. Share your cleaning and sealing requirements as well.

With these parameters, our engineers can recommend the correct tank structure, agitator type, and jacket design. This prevents over-engineering and keeps your equipment cost reasonable. Contact us with your process details to get a tailored configuration and pricing.
