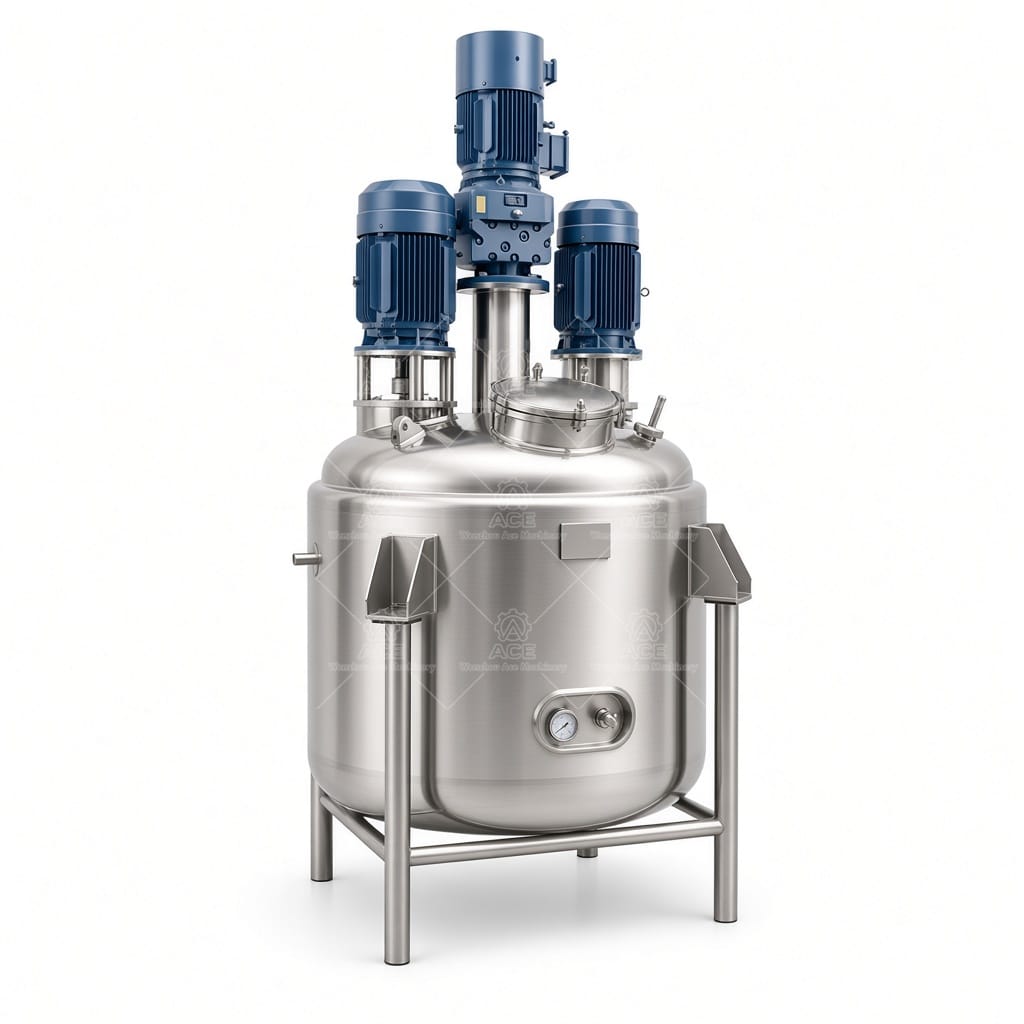

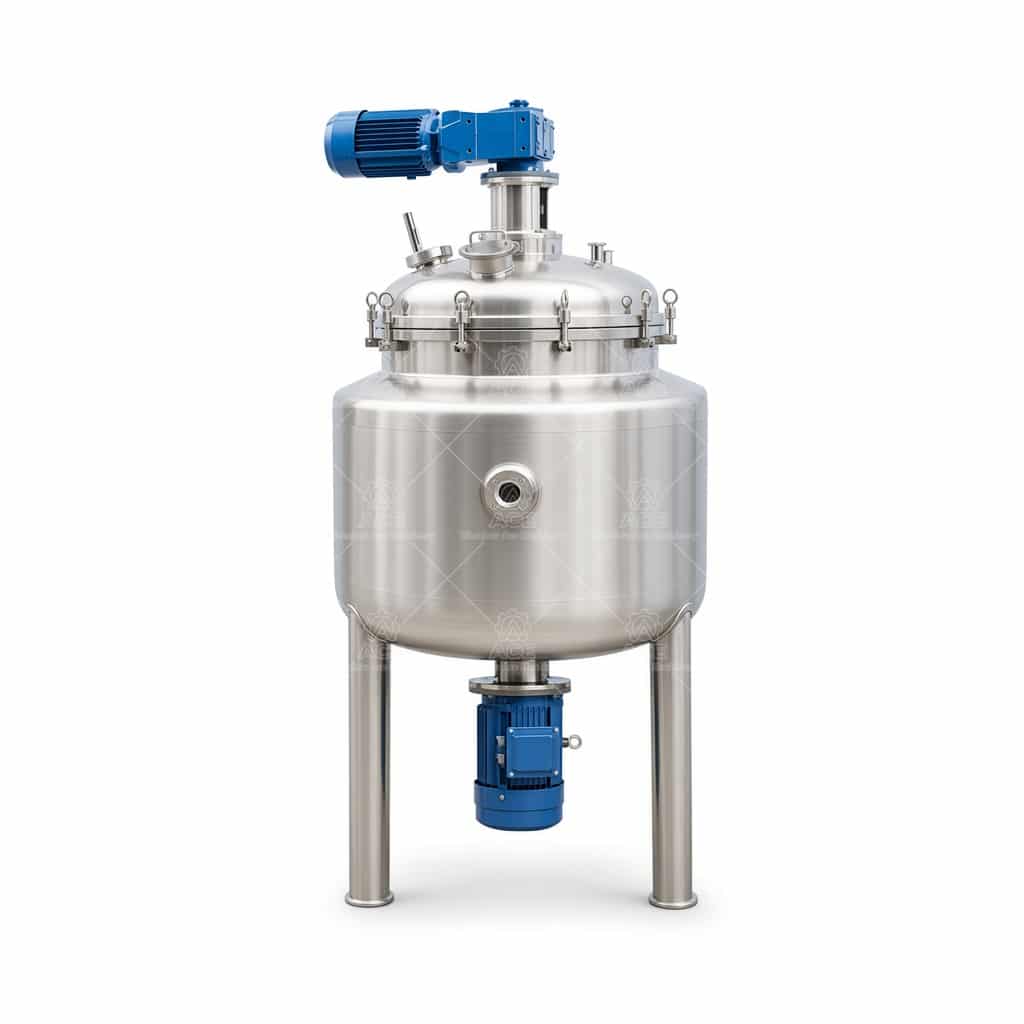

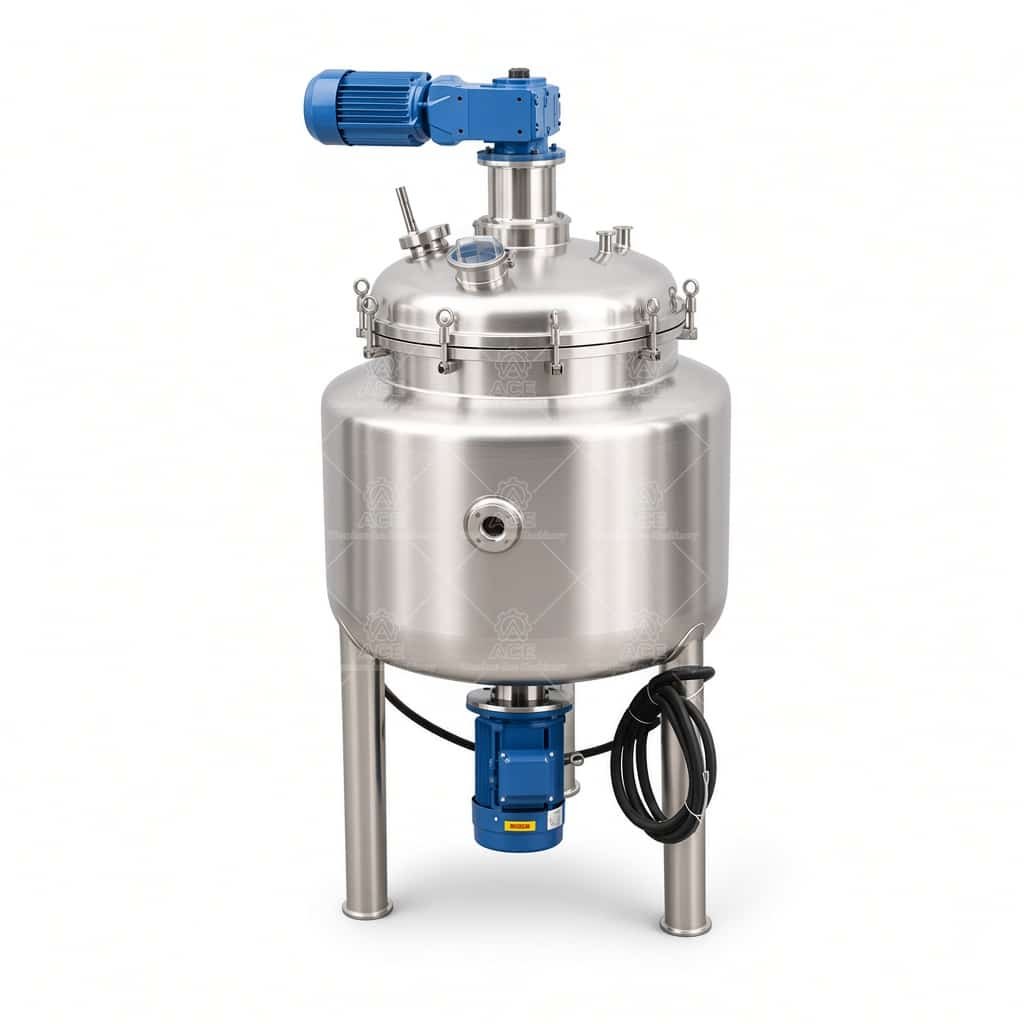

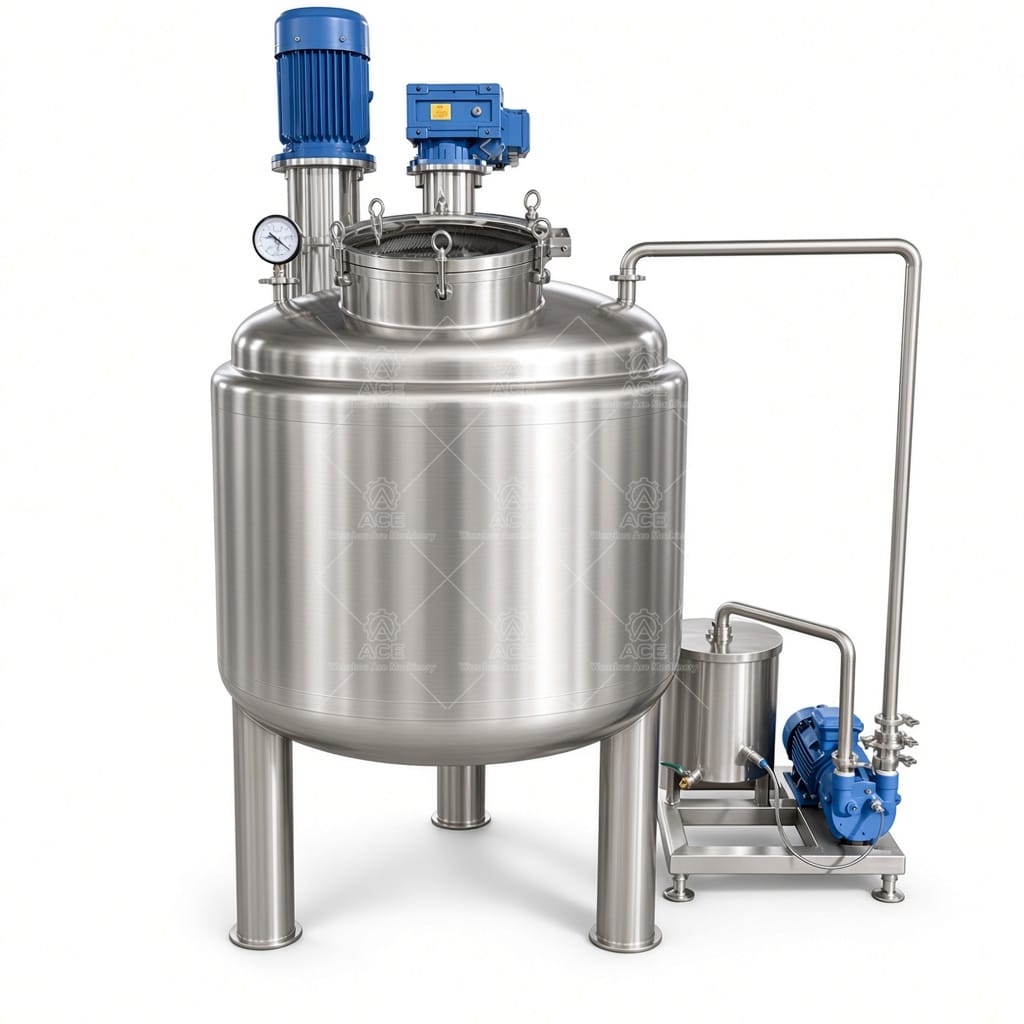

Stainless Steel 304L/316L Chemical Reactor Tank Pressure Vessel
Stainless steel reactor vessel in 304L or 316L, built for chemical, pharmaceutical, and food processing. Pressure-rated, jacketed, and customizable with agitation and sealing systems to match your batch process.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
$3,721.10 – $4,811.38Price range: $3,721.10 through $4,811.38
Guaranteed Safe Checkout

Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank

Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank

Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion

Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing

Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition

Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Built for Batch Processing Demands
This reactor is designed around the realities of daily production — not just spec sheets. We fabricate these vessels for chemical, pharmaceutical, food, and cosmetics operations where repeatable results and cleanability matter more than flashy features.
The 304L or 316L stainless steel construction gives you a corrosion-resistant working surface that holds up to chlorides, acids, and caustic washdowns. We weld with full penetration and back-purge for smooth, crevice-free seams. Interior surfaces get mechanical polishing to your specified Ra — typically 0.4 to 0.8 µm for sanitary lines, or coarser for general chemical duty.
You can configure the vessel with a jacket or half-pipe coil for steam heating or chilled-water cooling. Working pressure and design temperature are matched to your process, from atmospheric tanks to fully rated pressure vessels. Agitation is sized to your mixing requirements — anchor, turbine, or paddle impellers, with variable-speed motors when you need shear control.
Sealing matters. We offer mechanical seals or magnetic drives depending on whether you\’re handling volatile solvents or need zero-leak operation. CIP spray balls are available for quick turnarounds between batches.
Selecting the Right Configuration
Before we recommend a specific build, we need the full picture. Tell us what you\’re processing — chemical composition, concentration, viscosity, solids content. Provide batch volume and working volume, along with operating and design temperatures. Specify whether the process runs at atmospheric, positive, or vacuum pressure.
Mixing requirements and cleaning protocols also shape the design. A thin, low-viscosity solution needs a different impeller than a heavy paste. A product requiring sterile conditions demands different surface finishes and seal choices than a routine industrial batch.
Share those details with our engineering team, and we\’ll help you match the vessel configuration to your actual production conditions — then provide a quotation based on the specific configuration you need.
