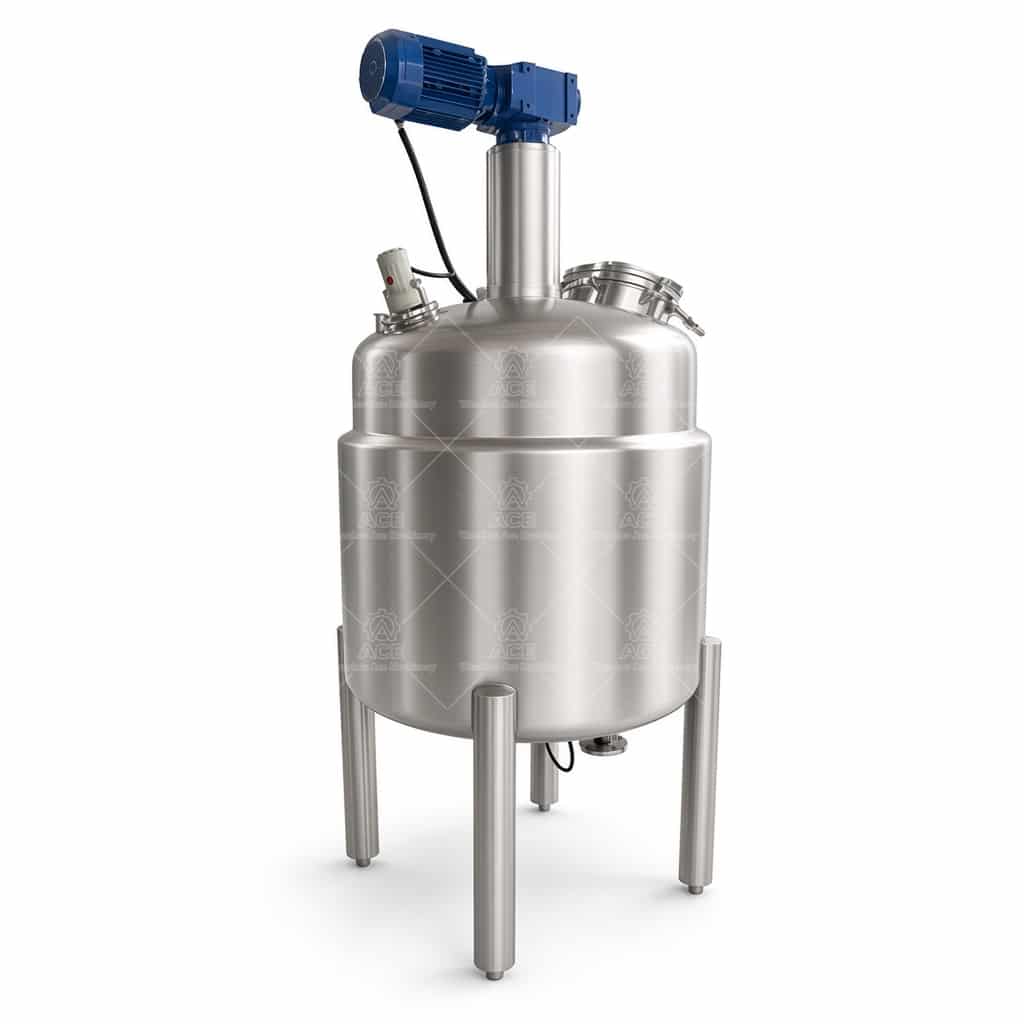

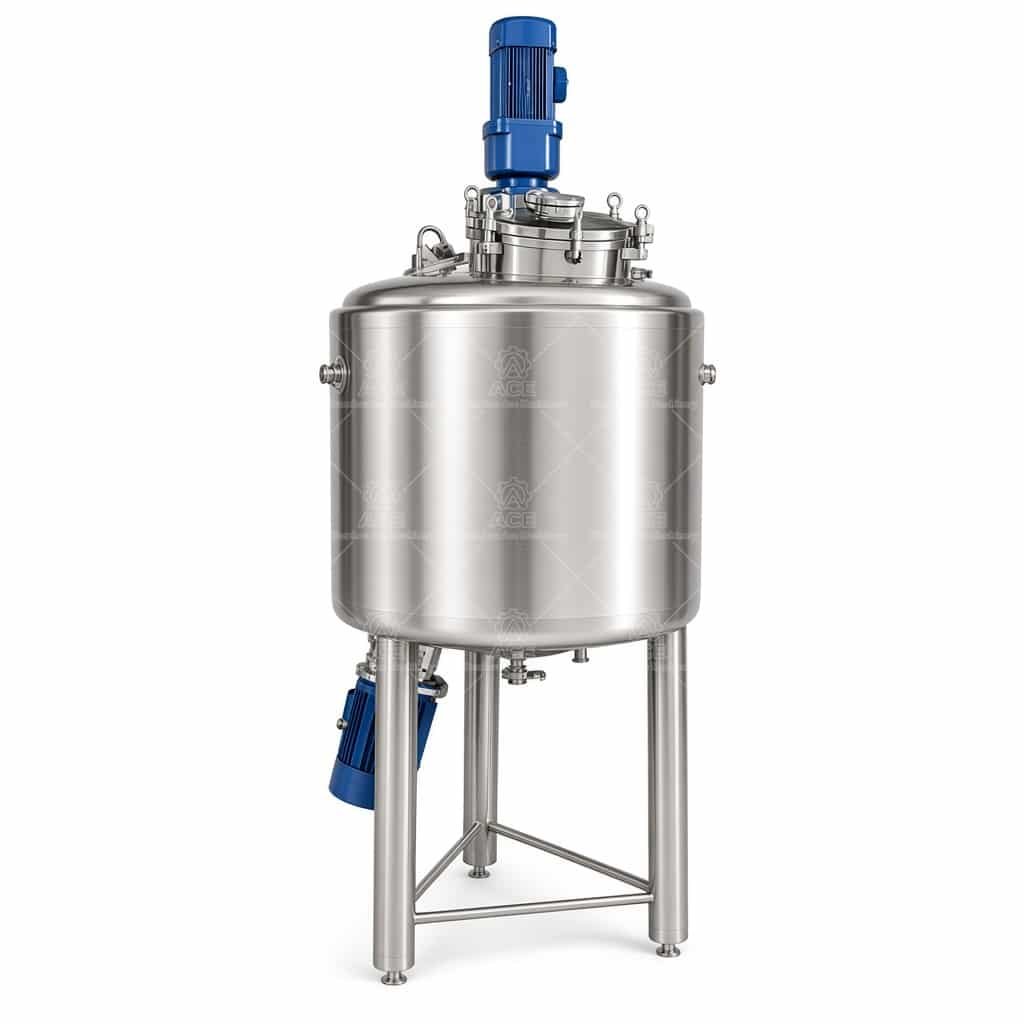

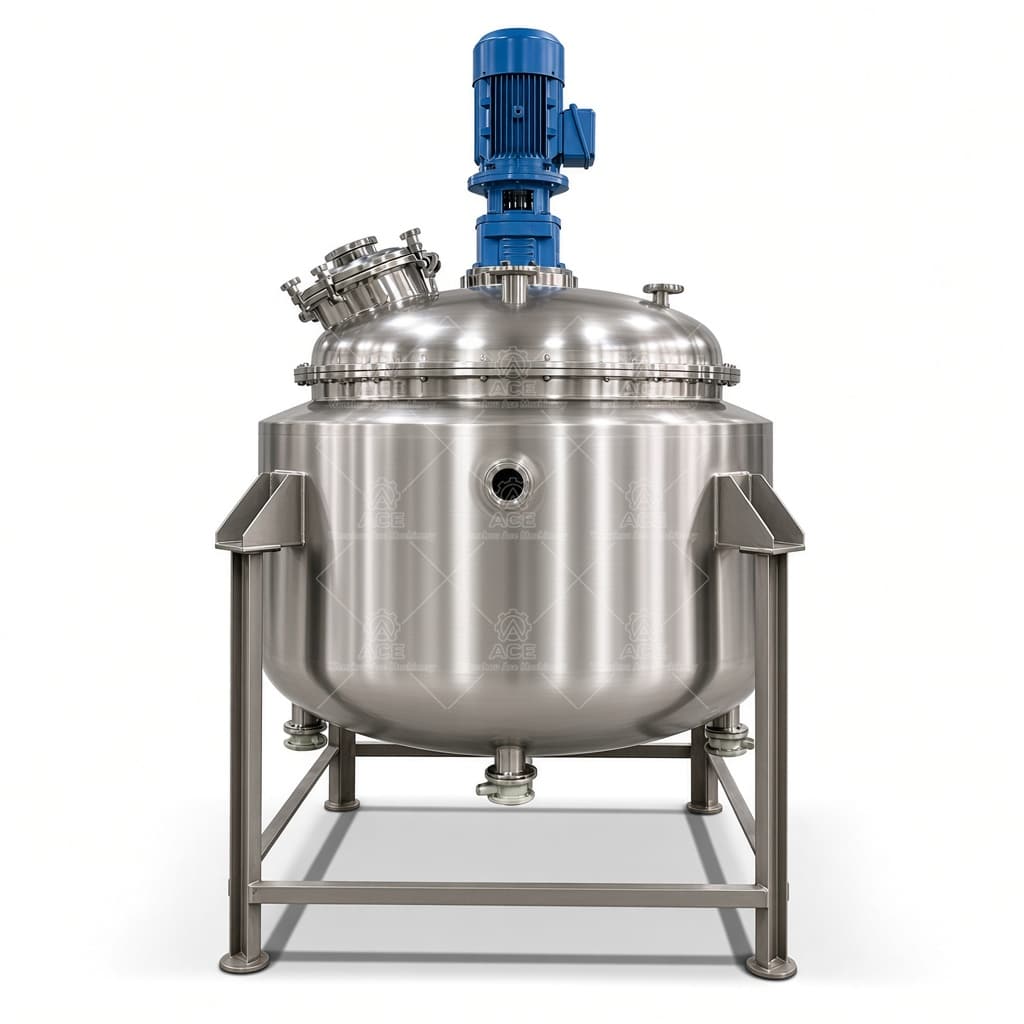

Soap Saponification Reactor with Homogenizer Mixer for Liquid Detergent Making

We build this type of reactor for plants that produce soap, liquid detergent, and similar chemical products where saponification and homogenization happen in one vessel. It is not a generic tank—it is designed to handle the mixing intensity and temperature control that these processes demand.

The vessel is fabricated from 304 or 316L stainless steel, depending on the chemical environment. For soap and detergent production, 316L is often preferred when chlorides or fatty acids are present. We use full-penetration welds and grind the internal surfaces to a Ra ≤ 0.8 µm finish, which makes cleaning and batch changeover faster. The top cover uses a mechanical seal or a hygienic double seal, depending on whether you run vacuum or pressure.

Agitation is the core of this machine. A combination of a high-shear homogenizer and a slow-speed anchor scraper is typical for soap saponification. The homogenizer breaks down lumps and emulsifies oils, while the scraper keeps the heat transfer surface clean for viscous batches. We can also add a separate counter-rotating mixer if your recipe requires gentle blending of thick pastes.

Heating and cooling come from a jacketed outer shell or internal coils. Steam, thermal oil, or hot water can be used for heating; cooling water or chilled glycol for the cooling phase. The reactor can operate under atmospheric pressure or up to 0.6 MPa depending on your process needs. We always match the wall thickness to the design pressure—no guesswork.

This equipment is used in batch production of laundry soap, liquid hand soap, shampoo, dishwashing liquid, and even some food emulsifiers. The same vessel can handle neutralization, saponification, mixing, and homogenization in one cycle, which cuts down on transfer losses and cleaning time.

Frequently Asked Questions

What material should I choose?
For most soap and detergent formulas, 316L is safer because it resists pitting from chlorides. If your product is neutral pH and low chloride, 304 is fine. Tell us the chemical composition and we’ll confirm.

Can I run vacuum or pressure?
Yes, we can design for full vacuum or up to 0.6 MPa. The seal type and wall thickness change accordingly. If you need higher pressure, we can engineer that too.

How do I clean the reactor between batches?
We recommend a CIP spray ball and a sloped bottom. The polished internal surface makes rinsing quick. For sticky soap residues, a hot water flush followed by caustic wash works.

What kind of mixing do I need?
If you’re making liquid detergent, a high-shear homogenizer is essential for emulsifying oils and suspending particles. For thick soap pastes, an anchor scraper prevents burning on the wall. We can combine both, or add a turbine if you need more axial flow.

Before you request a quote

To give you the right configuration, we need to know: the exact material you’re processing (including pH, viscosity, solids content), the batch volume and working volume, the operating and design temperature, whether you need pressure or vacuum, and the mixing outcome you expect. Also mention any cleaning or compliance requirements (like FDA or CE). With those details, we’ll recommend the vessel size, material grade, agitation system, and heating/cooling setup—and send you a clear quotation.
