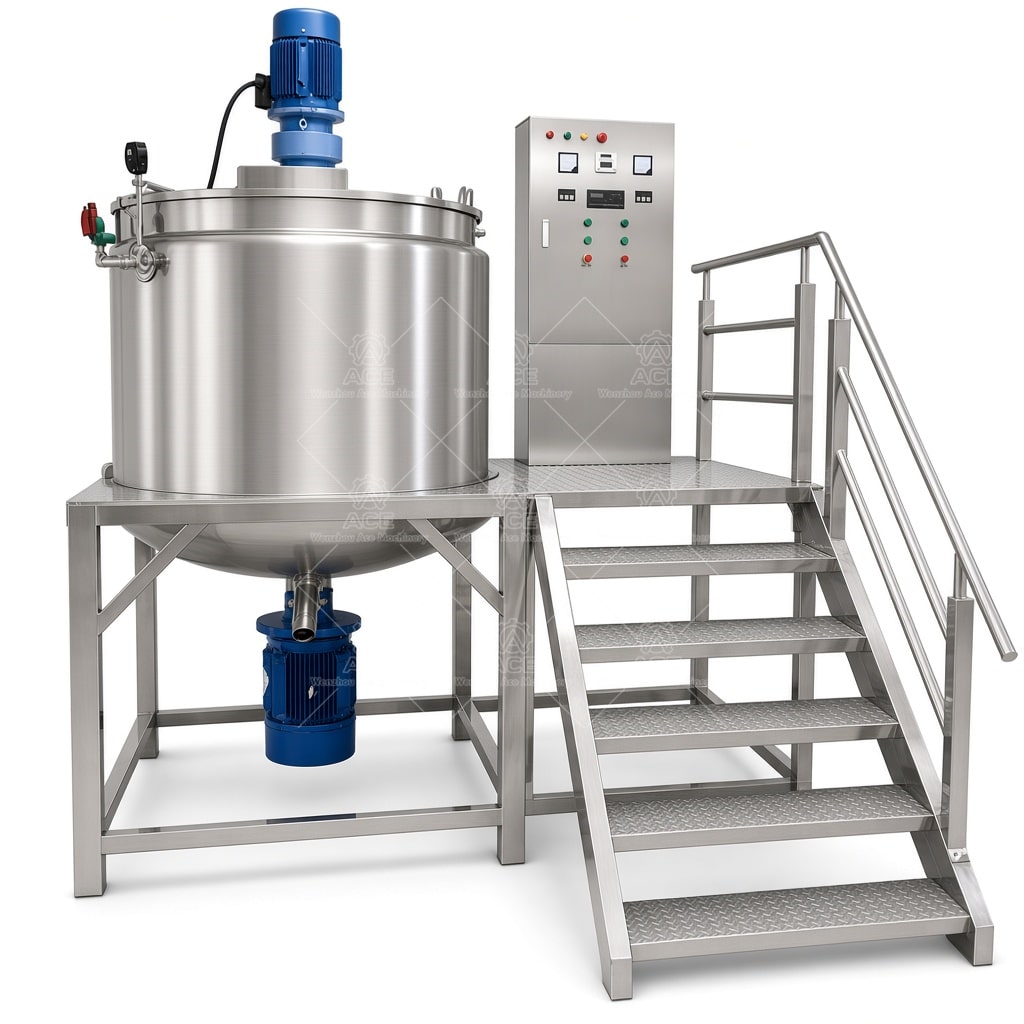

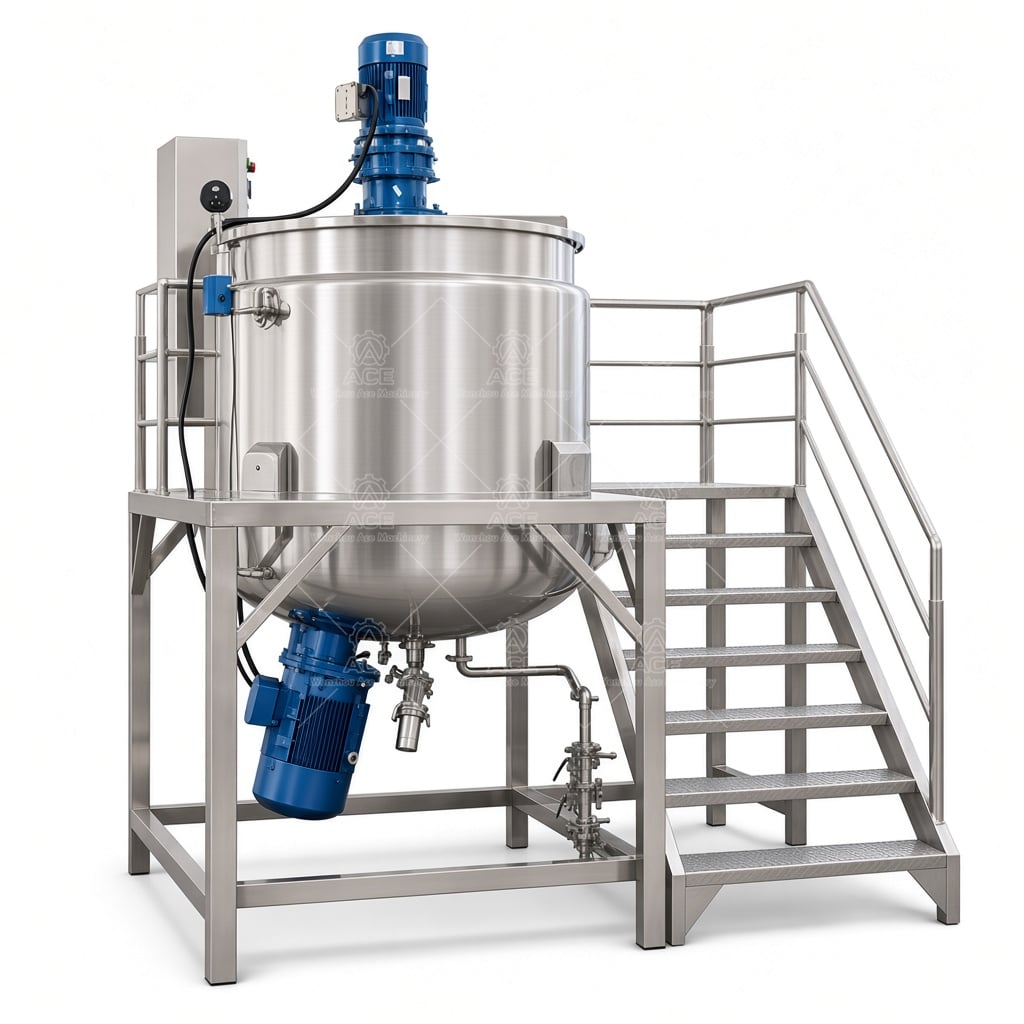

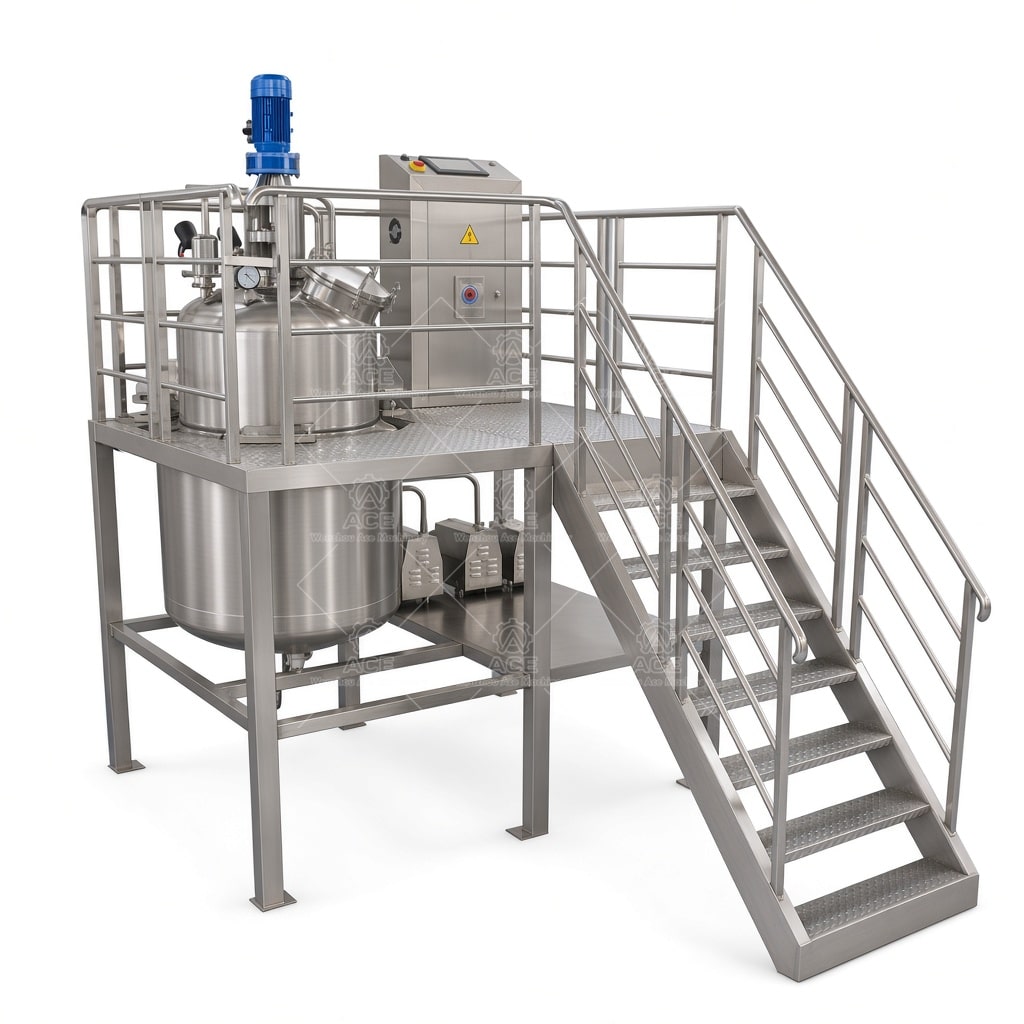

Shower Gel, Detergent and Fabric Softener Mixing Machine

A configurable batch mixing machine for shower gel, dishwashing liquid, fabric softener, and other chemical liquids. Vessel materials, agitator type, motor and reducer, seals, and optional heating are selected according to the formula, viscosity, batch size, and cleaning requirements. Share process details with our engineering team to determine a practical configuration without relying on unsupported standard specifications.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $9,184.54 through $10,392.31

Ask For A Quotation

Guaranteed Safe Checkout

Mixing for Personal Care and Household Liquids

This mixing machine is intended for batch preparation of products such as shower gel, dishwashing liquid, fabric softener, and descaling agents. These formulas can behave very differently: a detergent may foam readily, a gel may need controlled wetting and hydration, and a descaler may require materials compatible with its acidity. We configure the vessel and agitator around the actual recipe and batch process rather than assuming one mixer suits every product.

For lower-viscosity liquids, a conventional agitator may provide adequate circulation. Thicker gels or formulas with powders can need a different impeller or an optional high-shear dispersing stage. High shear can shorten dispersion time, but it can also introduce air or increase foaming. Tell us which ingredients must be incorporated, their addition sequence, and the target batch size so the mixing approach can be assessed.

Construction and drive selection

Product-contact parts are commonly specified in stainless steel. Grade 304 may suit many general-purpose formulations; 316 or another material may be appropriate where chloride content, acidity, or cleaning chemicals create a corrosion concern. Final selection depends on the complete chemical composition and operating conditions. Welds, internal corners, and drain geometry should be considered together: smooth, cleanable transitions help reduce residue and simplify washdown. Surface finish and polishing level can be specified to match hygiene and cleaning requirements.

Motor and reducer sizing depend on working volume, viscosity, impeller geometry, and required mixing time. A variable-speed drive can help manage foam and accommodate recipe changes. Heating or cooling is optional and should be specified only when the process requires it; jacket type, temperature range, control method, and heat-transfer duty need to be confirmed. Seal selection also depends on the product, temperature, cleaning routine, and shaft arrangement.

Configuration details

Item	Selection basis
Batch capacity	Working volume, headspace, and batch frequency
Vessel and wetted materials	Formula chemistry and cleaning agents
Agitator and drive	Viscosity, solids, foam tendency, and mixing target
Heating and controls	Process temperature needs and site requirements

Before requesting a quotation

Share the product formulas or chemical families, viscosity range, batch size, target mixing time, temperature requirements, cleaning method, and available power supply. Also clarify whether the process needs powder addition, bottom discharge, high-shear dispersion, or multiple recipes. These details let our engineers recommend a practical configuration and identify tradeoffs before equipment dimensions and drive components are finalized.

FAQs

Can one machine handle several products? Often, but material compatibility, cleanability, and changeover time must be checked against each formula.

Is milling included? The title does not define a milling system. If particle-size reduction is required, specify the material and target size so we can assess a suitable separate or integrated process.
