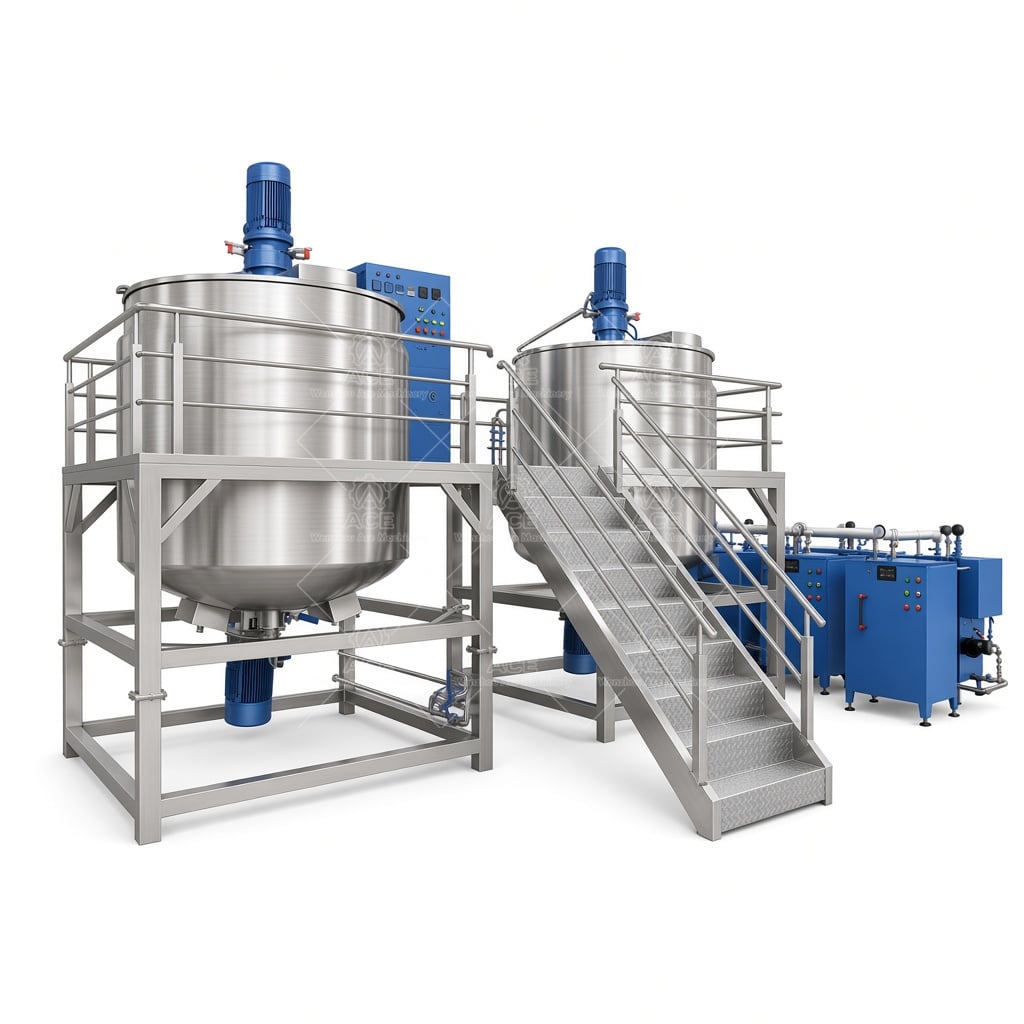

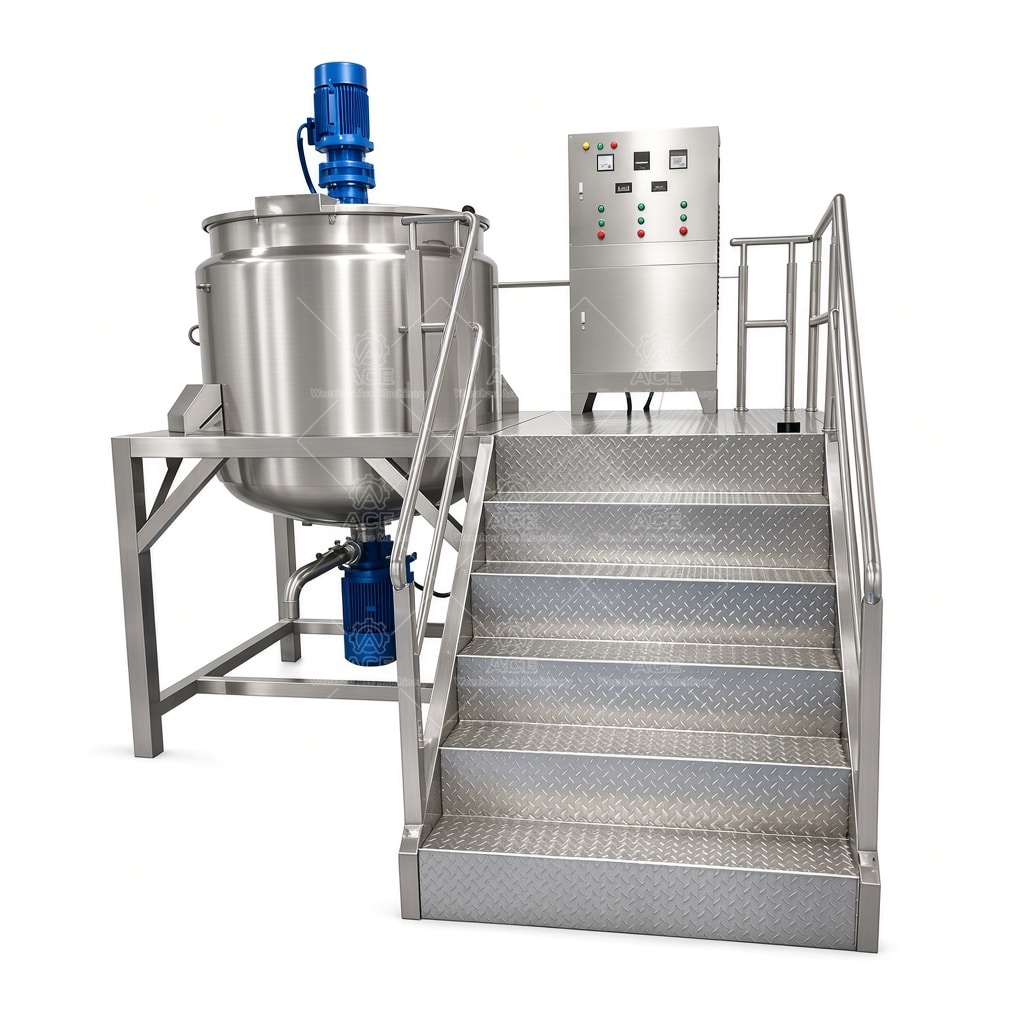

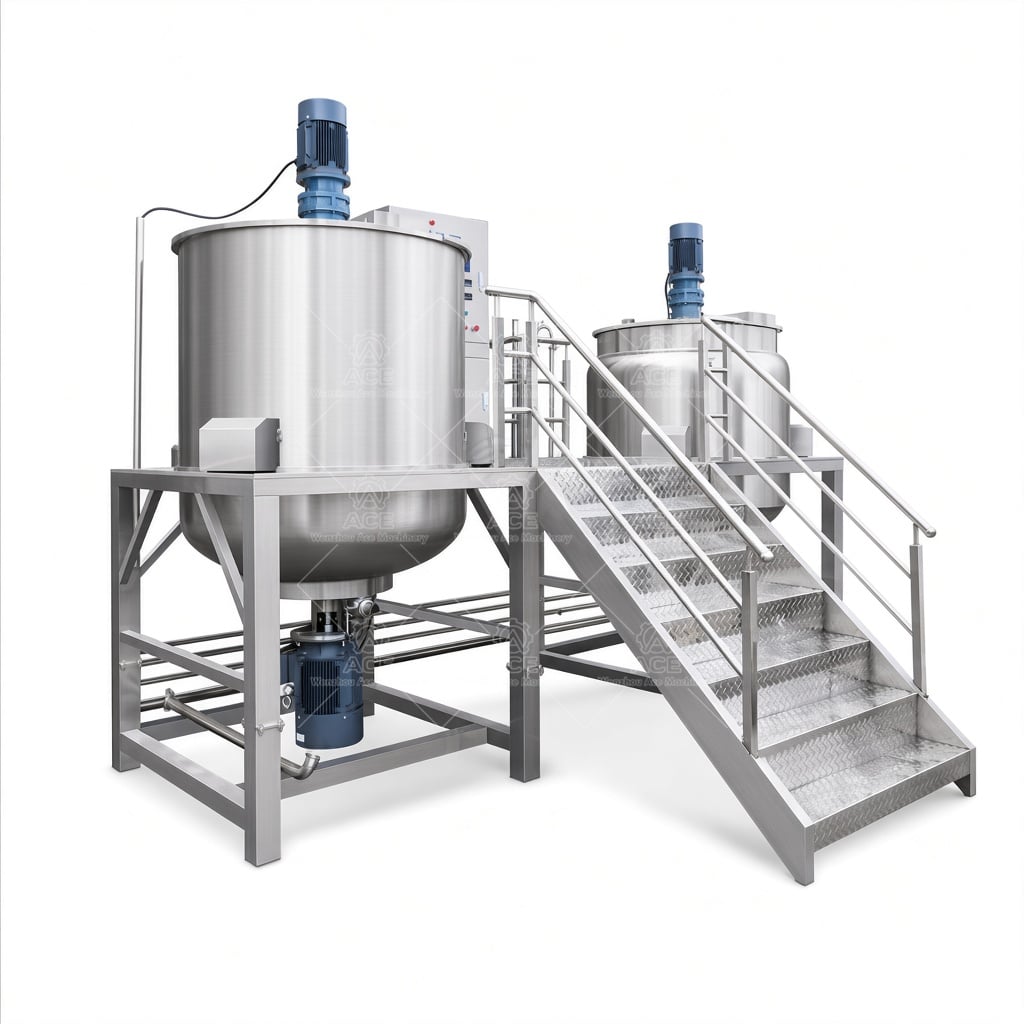

Liquid Homogenizer Mixer for Lotion, Shampoo and Hand Soap Production
This liquid homogenizer mixer is configurable for lotion, shampoo, hand soap, and related personal-care production. Mixing elements, vessel materials, seals, surface finish, drive, and optional heating are selected according to batch volume, viscosity, ingredient compatibility, cleaning procedures, and dispersion requirements. Share your formula process conditions and production targets to help determine a practical equipment configuration.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: 304 or 316L
- Voltage: 110V to 600V
- Heating method: Electric or steam heating
- Layer:single/double jacket/three jacket
- Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
- Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Our equipment supports customisation, global delivery, and a 1-year warranty.
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,725.65 through $8,777.11
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Process-focused mixing for personal care liquids
Lotion, shampoo, and hand soap production can involve several different mixing tasks: wetting powders, dispersing thickeners, blending surfactants, and reducing visible lumps or droplets. A liquid homogenizer mixer is configured around the actual formula and batch sequence. Rotor-stator homogenization can support finer dispersion, while a separate low-speed agitator may be needed to move a viscous batch without drawing excessive air. The right arrangement depends on viscosity, ingredients, target texture, and how the product will be filled.
Construction and configuration
We select wetted materials and finishes to suit the formulation, cleaning method, and plant requirements. Stainless steel 304 may suit many general-purpose products; 316L is commonly considered when ingredients, cleaning chemicals, or corrosion requirements call for greater resistance. Final grade should be confirmed against the full chemical and sanitation profile. Welds, internal corners, and product-contact surfaces need to be designed for cleanability. Surface finish, polishing level, seals, and gasket materials are specified with the product and cleaning procedure in mind rather than assumed from the product name.
Drive selection follows batch size and product behavior. Motor power, gearbox ratio, shaft arrangement, and impeller type depend on viscosity, vessel geometry, and the required mixing time. A rotor-stator head can improve dispersion, but it may add heat and shear; sensitive or aeration-prone formulas may need a different speed strategy. If the process requires warming to dissolve or soften ingredients, jacket heating or another suitable method can be evaluated with temperature sensing and control. Heating and cooling requirements should be based on the formula’s process limits.
Configuration details
| Item | Specification basis |
|---|---|
| Batch capacity | Set from working volume, vessel dimensions, and production schedule |
| Wetted construction | Stainless grade, finish, seals, and gaskets matched to product and cleaning |
| Mixing system | Agitator and homogenizer selected for viscosity, dispersion, and air control |
| Heating and control | Optional; defined by temperature range, heat-up time, and process limits |
| Drive and controls | Configured for local power supply, operating method, and required speed control |
Applications and purchasing questions
Typical applications include cosmetic lotions, shampoos, hand soaps, and other formulated personal-care liquids. Whitening lotion formulations may require particular attention to ingredient addition order, temperature exposure, and dispersion quality; the finished product’s regulatory and labeling requirements remain the formulator’s responsibility.
Can one machine handle several formulas? Often, but viscosity range, batch size, cleaning changeovers, and required shear must be checked together. What should be confirmed before quotation? Provide batch and working volumes, ingredient list or chemical profile, viscosity at process temperature, target cycle time, heating or cooling needs, cleaning method, available utilities, and installation constraints. These details let our engineers recommend a configuration without guessing at motor size or vessel geometry.
