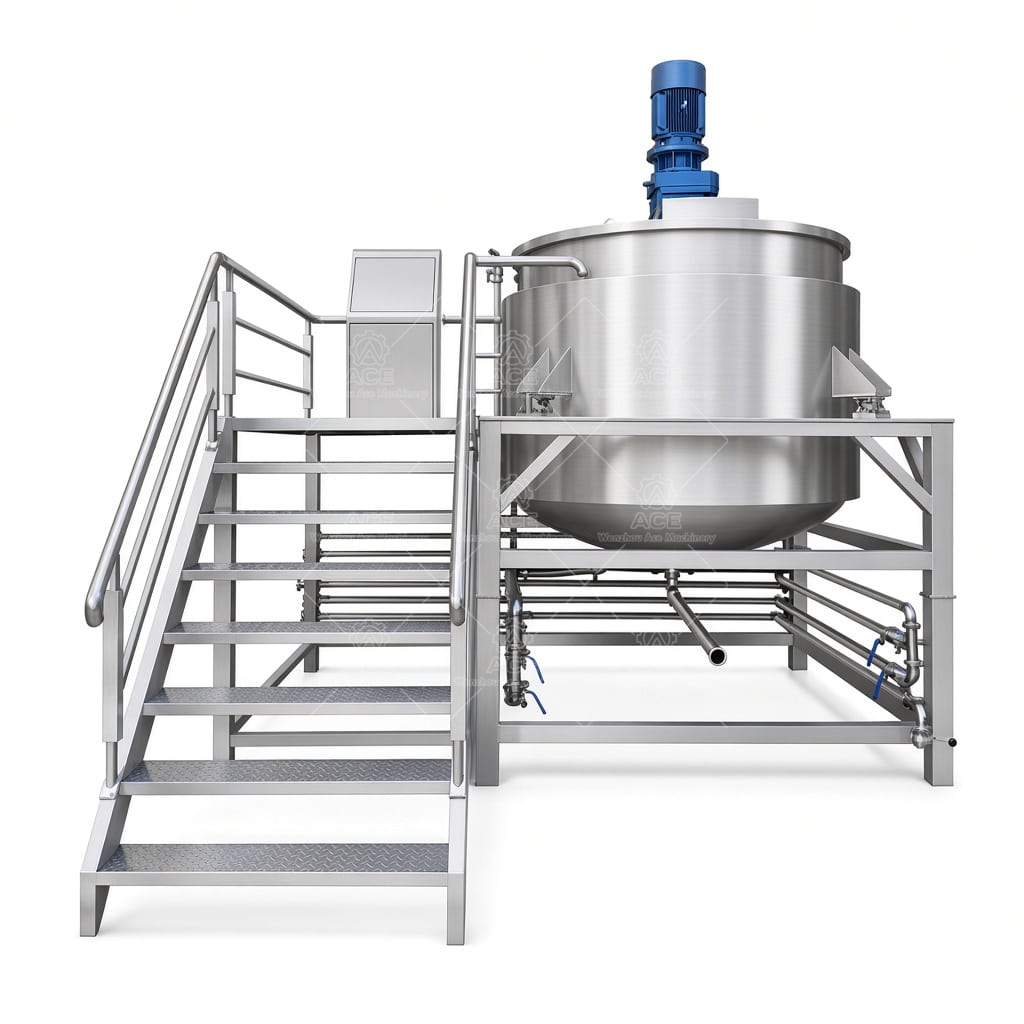

High Shear Vacuum Homogenizer Mixer for Cosmetics

A vacuum homogenizer mixer for cosmetic production combines batch agitation with high-shear processing to help disperse ingredients and form creams, lotions, and related emulsions. Vessel capacity, contact materials, seals, heating, and drive selection depend on the formulation, viscosity, batch size, and cleaning requirements. Share process conditions and utility details to develop a practical equipment configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $7,832.82 through $8,953.70

Ask For A Quotation

Guaranteed Safe Checkout

Vacuum mixing for cosmetic emulsions

Cosmetic creams and lotions can be difficult to process when powders float, oils separate, or air becomes trapped during high-shear mixing. This vacuum homogenizer mixer combines batch agitation with a high-speed homogenizing head to support wetting, dispersion, and emulsification. The vessel, agitator arrangement, and homogenizer position should be matched to the batch size, viscosity range, and order of ingredient addition—not selected from capacity alone.

Construction and process configuration

Product-contact surfaces can be specified in 304 or 316L stainless steel according to the formulation, cleaning chemicals, and corrosion risk. Welds in wetted areas should be continuous and finished to the agreed hygiene standard; surface finish requirements should be stated on the specification because they affect cleanability and fabrication cost. Seal materials and shaft arrangements depend on product compatibility, temperature, vacuum level, and cleaning method.

Anchor or frame agitators are commonly considered for viscous creams, while a high-speed rotor-stator handles localized shear. Scrapers may help move heat from the vessel wall into a thick batch, but their geometry and clearance need to suit the vessel and product. Motor and reducer sizing depends on viscosity, batch volume, speed range, and startup load. Heating or cooling can be configured through a vessel jacket; the heat-transfer medium, control range, and required temperature uniformity should be defined from the process.

Typical applications

Use cases include creams, lotions, gels, sunscreens, and other personal-care emulsions. In production, vacuum can assist deaeration after mixing, but the required vacuum level and operating sequence depend on the formulation and foaming behavior. A trial using representative ingredients is useful when scale-up performance is uncertain.

Configuration data

Item	Specification basis
Working capacity	Set by batch size, fill range, and headspace
Contact materials	Selected for product and cleaning compatibility
Agitation and shear	Selected for viscosity, dispersion, and shear needs
Heating and controls	Configured to process temperature and utility conditions
Vacuum and seals	Defined by deaeration needs and operating conditions

FAQ

Can one setup handle different viscosities? A workable range depends on vessel geometry, agitator, drive sizing, and batch volume. Share the full viscosity range, not only the finished-product value.

What should accompany a quote request? Provide batch size, formulation stages, ingredients, target temperatures, cleaning method, utilities, and any required surface or documentation standards. These details let our engineering team recommend a configuration rather than assume one.
