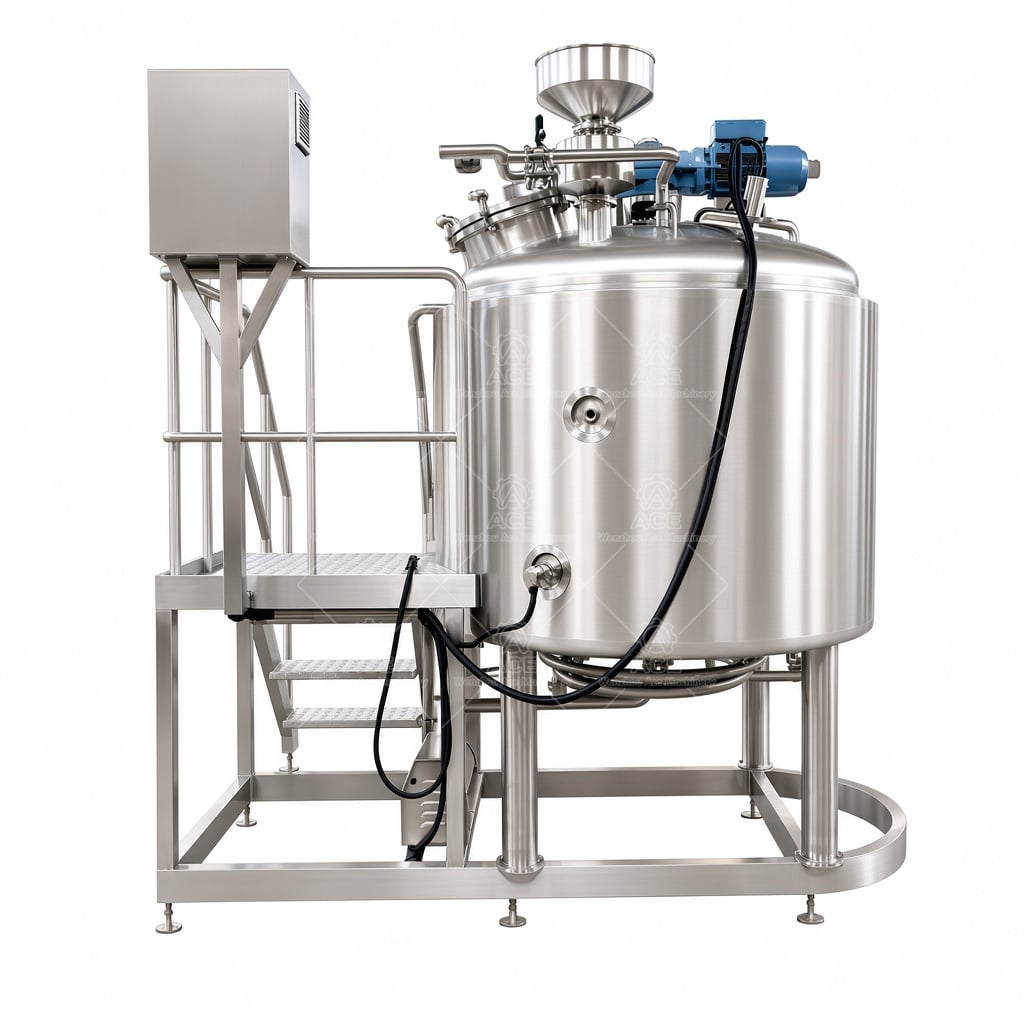

2000L Fixed Vacuum Homogenizer Mixer for Mayonnaise and Cosmetics - Image 1

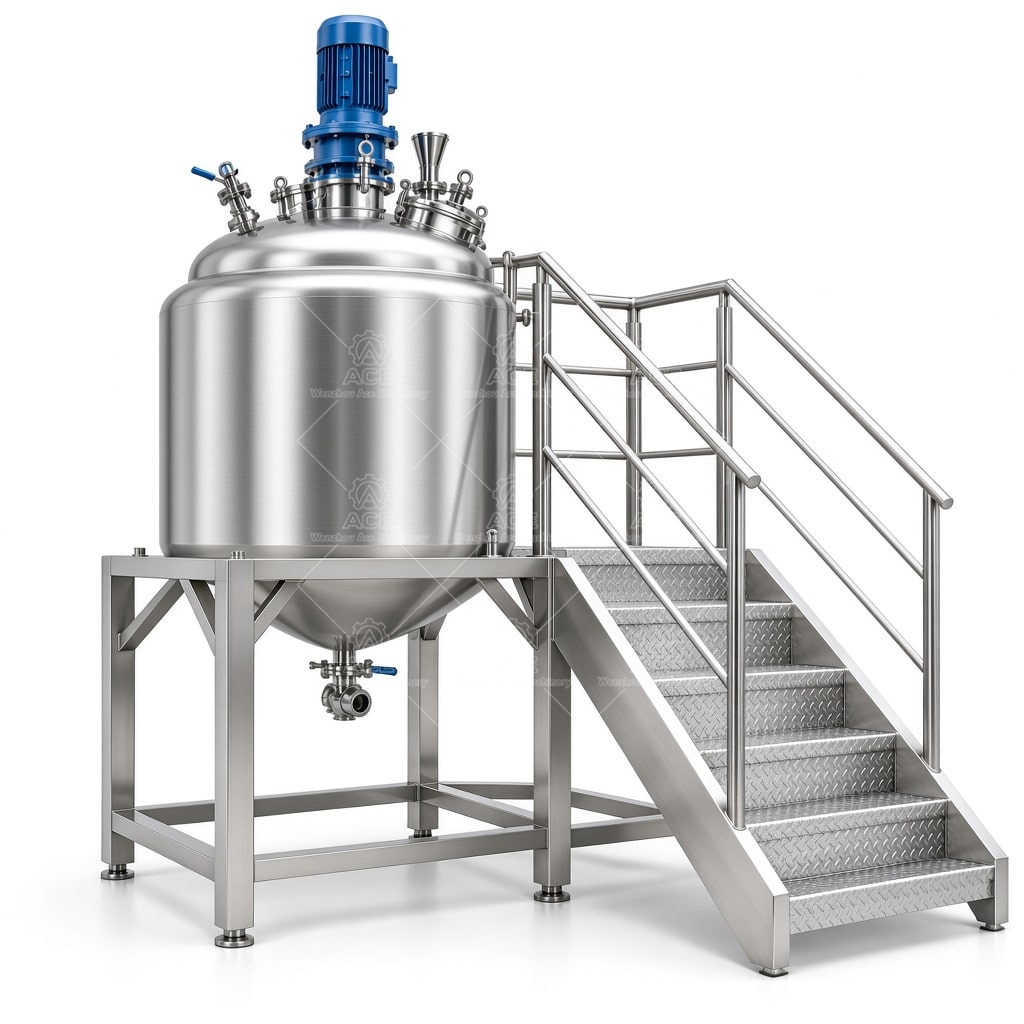

2000L Fixed Vacuum Homogenizer Mixer for Mayonnaise and Cosmetics - Image 2

Click to enlarge

2000L Fixed Vacuum Homogenizer Mixer for Mayonnaise and Cosmetics

A 2000 L fixed vacuum homogenizer mixer for mayonnaise and cosmetic batch production. The vessel, agitator, homogenizer, heating or cooling arrangement, seals, and Siemens electrical package can be specified around product viscosity, batch size, temperature range, cleaning method, and plant utilities. Confirm working volume and process requirements before requesting a quotation.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $9,515.73 through $11,279.95

Ask For A Quotation

Guaranteed Safe Checkout

Process overview

This 2000 L fixed vacuum homogenizer mixer is intended for batch production where ingredients must be dispersed, emulsified, and mixed in a closed vessel. Typical duties include mayonnaise and cosmetic creams or lotions. The listed capacity identifies the model size; usable working volume depends on the recipe, foam behavior, required headspace, and process sequence. We confirm the batch range before finalizing the vessel and drive arrangement.

Vacuum processing can help reduce entrained air, but the vessel, cover, connections, and seals must be designed for the specified vacuum level. Product viscosity and addition method also matter: powders added too quickly can form lumps even with a high-shear head.

Construction and configuration

Product-contact parts are commonly specified in 304 stainless steel, with 316L considered for chloride exposure, acidic formulations, or more demanding cleaning chemistry. The correct grade depends on the actual ingredients and wash cycle. Welds in product-contact areas should be continuous, dressed, and polished to the agreed finish; surface roughness and inspection requirements should be stated in the purchase specification. Seal materials must suit product chemistry, temperature, and cleaning agents.

Agitator and homogenizer selection depends on viscosity, batch size, and whether the process needs wall turnover, powder wetting, or fine emulsion formation. A scraper or anchor-style agitator may support viscous batches, while a high-speed rotor-stator handles localized shear. Motor and gearbox sizing should follow the operating viscosity and startup condition, not just the nominal tank volume. Siemens electrical components can be specified; the exact motor, drive, and control package should be confirmed on the electrical datasheet.

Heating or cooling may be configured through a jacket or another agreed arrangement. Required temperature range, heating medium, available utility pressure, ramp time, and temperature sensor position determine the design. These details are not defined by the model title.

Key specifications

Item	Current information
Model capacity	2000 L; confirm working volume
Configuration	Fixed vacuum homogenizer mixer tank
Application	Mayonnaise and cosmetic batches
Material, finish, heating, drives	To be selected for process requirements
Electrical components	Siemens specified; package details to confirm

FAQ

Can one configuration make both mayonnaise and creams? Possibly, but viscosity, shear profile, cleaning method, and seal compatibility must be checked for both recipes.

What should be confirmed before quoting? Send batch size, ingredient list, viscosity or a representative sample, target temperature and cycle time, vacuum requirement, cleaning procedure, utilities, and site electrical standard. This lets our engineers recommend a workable configuration rather than sizing from tank volume alone.
