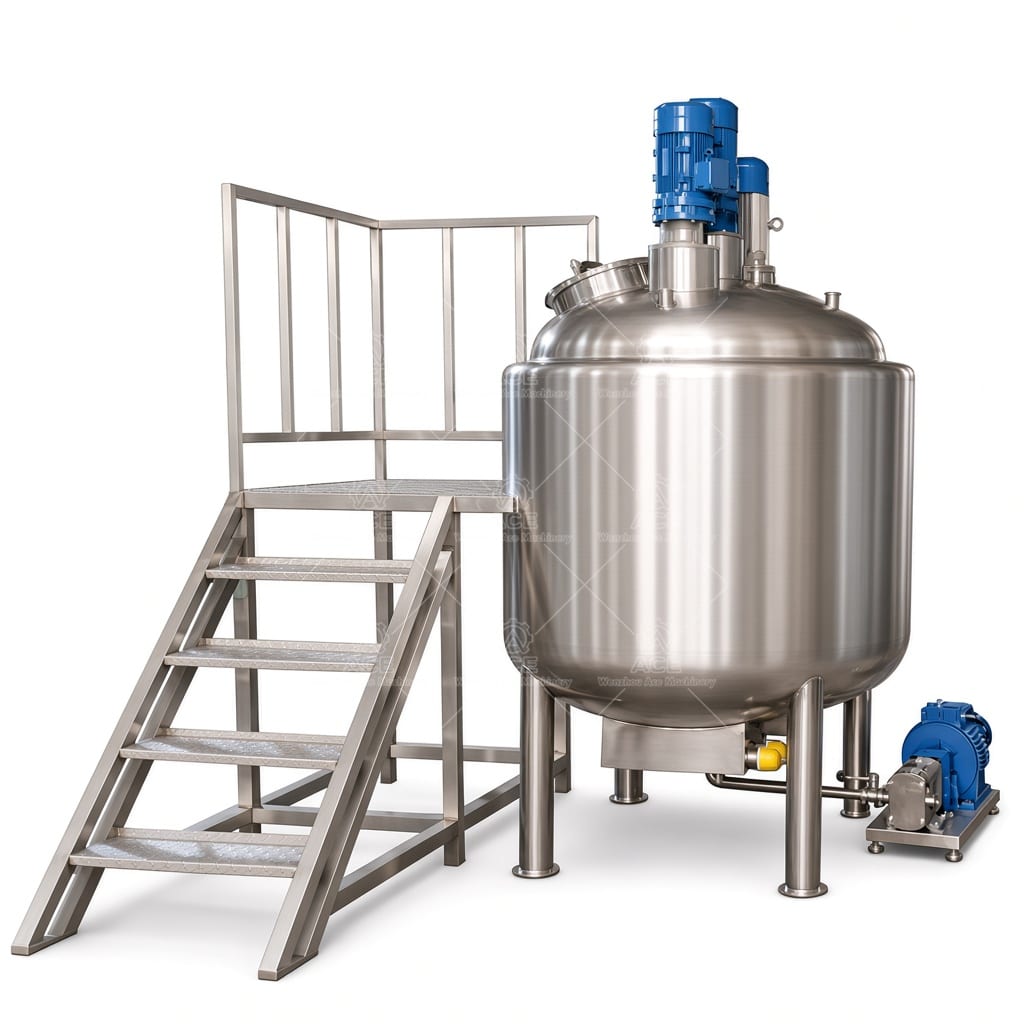

Electric Heated Double Jacket Liquid Detergent Mixing Machine 50 to 1500 L

Electric-heated, double-jacket liquid detergent mixing machines are available in configurations from 50 to 1500 L. Vessel capacity, working volume, stainless steel grade, agitator, drive, seals, and temperature controls are selected around the formulation and production process. Share batch size, viscosity, heating targets, cleaning method, and site power requirements to define a suitable configuration.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $8,999.99 through $10,440.89

Ask For A Quotation

Guaranteed Safe Checkout

Liquid detergent mixing for controlled batch production

This 50–1500 L liquid detergent mixing machine is configured around the batch size, formulation, and heat-transfer needs of the process. Detergent batches can vary from free-flowing surfactant blends to thicker products with suspended additives. That difference affects mixer torque, impeller selection, mixing time, and the risk of drawing air into the product. We confirm the required working volume separately from the vessel’s nominal capacity so the tank is not undersized for foaming or headspace needs.

Vessel, heating, and mixer design

The double jacket supports electric heating through a specified heating arrangement. The required temperature range, ramp time, batch viscosity, and heat-sensitive ingredients guide the heating capacity and control configuration. Temperature sensing should reflect the product temperature rather than rely only on a jacket reading. Heating performance depends on batch size, starting temperature, vessel geometry, and product properties; these details are needed before estimating cycle time.

Stainless steel grade is selected against the formulation and cleaning chemicals. 304 stainless steel may suit many detergent blends, while chloride exposure or other corrosive ingredients can call for evaluation of 316 stainless steel. Weld finish, internal surface finish, drainability, and cleanout access should be agreed with the intended cleaning method. Seal material must also be checked for compatibility with surfactants, fragrances, solvents, and wash chemicals.

Agitator geometry and drive sizing depend on viscosity and mixing duty. A propeller or similar high-flow impeller may suit lower-viscosity liquids; thicker batches may require a different impeller and higher torque. Excessive speed can entrain air, which is often undesirable in finished detergent. Motor, gearbox, speed control, and any baffles are selected after reviewing the batch and operating conditions.

Typical configuration information

Item	Available information
Capacity range	50–1500 L; usable batch volume to be confirmed
Heating	Electric heating with double-jacketed vessel
Product contact material	Stainless grade and finish selected for formulation
Agitation and drive	Specified to match viscosity, mixing duty, and batch size

Typical applications include liquid laundry detergent, dishwashing liquid, and general-purpose cleaners. Final suitability depends on ingredients, viscosity, cleaning practice, and any required production or electrical standards.

Frequently asked questions

Can one mixer cover the full 50–1500 L range? The range describes available configurations, not one vessel operating at every capacity. Tank size and working volume are specified for each order.

What should we send for a quotation? Provide batch volume, formulation or material compatibility concerns, viscosity range, target temperature and heating time, mixing objective, cleaning method, site power, and installation conditions. These inputs let our engineers recommend a practical vessel and drive configuration without guessing at performance.
