Customized Stainless Steel Storage Tank with Cooling Jacket for Temperature-Controlled Liquid Storage

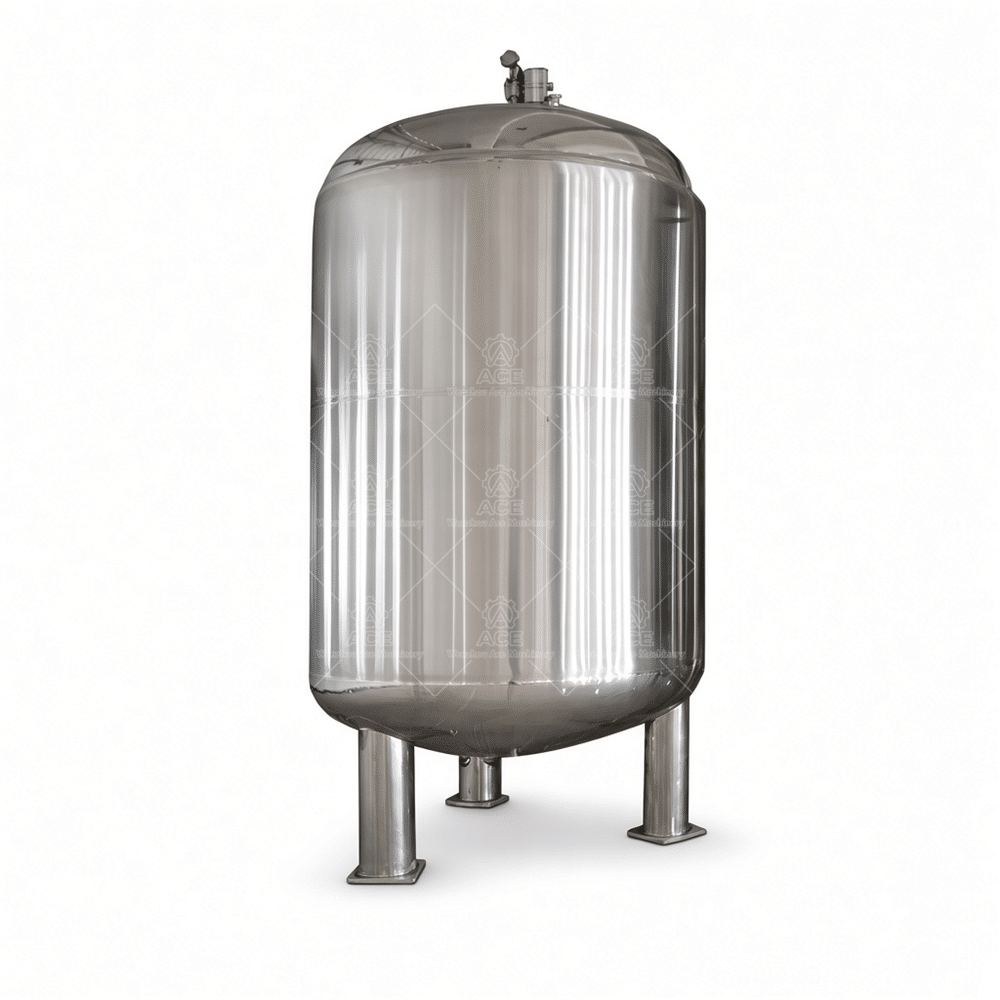

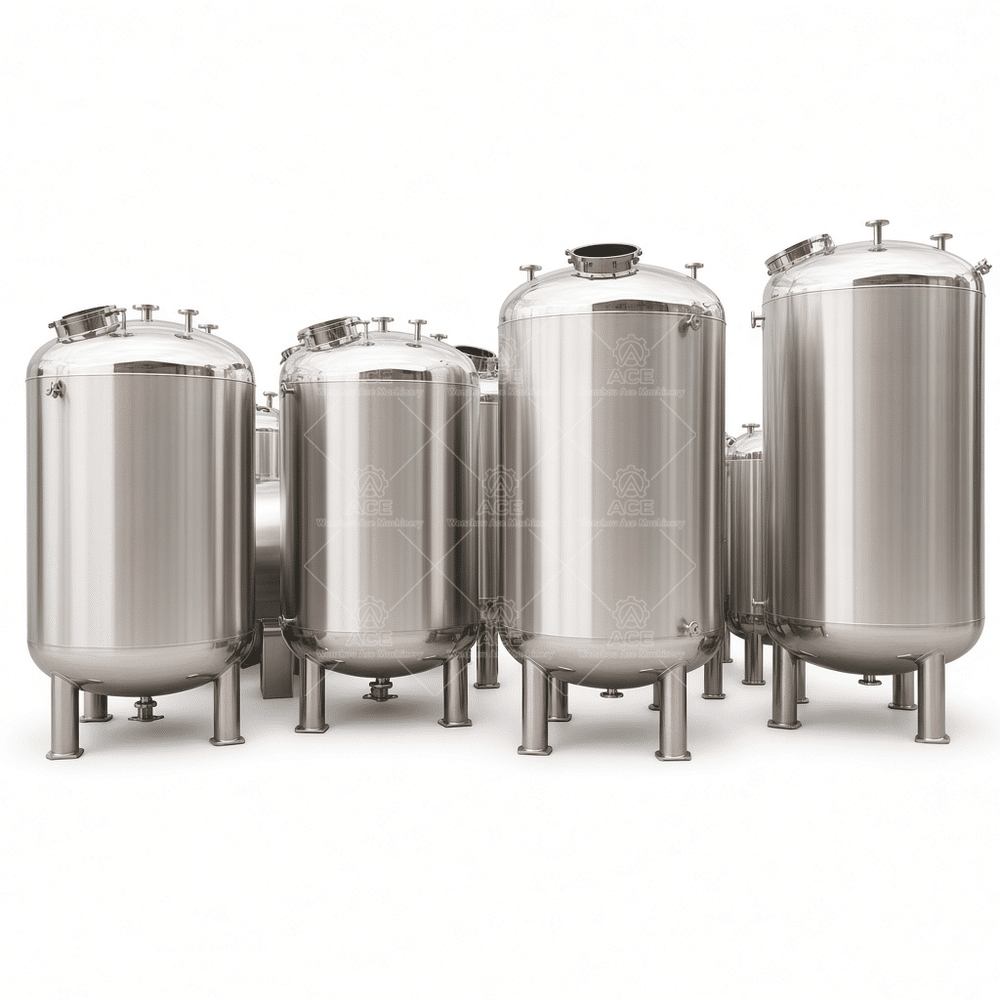

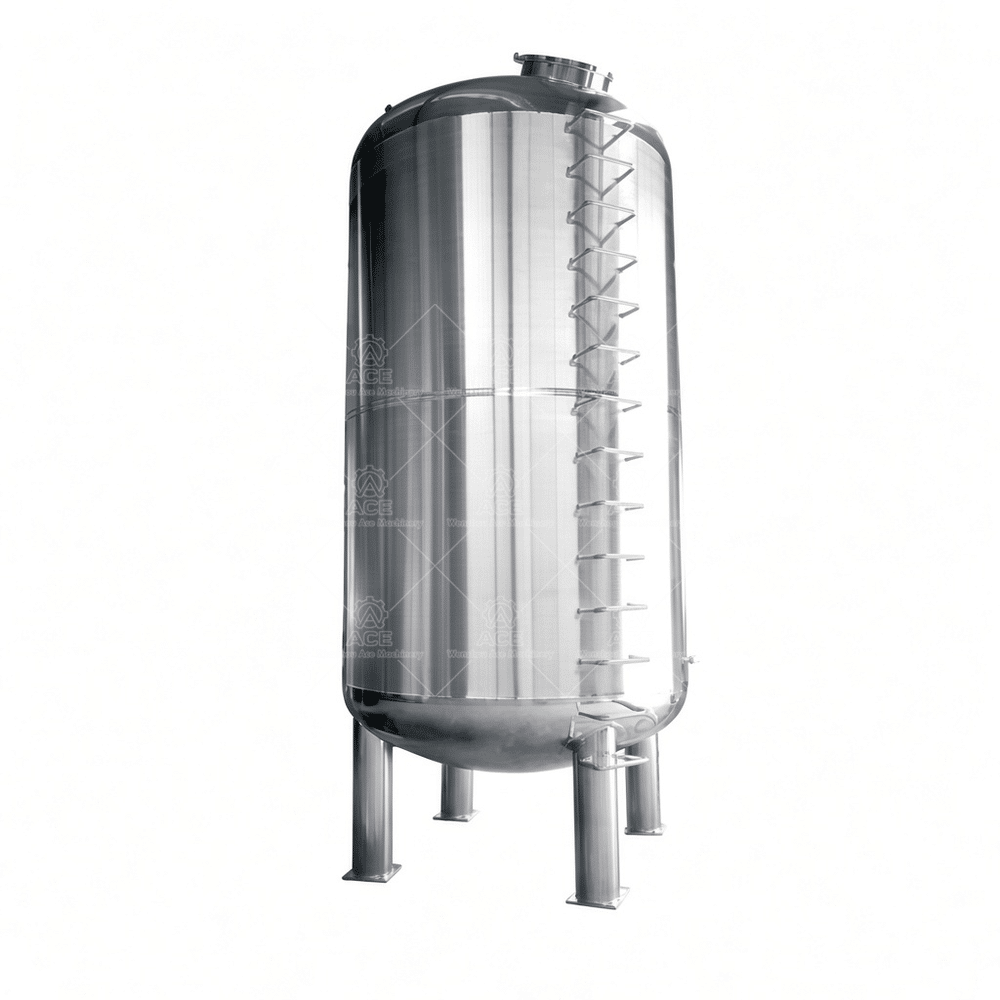

Custom Stainless Steel Storage Tanks with Cooling Jackets

We build stainless steel storage tanks for liquids that need to stay at a specific temperature. This isn\’t a one-size-fits-all product. The tank you need depends on what you\’re storing, how much of it, and the conditions inside your facility.

This particular design features a cooling jacket. The jacket is welded around the shell, creating a channel for coolant to circulate. That\’s how we control the internal temperature. The degree of cooling, the flow rate, and the coolant type are all matched to your process.

The tank shell is fabricated from either SUS304 or SUS316L, depending on your product\’s chemical compatibility and cleaning requirements. SUS316L is the go-to for acidic or chloride-containing products. SUS304 is often sufficient for many food, beverage, and water applications. We make the call based on what you tell us about your product. Welds are fully penetrated and ground smooth where required. Interior surfaces are polished to your specified Ra value—typically 0.4 to 0.8 µm for hygienic applications. Exterior surfaces can be brushed or polished.

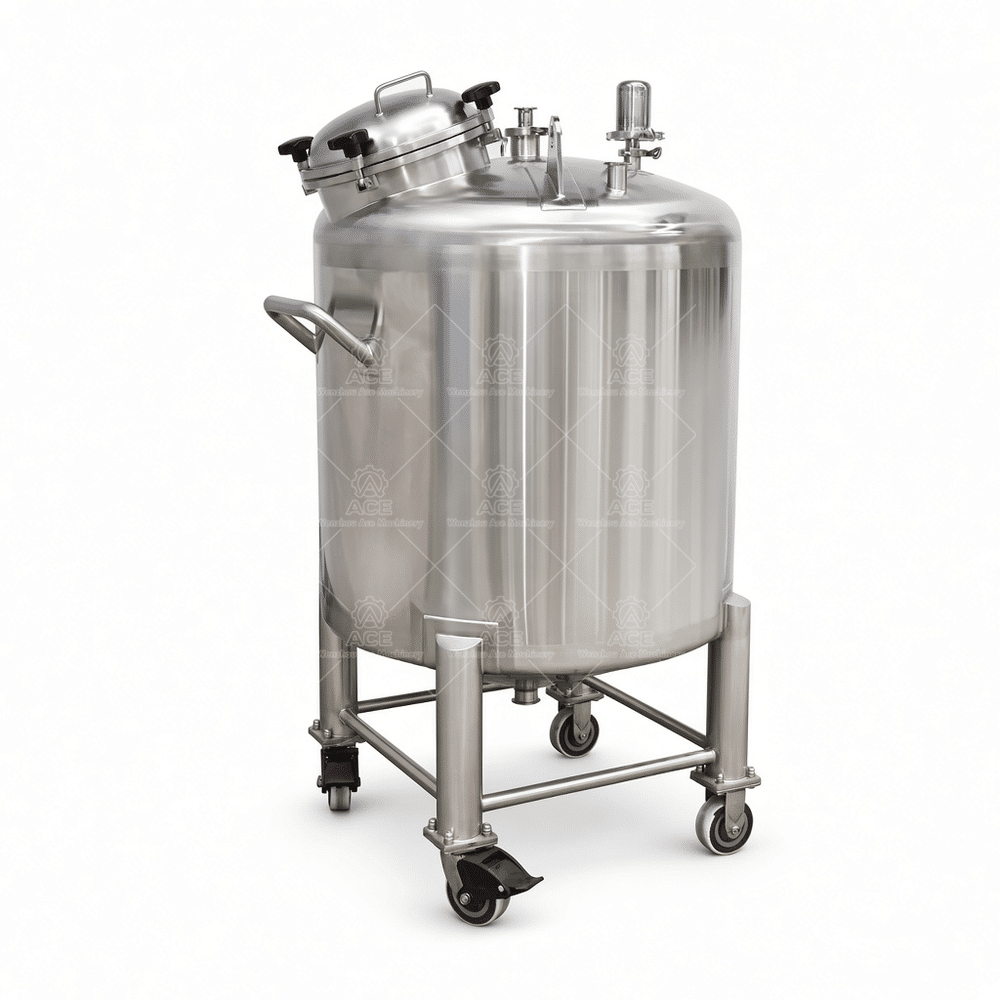

We build these tanks with a few different bottom options: dished, cone, or flat. The choice is driven by how you want to drain the tank and whether you need complete evacuation. Top openings, manways, agitator mounts, level sensors, and CIP spray balls are all custom-fitted during fabrication, not afterthoughts.

Material and Fabrication Notes

All wetted parts are made from the same grade of stainless steel to avoid galvanic issues. Gaskets are chosen based on temperature and chemical resistance—EPDM, Viton, or PTFE are common options. The cooling jacket is pressure-tested before the tank leaves our shop. We also pressure-test the tank itself, depending on whether it\’s designed for atmospheric, pressurized, or vacuum service. Note that vacuum or pressure duty requires specific design calculations and thicker plate; we\’ll confirm the rating with you before we build.

Typical Applications

These jacketed tanks are used across food processing, dairy, beverage, cosmetics, and chemical industries. Common uses include holding milk before pasteurization, storing fruit juice concentrates, keeping emulsions at a stable temperature, or holding chemical solutions that degrade when they get too warm. We don\’t assume your application—tell us what you\’re storing, and we\’ll confirm if this design is the right fit.

Technical Specifications

FAQ

How do I choose between SUS304 and SUS316L?
If your product is acidic, chlorinated, or contains salt, go with 316L. If it\’s a standard food or beverage product, 304 is usually fine. We\’ll advise you based on your specific product.

Can the tank handle vacuum or pressure?
Yes, but it requires a different design and thicker material. We need to know this upfront so we can calculate the required wall thickness and reinforcement.

How do I determine the right capacity?
Think about your batch size, required residence time, and any headspace needed for expansion or foaming. We typically recommend a working volume of 80–90% of total tank volume.

What information do you need for a quote?
Send us the product you\’re storing, the required capacity, material grade preference, working temperature, available space, and any special requirements like agitation or CIP. That\’s enough for us to recommend a configuration and provide a quote.

We\’ve been fabricating these tanks for years, and we\’ve seen what works and what doesn\’t. Contact us with your process details—product, capacity, temperature, and site constraints—and we\’ll help you spec the right tank for the job.
