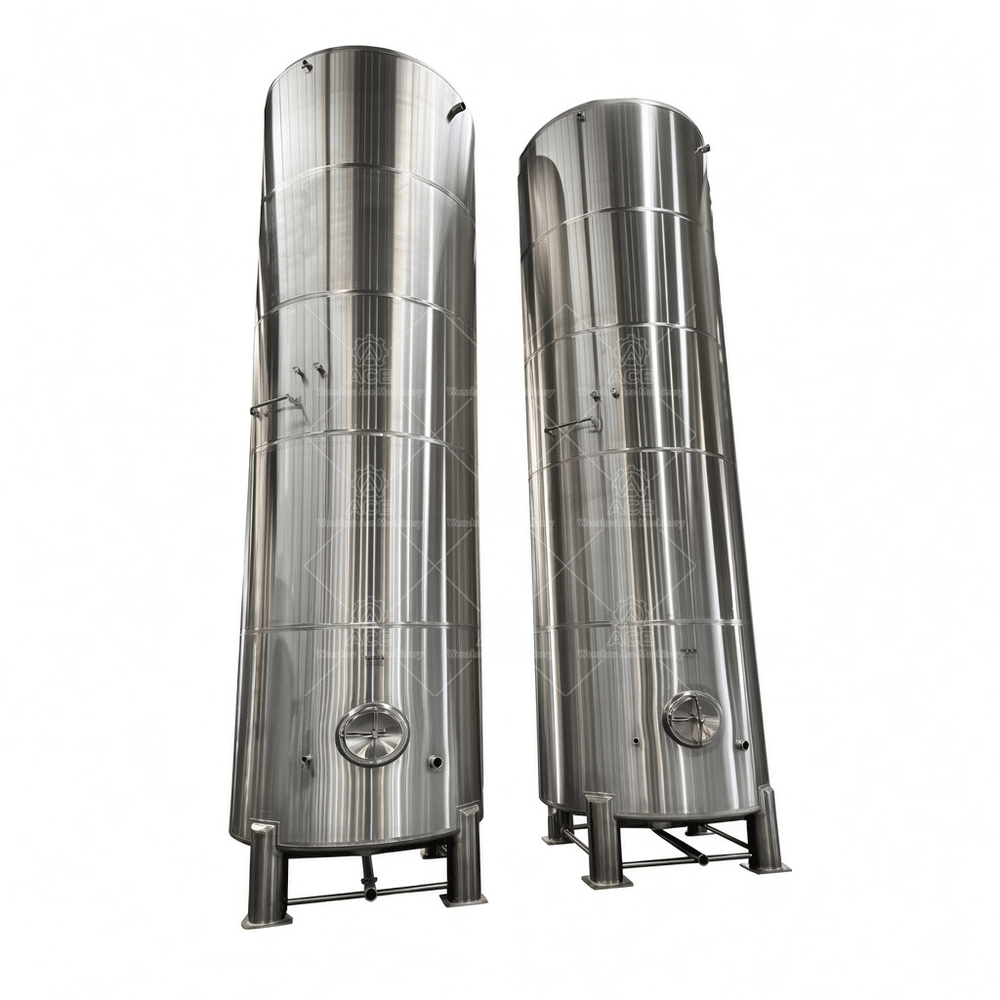

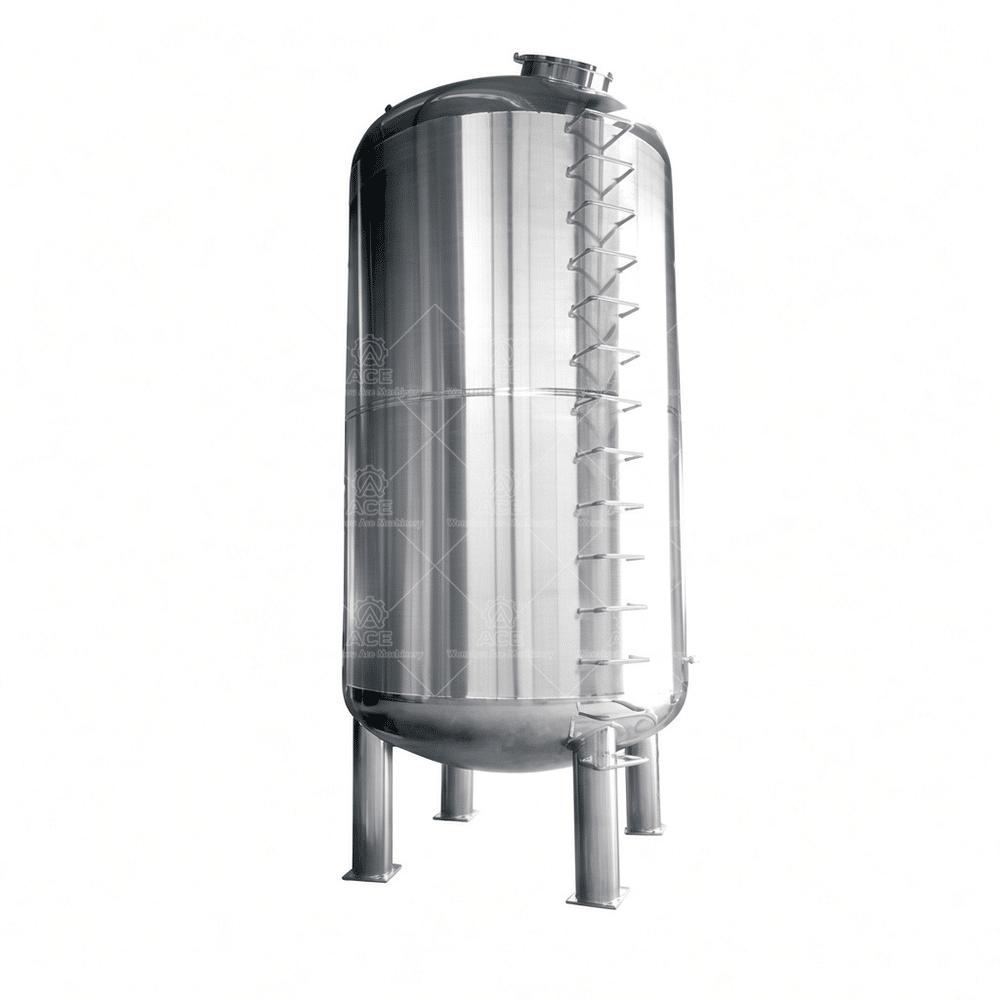

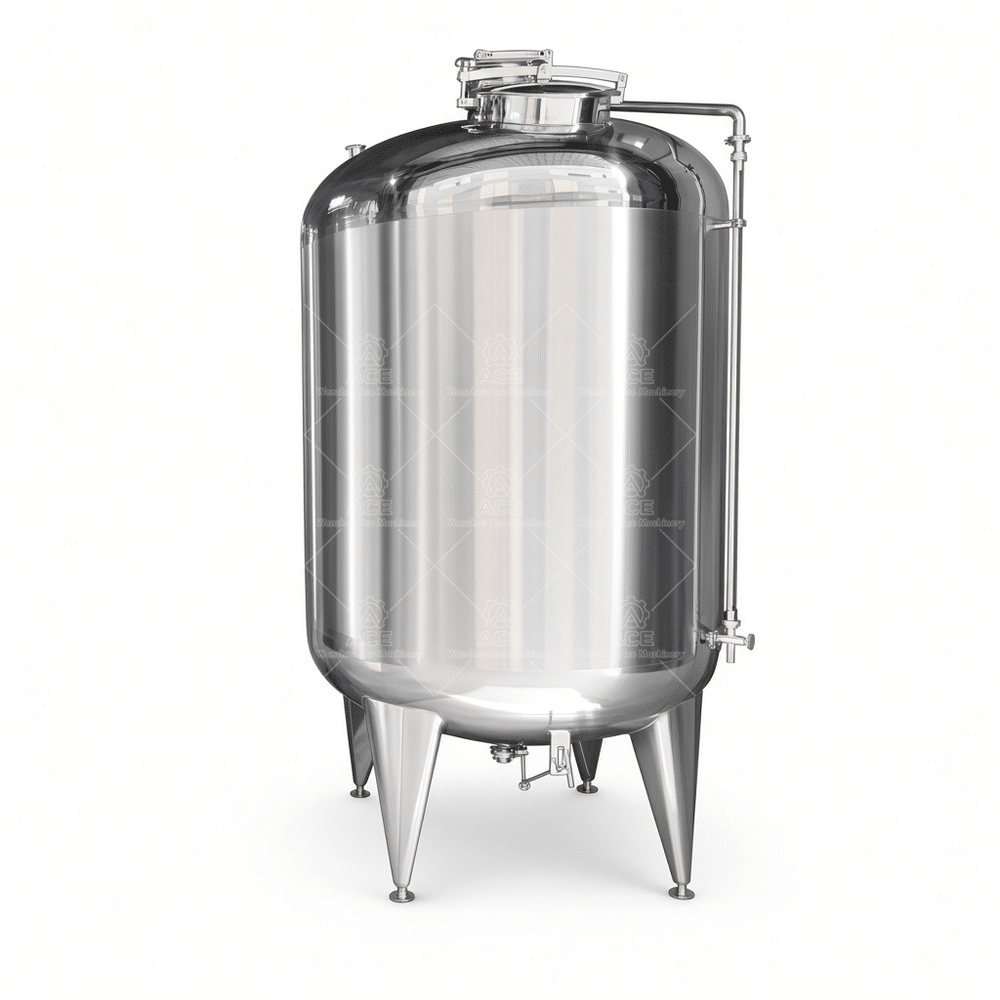

Custom Stainless Steel Water Storage Tank for Chemical Plants
Custom stainless steel water storage tanks for chemical plants. Corrosion-resistant SUS304/316L, custom capacity, and engineered for long service life. Get a quote.
- Tank Capacity: [50L–100,000L or specify actual capacity]
- Tank Type: [Vertical / Horizontal / Single-wall / Double-wall / Jacketed]
- Material: 304 or 316L
- Optional Features: [Insulation / Heating / Cooling / Agitator / Level Gauge / Manway / CIP Spray Ball / Load Cells / Wheels / Custom Connections]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $2,912.46 through $3,541.55
Guaranteed Safe Checkout
Custom Stainless Steel Storage Tanks Built for Chemical Plant Duty
We fabricate stainless steel water storage tanks for chemical plants where corrosion resistance and long service life are not optional. Every tank is custom-built to your process requirements—capacity, dimensions, fittings, and finish are all matched to the application.
Material Selection and Fabrication
We offer SUS304 for general water storage and SUS316L for aggressive chemicals or high-chloride environments. The choice depends on the stored medium, operating temperature, and cleaning regime. Our welders are certified for sanitary and industrial welding, and we use full-penetration TIG welding on all wetted seams. Interior surfaces can be polished to Ra 0.4–0.8 μm or left in a 2B finish, depending on your process needs.
Design and Construction
Tanks are designed with a dished or flat bottom, open or closed top, and reinforced for your specific pressure or vacuum conditions. We include manways, vents, level gauges, and nozzles as required. For heated or cooled processes, we can add a clamp-on or dimple jacket. Every tank is hydrostatically tested before shipment.
Applications in Chemical Plants
These tanks suit a range of duties: storing process water, chemical feed solutions, waste streams, and intermediate products. We have supplied tanks for acid dilution, polymer mixing, and rinse water systems. If you need a tank for food or pharmaceutical use, we adapt the design and finish accordingly—but for chemical service, the priority is material compatibility and structural integrity.
Technical Specifications
| Capacity | Custom (500 L – 100,000 L) |
|---|---|
| Material | SUS304 / SUS316L |
| Type | Vertical / horizontal, closed / open top |
| Surface finish | 2B, BA, or mirror polish (Ra 0.4–0.8 μm) |
| Options | Heating/cooling jacket, insulation, agitation, level controls |
| Manufacturing | TIG welding, hydrostatic tested, pressure rated as required |
FAQ
Q: How do I choose between 304 and 316L?
Consider the chemical composition, temperature, and chloride content. 316L offers better resistance to chlorides and acids. If you are unsure, send us the chemical data sheet.
Q: Can you build a tank for vacuum service?
Yes, but vacuum and pressure ratings require specific design calculations and reinforcement. We will quote based on your required rating.
Q: What information do you need for a quote?
We need the stored product, capacity, dimensions, operating temperature, and any special requirements (e.g., agitation, heating, insulation).
Get the Right Tank for Your Plant
Send us your product name, required capacity, material preference, working temperature, and site constraints. Our engineers will recommend the correct configuration and provide a detailed quote.
