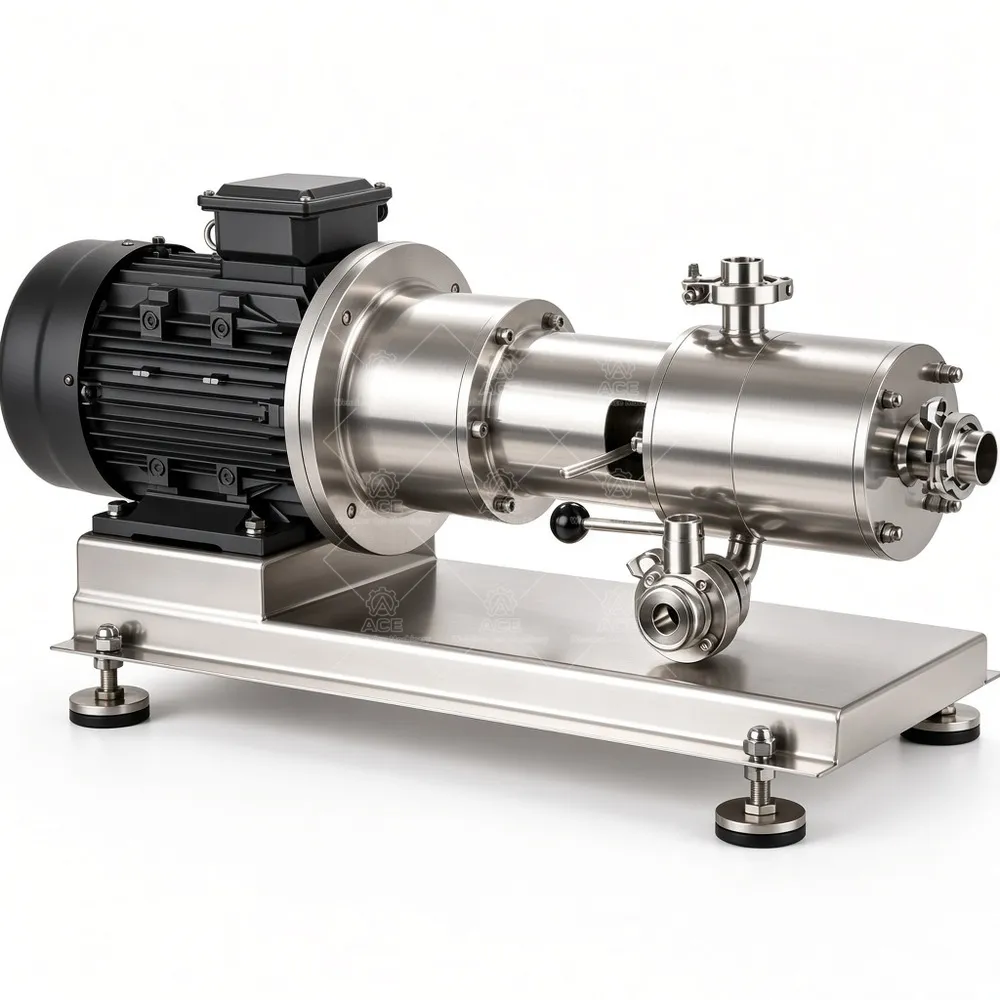

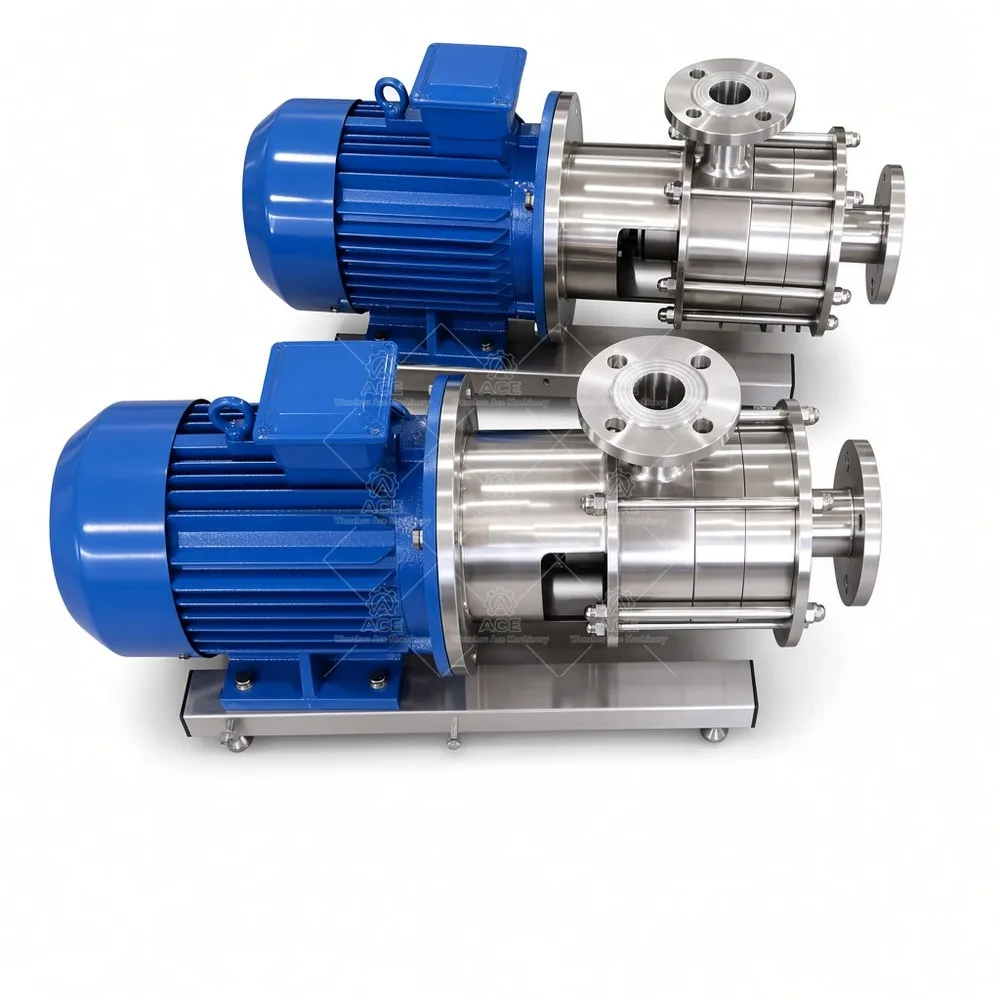

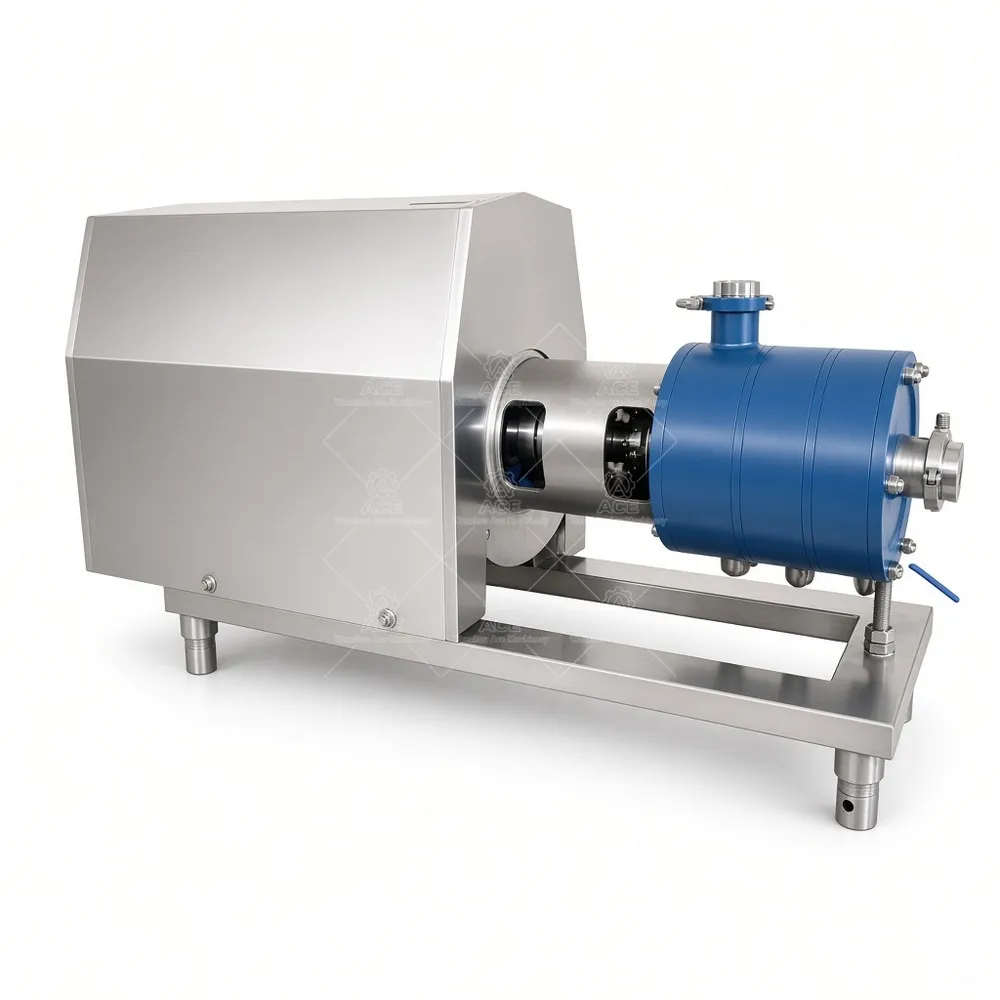

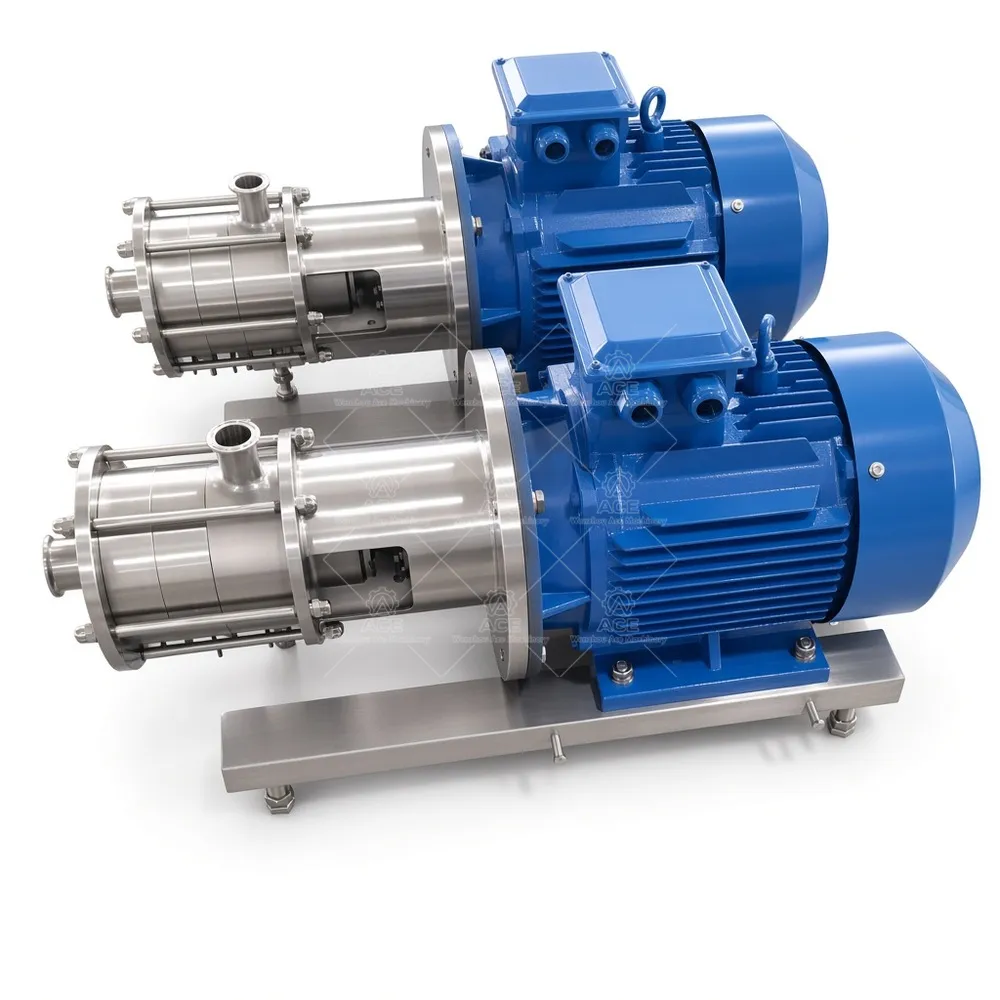

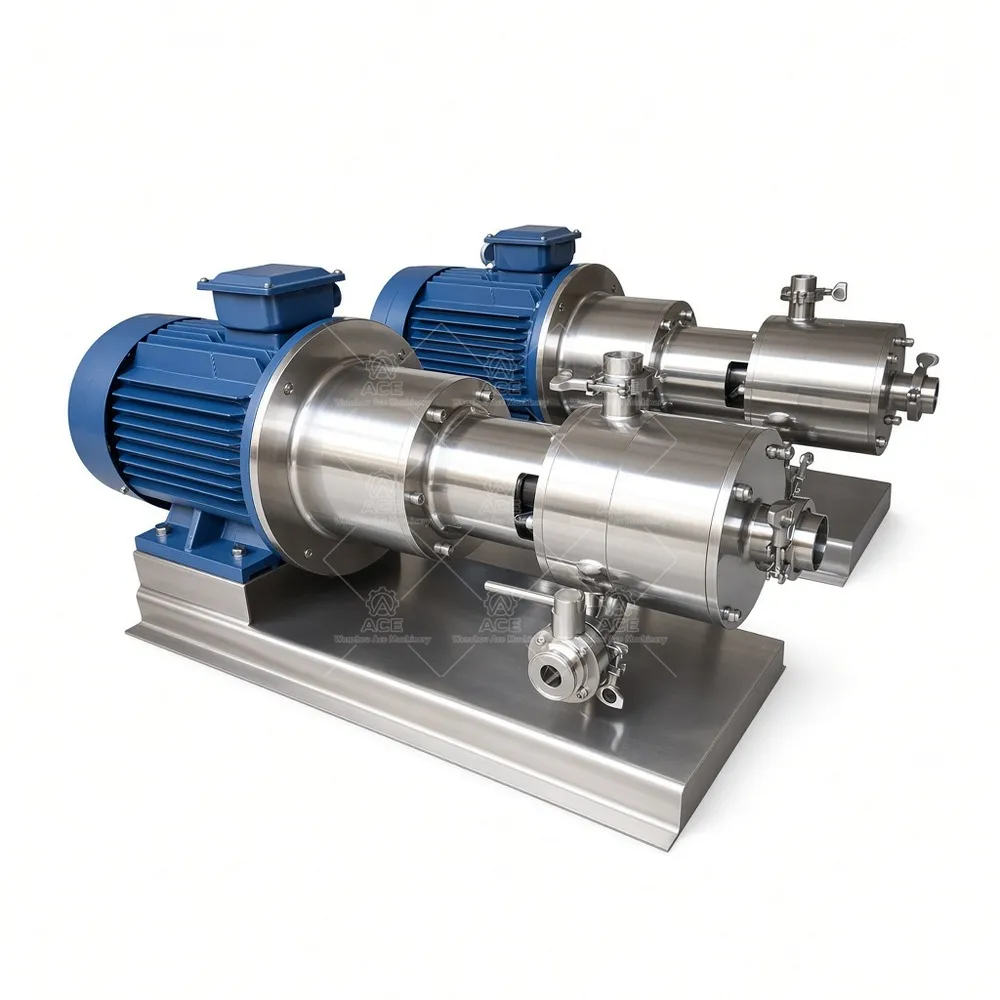

Ace Mixer Inline High-Shear Powder Mixer with Hopper | Emulsifier Pump
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,921.56 through $2,064.33
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for Powder Induction Without the Clumps
Dumping powders into a tank by hand creates dust, lumps, and inconsistent batches. The Ace Mixer water-powder mixer with hopper handles that step directly: powder enters through the hopper, meets liquid in the mixing chamber, and gets pulled into a high-speed rotor-stator before it can form fish eyes. We build this unit for inline or recirculation service, so it can sit in a pipe run or work alongside your existing tank.
The rotor-stator head creates shear and pumping action in one pass. That helps with liquid-liquid emulsification, dispersion of gums and stabilizers, and particle size reduction where the formulation allows it. Results still depend on your recipe, solids loading, viscosity, and how the pump is piped. We won’t promise a droplet size or cycle time without knowing those details.
What Matters on the Production Floor
- Hopper-based powder addition: feeds dry ingredients into the liquid stream with less dusting and fewer manual additions.
- Inline or recirculation installation: fits into existing piping and tanks; often a better fit than adding another batch tank when floor space is tight.
- High-shear rotor-stator: combines pumping with dispersing, emulsifying, and deagglomerating in a compact unit.
- Stainless steel construction: wetted parts in 304 or 316L stainless steel, with seal and elastomer options selected for your chemistry.
- Optional VFD: lets operators tune speed to the product instead of running full out.
- Custom connections and motor options: tri-clamp, flange, or thread connections; motors matched to your electrical supply.
Where It Fits
Food and beverage plants use these mixers for sauces, dressings, syrups, dairy blends, and stabilizer dispersions. Cosmetics and personal care lines use them for creams, lotions, shampoos, and liquid detergents. Pharmaceutical processors may use the same principle for liquid formulations and excipient dispersion when the equipment and materials are suitable. Chemical plants use inline high-shear mixing for coatings, adhesives, water-based formulations, and compatible emulsions. One pump configuration won’t cover every formula—seals, elastomers, and motor power need to match the product.
FAQ
Can it run continuously? Yes, in a properly piped recirculation or inline system, provided the seal and motor are selected for the duty.
Do I need a hopper? If you add powders, yes. It is the practical way to introduce dry ingredients without opening the tank.
What information do you need for a quote? Batch size, viscosity, solids content, target flow rate, motor power, and local voltage/frequency. Send those details and we’ll recommend a configuration.
Ready to specify one? Send your batch size, material characteristics, required motor power, and local electrical specs. Our team will come back with a suitable configuration and price.
Ace Mixer’s inline high-shear powder mixer with hopper combines powder induction, emulsification, and dispersion in one compact unit. Built for recirculation or inline service, it uses a rotor-stator head to reduce clumps and improve batch consistency. Available in stainless steel with optional VFD, custom seals, connections, and motors to match your process.

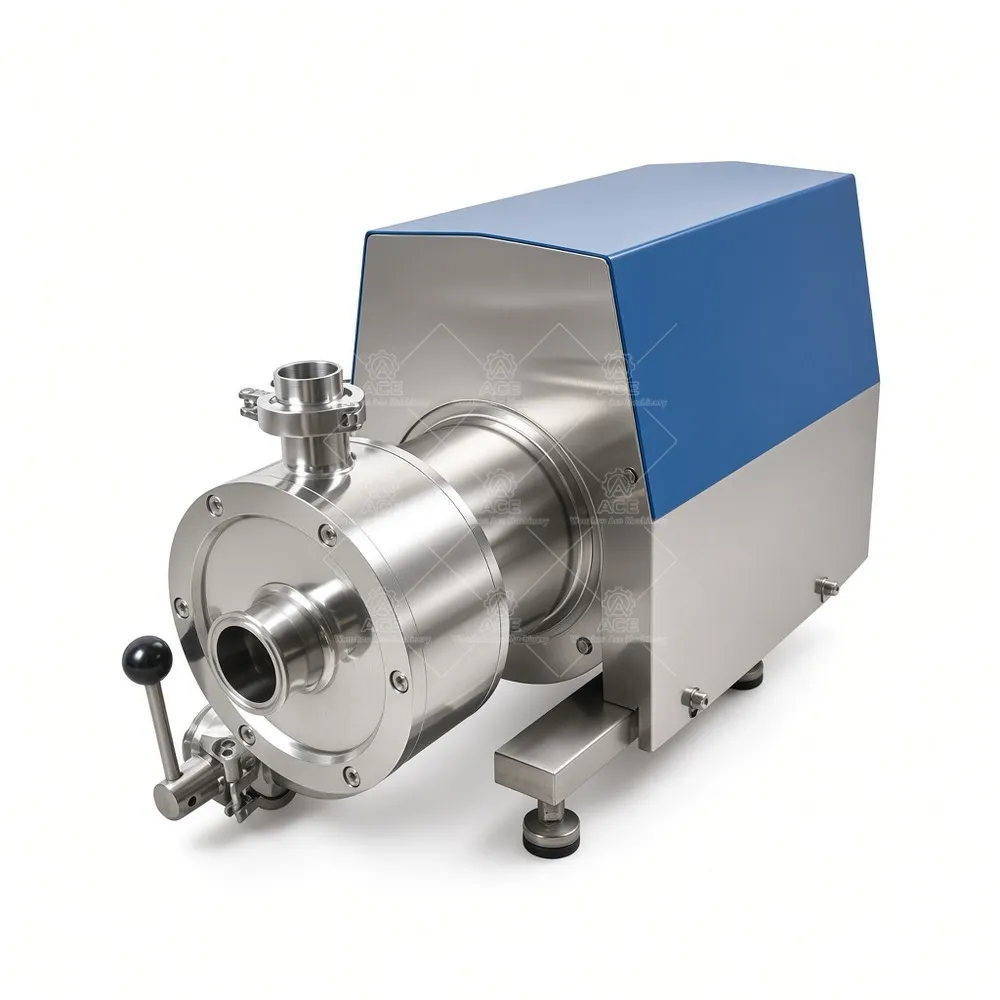

Single-stage in-line mixer
Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
