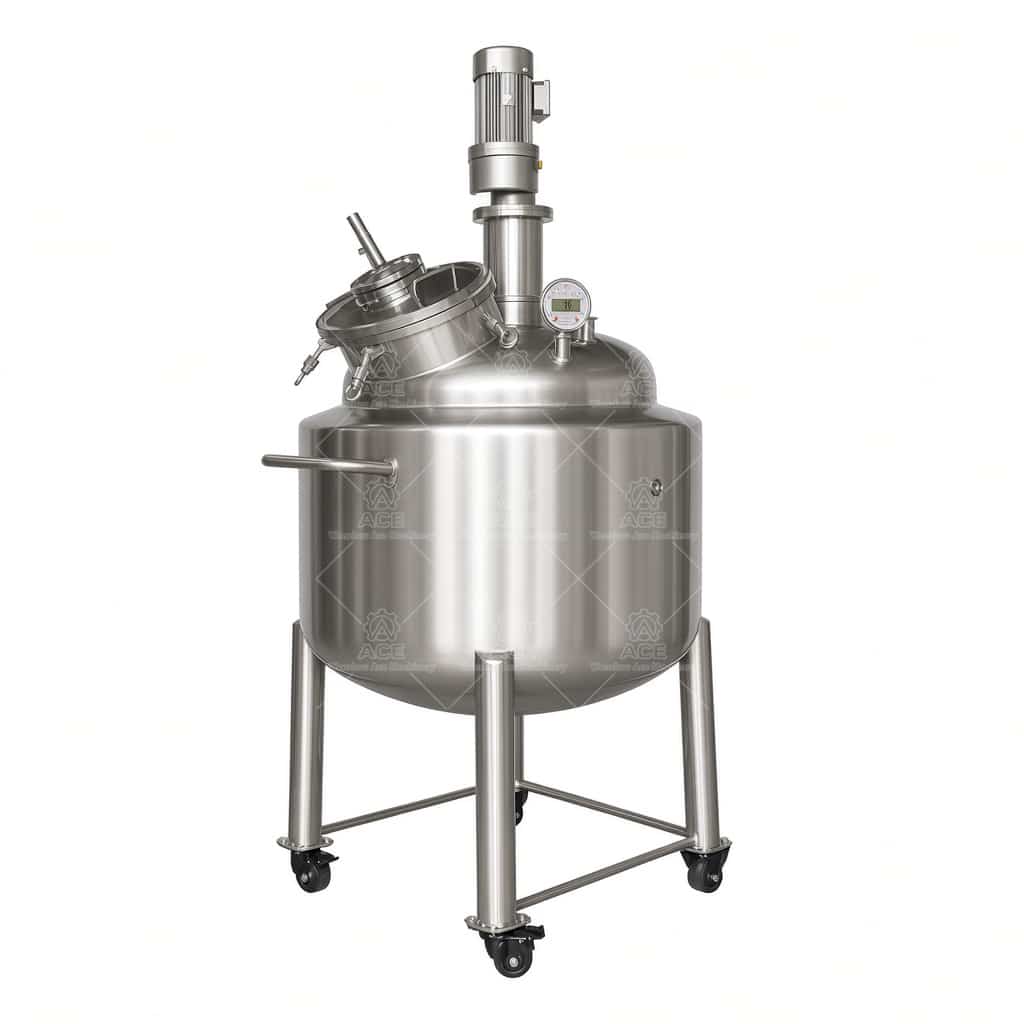

500L Stainless Steel Double-Layer Coil Heating Cooling Vacuum Reactor
500L stainless steel vacuum reactor with double-layer coil heating and cooling. Customizable agitator, vacuum capability, and sanitary finish for chemical, pharmaceutical, and food processing applications.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: [SUS304 / SUS316L]
- Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
- Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
- Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
- Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
- Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $3,534.26 through $4,380.72
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
This 500L reactor is built for processes that demand both heating and cooling in a single vessel. The double-layer coil design gives you direct temperature control without relying on an external heat exchanger. That matters when you\’re working with heat-sensitive compounds or need to crash-cool a batch quickly.
We fabricate the wetted parts from 304 or 316L stainless steel, depending on what you\’re processing. The choice usually comes down to corrosion resistance and product purity. For pharmaceutical or food applications, we go with 316L and a mirror polish finish. For general chemical use, 304 is often sufficient and more economical. Welds are full-penetration and ground smooth to prevent product entrapment.
The vacuum capability allows you to run distillation, degassing, or reactions under reduced pressure. Combined with the coil heating and cooling system, you can handle a wide range of batch processes in one unit. The agitator is customizable—anchor, paddle, or turbine type—depending on your viscosity and mixing requirements.
We understand that no two processes are identical. That\’s why we offer options like variable speed drives, pressure gauges, sight glasses, and sanitary tri-clamp connections. If you need a specific nozzle arrangement or a different working volume, we can adapt the design.
Technical Specifications
| Capacity | 500L (working volume adjustable) |
| Material | SS304 / SS316L |
| Heating/Cooling | Double-layer coil, internal or external |
| Pressure | Atmospheric / Vacuum / Low pressure (customizable) |
| Agitator | Anchor / Paddle / Turbine (customizable) |
| Sealing | Mechanical seal or packing seal |
| Finish | Mirror polish / matte finish |
Frequently Asked Questions
Q: What is the maximum operating temperature?
It depends on the seal material and the heating medium. Typically, we design for up to 180°C with standard PTFE seals. Let us know your requirement.
Q: Can I use this reactor for high-viscosity materials?
Yes, but the agitator type and motor power need to be selected accordingly. For pastes or gels, an anchor agitator with a scraper is often the right choice.
Q: How do I clean the reactor?
For most applications, the mirror-polished interior and smooth welds allow for CIP (clean-in-place) with spray balls. We can add a spray ball nozzle if needed.
Q: Do you provide documentation?
We supply material certificates, weld inspection reports, and pressure test certificates upon request.
When you\’re ready to get a quote, send us the details of your process. We need to know the materials you\’re handling, the batch volume, the operating temperature and pressure, and the mixing requirements. With that information, we can recommend the right configuration and give you a clear price.
