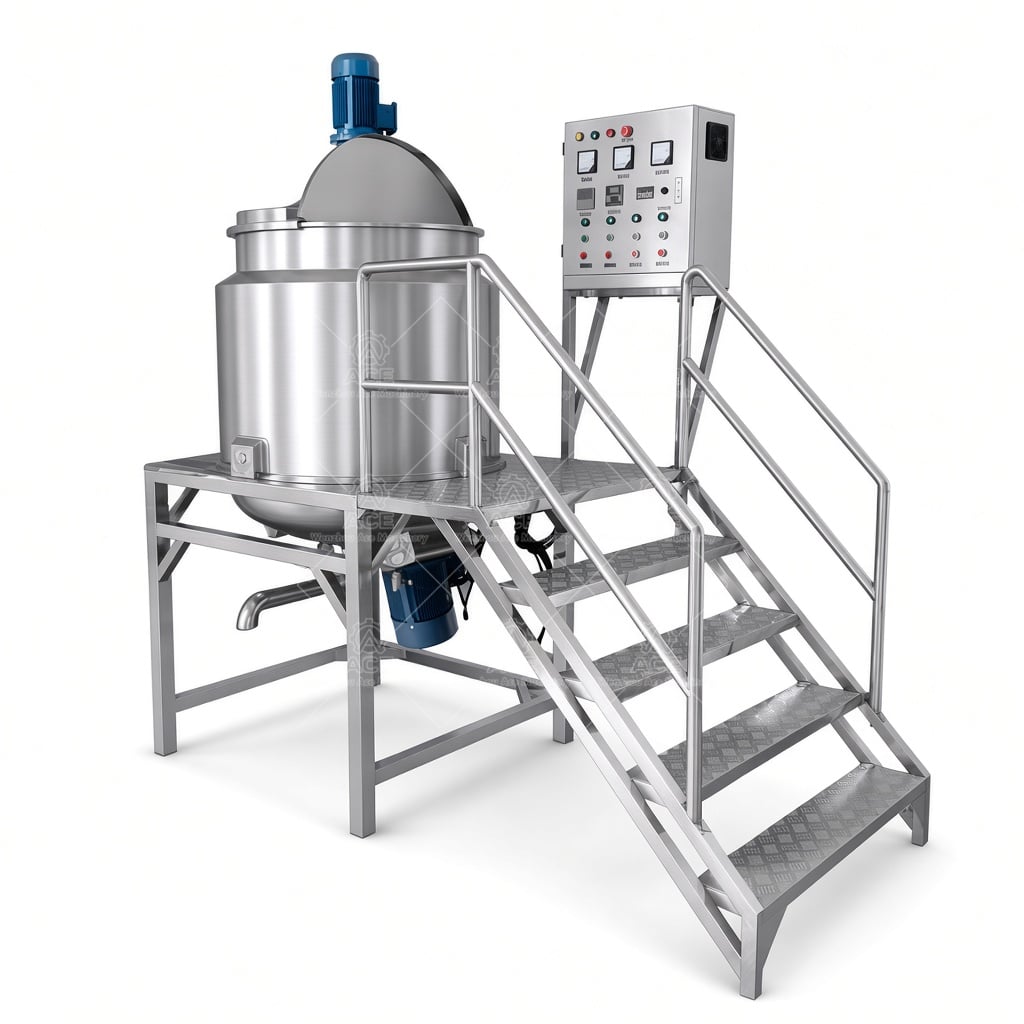

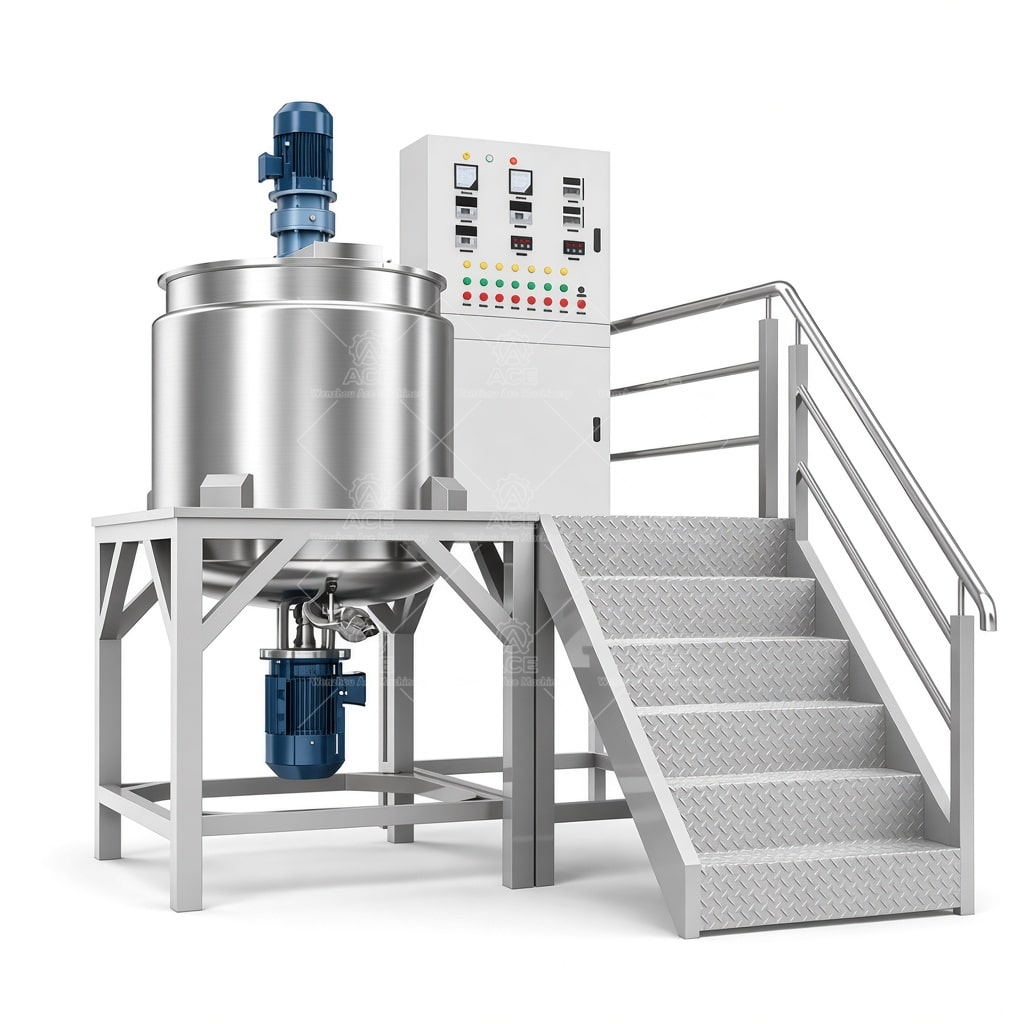

50-6000L Liquid Soap Detergent Mixer with Heater and High Shear Homogenizer
Configure a 50–6000 L heated mixing system for liquid detergent, soap, and paste production. Agitator geometry, high-shear placement, motor and gearbox sizing, stainless steel grade, seals, and heating method depend on the formulation and batch conditions. Share working volume, viscosity, temperature, cleaning process, and plant utilities to support an accurate equipment recommendation.
- Capacity: 50 liters to 30,000 liters
- Mixer power: 1.5 kW to 55 kW
- Material: 304 or 316L
- Voltage: 110V to 600V
- Heating method: Electric or steam heating
- Layer:single/double jacket/three jacket
- Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
- Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
- Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
- Our equipment supports customisation, global delivery, and a 1-year warranty.
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $9,349.79 through $10,784.98
Guaranteed Safe Checkout
Recommend RPM: 0-960RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 0-200RPM
Viscosity: Low/medium viscosity
Application: Mainly Liquid mixing
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For single wall tank
Recommend RPM: 30RPM
Viscosity: Medium/High viscosity
Application: Melting, High viscosity product mixing, For jacket tank
Recommend RPM: 1480/2850 RPM
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion
Recommend RPM: 2800 - 3200 RPM
Viscosity: Low/medium/High viscosity
Application: Liquid powder mixing and homogenizing
Recommend RPM: 0-355RPM
Viscosity: Low/medium viscosity
Application: Install at bottom, No mechanical seal working condition
Recommend RPM: As above
Viscosity: Low/medium viscosity
Application: Liquid powder mixing and dispersion For tank volume >300L
Detergent and liquid soap mixing system
This 50–6000 L mixer is configured for batches that need bulk circulation, heating, and high-shear dispersion. A typical process may use an anchor or paddle agitator to move viscous soap paste while a rotor-stator homogenizer breaks down concentrated surfactant additions, colorants, or other ingredients. The required arrangement depends on viscosity, batch size, addition sequence, and the texture the finished product must meet. High shear alone will not prevent dead zones in a large, thick batch; vessel geometry and the main agitator matter just as much.
Construction and configuration
We select wetted materials against the formulation and cleaning chemicals. 304 stainless steel may suit many general detergent products; 316L is considered when chloride exposure, corrosive ingredients, or a stricter corrosion requirement calls for it. Weld finish, internal polish, drainability, and seal materials should be agreed from the actual cleaning and product requirements. These details affect cleanability and service life, not just appearance.
Heating can be configured around available plant utilities and the product’s temperature limits. The heat-transfer method, heating area, insulation, and temperature-sensor location affect warm-up time and temperature uniformity. A viscous batch can heat unevenly if circulation is inadequate. Motor and gearbox sizing also depend on viscosity, fill level, start-up conditions, and the selected impeller; speed control may be specified where the process needs staged mixing. Seal arrangement and access for maintenance should be reviewed before layout approval.
Typical applications
Use cases include liquid laundry detergent, dishwashing liquid, hand soap, and concentrated soap paste. A manufacturer adding surfactant to a heated base may use slow bulk agitation during charging, then apply high shear for dispersion. Actual performance depends on the recipe and process sequence, so representative materials and batch conditions are useful during engineering review.
Specification overview
| Item | Configuration basis |
|---|---|
| Nominal capacity | 50–6000 L; confirm working volume and batch size |
| Mixing | Agitator and high-shear head selected for viscosity and process |
| Heating | Method and controls matched to plant utilities and temperature needs |
| Wetted construction | Stainless grade, finish, welds, and seals specified by formulation |
FAQs
Can one configuration handle both thin detergent and paste? Not automatically. Viscosity range and batch behavior determine agitator geometry, drive sizing, and homogenizer placement.
What should we send for a quotation? Provide batch and working volumes, ingredients or compatibility concerns, viscosity at operating temperature, target temperature, cycle time, cleaning method, utilities, and any site or control requirements. These details let our engineers recommend a buildable configuration rather than assume a standard setup.
