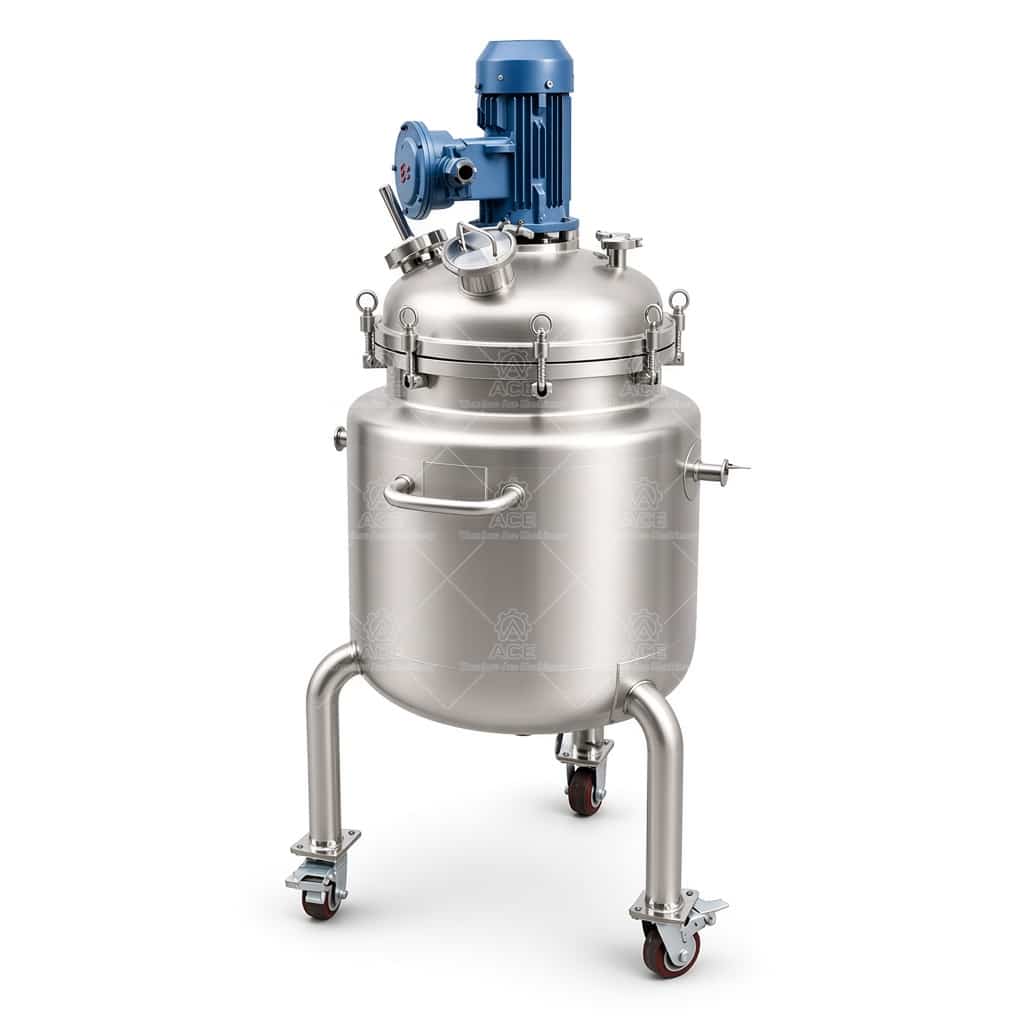

304 Stainless Steel Jacketed Electric Heating Vacuum Shear Dispersion Reactor for Daily Chemical Industry - Image 1

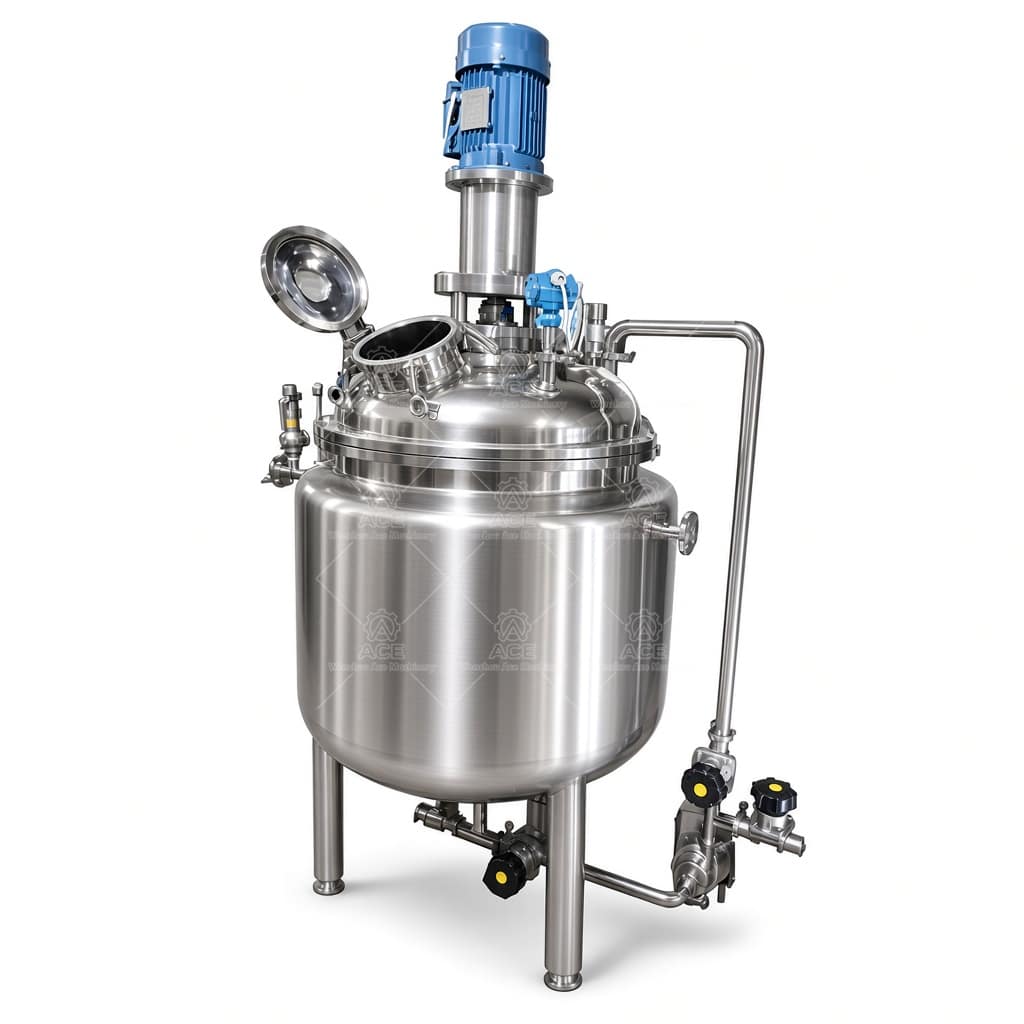

304 Stainless Steel Jacketed Electric Heating Vacuum Shear Dispersion Reactor for Daily Chemical Industry - Image 2

304 Stainless Steel Jacketed Electric Heating Vacuum Shear Dispersion Reactor for Daily Chemical Industry

304 stainless steel jacketed reactor with electric heating and vacuum shear dispersion for daily chemical production. Built for emulsions, pastes, and liquid products requiring precise temperature control and high-shear mixing.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,052.34 through $3,804.44

Ask For A Quotation

Guaranteed Safe Checkout

This reactor is built for daily chemical production lines where mixing, dispersion, and vacuum processing need to happen in one vessel. The 304 stainless steel construction handles standard formulations without worrying about corrosion or product contamination. We use this configuration frequently in shampoo, lotion, and paste production facilities.

The jacket design allows precise temperature control during processing. Electric heating brings the vessel up to operating temperature quickly, and cooling water through the same jacket brings it down when the batch is done. For shear-sensitive formulations, the dispersion head creates the right hydraulic conditions to break up agglomerates without overworking the product.

Vacuum capability removes air from the batch, which matters when you\’re making products that need to be bubble-free or when you\’re drawing off solvents. The combination of vacuum and high-shear dispersion is what makes this unit useful for emulsification and homogenization steps in personal care manufacturing.

Construction Details

The vessel is welded with full penetration and ground smooth on all wetted surfaces. Interior finish is typically 320-grit mirror polish, which keeps cleaning time down and prevents material buildup between batches. The mechanical seal on the agitator shaft is selected based on your specific operating pressure and temperature range.

We build these reactors with a removable top head or full opening depending on how you need to charge materials and clean the vessel. Agitator speed is variable, and we can fit different dispersion blade geometries to match your product viscosity.

Applications

Daily chemical emulsions and creams
Liquid detergent and cleaning products
Cosmetic pastes and gels
Chemical intermediate mixing and dispersion

Technical Specifications

Material	304 stainless steel (316L available on request)
Heating	Electric heating via jacket
Cooling	Jacket water cooling
Operating Pressure	Atmospheric to full vacuum (custom pressure ratings available)
Mixing System	High-shear dispersion impeller with variable speed drive
Sealing	Mechanical seal or stuffing box per application
Surface Finish	Internal mirror polish, external matte or brushed

Buying Checklist

Before requesting a quote, work through these points with your process team:

What materials will you process, and at what concentration?
What batch volume and working volume do you need?
What temperature range must the vessel handle?
Will you run at atmospheric pressure, under vacuum, or both?
What viscosity range does your product cover?
Do you need heating, cooling, or both?
What level of dispersion or homogenization is required?
What cleaning protocol and compliance standards apply?

These details determine vessel wall thickness, agitator horsepower, seal type, and jacket sizing. A 500-liter unit processing thin liquid soap has different requirements than a 2000-liter unit handling thick cream base.

Contact our engineering team with your material list, batch size, operating temperature, pressure requirements, and mixing expectations. We will recommend the correct configuration and provide a quotation based on your actual production conditions.
