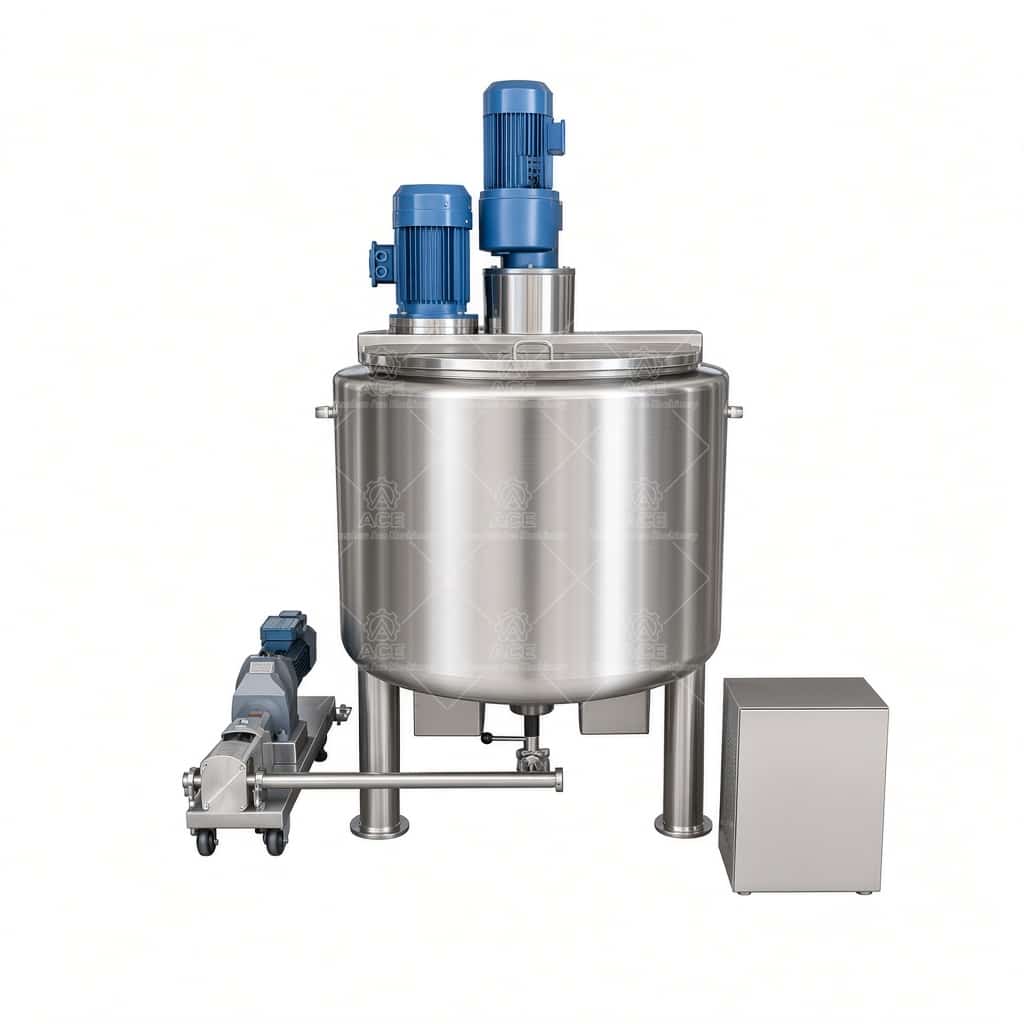

3000L Detergent Mixing Tank with Motor and Heating for Chemical Processing

A 3000L detergent mixing machine for chemical batch processing, with motor-driven agitation and heating capability. Configuration depends on batch volume, viscosity, ingredient compatibility, heat-up requirements, and cleaning conditions. Confirm material grade, impeller design, drive sizing, heating method, and controls against your process data before requesting a quotation.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $7,728.06 through $8,581.24

Ask For A Quotation

Guaranteed Safe Checkout

3000L Detergent Mixing System for Batch Processing

This 3000L mixing machine is intended for detergent and chemical batches that need controlled agitation and, where the formulation requires it, heating. The working volume, batch size, and required mixing time should be confirmed together: a vessel\’s nominal capacity is not necessarily its usable production volume. Viscosity changes during heating or ingredient addition can also affect how the batch circulates.

Construction and configuration

We select wetted materials to match the formulation, cleaning chemicals, operating temperature, and required cleanliness. Stainless steel grade should be confirmed against the actual ingredients; 304 or 316L may be considered depending on corrosion exposure and process requirements. Weld details, internal finish, and any polishing level should be agreed before fabrication, particularly where product residue or cleaning access is a concern. Seal materials also need to suit the detergent chemistry and temperature range.

The motor, reducer, shaft, and impeller are sized around batch viscosity, density, mixing duty, and the desired turnover—not tank capacity alone. A lower-shear impeller may suit general blending, while higher-viscosity products or powder incorporation can require a different geometry and drive arrangement. Baffles and access openings should be reviewed as part of the mixing design. Heating method, heater capacity, insulation, and temperature controls depend on the heat-up target, available utilities, product sensitivity, and vessel construction. We confirm those details with the process data rather than assume a standard configuration.

Typical specification basis

Item	Available information
Nominal capacity	3000 L
Process	Detergent and chemical mixing
Agitation	Motor-driven; motor and impeller selection requires process details
Heating	Heating capability specified; method and control range to be confirmed
Materials and finish	To be selected for product compatibility and cleaning requirements

Applications and purchasing questions

Potential duties include blending liquid detergents, cleaners, and other compatible chemical products. Confirm the exact formulation and any hazardous or temperature-sensitive ingredients before selecting seals, electrical components, and cleaning procedures.

FAQ

Can this unit handle a viscous detergent? Possibly; provide viscosity across the process temperature range and describe any thickening or powder-addition steps.

What information is needed for a quotation? Share target batch volume, ingredients or compatibility requirements, viscosity, operating and cleaning temperatures, heat-up time, utilities, and required finish. These details allow our engineers to recommend a practical vessel, drive, impeller, and heating configuration.
