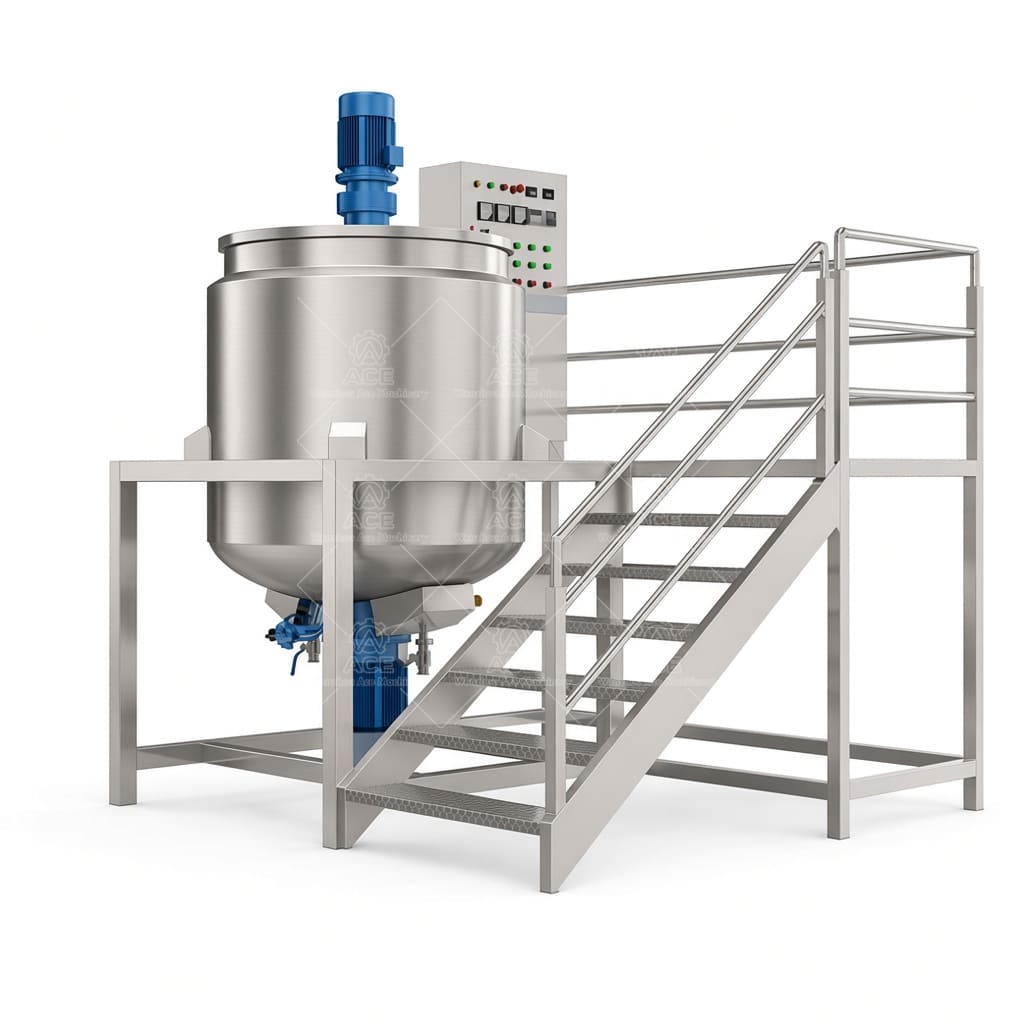

3-Phase Vacuum Cosmetic Cream Homogenizing Emulsifying Mixer

A 3-phase vacuum mixing system for cosmetic cream homogenizing and emulsifying processes. The working volume, agitator and homogenizer arrangement, product-contact stainless steel, seals, finish, and temperature-control options should be specified against the formulation and cleaning process. Confirm whether the required plant supply is 380V or 220V before ordering, since the title alone does not establish dual-voltage compatibility.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $6,845.52 through $7,799.10

Ask For A Quotation

Guaranteed Safe Checkout

Vacuum Mixing for Cosmetic Cream Production

This vacuum cosmetic cream mixer is intended for batches that need controlled mixing, homogenization, and emulsification in a closed vessel. Vacuum processing can help reduce entrained air in creams and lotions, but the result depends on the formulation, batch size, mixing sequence, and the mixer and homogenizer configuration. We size the working volume and drive arrangement around the actual recipe rather than assuming one setup suits every product.

Construction and Process Configuration

Product-contact vessel surfaces are commonly specified in 304 or 316L stainless steel. The appropriate grade depends on ingredients, cleaning chemicals, chloride exposure, and plant standards. Welds, internal corners, and surface finish should be defined for the product and cleaning method; sanitary service may require smooth, accessible surfaces and documented finishing requirements. Seal materials also need to match the formulation, process temperature, and cleaning agents.

Agitator type and speed are selected for viscosity and batch behavior. An anchor-style agitator can move material near vessel walls, while a high-shear homogenizing head is used when the recipe requires finer dispersion or emulsification. These functions should be sized together: a high-shear head alone may not circulate a viscous batch effectively. Motor and gearbox selection depends on working volume, viscosity, operating speed, and expected starting load.

Heating and cooling arrangements are not specified by the title. If temperature control is required, we can assess a jacket or other suitable heat-transfer arrangement against the target temperature, heating rate, cooling duty, and available plant utilities. The control method and temperature instrumentation should reflect the process tolerances.

Technical Specifications

Item	Specification
Equipment type	Vacuum cosmetic cream mixing, homogenizing, and emulsifying machine
Electrical supply stated	3-phase, 380V/220V; confirm required voltage and wiring before ordering
Capacity, speed, materials, finish, and heating	Configured to the process; not specified in the source title

Applications and Purchasing Details

Typical process discussions include creams, lotions, and similar personal-care emulsions. Before requesting a quotation, send the target batch volume, ingredient list or viscosity range, process temperatures, required vacuum conditions, cleaning method, utility supply, and expected batch time. Also confirm whether the machine must fit existing room dimensions or connect to plant controls.

FAQ

Does 380V/220V mean the machine supports both voltages? The title does not confirm that. Specify the site supply so the electrical configuration can be checked.

Can one mixer handle every cream? No. Viscosity, batch scale, and required droplet or particle dispersion affect agitator and homogenizer selection.

What should be confirmed first? Share the recipe conditions and cleaning requirements; these guide vessel size, contact materials, seals, drives, and any heating or cooling options.
