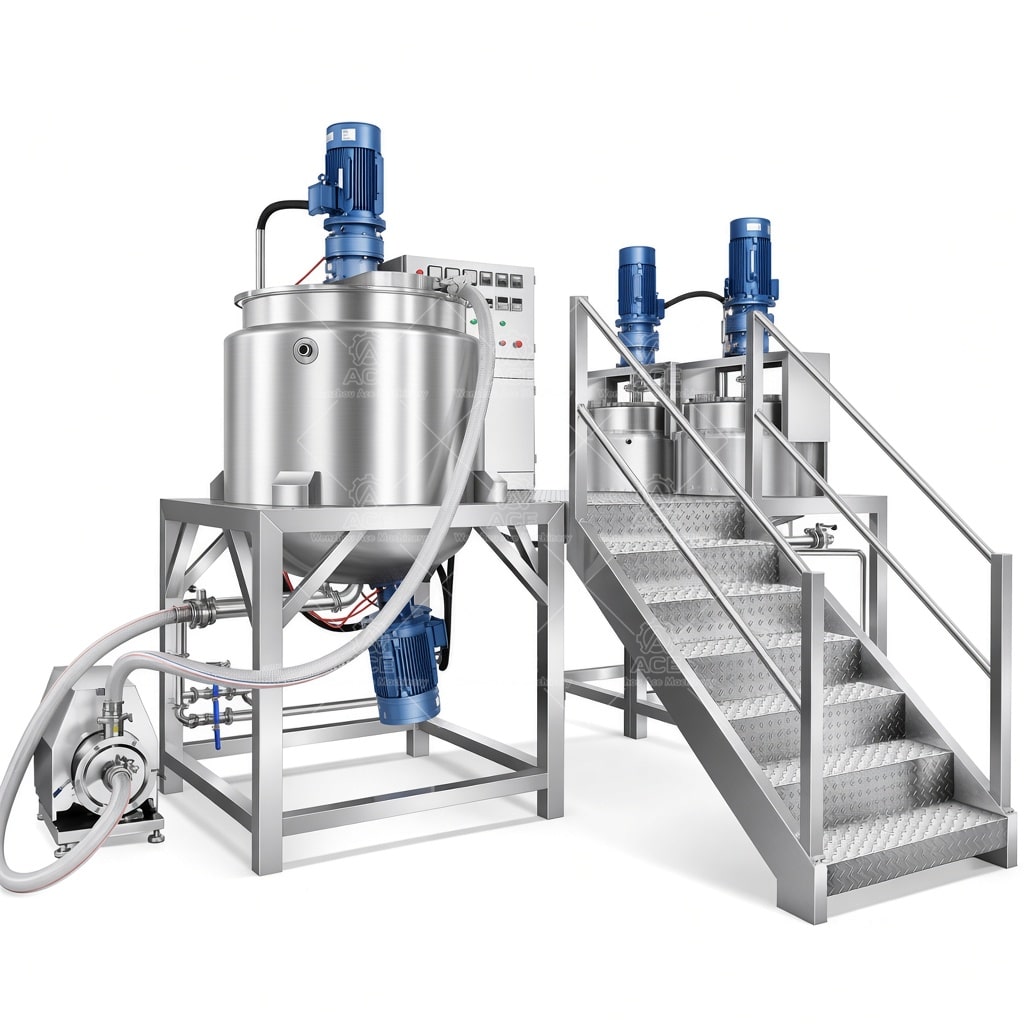

1000L Vacuum Emulsifying Mixer with AC Motor and Gearbox - Image 1

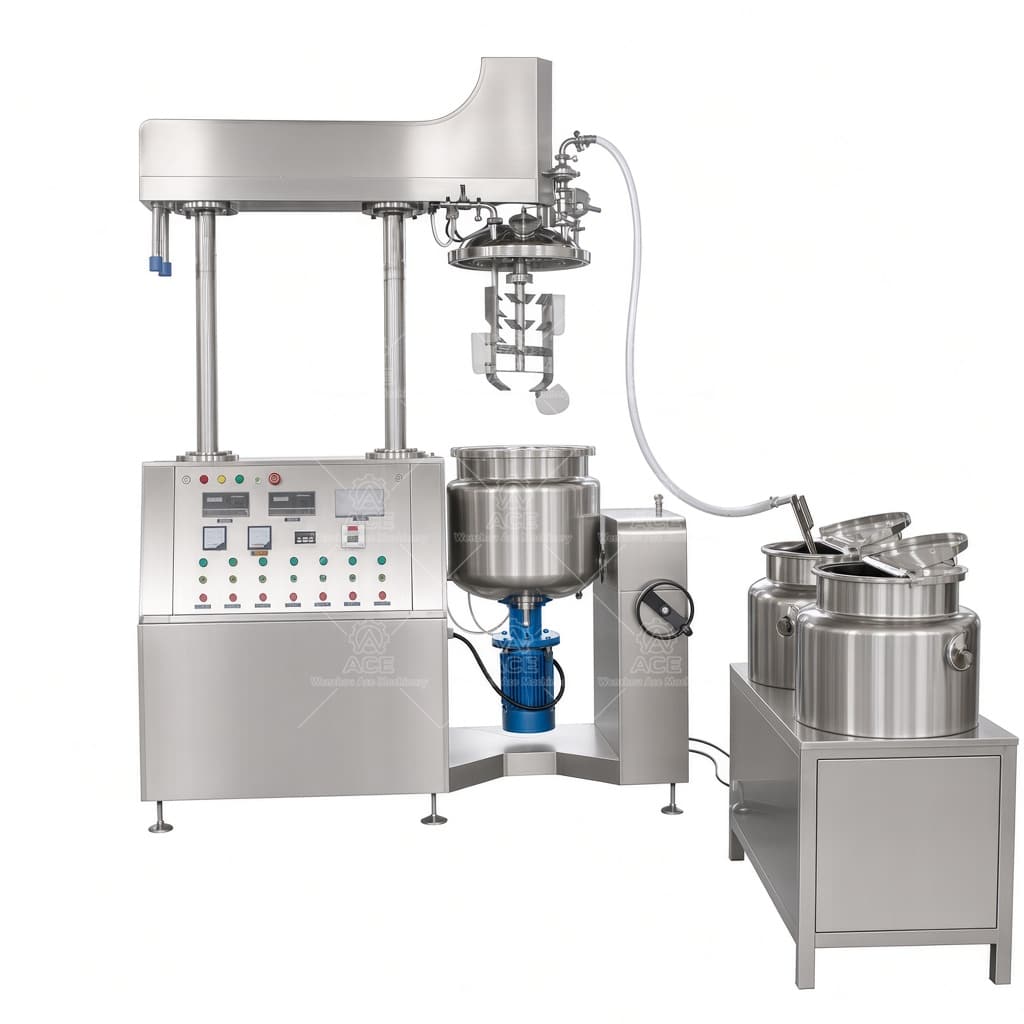

1000L Vacuum Emulsifying Mixer with AC Motor and Gearbox - Image 2

Click to enlarge

1000L Vacuum Emulsifying Mixer with AC Motor and Gearbox

A 1000L vacuum emulsifying mixer with a digital AC motor and gearbox for cosmetic and food batch processing. Configuration depends on working volume, formulation viscosity, shear requirements, contact-material compatibility, and cleaning method. Heating, cooling, seals, agitator design, and controls should be confirmed against the production process before equipment selection.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: 304 or 316L
Voltage: 110V to 600V
Heating method: Electric or steam heating
Layer:single/double jacket/three jacket
Mixer types: Impeller-type, Anchor-type, Turbine-type, High-shear-type, Magnetic mixer, Anchor-type mixer with scrapers,dispersing
Optional: platform, wheels, ladder,variable frequency drive,explosion-proof device
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Our equipment supports customisation, global delivery, and a 1-year warranty.
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $8,218.92 through $9,804.35

Ask For A Quotation

Guaranteed Safe Checkout

1000L Vacuum Emulsifying Mixer for Batch Production

This vacuum emulsifying mixer is configured for cosmetic and food-processing batches where powders, oils, and liquids must be combined into a consistent emulsion. Vacuum operation can help limit air entrainment during mixing, while the emulsifying head provides high-shear processing. The actual result depends on formulation, batch volume, ingredient addition sequence, and the selected rotor-stator geometry. Confirm whether 1000L refers to gross vessel capacity or usable working volume before sizing the batch process.

Construction and configuration

We select product-contact materials around the formulation and cleaning method. 304 stainless steel may suit many general applications; 316 stainless steel is commonly considered where chloride exposure or more demanding chemical compatibility requires it. Weld quality, crevice control, internal finish, and cleanability should be specified together. Required surface finish and sanitary details depend on the product and applicable plant standards. Seal materials also need to match temperature, vacuum, and ingredient compatibility.

The digital AC motor and gearbox are selected against viscosity, required shear, batch size, and duty cycle—not vessel volume alone. Agitator style and speed range affect turnover and heat buildup; rotor-stator design affects droplet or particle reduction. We confirm these choices against the process rather than assuming one impeller arrangement fits every formula. Heating or cooling may be specified through a jacket, with the heat-transfer medium and temperature-control range established from the recipe and cycle time.

Technical overview

Item	Available information
Nominal capacity	1000L stated in product title; working volume to be confirmed
Mixing system	Vacuum emulsifying configuration
Drive	Digital AC motor with gearbox
Product contact materials	Specify by formulation; 304 or 316 stainless steel may be considered
Heating and cooling	Configuration and controls require process confirmation

Applications and purchasing questions

Typical evaluations include creams, lotions, sauces, and other viscous products, subject to ingredient compatibility and required hygienic design. For food or cosmetic production, confirm cleaning access, discharge arrangement, seals, controls, and any site-specific compliance requirements.

FAQ

Can it process every viscosity? No. Share viscosity at process temperature and any changes during mixing so the drive and agitator can be assessed.

Is heating included? The title does not specify a heating system. Jacket type, temperature range, and control method must be defined.

For a useful quotation, send batch size, formulation stages, target temperature, vacuum requirement, cleaning procedure, available utilities, and preferred contact-material grade. These details let our engineers recommend a workable configuration and clarify which specifications remain open.
